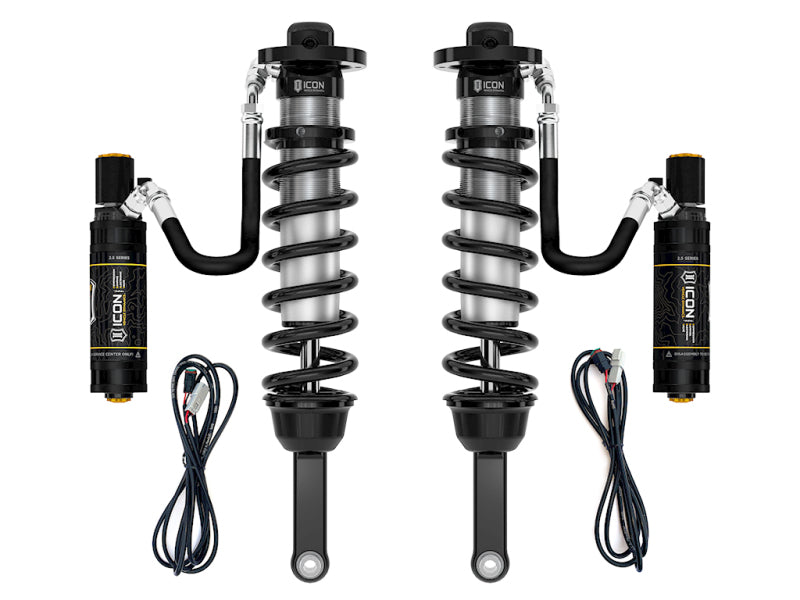

ICON 58747E V.S. Series 2.5 Remote Reservoir CDEV Coilover Kit for 2010-2024 Toyota 4Runner

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDEV are an incredible upgrade for the front end of the 2010-2024 Toyota 4runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. These extended-travel ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable. APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

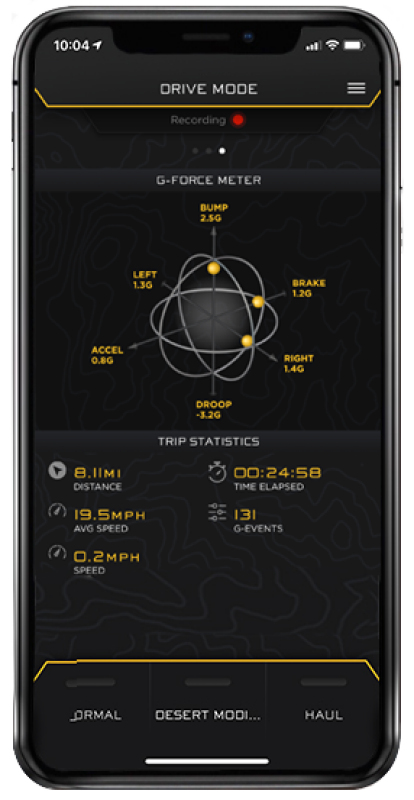

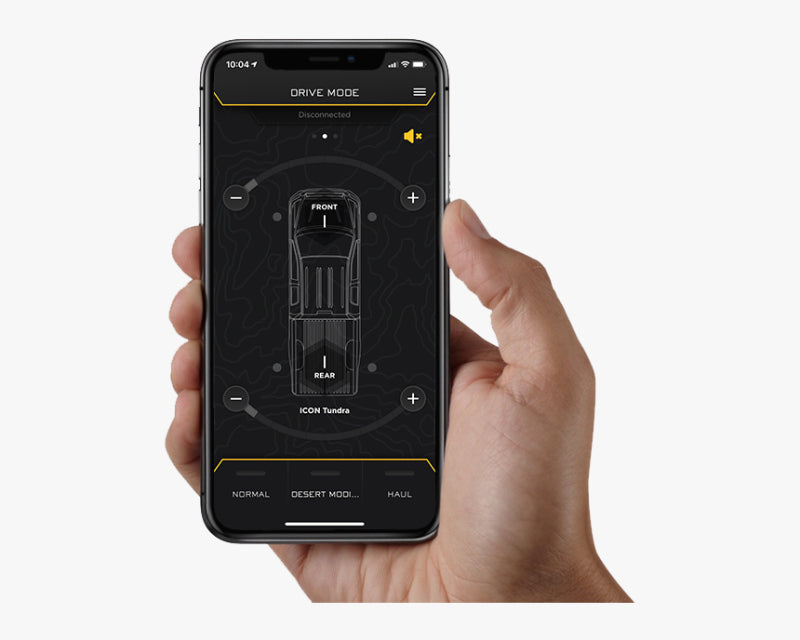

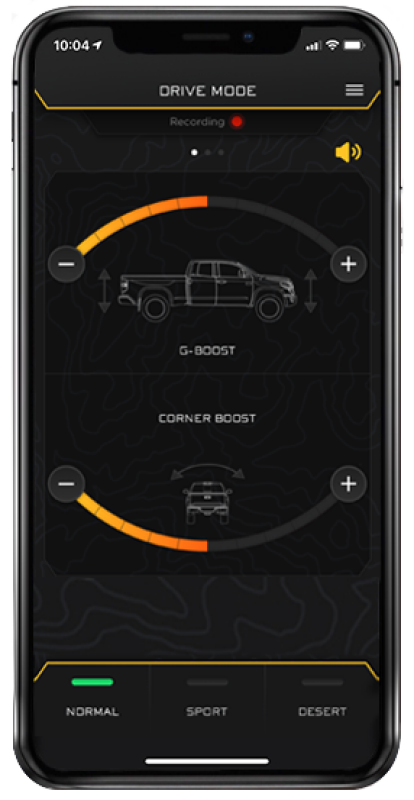

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• External reservoirs to attain cooler operating temperatures during extended off-road use
• FK rod end bearings for extended longevity and minimal deflection
• Bolt-on kit - no cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• 6061 Aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock
• Adjustable for 0-3.5" of lift height over stock
• ICON engineered Eibach Springs
• 100% Revalveable
• 100% Rebuildable

Upgrade the front suspension of your 2010-2024 Toyota 4Runner with the ICON Vehicle Dynamics V.S. Series 2.5 remote reservoir extended-travel coilover kit, part number 58747E. Vehicle-specific valving delivers a sport-tuned ride with improved damping and control on pavement, trails, and demanding off-road terrain. Adjustable from 0 to 3.5 inches of lift over stock, the kit supports larger, more aggressive wheel and tire combinations while improving wheel travel and overall ride quality.
The integrated ICON CDE Valve provides convenient in-vehicle adjustment of compression damping settings and active control through the ICON Intelligent Control system. Remote reservoirs help maintain cooler operating temperatures and consistent damping during extended, high-load use. The larger 2.5-inch shock bodies and increased piston area provide greater damping capability than stock components, while ICON-engineered Eibach springs support controlled suspension performance. These coilovers are 100% rebuildable and 100% revalveable for long-term serviceability and tuning flexibility.
Built for durability, the kit features corrosion-resistant CAD-plated shock bodies, 7/8-inch induction-hardened chrome-plated shafts, FK rod-end bearings, and CNC-machined 6061 aircraft-grade aluminum components. The bolt-on design requires no cutting or welding. Because this is an extended-travel application, aftermarket upper control arms are required for installation. Application Note #111: A bump stop spacer kit is available to increase the amount of thread showing beyond the maximum recommended setting. Confirm vehicle compatibility and installation requirements before ordering.

Features:

• ICON CDE Valve technology enables in-vehicle compression damping adjustment and active control through ICON Intelligent Control

• Vehicle-specific valving provides tuned shock damping and control for on-road and off-road driving

• Remote reservoirs help maintain cooler operating temperatures during extended off-road use

• Adjustable from 0 to 3.5 inches of lift height over stock

• Extended-travel design increases wheel travel and improves ride quality

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch induction-hardened chrome-plated shafts

• FK rod-end bearings provide extended longevity and reduced deflection

• CNC-machined 6061 aircraft-grade aluminum components

• Bolt-on installation requires no cutting or welding

• ICON-engineered Eibach springs

• 100% rebuildable construction

• 100% revalveable construction

• Aftermarket upper control arms are required for installation

Compatible With
2010 Toyota 4Runner
2011 Toyota 4Runner
2012 Toyota 4Runner
2013 Toyota 4Runner
2014 Toyota 4Runner
2015 Toyota 4Runner
2016 Toyota 4Runner
2017 Toyota 4Runner
2018 Toyota 4Runner
2019 Toyota 4Runner
2020 Toyota 4Runner
2021 Toyota 4Runner
2022 Toyota 4Runner
2023 Toyota 4Runner
2024 Toyota 4Runner
