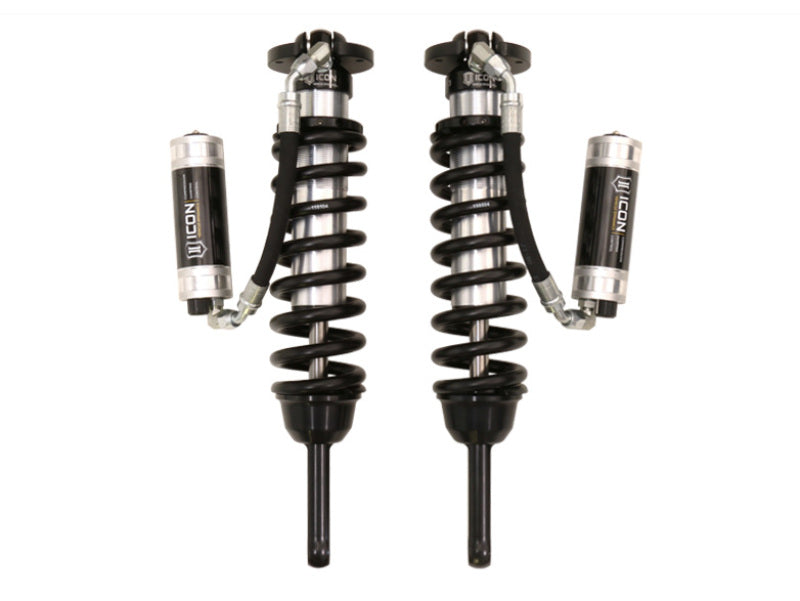

ICON 58747C V.S. 2.5 Series Extended-Travel Remote Reservoir Coilover Kit with CDC Valve for Toyota 4Runner, FJ Cruiser and Lexus GX

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. These extended-travel ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable. APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• High quality ICON-engineered coil springs guaranteed for life against sagging or breaking
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• External reservoir to attain cooler operating temperatures during extended off-road use
• Extended Travel length requires installation of aftermarket front upper control arms
• Superior low speed control reduces body roll and increases on-road stability
• FK Rod End bearings provide extended longevity and minimal deflection
• Bolt-in design makes for an easy install into OEM shock location
• Corrosion resistant CAD plated shock body with 7/8" shaft
• Adjustable coilovers yield 0-3.5" of front lift height

Upgrade the front suspension of your Toyota 4Runner, FJ Cruiser, or Lexus GX with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, part number 58747C. Designed with vehicle-specific valving, these extended-travel coilovers deliver a sport-tuned ride for both street driving and off-road use while providing adjustable front lift from 0 to 3.5 inches. The extended-length design increases wheel travel and supports larger, more aggressive wheel and tire combinations. Aftermarket front upper control arms are required for installation.
The 2.5-inch shock body and increased piston area improve damping performance compared with factory components, helping provide controlled handling, reduced body roll, and greater on-road stability. Remote reservoirs help maintain cooler operating temperatures and consistent damping during extended or demanding off-road use. The included ICON CDC Valve provides 10 levels of externally adjustable compression damping, allowing the ride to be tuned from softer to firmer settings with a simple turn of the knob.
ICON 58747C coilovers use high-quality ICON-engineered coil springs backed against sagging or breakage, along with FK rod-end bearings designed for durability and minimal deflection. The corrosion-resistant CAD-plated shock body features a 7/8-inch shaft, while the bolt-in configuration fits the original shock locations for a straightforward installation. The fully serviceable construction is 100% rebuildable and revalveable, supporting long-term maintenance and customization. A bump stop spacer kit is available for applications requiring additional threads beyond the maximum recommended adjustment. Professional installation and alignment are recommended after installation.

Features:

• Vehicle-specific valving delivers controlled performance across on-road and off-road conditions

• Extended-travel design increases wheel travel and requires aftermarket front upper control arms

• Adjustable coilover design provides 0 to 3.5 inches of front lift height

• ICON CDC Valve offers 10 levels of externally adjustable compression damping

• Remote reservoirs help maintain cooler operating temperatures during extended off-road use

• 2.5-inch shock body and increased piston area improve damping capability

• ICON-engineered coil springs are designed to resist sagging and breakage

• Fully serviceable construction supports rebuilding and revalving

• FK rod-end bearings provide extended durability and minimal deflection

• Bolt-in design fits the factory shock location

• Corrosion-resistant CAD-plated shock body with 7/8-inch shaft

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
