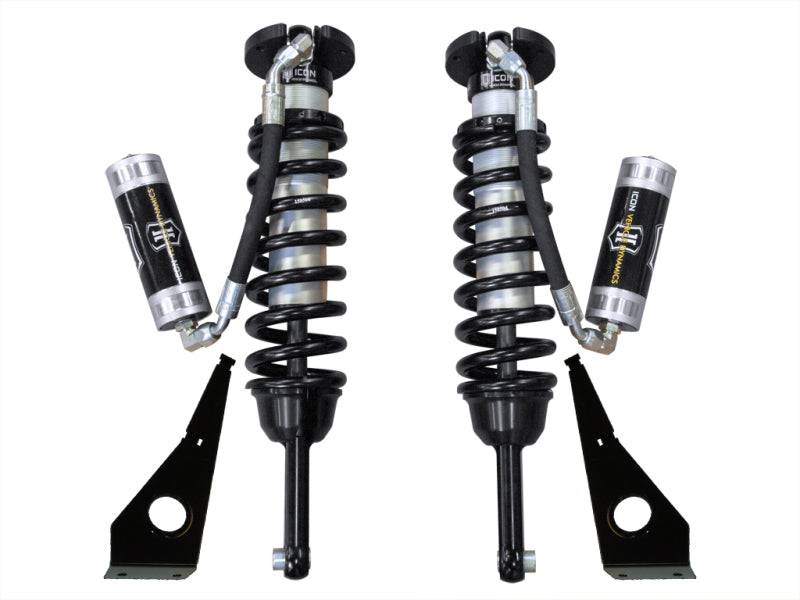

ICON 58746 V.S. 2.5 Series Remote Reservoir Front Coilover Kit for Toyota 4Runner, FJ Cruiser and Lexus GX460

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible, while still being compatible with the vehicle’s stock front upper control arms, along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain. APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Adjustable ride height for 0-3.5" of front lift height over stock
• Vehicle specific tuned for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• 250 PSI nitrogen-charged internal reservoir
• Fully rebuildable and re-tunable
• ICON engineered coil springs

Upgrade the front suspension of your Toyota 4Runner, Toyota FJ Cruiser or Lexus GX460 with the ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover kit, Part Number 58746. Designed for select 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser and 2010-2023 Lexus GX460 applications, this vehicle-specific system provides adjustable front ride height from stock level up to 3.5 inches of lift. The added clearance supports larger wheel and tire combinations while improving suspension travel, handling and ride quality on both paved roads and demanding off-road terrain.
The ICON 2.5 Series shock body and increased piston area provide enhanced damping control compared with factory components. Remote reservoirs increase oil capacity and cooling surface area, helping maintain consistent performance during extended off-road use while reducing the risk of overheating, cavitation and damper fade. Vehicle-specific shock length, valving and ICON-engineered coil springs are tuned for this platform and remain compatible with the vehicle’s stock front upper control arms. Pair the coilovers with ICON 2.0 or 2.5 Aluminum Series rear shocks for balanced suspension performance from front to rear.
This ICON 58746 coilover kit is designed for a 100% bolt-on installation without drilling, cutting or welding. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod end bearings and CNC-machined 6061 aircraft-grade aluminum components deliver durable performance with minimal deflection. The shocks are nitrogen charged, fully rebuildable and re-tunable, and all ICON 2.5 Series piggyback and remote reservoir shocks can be upgraded with ICON’s Compression Damping Control Valve. Application Note 111: A bump stop spacer kit is available for installations requiring additional threads beyond the maximum recommended adjustment.

Features:

• Adjustable ride height from stock level up to 3.5 inches of front lift

• Vehicle-specific valving for improved damping, control and ride quality

• Remote reservoirs help maintain cooler operating temperatures during extended off-road use

• 2.5-inch shock bodies and increased piston area improve damping performance

• 100% bolt-on installation with no drilling, cutting or welding required

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch diameter shafts

• FK rod end bearings provide extended service life and minimal deflection

• Increased wheel travel and improved ride quality over stock suspension

• CNC-machined 6061 aircraft-grade aluminum components

• 250 PSI nitrogen-charged internal reservoirs

• Fully rebuildable and re-tunable design

• ICON-engineered coil springs optimized for this application

• Compatible with stock front upper control arms

• Upgradeable to ICON Compression Damping Control Valve technology

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
