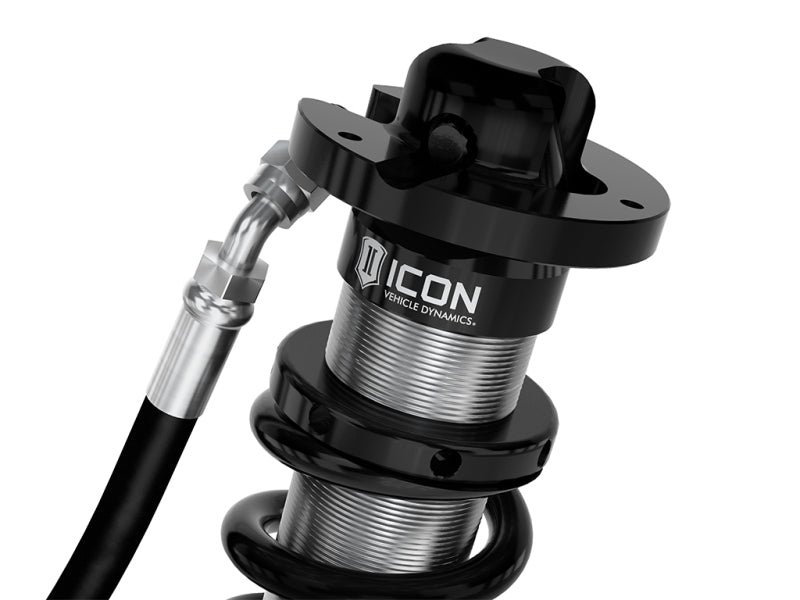

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON extended-travel coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON CDXS which offers 10 points of high and low speed adjustability. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • Extended travel length requires installation of aftermarket front upper control arms
  • FK rod end bearings for extended longevity and minimal deflection
  • Vehicle specific tuned for superior shock damping and control
  • Corrosion resistant CAD plated shock bodies with 7/8" shafts
  • Reservoir mounting brackets provide optimum tire clearance
  • 6061 Aircraft grade aluminum CNC machined components
  • Completely re-buildable and re-tunable
  • Includes Sway bar relocation brackets
  • ICON engineered coil springs

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, part number 58735X. Designed for demanding on-road and off-road driving, this vehicle-specific system combines extended travel, application-tuned valving, and adjustable ride height to improve wheel control, handling, and overall suspension performance. The coilovers provide 0 to 3.5 inches of lift adjustment on 2005-2015 models and 0 to 2.75 inches on 2016-2023 models, helping accommodate larger wheel and tire combinations. For best results, pair these front coilovers with ICON 2.0 or 2.5 Aluminum Series rear shocks for balanced vehicle control.

Each ICON 2.5 Series shock uses a larger shock body and increased piston area compared with stock components to maximize available travel and deliver consistent damping. Remote reservoirs increase oil capacity and cooling surface area, helping control operating temperatures and reduce the risk of cavitation and damper fade during extended, aggressive use. ICON’s exclusive Compression Damping Dual Speed (CDXS) system provides independent adjustment of high-speed and low-speed compression, with 10 detented settings for each adjustment range. This allows you to fine-tune handling response and suspension aggressiveness for changing terrain and driving conditions.

The extended-travel design requires aftermarket front upper control arms for proper installation and operation. ICON-engineered coil springs, FK rod-end bearings, corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, and CNC-machined 6061 aircraft-grade aluminum components provide durability and precise suspension control. Reservoir mounting brackets are included to support optimal tire clearance, along with sway bar relocation brackets. The kit is completely rebuildable and re-tunable for long-term serviceability. Recommended aftermarket tires are up to 33 x 11.50 inches; larger tires may require fender trimming and other vehicle modifications. Professional installation and alignment are recommended.

Features:

  • ICON CDXS provides independent high-speed and low-speed compression adjustment with 10 detented settings for each range
  • Height-adjustable coilovers provide 0 to 3.5 inches of lift adjustment on 2005-2015 models or 0 to 2.75 inches on 2016-2023 models
  • Remote reservoirs increase oil capacity and cooling performance during extended off-road use
  • Extended-travel design improves wheel travel and requires aftermarket front upper control arms
  • Vehicle-specific valving delivers controlled damping and improved ride quality on and off the road
  • FK rod-end bearings provide extended service life and minimal deflection
  • Corrosion-resistant CAD-plated shock bodies use durable 7/8-inch shafts
  • Reservoir mounting brackets help maintain optimal tire clearance
  • CNC-machined 6061 aircraft-grade aluminum components provide strength and precision
  • Completely rebuildable and re-tunable for long-term serviceability
  • Includes sway bar relocation brackets
  • Includes ICON-engineered coil springs
  • Recommended tire size is up to 33 x 11.50 inches; larger tires may require trimming and modifications

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
