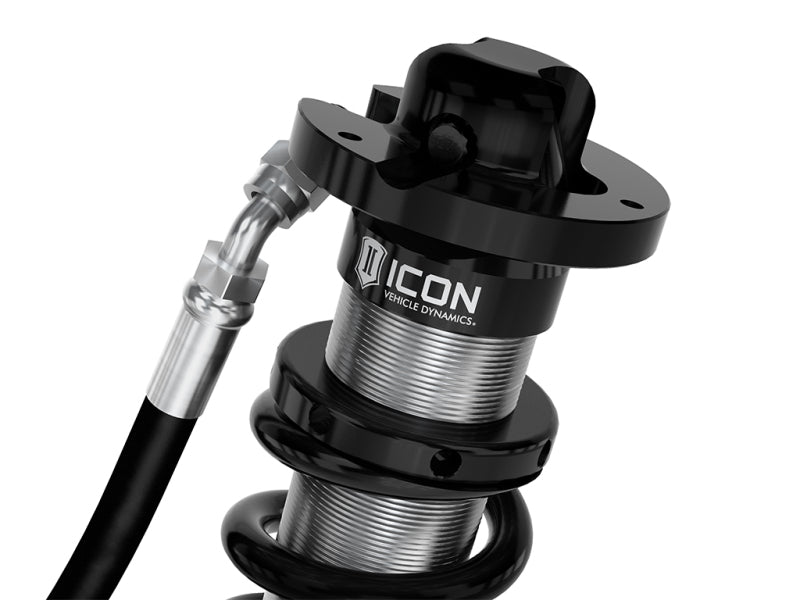

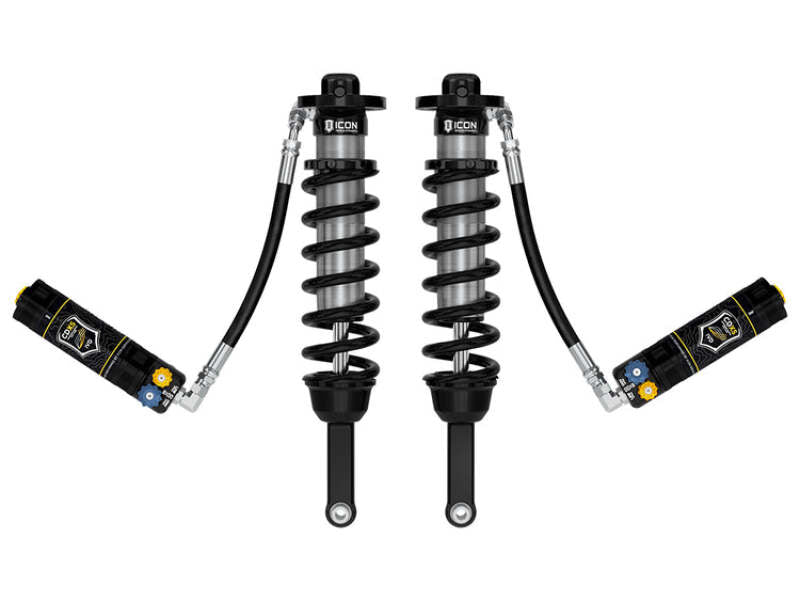

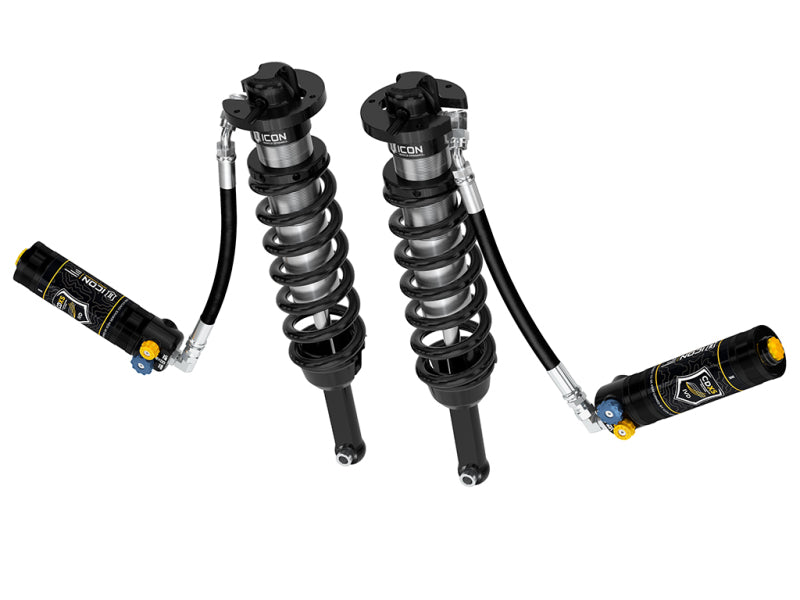

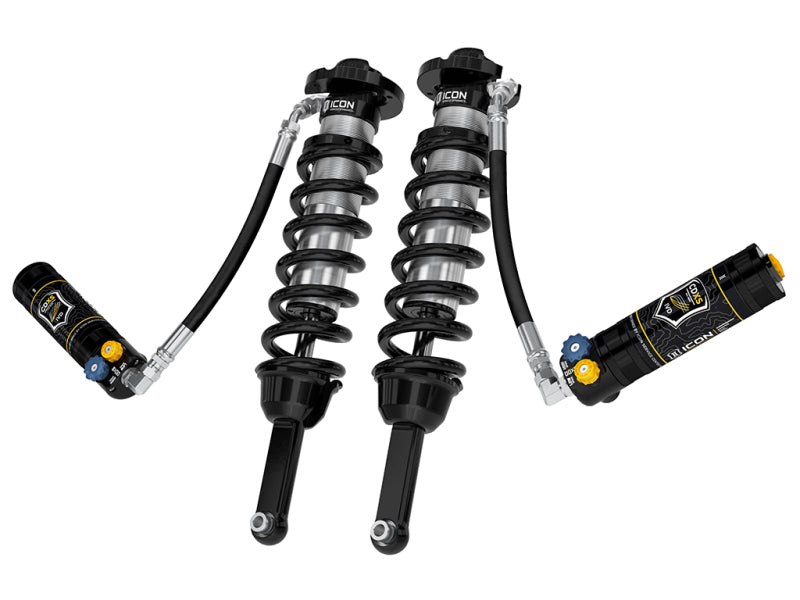

ICON 58735X-700 V.S. 2.5 Series Front Remote Reservoir Coilover Kit for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON extended-travel coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON CDXS which offers 10 points of high and low speed adjustability. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Extended travel length requires installation of aftermarket front upper control arms
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Corrosion resistant CAD plated shock bodies with 7/8" shafts
• Reservoir mounting brackets provide optimum tire clearance
• 6061 Aircraft grade aluminum CNC machined components
• Completely re-buildable and re-tunable
• Includes Sway bar relocation brackets

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series extended-travel remote reservoir coilover kit, part number 58735X-700. Designed for demanding on-road and off-road use, this pair of adjustable coilovers combines vehicle-specific shock length and valving with increased piston area to deliver greater wheel travel, improved damping control, and a more capable ride than stock components. The height-adjustable design provides up to 3.5 inches of lift adjustment on 2005-2015 Tacoma models and up to 2.75 inches on 2016-2023 models, helping accommodate larger wheel and tire combinations.
The remote reservoirs increase shock oil capacity and heat-dissipation surface area to help control operating temperatures during extended trail use, reducing the risk of cavitation and damper fade. ICON CDXS compression damping technology provides 10 detented settings for both high-speed and low-speed compression adjustment, allowing independent tuning for handling response and overall suspension aggressiveness. ICON-engineered coil springs with a 700 pounds-per-inch spring rate help support additional front-end weight from accessories such as aftermarket bumpers and winches while maintaining improved ride height and suspension control.
Built for durability, these ICON coilovers feature corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod-end bearings, and CNC-machined 6061 aircraft-grade aluminum components. The shocks are completely rebuildable and re-tunable for long-term serviceability, while included reservoir mounting brackets provide optimized tire clearance. Sway bar relocation brackets are also included. The extended-travel design requires aftermarket front upper control arms. For best front-to-rear balance, pair these coilovers with ICON 2.0 or 2.5 Aluminum Series rear shocks. Recommended tire size is 33 x 11.50 inches; larger tires may require fender trimming or other vehicle modifications. Professional installation and alignment are recommended.

Features:

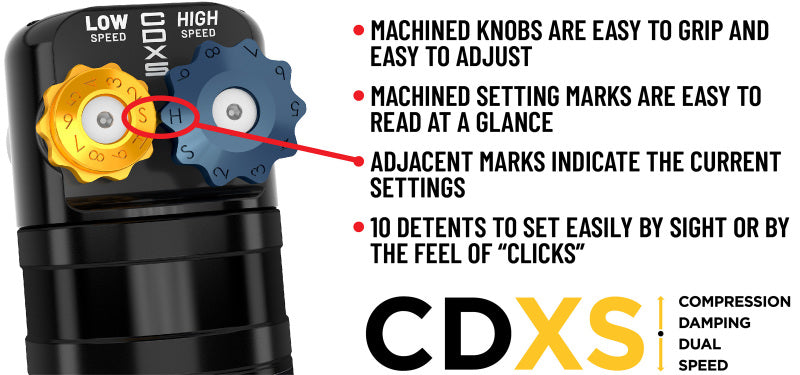

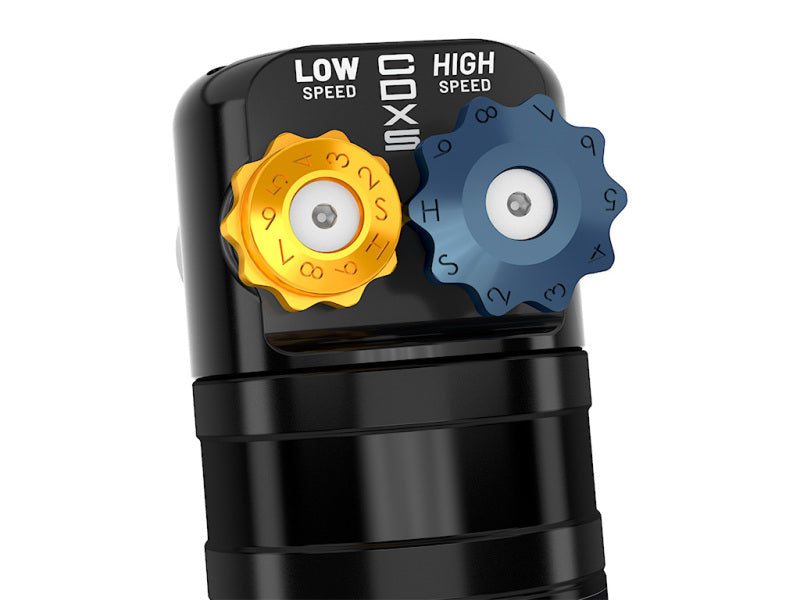

• ICON CDXS compression damping system with independent high-speed and low-speed adjustment

• Ten detented adjustment settings for high-speed and low-speed compression control

• Height-adjustable coilover design with up to 3.5 inches of lift on 2005-2015 models or up to 2.75 inches on 2016-2023 models

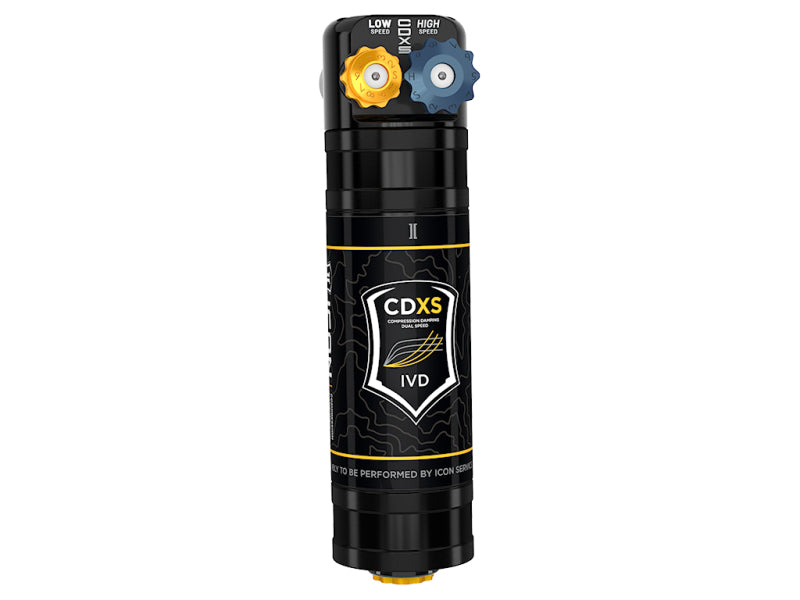

• Remote reservoirs increase oil capacity and heat-dissipation performance during extended off-road use

• ICON-engineered 700 pounds-per-inch coil springs support heavier front-end accessories

• Extended-travel design improves wheel travel and requires aftermarket front upper control arms

• Vehicle-specific shock length and valving provide controlled damping on and off the road

• FK rod-end bearings promote durability and minimize deflection

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts

• Reservoir mounting brackets provide optimized tire clearance

• CNC-machined 6061 aircraft-grade aluminum components

• Completely rebuildable and re-tunable construction

• Includes sway bar relocation brackets

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
