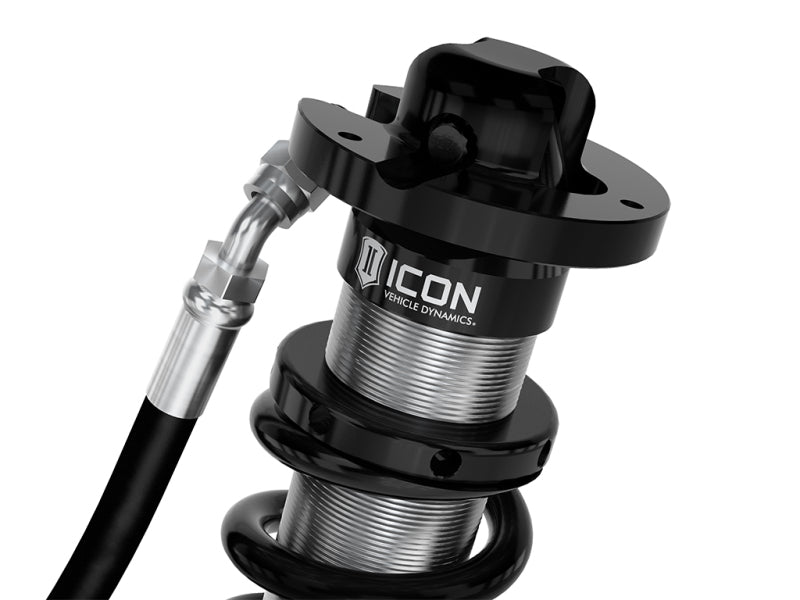

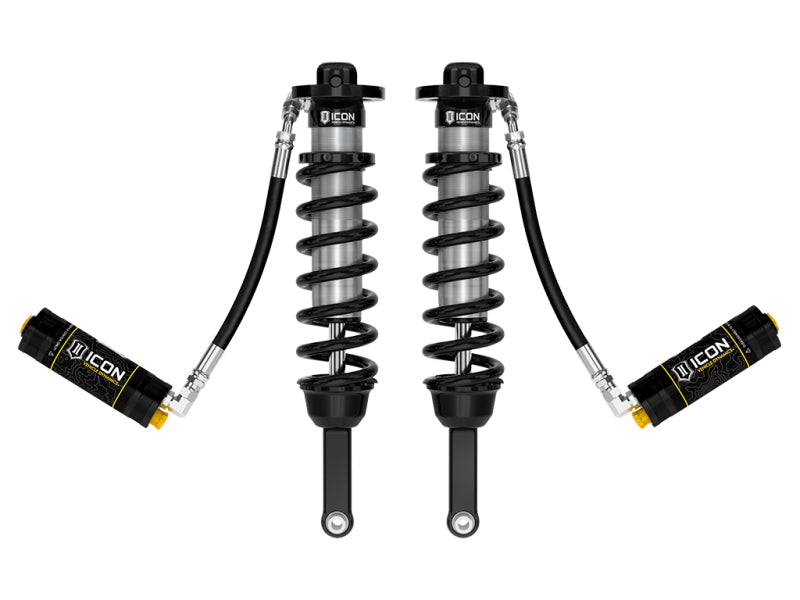

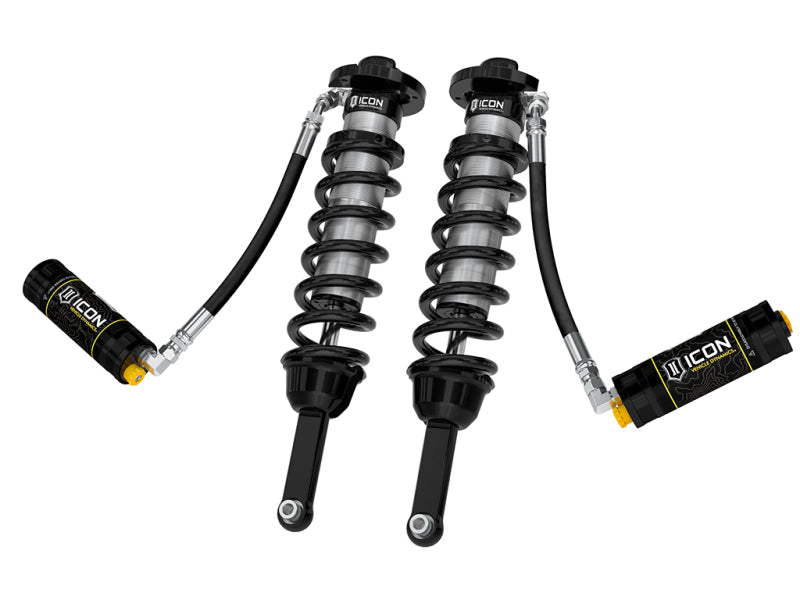

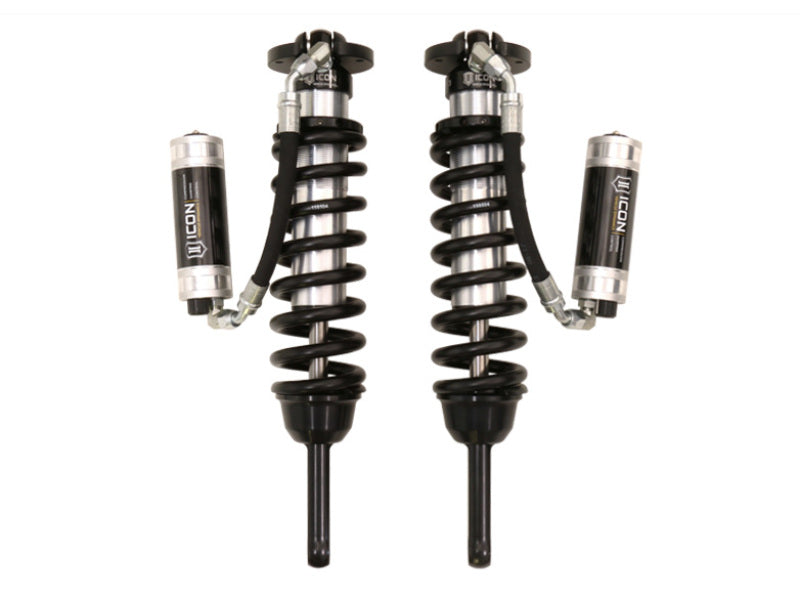

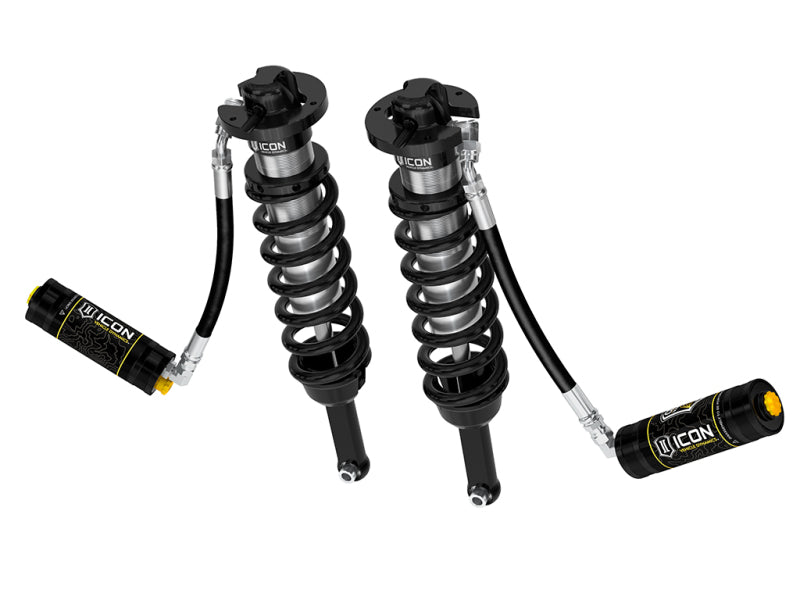

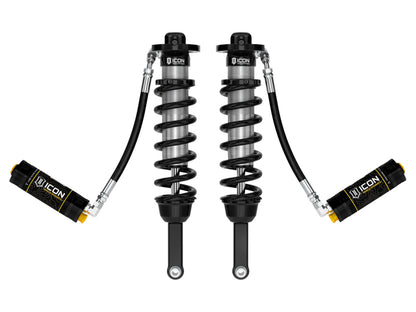

ICON 58735C V.S. 2.5 Series Remote Reservoir Front Coilover Kit for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON extended-travel coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON’s CDCV which offers 10 points of adjustability. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Extended Travel length requires installation of aftermarket front upper control arms
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• Vehicle specific tuned for superior shock damping and control
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• Kit Includes Sway bar relocation brackets
• 5/8" PTFE-lined spherical bearings
• ICON engineered coil springs
• Billet aluminum upper mount
• CAD-plated threaded body
• Completely re-buildable

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, part number 58735C. Designed for improved control on the street and off-road, this vehicle-specific system combines extended-travel coilovers, application-tuned valving, and ICON-engineered coil springs. Height adjustment provides up to 3.5 inches of lift on 2005-2015 models or up to 2.75 inches on 2016-2023 models, creating room for more aggressive wheel and tire combinations while maintaining a properly tuned suspension setup.
The larger 2.5-inch shock body and increased piston area deliver greater suspension travel and improved damping performance compared with stock components. Remote reservoirs increase shock oil capacity and cooling surface area, helping resist heat buildup, cavitation, and damper fade during demanding use. ICON Compression Damping Control Valves provide 10 external adjustment settings, allowing the suspension to be tailored for daily driving, technical trails, or high-speed desert terrain. The extended-travel design requires aftermarket front upper control arms for proper installation and operation.
This ICON coilover kit includes reservoir mounting brackets for tire clearance and sway bar relocation brackets to support the extended-travel configuration. Additional components include 5/8-inch PTFE-lined spherical bearings, billet aluminum upper mounts, cadmium-plated threaded shock bodies, and optimized reservoir hoses for efficient fluid transfer. The shocks are completely rebuildable for long-term serviceability. When combined with ICON 2.0 or 2.5 Aluminum Series rear shocks, the system helps balance front-to-rear damping for more predictable handling and a controlled driving experience. Recommended aftermarket tires are 33 inches by 11.50 inches; larger tires may require fender trimming or additional modifications.

Features:

• Height-adjustable coilovers provide up to 3.5 inches of lift on 2005-2015 models or up to 2.75 inches on 2016-2023 models

• Extended-travel design improves front wheel travel and requires aftermarket front upper control arms

• ICON Compression Damping Control Valves provide 10 settings of external compression adjustment

• Remote reservoirs increase oil capacity and cooling performance to help reduce heat-related damping fade

• Vehicle-specific shock tuning delivers improved damping and suspension control

• Reservoir mounting brackets help maintain optimal tire clearance

• Sway bar relocation brackets are included for the extended-travel setup

• 5/8-inch PTFE-lined spherical bearings provide durable, precise suspension articulation

• ICON-engineered coil springs are optimized for the application

• Billet aluminum upper mounts provide a strong, lightweight mounting solution

• Cadmium-plated threaded shock bodies support corrosion resistance and ride-height adjustment

• Completely rebuildable shock assemblies support long-term serviceability

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
