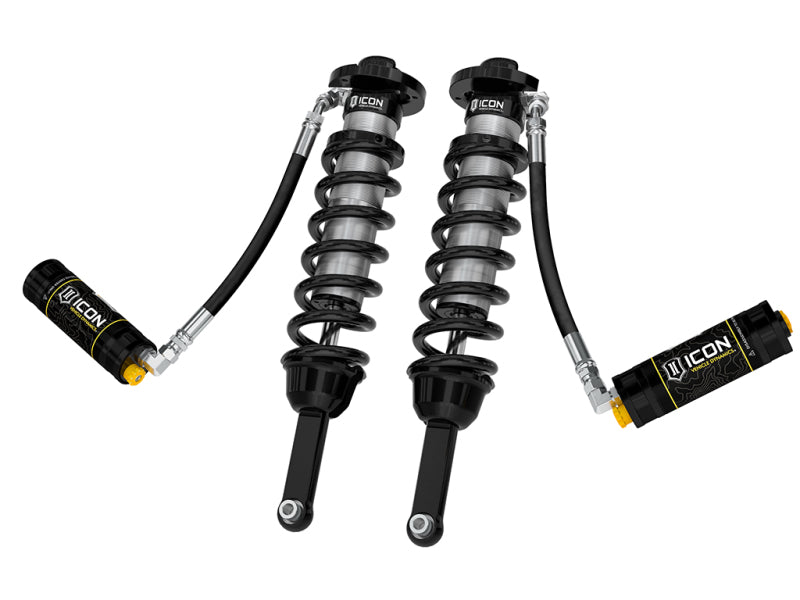

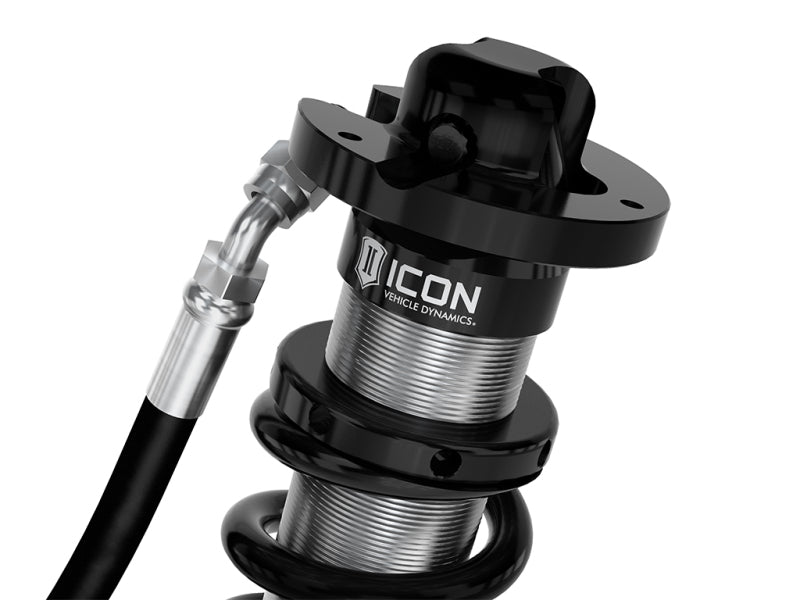

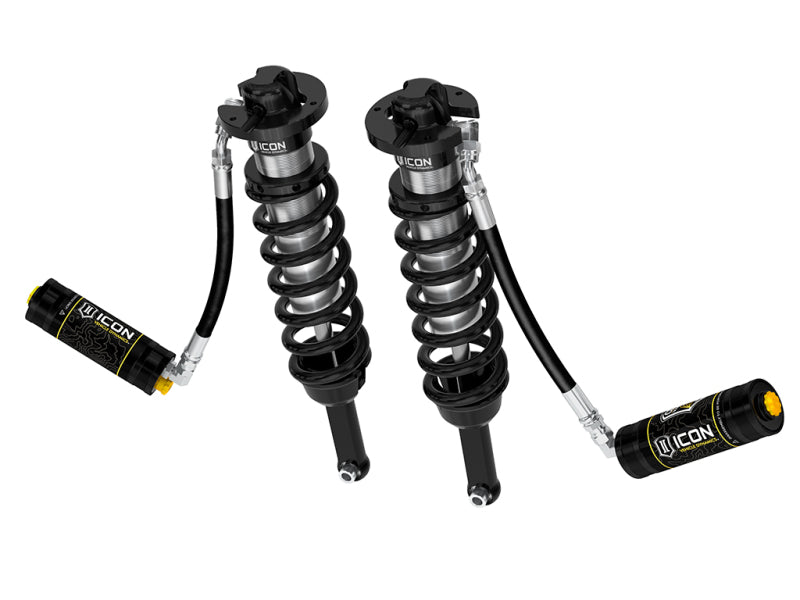

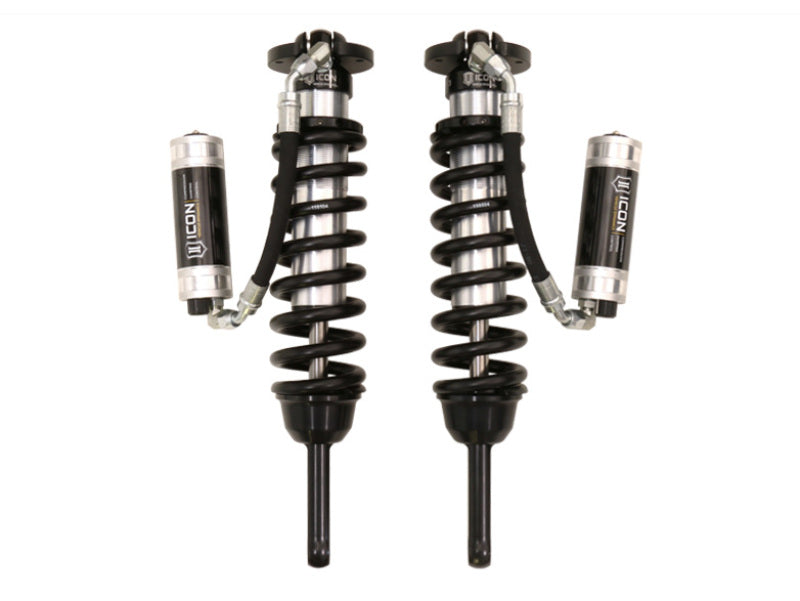

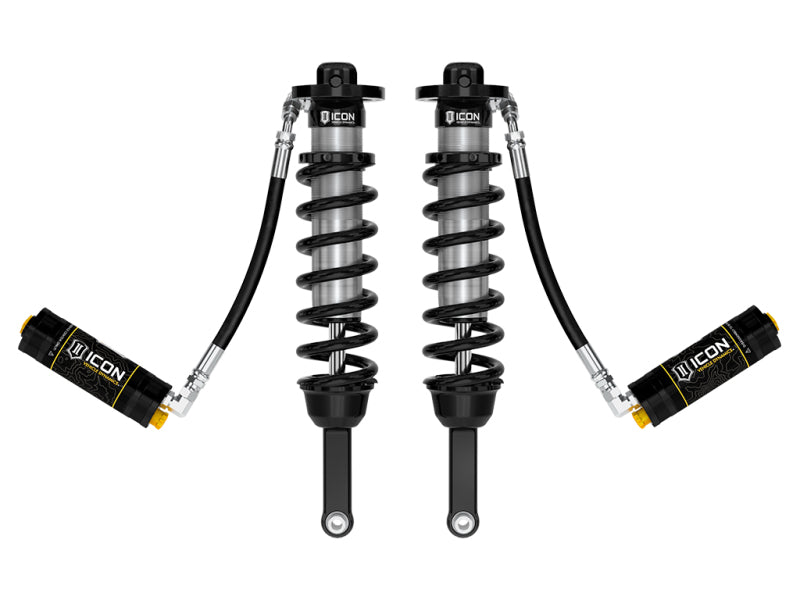

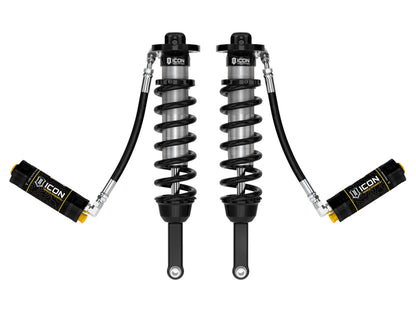

ICON 58735C-700 V.S. 2.5 Series Front Remote Reservoir Coilovers for 2005-2023 Toyota Tacoma

$2,423.15

Skip to product information
1 of 5

Regular price $2,423.15
Sale price $2,423.15 Regular price $2,423.15
Shipping calculated at checkout.
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON extended-travel coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. These hardcore units are outfitted with ICON’s CDCV which offers 10 points of adjustability. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
  • Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
  • Extended Travel length requires installation of aftermarket front upper control arms
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
  • Vehicle specific tuned for superior shock damping and control
  • Hose Length Optimized for Increased Fluid Transfer
  • External Reservoirs Ensures Maximum Cooling
  • Kit Includes Sway bar relocation brackets
  • 5/8" PTFE-lined spherical bearings
  • Billet aluminum upper mount
  • CAD-plated threaded body
  • Completely re-buildable

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilovers, part number 58735C-700. Designed for extended wheel travel and improved suspension control, this height-adjustable coilover system provides up to 0-3.5 inches of lift adjustment on 2005-2015 models and up to 0-2.75 inches on 2016-2023 models. The increased adjustment range helps accommodate larger wheel and tire combinations while maintaining vehicle-specific ride quality and handling.
The larger 2.5-inch shock body, increased piston area, and application-specific valving provide greater travel and improved performance on pavement and off-road terrain. Remote reservoirs increase shock oil capacity and cooling surface area to help resist overheating, cavitation, and damping fade during demanding use. ICON’s Compression Damping Control Valve (CDCV) provides 10 external compression adjustment settings, allowing the suspension to be tuned for street driving, technical trails, or high-speed desert terrain. Reservoir mounting brackets are included to support optimal tire clearance, along with sway bar relocation brackets and optimized hose lengths for improved fluid transfer.
ICON engineered coil springs with a 700 pounds-per-inch spring rate help support additional front-end weight from aftermarket bumpers, winches, and other accessories while maintaining suitable ride height. The extended-travel design requires aftermarket front upper control arms for proper installation and suspension operation. Recommended tire fitment is up to 33 inches by 11.50 inches; larger tires may require fender trimming and additional modifications. Pair these front coilovers with ICON 2.0 or 2.5 Aluminum Series rear shocks for balanced vehicle control and a complete suspension upgrade.
Built for long-term service, the ICON 58735C-700 coilovers feature 5/8-inch PTFE-lined spherical bearings, billet aluminum upper mounts, CAD-plated threaded bodies, and completely rebuildable shock assemblies.

Features:

  • 700 pounds-per-inch ICON engineered coil springs support heavier front-end configurations
  • Height-adjustable coilovers provide up to 0-3.5 inches of lift on 2005-2015 models or 0-2.75 inches on 2016-2023 models
  • Extended-travel design requires aftermarket front upper control arms
  • ICON CDCV provides 10 settings of external compression damping adjustment
  • Remote reservoirs increase cooling capacity and help resist shock fade
  • Vehicle-specific valving delivers improved damping and suspension control
  • Reservoir mounting brackets provide optimized tire clearance
  • Optimized hose length supports increased fluid transfer
  • Sway bar relocation brackets are included
  • 5/8-inch PTFE-lined spherical bearings
  • Billet aluminum upper mounts
  • CAD-plated threaded shock bodies
  • Completely rebuildable shock assemblies

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
