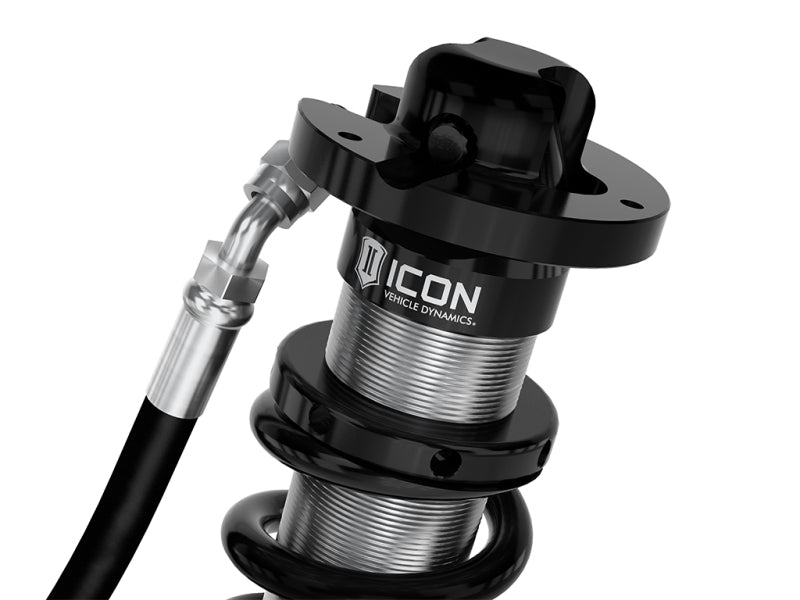

ICON 58735-700 V.S. 2.5 Series Remote Reservoir Front Coilover Kit for 2005-2023 Toyota Tacoma

$2,095.55

Skip to product information
1 of 5

Regular price $2,095.55
Sale price $2,095.55 Regular price $2,095.55
Shipping calculated at checkout.
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the addition of aftermarket upper control arms. They feature remote reservoirs, are vehicle specific, 100% rebuildable, and 100% revalveable. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
  • Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
  • Extended Travel length requires installation of aftermarket front upper control arms
  • Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
  • Vehicle specific tuned for superior shock damping and control
  • Hose Length Optimized for Increased Fluid Transfer
  • External Reservoirs Ensures Maximum Cooling
  • Kit Includes Sway bar relocation brackets
  • 5/8" PTFE-lined spherical bearings
  • Billet aluminum upper mount
  • CAD-plated threaded body
  • Completely re-buildable

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover kit, part number 58735-700. These vehicle-specific, height-adjustable coilovers provide 0 to 3.5 inches of lift adjustment on 2005-2015 models and 0 to 2.75 inches on 2016-2023 models, helping accommodate larger wheel and tire combinations while maintaining improved suspension control. The extended-travel design maximizes available wheel travel and is tuned specifically for the Tacoma’s on-road and off-road characteristics.
The 2.5-inch shock bodies and larger piston area provide enhanced damping performance compared with stock components. Remote reservoirs increase oil capacity and cooling surface area to help resist heat buildup, cavitation, and damper fade during demanding use. ICON-engineered coil springs use a 700-pound-per-inch spring rate to better support additional front-end weight from accessories such as aftermarket bumpers and winches. The kit includes reservoir mounting brackets for improved tire clearance and sway bar relocation brackets for installation flexibility.
These extended-length coilovers require aftermarket front upper control arms and are recommended for use with tires up to 33 inches by 11.5 inches. Larger tires may require fender trimming or other vehicle modifications. The ICON V.S. 2.5 Series coilovers are completely rebuildable and revalveable, allowing long-term serviceability and performance tuning. Pairing them with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers helps balance front-to-rear vehicle control for a more composed Tacoma driving experience.

Features:

  • ICON-engineered coil springs with a 700-pound-per-inch spring rate support heavier-equipped front ends
  • Height-adjustable coilovers provide 0 to 3.5 inches of lift adjustment on 2005-2015 models or 0 to 2.75 inches on 2016-2023 models
  • Extended-travel design increases wheel travel and requires aftermarket front upper control arms
  • Remote reservoirs increase cooling capacity and help resist overheating and cavitation
  • Vehicle-specific tuning delivers improved damping and suspension control
  • Reservoir mounting brackets are included for optimized tire clearance
  • Sway bar relocation brackets are included
  • Optimized hose length promotes increased fluid transfer
  • 5/8-inch PTFE-lined spherical bearings provide durable articulation
  • Billet aluminum upper mounts offer strength and rigidity
  • CAD-plated threaded bodies support corrosion resistance and adjustment durability
  • Completely rebuildable and revalveable for long-term serviceability

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
