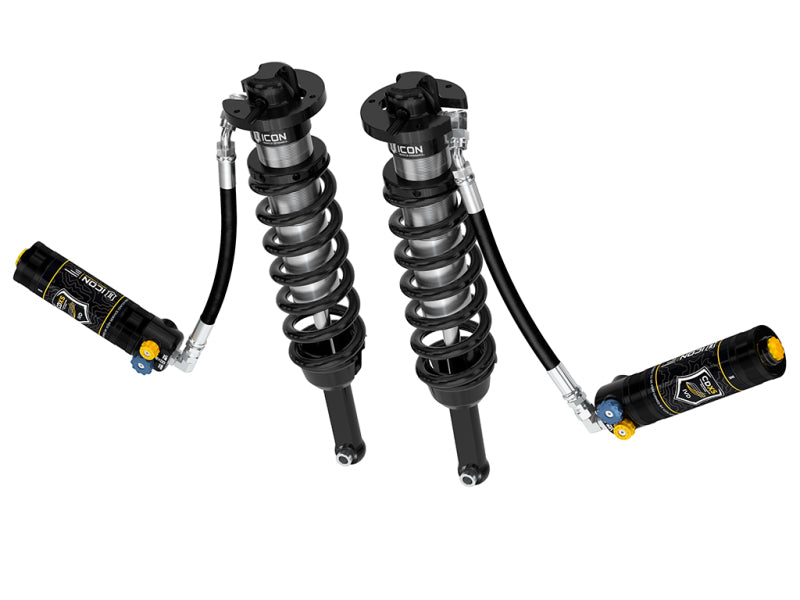

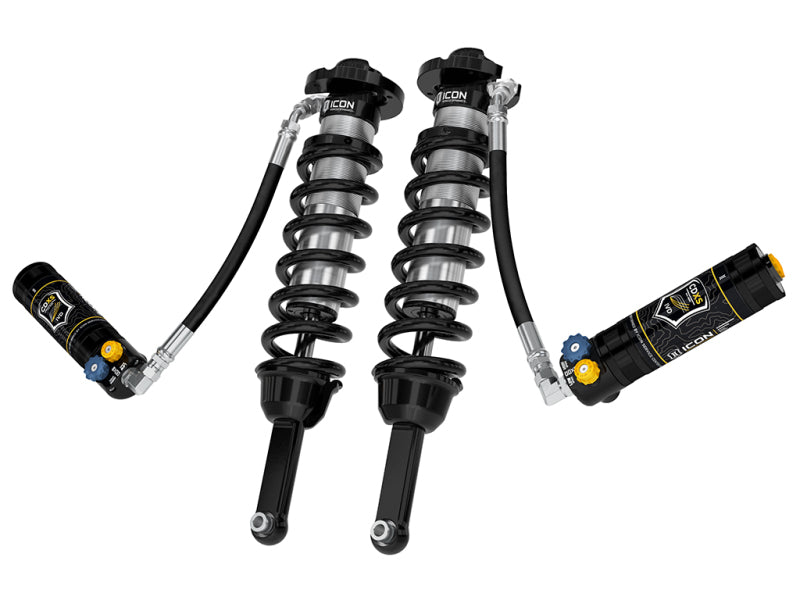

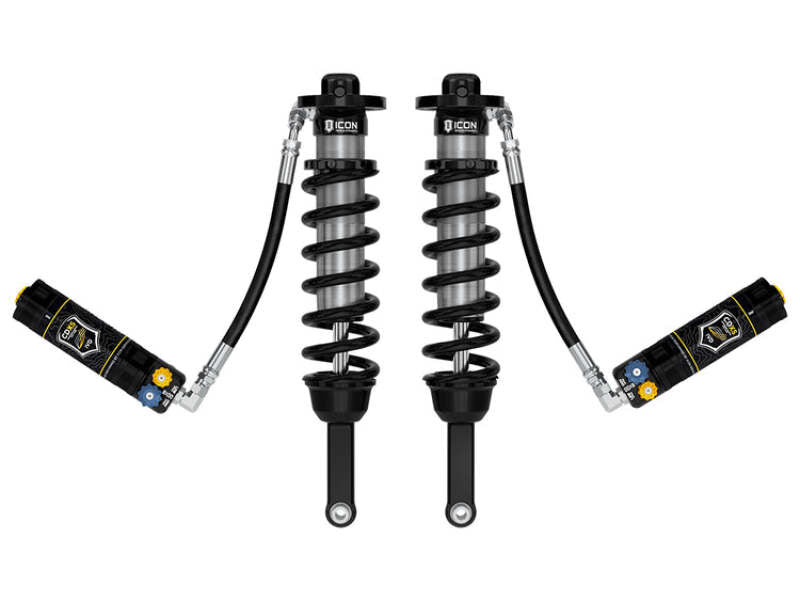

ICON 58730X V.S. 2.5 Series Front Remote Reservoir Coilover Kit with CDXS for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

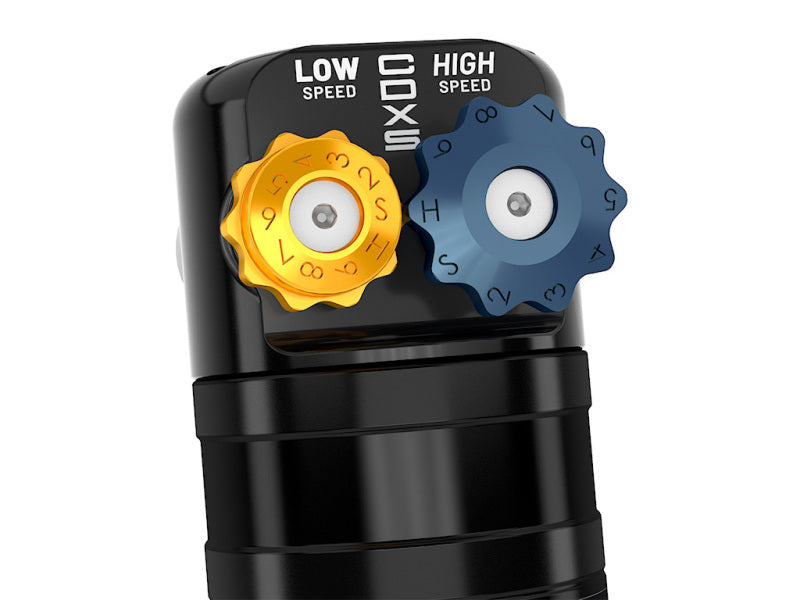

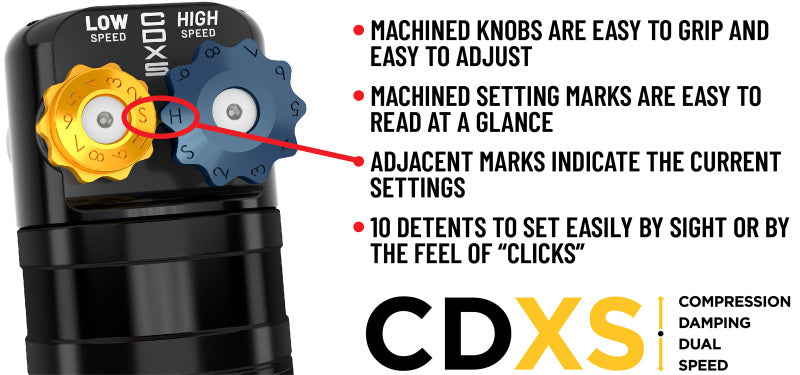

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• Vehicle specific tuned for superior shock damping and control
• Hose Length Optimized for Increased Fluid Transfer

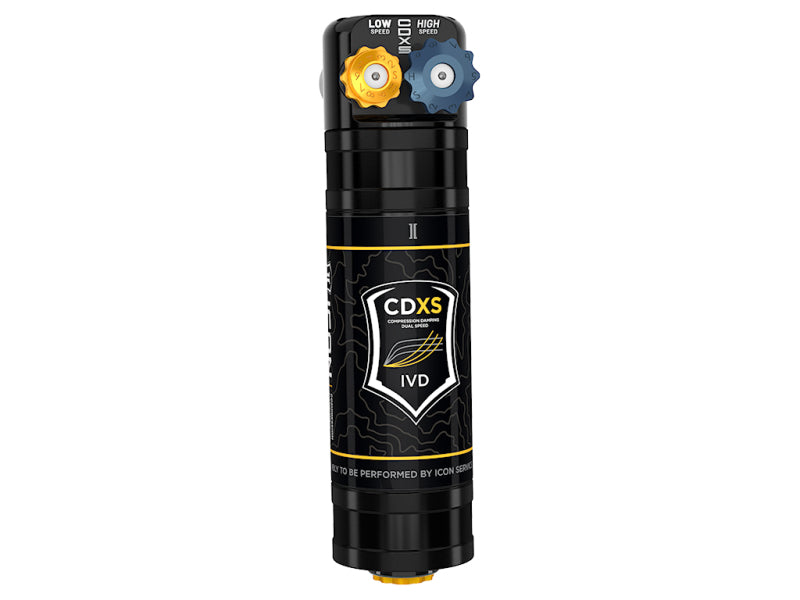

• External Reservoirs Ensures Maximum Cooling
• Kit Includes Sway bar relocation brackets
• 5/8" PTFE-lined spherical bearings
• ICON engineered coil springs

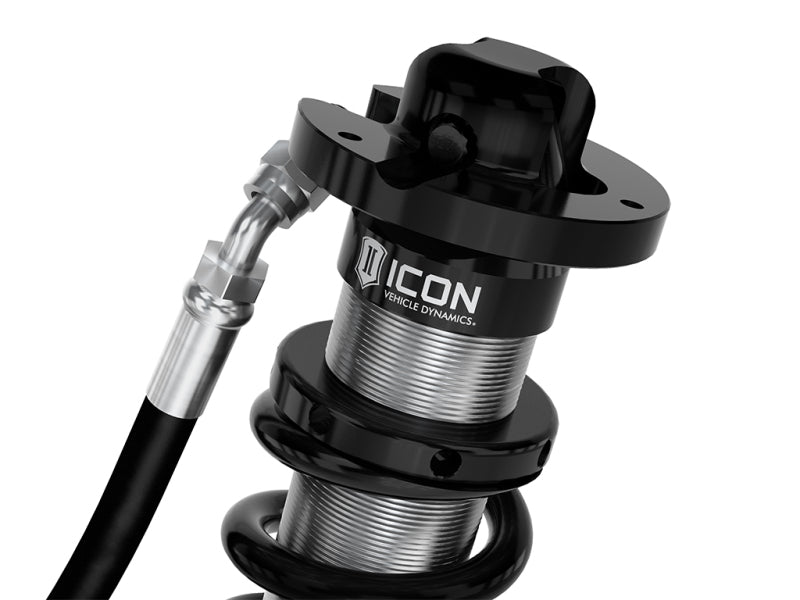

• Billet aluminum upper mount
• CAD-plated threaded body
• Completely re-buildable

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, part number 58730X. Designed for vehicle-specific fitment, this adjustable coilover system delivers increased suspension travel, improved damping control, and enhanced ride quality on and off the road. Lift-height adjustment ranges from 0 to 3.5 inches on 2005-2015 Tacoma models and from 0 to 2.75 inches on 2016-2023 models, providing additional clearance for larger wheel and tire combinations.
The 2.5-inch shock body and increased piston area improve damping performance across changing terrain, while the external remote reservoirs increase oil capacity and cooling surface area. This helps resist overheating, cavitation, and damper fade during demanding driving conditions. ICON’s Compression Damping Dual Speed (CDXS) technology provides independent adjustment of high-speed and low-speed compression, with 10 detented settings for each control. Tune handling response and suspension aggressiveness to match your driving style, terrain, and vehicle setup.
Each ICON 58730X kit includes application-specific coil springs, reservoir mounting brackets for optimized tire clearance, sway bar relocation brackets, and vehicle-specific shock valving. The system also features ICON-engineered coil springs, 5/8-inch PTFE-lined spherical bearings, billet aluminum upper mounts, CAD-plated threaded shock bodies, and optimized hose lengths for efficient fluid transfer. The coilovers are completely rebuildable for long-term serviceability and can be paired with ICON 2.0 or 2.5 Aluminum Series rear shocks for balanced front-to-rear suspension control. Recommended aftermarket tire size is 33 x 11.50 inches; larger tires may require fender trimming or other modifications.

Features:

• ICON CDXS technology provides independent high-speed and low-speed compression adjustment for refined handling response and ride tuning

• Height-adjustable coilovers provide 0 to 3.5 inches of lift adjustment on 2005-2015 models or 0 to 2.75 inches on 2016-2023 models

• Remote reservoirs increase fluid capacity and cooling performance to help resist overheating, cavitation, and damper fade

• Vehicle-specific shock valving delivers controlled damping and improved suspension performance on and off the road

• 2.5-inch shock bodies and increased piston area improve ride quality and damping capability across varying terrain

• Includes reservoir mounting brackets designed for optimized tire clearance

• Includes sway bar relocation brackets for proper suspension geometry with increased ride height

• s 5/8-inch PTFE-lined spherical bearings for durable, precise suspension articulation

• Includes ICON-engineered coil springs and billet aluminum upper mounts

• CAD-plated threaded bodies support lift-height adjustment and corrosion resistance

• Completely rebuildable design supports long-term maintenance and serviceability

• Recommended for use with 33 x 11.50-inch aftermarket tires; larger tires may require fender trimming or additional modifications

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
