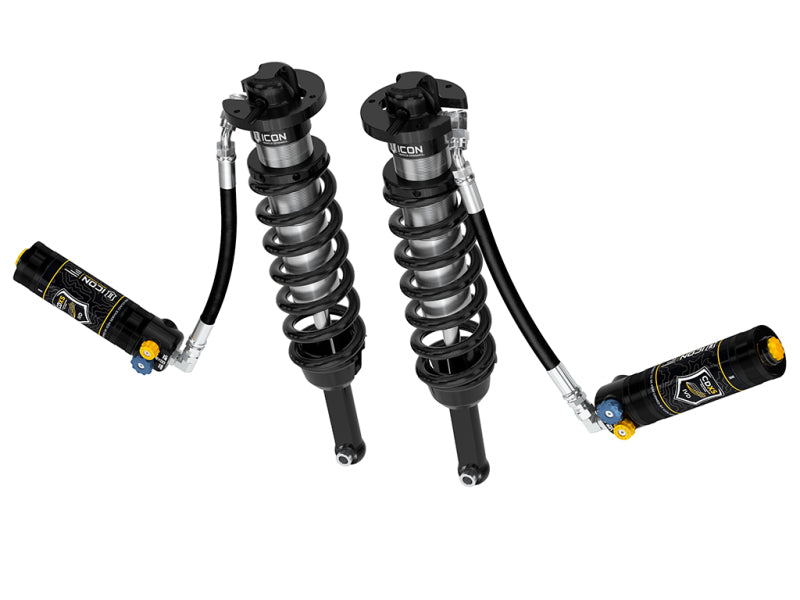

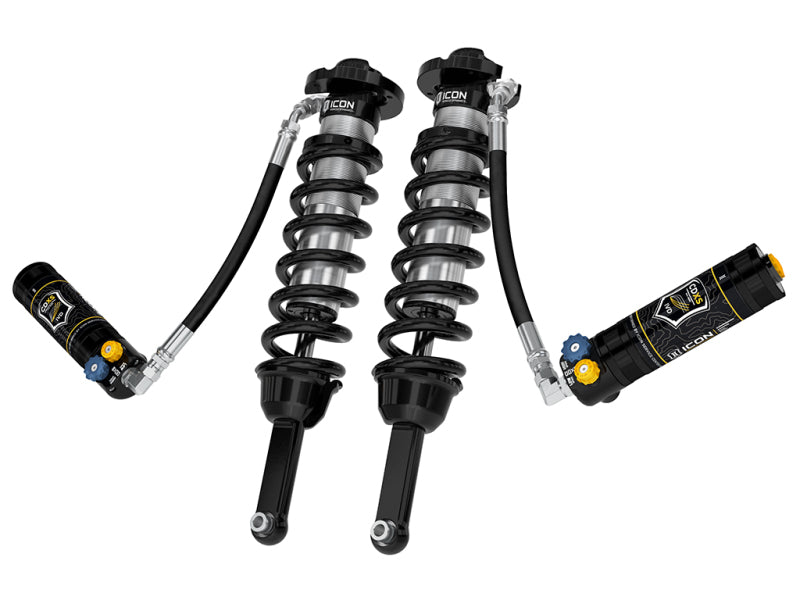

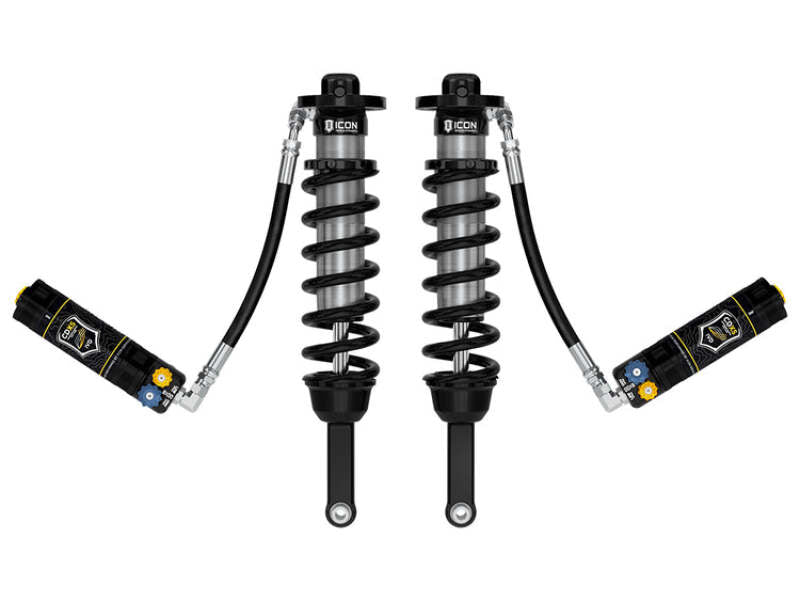

ICON 58730X-700 V.S. 2.5 Series Front Remote Reservoir CDXS Coilovers for 2005-2023 Toyota Tacoma

$2,629.95

Skip to product information
1 of 8

Regular price $2,629.95
Sale price $2,629.95 Regular price $2,629.95
Shipping calculated at checkout.
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
  • Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
  • Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
  • Vehicle specific tuned for superior shock damping and control
  • Hose Length Optimized for Increased Fluid Transfer
  • External Reservoirs Ensures Maximum Cooling
  • Kit Includes Sway bar relocation brackets
  • 5/8" PTFE-lined spherical bearings

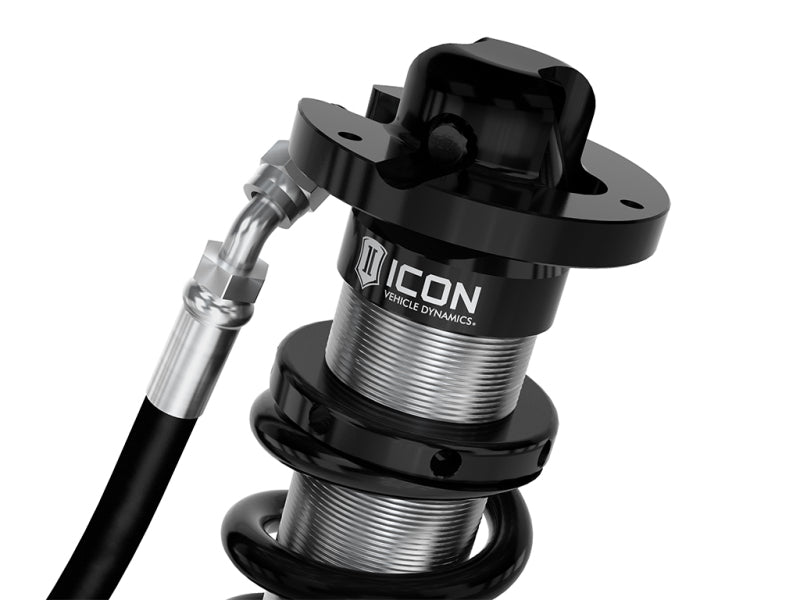

  • Billet aluminum upper mount
  • CAD-plated threaded body
  • Completely re-buildable

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, part number 58730X-700. These height-adjustable coilovers are vehicle-specific tuned for improved damping, control, and ride quality on pavement, trails, and demanding off-road terrain. Lift adjustment ranges from 0 to 3.5 inches on 2005-2015 Tacoma models and from 0 to 2.75 inches on 2016-2023 models, providing clearance for larger wheel and tire combinations. Recommended aftermarket tire sizing is up to 33 x 11.50 inches; larger applications may require fender trimming and additional modifications.
ICON’s 2.5-inch shock bodies and increased piston area provide enhanced damping performance compared with stock components. Remote reservoirs increase oil capacity and cooling surface area to help resist overheating, cavitation, and performance fade during hard use. The included Compression Damping Dual Speed (CDXS) valves provide independent high-speed and low-speed compression adjustment, with 10 detented settings for each adjustment range. This allows drivers to fine-tune handling response and overall suspension aggressiveness for changing loads and terrain. ICON engineered 700 lb/in coil springs support Tacoma models equipped with heavier aftermarket accessories, including front bumpers and winches, while maintaining appropriate ride height and control.
The kit includes reservoir mounting brackets designed for optimum tire clearance and sway bar relocation brackets for installation flexibility. Additional construction features include optimized hose length for fluid transfer, 5/8-inch PTFE-lined spherical bearings, billet aluminum upper mounts, CAD-plated threaded shock bodies, and fully rebuildable components. Pair these front coilovers with ICON 2.0 or 2.5 Aluminum Series rear shocks for balanced front-to-rear suspension performance. The ICON 58730X-700 kit is sold as a pair and is designed for compatible Toyota Tacoma applications from 2005 through 2023.

Features:

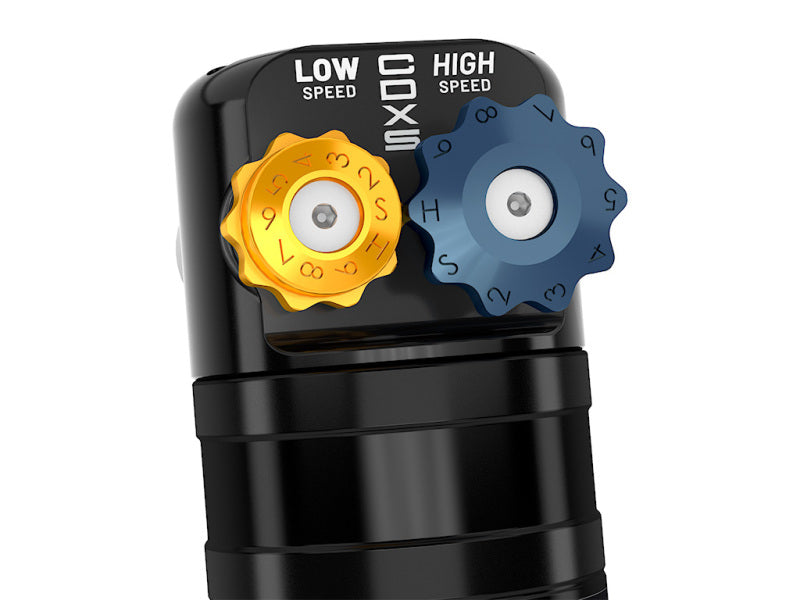

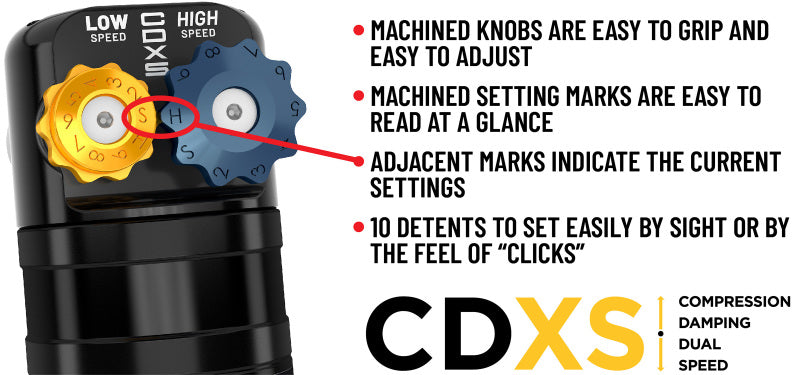

  • ICON CDXS valves provide independent high-speed and low-speed compression adjustment with 10 detented settings for each range
  • ICON engineered 700 lb/in coil springs support heavier front-end accessories and added vehicle weight
  • Height-adjustable coilovers provide 0-3.5 inches of lift adjustment on 2005-2015 models or 0-2.75 inches on 2016-2023 models
  • Vehicle-specific shock length and valving deliver improved damping, ride quality, and suspension control

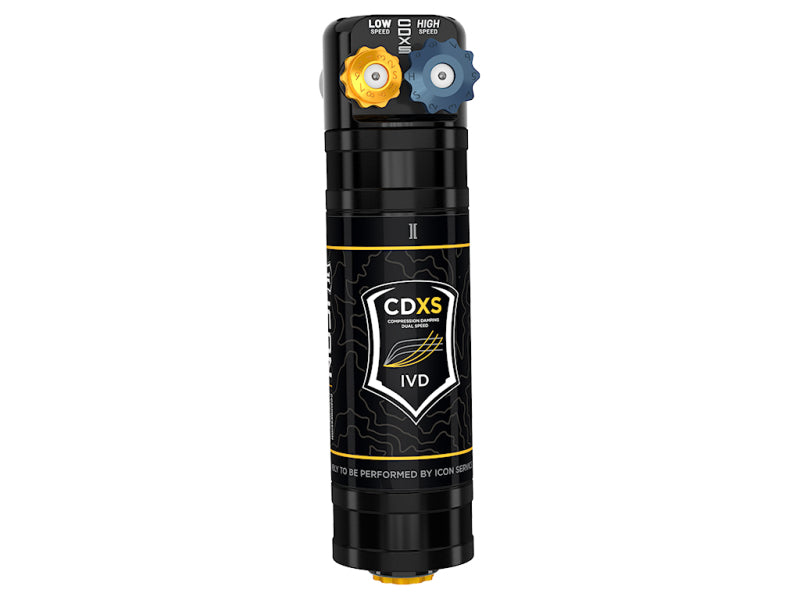

  • Remote reservoirs increase fluid volume and cooling capacity to help resist overheating, cavitation, and damper fade
  • Reservoir mounting brackets are included for optimized tire clearance
  • Sway bar relocation brackets are included
  • Optimized hose length improves fluid transfer between the shock body and remote reservoir
  • 5/8-inch PTFE-lined spherical bearings provide durable, responsive suspension articulation
  • Billet aluminum upper mounts provide strong, precise coilover support
  • CAD-plated threaded bodies support height adjustment and corrosion resistance
  • Fully rebuildable shock components support long-term serviceability

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
