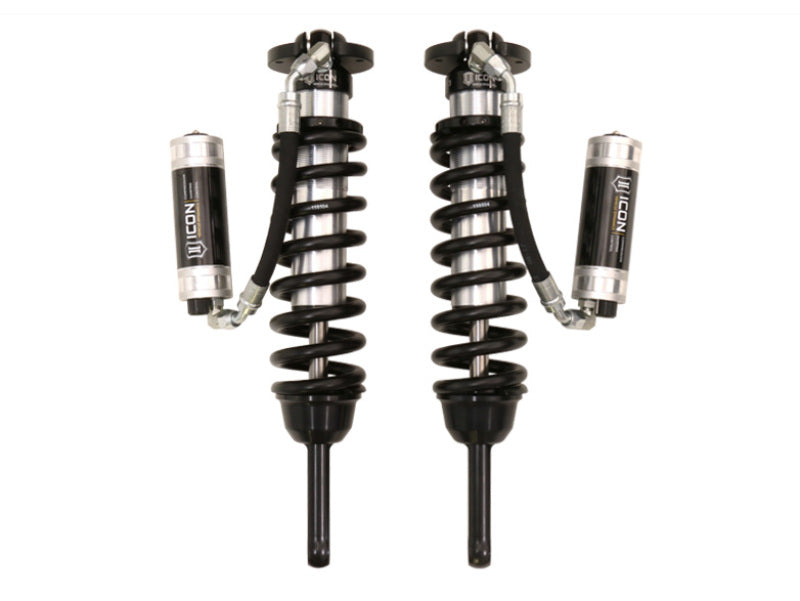

ICON 58730C V.S. 2.5 Series CDCV Front Coilover Kit for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• Vehicle specific tuned for superior shock damping and control
• Hose Length Optimized for Increased Fluid Transfer
• External Reservoirs Ensures Maximum Cooling
• Kit Includes Sway bar relocation brackets
• 5/8" PTFE-lined spherical bearings
• ICON engineered coil springs
• Billet aluminum upper mount
• CAD-plated threaded body
• Completely re-buildable

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover kit, part number 58730C. Designed for vehicle-specific fitment, this adjustable system delivers improved ride quality, handling, and suspension control on both paved roads and demanding off-road terrain. Lift-height adjustment ranges from 0-3.5 inches on 2005-2015 models and 0-2.75 inches on 2016-2023 models, providing clearance for larger wheel and tire combinations.
The larger 2.5-inch shock body and increased piston area enhance damping performance over factory components, while the remote reservoirs increase oil capacity and cooling surface area. This helps resist overheating, cavitation, and damper fade during extended, high-demand driving. ICON’s Compression Damping Control Valve (CDCV) provides 10 settings of external compression adjustment, allowing the suspension to be tuned for street driving, technical crawling, or high-speed desert use. Vehicle-specific shock length, valving, and ICON-engineered coil springs are optimized for balanced performance.
The ICON 58730C kit includes reservoir mounting brackets for improved tire clearance and sway bar relocation brackets for proper suspension geometry. Additional construction features include 5/8-inch PTFE-lined spherical bearings, a billet aluminum upper mount, a CAD-plated threaded shock body, optimized reservoir hose length, and fully rebuildable shock assemblies. For balanced vehicle control, pair the front coilovers with ICON 2.0 or 2.5 Aluminum Series rear shocks. Recommended aftermarket tires are up to 33 inches by 11.50 inches; larger tires may require fender trimming or other vehicle modifications.

• Height-adjustable front coilovers for 0-3.5 inches or 0-2.75 inches of lift, depending on model year


• ICON CDCV with 10 settings of external compression damping adjustment


• Remote reservoirs for increased cooling and resistance to damper fade


• Vehicle-specific tuning for improved shock damping and control


• Includes reservoir mounting brackets and sway bar relocation brackets


• 5/8-inch PTFE-lined spherical bearings


• ICON-engineered coil springs


• Billet aluminum upper mounts


• CAD-plated threaded shock bodies


• Completely rebuildable design

Features:

• Height-adjustable front coilovers provide 0-3.5 inches or 0-2.75 inches of lift adjustment, depending on model year

• ICON CDCV provides 10 settings of external compression damping adjustment

• Remote reservoirs increase cooling capacity and help resist overheating and damper fade

• Vehicle-specific shock length and valving improve suspension control

• Includes reservoir mounting brackets for optimized tire clearance

• Includes sway bar relocation brackets

• 5/8-inch PTFE-lined spherical bearings

• ICON-engineered coil springs

• Billet aluminum upper mounts

• CAD-plated threaded shock bodies

• Completely rebuildable shock assemblies

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
