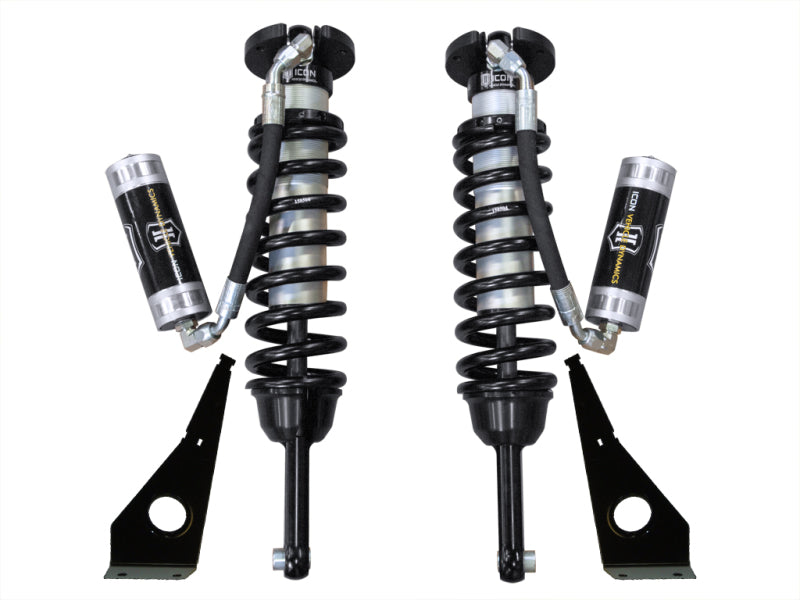

ICON 58730 V.S. 2.5 Series Remote Reservoir Front Coilover Kit for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
• Vehicle specific tuned for superior shock damping and control
• Hose Length Optimized for Increased Fluid Transfer
• 250 PSI nitrogen-charged internal reservoir
• External Reservoirs Ensures Maximum Cooling
• Kit Includes Sway bar relocation brackets
• 5/8" PTFE-lined spherical bearing
• ICON engineered coil springs
• Billet aluminum upper mount
• CAD-plated threaded body
• Completely re-buildable

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover kit, part number 58730. Designed for vehicle-specific fitment, this height-adjustable coilover system delivers improved ride quality, suspension control, and off-road performance. Lift height is adjustable from 0 to 3.5 inches on 2005-2015 Tacoma models and from 0 to 2.75 inches on 2016-2023 models, providing clearance for larger, more aggressive wheel and tire combinations.
The ICON 2.5 Series shocks use a larger shock body and increased piston area compared with stock components to maximize suspension travel and improve damping across changing terrain. Remote reservoirs increase fluid capacity and cooling surface area, helping resist overheating, cavitation, and damper fade during demanding on- or off-road use. The included reservoir mounting brackets are designed to promote optimal tire clearance, while the included sway bar relocation brackets help support proper suspension geometry after installation.
Each coilover features ICON-engineered coil springs, vehicle-specific shock tuning, a 250-psi nitrogen-charged internal reservoir, optimized hose length for fluid transfer, a billet aluminum upper mount, a CAD-plated threaded body, and a 5/8-inch PTFE-lined spherical bearing. The shocks are completely rebuildable for long-term serviceability. For balanced vehicle control, pair this front coilover kit with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers. Recommended aftermarket tire fitment is up to 33 by 11.50 inches; larger tires may require fender trimming or other vehicle modifications.

Features:

• Height-adjustable coilovers provide 0 to 3.5 inches of lift adjustment on 2005-2015 models or 0 to 2.75 inches on 2016-2023 models

• Vehicle-specific shock tuning delivers improved damping and suspension control

• Remote reservoirs increase cooling capacity and help reduce heat-related damper fade

• 2.5-inch shock body and increased piston area improve ride characteristics and damping performance

• Reservoir mounting brackets support optimal tire clearance

• Sway bar relocation brackets are included

• 250-psi nitrogen-charged internal reservoirs

• Optimized hose length promotes increased fluid transfer

• 5/8-inch PTFE-lined spherical bearings

• ICON-engineered coil springs

• Billet aluminum upper mounts

• CAD-plated threaded shock bodies

• Completely rebuildable shock assemblies

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
