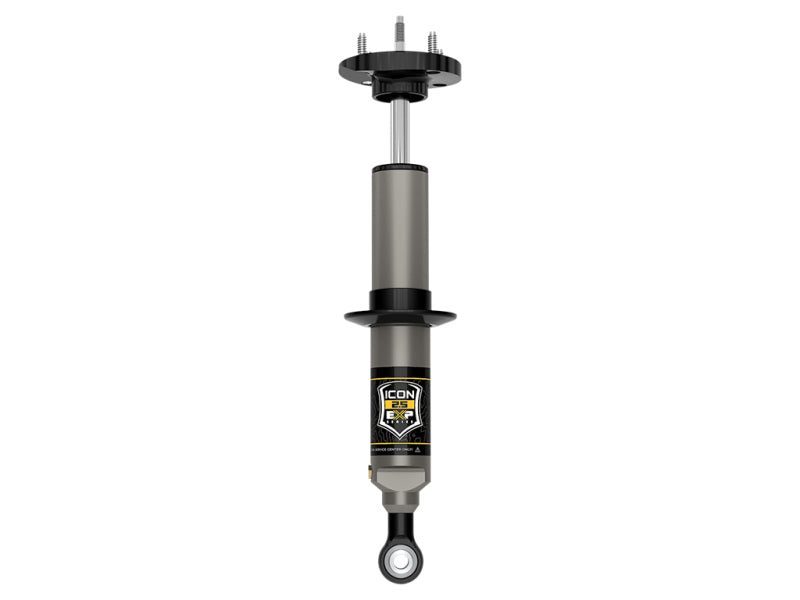

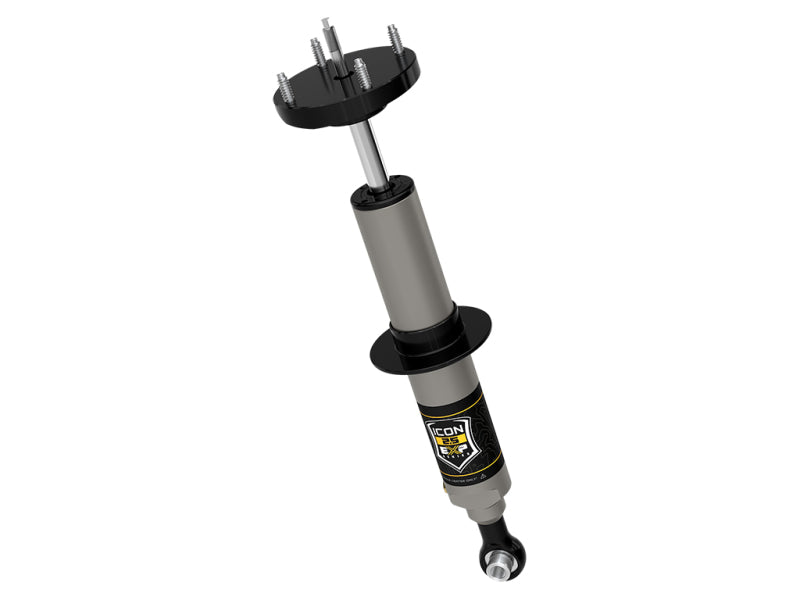

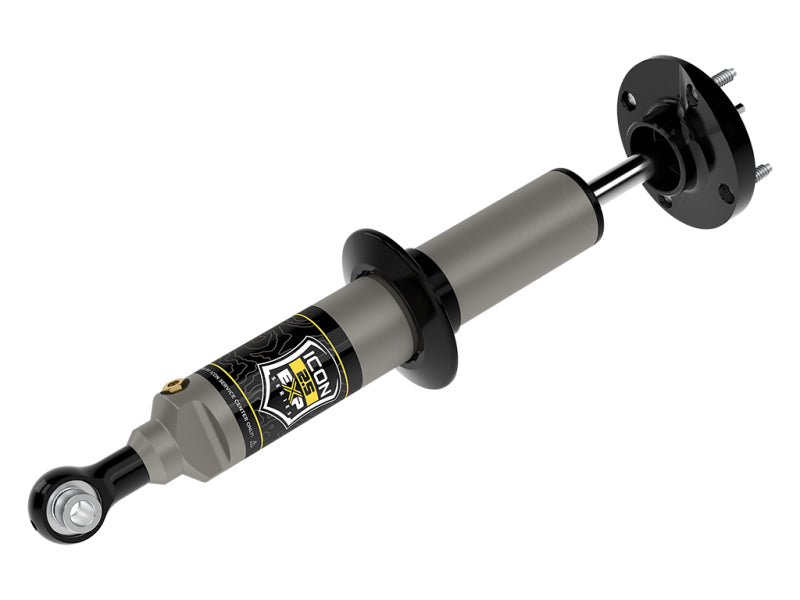

ICON 58655 2.5 EXP Series Front Coilover Shock for 2007-2021 Toyota Tundra

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON. 2007-2021 TOYOTA TUNDRA FRONT 2.5 EXP SERIES COILOVER APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.

• Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Adjustable ride heights from 0-2.25” of front lift over stock with the use of snap ring
• PTFE lined spherical bearing for extended longevity and minimal deflection
• CNC machined 6061 aluminum components with a black anodized finish
• Vehicle specific tuned for superior shock damping and control
• Vehicle specific design for 2007-2021 Toyota Tundra
• 2.5 Aluminum Series Shock with Internal Reservoir
• Utilizes factory coil and coil hardware
• Fully rebuildable and re-tunable

The ICON 58655 2.5 EXP Series front coilover shock is engineered specifically for the 2007-2021 Toyota Tundra to improve damping performance, suspension control, and ride quality on and off the road. Vehicle-specific tuning works with the factory front coil springs and coil hardware, helping provide a balanced suspension response across daily driving, higher-speed travel, and rough terrain. The adjustable design allows front lift settings from 0 to 2.25 inches over stock using the included snap-ring positions, making it suitable for stock-height applications and mild suspension adjustments.
Built around a 2.5-inch aluminum body, this ICON EXP shock provides increased piston size and oil volume for improved heat dissipation compared with smaller original-equipment steel shocks. The impact-extruded, hard-anodized aluminum cylinder offers corrosion resistance and a consistent finish, while the inverted-shaft configuration uses a 7/8-inch induction-hardened, chrome-plated shaft for strength and durability. A PTFE-lined spherical bearing helps extend service life and minimize deflection during suspension movement.
The ICON 58655 features a one-piece digressive piston for controlled damping and dependable performance over changing terrain. CNC-machined 6061 aluminum components receive a black anodized finish for added durability and a clean appearance. This 2.5 Aluminum Series shock includes an internal reservoir and is fully rebuildable and re-valvable by a qualified shock technician, with service parts available from ICON. Lift heights are specified for a stock-equipped vehicle. Professional installation and suspension setup are recommended.

Features:

• Vehicle-specific tuning for improved damping and control on the 2007-2021 Toyota Tundra

• 2.5-inch aluminum shock body with internal reservoir for increased oil volume and heat dissipation

• Adjustable front ride height from 0 to 2.25 inches over stock using snap-ring positions

• One-piece digressive piston design for responsive, controlled shock performance

• Impact-extruded, hard-anodized aluminum cylinder for corrosion resistance and consistent finish

• Inverted-shaft design with a 7/8-inch induction-hardened, chrome-plated shaft

• PTFE-lined spherical bearing for extended service life and minimal deflection

• CNC-machined 6061 aluminum components with black anodized finish

• Uses the factory front coil spring and coil hardware

• Fully rebuildable and re-valvable by a qualified shock technician

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
