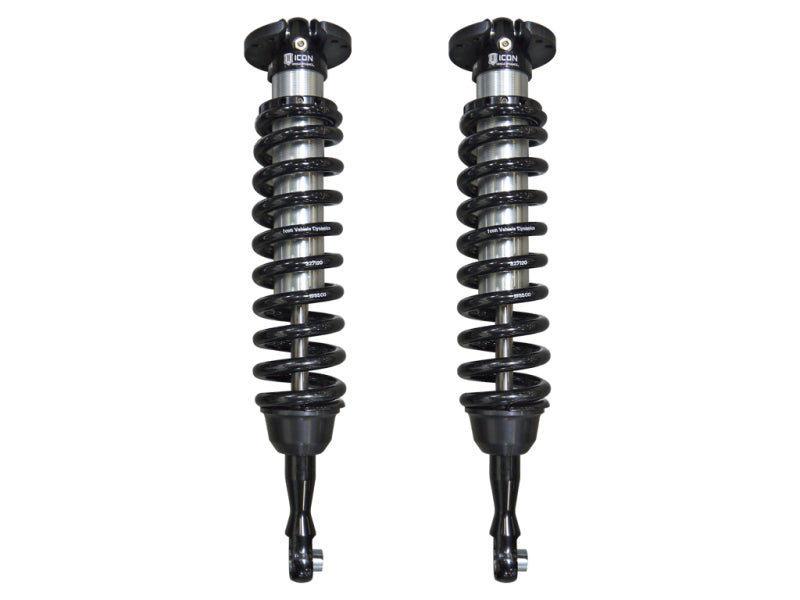

ICON 58650 V.S. 2.5 Series Front Internal Reservoir Coilover Kit for 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia

$1,559.95

Skip to product information

Regular price $1,559.95
Sale price $1,559.95 Regular price $1,559.95
Shipping calculated at checkout.
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain. APPLICATION NOTE #24: Factory UCA's will not align properly past 2.5” of lift. Above 2.5” of lift an aftermarket UCA is recommended.
  • Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
  • 2.5" diameter shock bodies with internal reservoirs for consistent performance
  • Height-adjustable coilovers offer 1-3" of lift height adjustment over stock
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Vehicle specific shock length yields maximum wheel travel
  • 6061 Aircraft grade aluminum CNC machined components
  • 250 PSI nitrogen-charged internal reservoir
  • Fully rebuildable and re-tunable
  • ICON engineered coil springs

Upgrade the front suspension of your Toyota Tundra or Sequoia with the ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir coilover kit, part number 58650. Designed specifically for the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia, this height-adjustable system provides 1-3 inches of lift adjustment over stock. The added lift allows clearance for larger, more aggressive wheel and tire combinations while maintaining vehicle-specific suspension geometry and performance. ICON-tuned shock lengths and valving provide increased wheel travel, improved vehicle control, and a more controlled ride on and off the road.
The ICON 2.5 Series shocks use larger shock bodies and increased piston surface area to improve damping performance across changing terrain. Internal reservoirs help maintain consistent shock performance during extended or demanding use, while ICON-engineered coil springs provide application-specific support. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, and CNC-machined 6061 aircraft-grade aluminum components are designed for durability in demanding driving conditions. FK rod end bearings help minimize deflection and support long-term operation.
The ICON 58650 coilovers are nitrogen charged to 250 PSI and are fully rebuildable and re-tunable for long-term serviceability. For balanced suspension performance, pair these front coilovers with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers. Application Note #24: Factory upper control arms may not align properly beyond 2.5 inches of lift; an aftermarket upper control arm is recommended when adjusting lift above that height. Professional installation and alignment are recommended after installation.

Features:

  • Vehicle-specific tuning for improved shock damping, vehicle control, and ride quality over stock
  • 2.5-inch shock bodies with internal reservoirs for consistent performance
  • Height-adjustable coilovers with 1-3 inches of lift adjustment over stock
  • Corrosion-resistant CAD-plated shock bodies with 7/8-inch shafts
  • FK rod end bearings for extended service life and minimal deflection
  • Vehicle-specific shock length for maximum wheel travel
  • CNC-machined 6061 aircraft-grade aluminum components
  • 250 PSI nitrogen-charged internal reservoirs
  • Fully rebuildable and re-tunable design
  • ICON-engineered coil springs

Compatible With
2007 Toyota Tundra
2008 Toyota Sequoia
2008 Toyota Tundra
2009 Toyota Sequoia
2009 Toyota Tundra
2010 Toyota Sequoia
2010 Toyota Tundra
2011 Toyota Sequoia
2011 Toyota Tundra
2012 Toyota Sequoia
2012 Toyota Tundra
2013 Toyota Sequoia
2013 Toyota Tundra
2014 Toyota Sequoia
2014 Toyota Tundra
2015 Toyota Sequoia
2015 Toyota Tundra
2016 Toyota Sequoia
2016 Toyota Tundra
2017 Toyota Sequoia
2017 Toyota Tundra
2018 Toyota Sequoia
2018 Toyota Tundra
2019 Toyota Sequoia
2019 Toyota Tundra
2020 Toyota Sequoia
2020 Toyota Tundra
2021 Toyota Sequoia
2021 Toyota Tundra
2022 Toyota Sequoia
