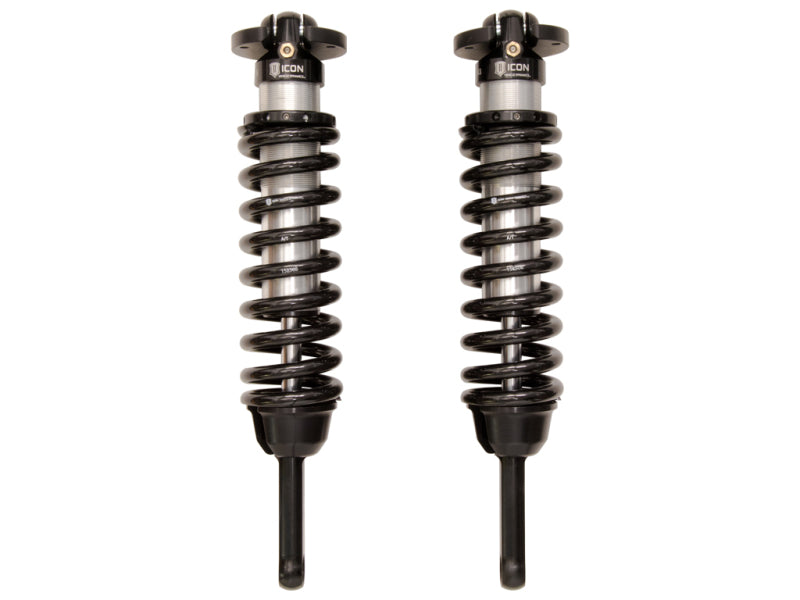

ICON 58647 Vehicle Dynamics 2.5 Series Front Coilover Kit for Toyota 4Runner, FJ Cruiser and Lexus GX460

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel shock length yields the maximum travel possible with aftermarket front upper control arms and ICON’s Vehicle-specific valving along with the larger 2.5” shock body and increased piston area over stock components provide superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460. These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable. APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Extended Travel length requires installation of aftermarket front upper control arms
• Superior low speed control reduces body roll and increases on-road stability
• FK Rod End bearings provide extended longevity and minimal deflection
• Bolt-in design makes for an easy install into OEM shock location
• Corrosion resistant CAD plated shock body with 7/8" shaft
• Adjustable coilovers yield 0-3.5" of front lift height

Upgrade the front suspension of your Toyota 4Runner, Toyota FJ Cruiser or Lexus GX460 with the ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover kit, Part Number 58647. Designed for select 2010–2024 Toyota 4Runner, 2010–2014 Toyota FJ Cruiser and 2010–2023 Lexus GX460 applications, this adjustable coilover system provides 0–3.5 inches of front lift adjustment for improved ground clearance and compatibility with larger wheel and tire combinations. Vehicle-specific valving, a larger 2.5-inch shock body and increased piston area deliver controlled, responsive suspension performance on pavement and off-road terrain.
The extended-travel design maximizes wheel travel when paired with aftermarket front upper control arms, which are required for installation. ICON-engineered coil springs are guaranteed for life against sagging or breakage, while the fully serviceable construction allows future rebuilding and revalving for long-term performance. FK rod-end bearings help reduce deflection and provide lasting durability, and the corrosion-resistant CAD-plated shock body with 7/8-inch shaft is built for demanding use.
The bolt-in configuration installs into the factory shock locations for a straightforward upgrade. Superior low-speed control helps reduce body roll and improves on-road stability without sacrificing off-road capability. For balanced vehicle control, pair these front coilovers with ICON 2.0 or 2.5 Aluminum Series rear shocks. Application Note 111: A bump stop spacer kit is available to increase the visible thread length beyond the maximum recommendation. Professional installation and alignment are recommended after installation.

Features:

• Extended-travel front coilovers increase wheel travel and use vehicle-specific valving for refined on-road and off-road ride quality

• Adjustable coilover design provides 0–3.5 inches of front lift height adjustment

• ICON-engineered coil springs are guaranteed for life against sagging or breakage

• Fully serviceable construction supports rebuilding and revalving for extended service life

• Extended-travel design requires aftermarket front upper control arms

• Superior low-speed control helps reduce body roll and improve on-road stability

• FK rod-end bearings provide extended durability and minimal deflection

• Bolt-in design installs into the original equipment shock locations

• Corrosion-resistant CAD-plated shock body with 7/8-inch shaft

• Compatible with select Toyota 4Runner, Toyota FJ Cruiser and Lexus GX460 applications

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
