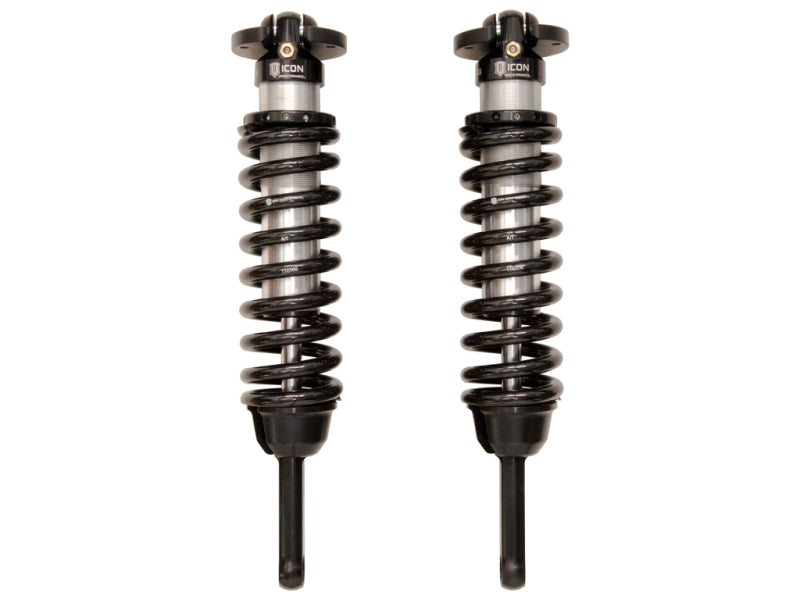

ICON 58646 V.S. 2.5 Series Front Coilover Shocks for Toyota 4Runner, FJ Cruiser and Lexus GX460

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible, while still being compatible with the vehicle’s stock front upper control arms, along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota 4Runner, FJ Cruiser or Lexus GX460. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride quality across varying types of terrain. APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.

• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Superior low speed control reduces body roll and increases on-road stability
• FK Rod End bearings provide extended longevity and minimal deflection
• Bolt-in design makes for an easy install into OEM shock location
• Corrosion resistant CAD plated shock body with 7/8" shaft
• Adjustable coilovers yield 0-3.5" of front lift height

Upgrade the front suspension of your 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, or 2010-2023 Lexus GX460 with ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks. Part number 58646 delivers adjustable front lift from 0 to 3.5 inches, providing clearance for larger wheel and tire combinations while remaining compatible with the vehicle’s stock front upper control arms. Vehicle-specific shock length and valving maximize suspension travel and provide balanced handling on both paved roads and off-road terrain.
The larger 2.5-inch shock body and increased piston area improve damping performance across changing terrain, while superior low-speed control helps reduce body roll and enhance on-road stability. ICON-engineered coil springs are optimized for this application and backed against sagging or breakage for the life of the springs. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers, the suspension system delivers more consistent front-to-rear control and ride quality.
The fully serviceable design supports future revalves and rebuilds for long-term use. FK rod-end bearings promote durability with minimal deflection, and the bolt-in configuration installs into the original shock location. A corrosion-resistant CAD-plated shock body and 7/8-inch shaft provide lasting performance in demanding conditions. Application Note 111: A bump stop spacer kit is available for installations requiring additional threads beyond the maximum recommended adjustment range.

Features:

• Adjustable coilover design provides 0 to 3.5 inches of front lift height

• Vehicle-specific valving and increased wheel travel deliver controlled performance on and off the road

• 2.5-inch shock body and increased piston area improve damping capability and ride quality

• ICON-engineered coil springs are backed against sagging or breakage for the life of the springs

• Fully serviceable construction allows revalving and rebuilding for extended service life

• Superior low-speed control helps reduce body roll and improve on-road stability

• FK rod-end bearings provide extended durability with minimal deflection

• Bolt-in design installs into the original equipment shock location

• Corrosion-resistant CAD-plated shock body with 7/8-inch shaft

• Compatible with stock front upper control arms

Compatible With
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2015 Lexus GX460
2015 Toyota 4Runner
2016 Lexus GX460
2016 Toyota 4Runner
2017 Lexus GX460
2017 Toyota 4Runner
2018 Lexus GX460
2018 Toyota 4Runner
2019 Lexus GX460
2019 Toyota 4Runner
2020 Lexus GX460
2020 Toyota 4Runner
2021 Lexus GX460
2021 Toyota 4Runner
2022 Lexus GX460
2022 Toyota 4Runner
2023 Lexus GX460
2023 Toyota 4Runner
2024 Toyota 4Runner
