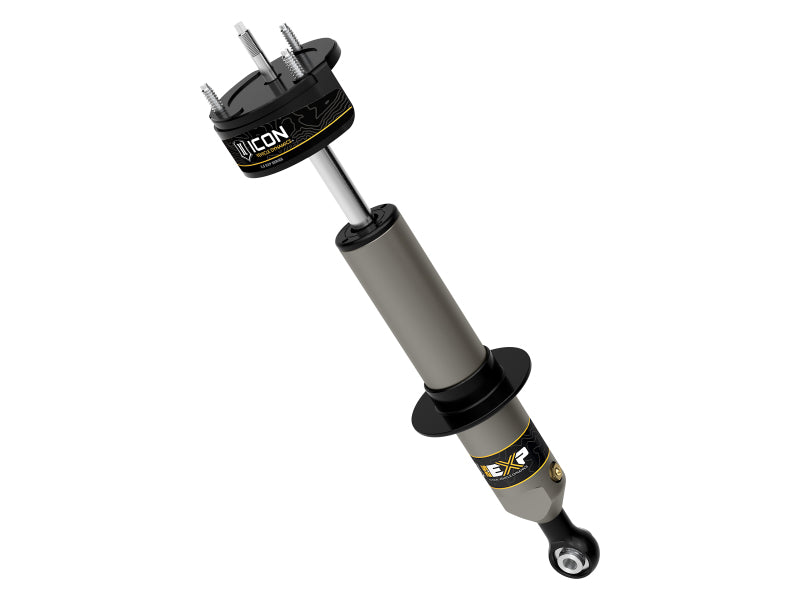

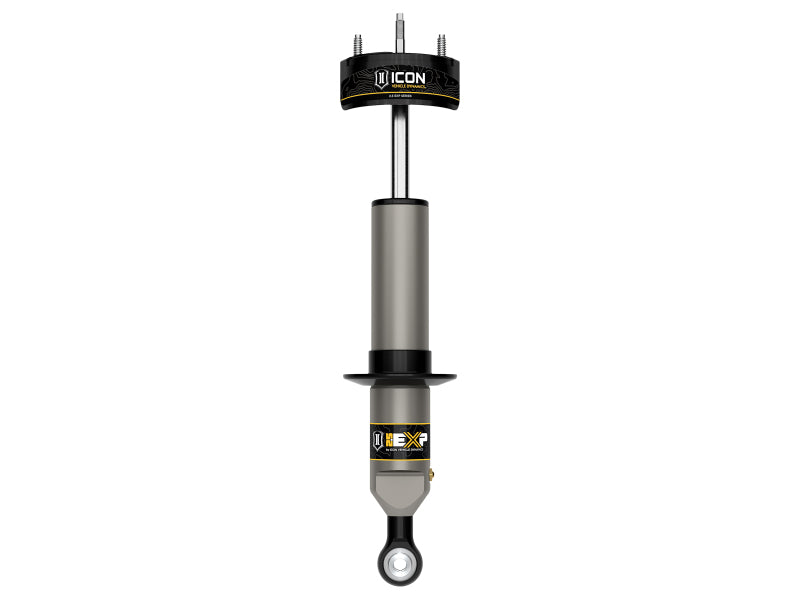

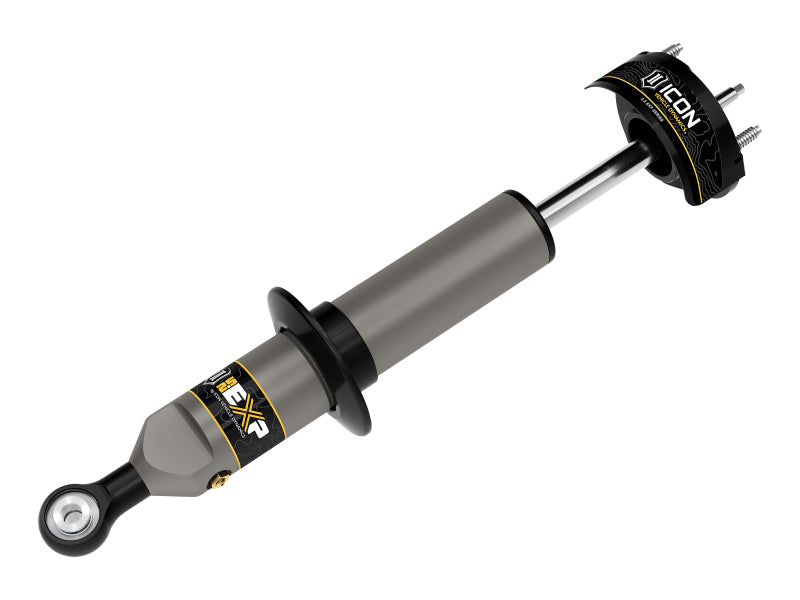

ICON 58632 EXP Series 2.5 Front Coilover Shock for 2005-2023 Toyota Tacoma

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tacoma in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON. 2005-UP TOYOTA TACOMA FRONT 2.5 EXP SERIES COILOVER APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.

• Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• Adjustable ride heights from 0-2” of front lift over stock with the use of snap ring
• PTFE lined spherical bearing for extended longevity and minimal deflection
• CNC machined 6061 aluminum components with a black anodized finish
• Vehicle specific tuned for superior shock damping and control
• Vehicle specific design for 2005-2023 Toyota Tacoma
• 2.5 Aluminum Series Shock with Internal Reservoir
• Utilizes factory coil and coil hardware
• Fully rebuildable and re-tunable

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with the ICON 58632 EXP Series 2.5 Front Coilover Shock. Designed specifically for Tacoma models using the factory front coil spring and coil hardware, this vehicle-tuned coilover delivers improved damping performance, control, and ride quality on both pavement and rough terrain. The one-piece digressive piston is calibrated to work with the stock front coil springs, providing responsive suspension control without sacrificing everyday drivability.
The 2.5-inch aluminum shock body increases oil volume and improves heat dissipation compared with smaller steel-bodied original equipment shocks. This helps maintain consistent performance during extended high-speed driving, demanding off-road use, and repeated suspension cycling. The impact-extruded, hard-anodized aluminum cylinder offers excellent corrosion resistance, while the inverted shaft-up configuration uses a 7/8-inch induction-hardened, chrome-plated shaft for strength and durability. CNC-machined 6061 aluminum components feature a black anodized finish for lasting performance and a clean appearance.
The ICON 58632 provides adjustable front ride height from 0 to 2 inches over stock using the included snap-ring adjustment. A PTFE-lined spherical bearing supports extended service life and minimizes deflection for precise suspension movement. This coilover uses an internal reservoir and is fully serviceable, rebuildable, and re-tunable by a qualified shock technician, with replacement service parts available from ICON. Lift-height indications are based on a stock-equipped vehicle, and professional installation is recommended to ensure proper setup and alignment.

Features:

• Vehicle-specific tuning for improved shock damping and suspension control

• Fits 2005-2023 Toyota Tacoma applications

• 2.5-inch aluminum shock body with internal reservoir for improved heat dissipation

• Adjustable front ride height from 0 to 2 inches over stock using a snap-ring adjustment

• Impact-extruded, hard-anodized aluminum cylinder for corrosion resistance

• Inverted shaft-up design with a 7/8-inch induction-hardened, chrome-plated shaft

• PTFE-lined spherical bearing for durability and reduced deflection

• CNC-machined 6061 aluminum components with a black anodized finish

• Uses the factory coil spring and coil hardware

• Fully rebuildable, serviceable, and re-tunable

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
