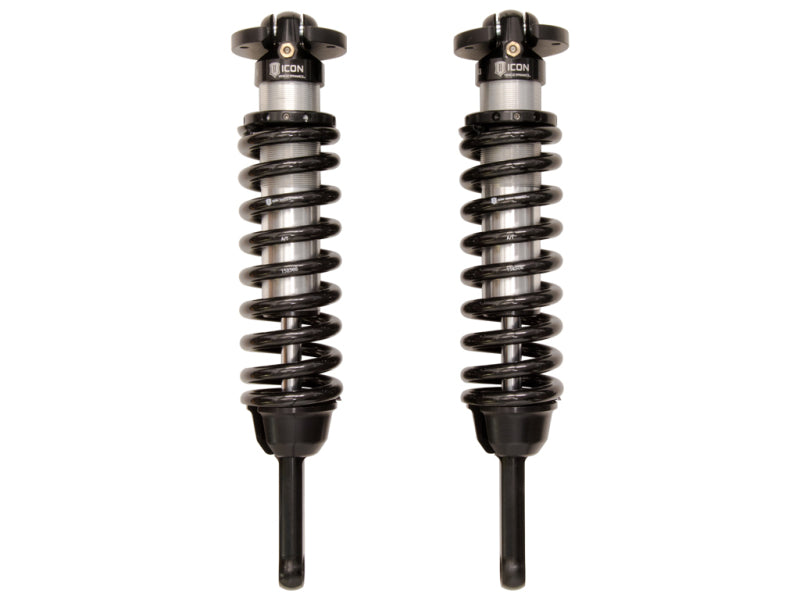

ICON 58630-700 V.S. 2.5 Series Front Coilover Shocks for 2005-2023 Toyota Tacoma

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma. These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

Upgrade the front suspension of your 2005-2023 Toyota Tacoma with ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks, part number 58630-700. These height-adjustable coilovers provide 0 to 3.5 inches of lift adjustment on 2005-2015 models and 0 to 2.75 inches on 2016-2023 models, helping accommodate larger wheel and tire combinations while improving suspension travel, ride quality, and vehicle control on and off the road. The included ICON-engineered coil springs feature a 700 lb/in spring rate to better support Tacoma models equipped with added front-end weight from accessories such as aftermarket bumpers and winches.
The ICON 2.5 Series shock design uses a larger 2.5-inch shock body and increased piston area compared with stock components, delivering improved damping capacity across changing terrain. Vehicle-specific shock length and valving are tuned for the Toyota Tacoma to provide controlled suspension performance and enhanced ride characteristics. Corrosion-resistant CAD-plated shock bodies, 7/8-inch shafts, FK rod end bearings, and CNC-machined 6061 aircraft-grade aluminum components support long-term durability and reduced deflection.
These ICON coilovers are fully rebuildable and re-tunable, allowing continued serviceability and performance customization. For balanced vehicle control, pair them with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers. Recommended aftermarket tire sizing is 33 inches by 11.50 inches; larger tires may require fender trimming or additional vehicle modifications. Professional installation and alignment are recommended after installation.

Features:

• ICON-engineered coil springs with a 700 lb/in spring rate support heavier-equipped front ends

• Height-adjustable coilovers provide 0 to 3.5 inches of lift adjustment on 2005-2015 models or 0 to 2.75 inches on 2016-2023 models

• Internal reservoir 2.5 Series shocks use increased piston area for improved damping and ride quality

• Vehicle-specific shock length and valving are tuned for the Toyota Tacoma

• Corrosion-resistant CAD-plated shock bodies with 7/8-inch diameter shafts

• FK rod end bearings provide extended longevity and minimal deflection

• Increased wheel travel and improved ride quality compared with stock components

• CNC-machined 6061 aircraft-grade aluminum components provide durable construction

• Fully rebuildable and re-tunable for long-term serviceability

• Recommended aftermarket tire size is 33 inches by 11.50 inches; larger tires may require fender trimming and modifications

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
