ICON 58561DJ Billet Upper Control Arm Kit with Delta Joint PRO for 2022-2023 Toyota Tundra

$1,439.95

Skip to product information
1 of 9

Regular price $1,439.95
Sale price $1,439.95 Regular price $1,439.95
Shipping calculated at checkout.
Low stock

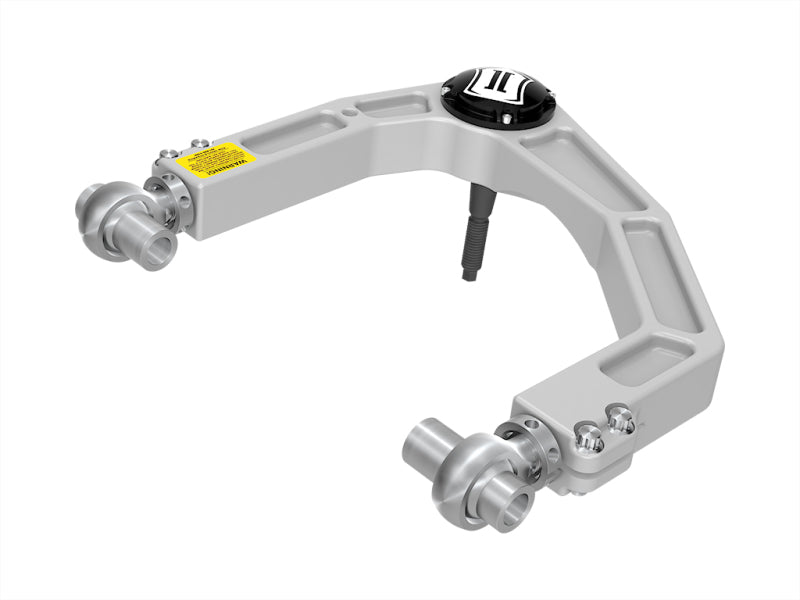

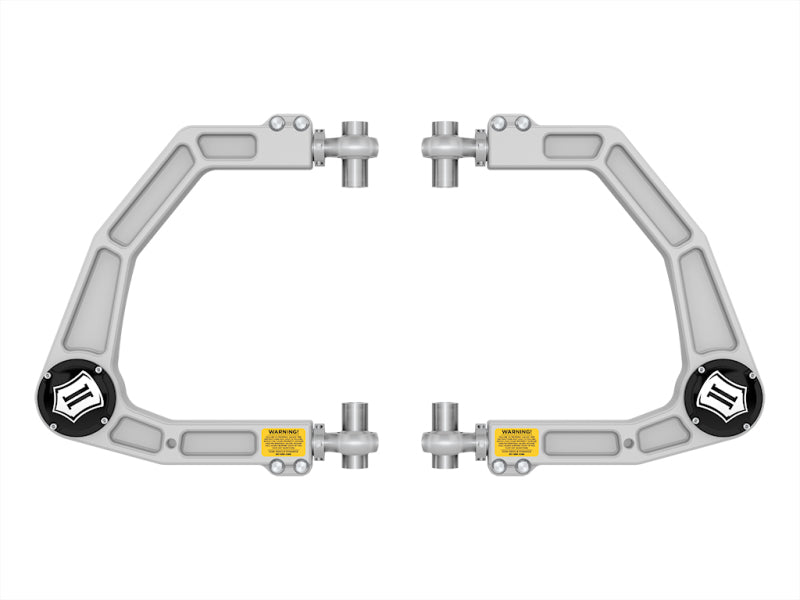

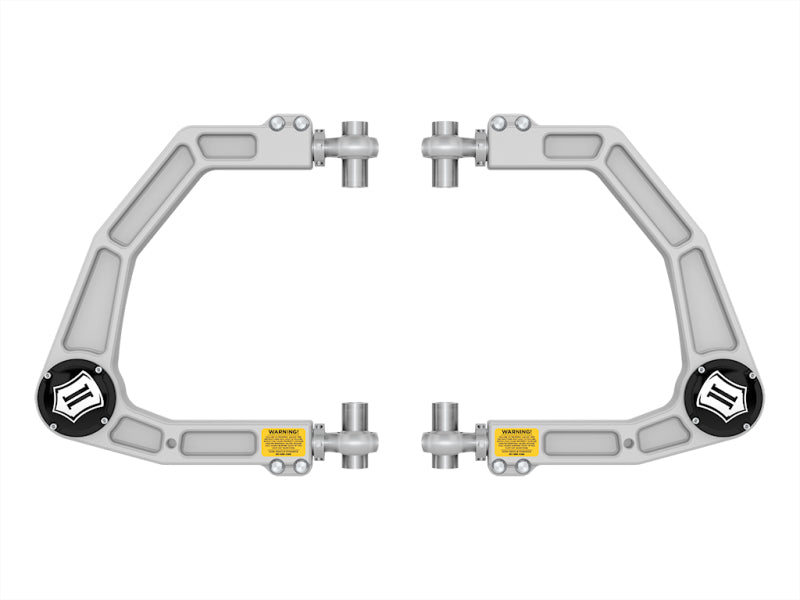

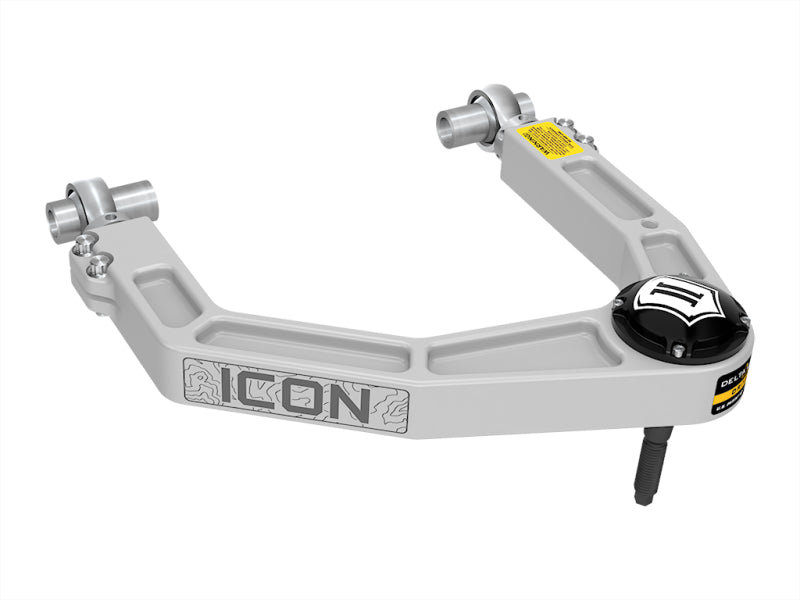

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal. ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball. APPLICATION NOTE #369: Compatible with Tundra without TRD package, with TRD Off-Road package, or TRD Rally package equipped with 0-3.5” of front lift over stock
  • Corrects suspension geometry and allows for proper wheel alignment on Tundras with up to 3” of lift
  • FK Rod Ends at chassis pivots for strength and precision driving characteristics
  • CNC machined 6061 billet aluminum construction with satin anodized finish
  • Quick, precise, on-vehicle adjustment for both caster and camber
  • Delta Joint PRO allows maximum articulation without binding
  • Delta Joint PRO is 100% serviceable and rebuildable
  • Built in O-ring sealed dust cover cap

Upgrade the front suspension of your 2022-2023 Toyota Tundra with the ICON 58561DJ billet upper control arm kit. Designed for Tundras equipped with 0 to 3.5 inches of front lift over stock, this system corrects suspension geometry and helps restore proper wheel alignment on trucks with up to 3 inches of lift. The CNC-machined 6061 billet aluminum construction provides a strong, precision-engineered foundation, while the satin anodized finish adds corrosion resistance and a clean appearance.
The ICON Delta Joint PRO combines the durability and service life of a factory-style ball joint with the articulation and strength expected from high-performance suspension components. Its rebuildable, serviceable design allows individual components to be removed, inspected, and replaced instead of replacing the complete joint. A larger ball increases bearing surface area, while improved lubrication sealing and redesigned grease channels support smooth, reliable operation under demanding off-road conditions. The chromoly ball and shaft feature a hardened bearing surface, and replaceable graphite-impregnated sintered metal races provide a precise metal-to-metal bearing interface.
FK rod ends at the chassis pivots deliver strength and precise driving characteristics, while on-vehicle adjustments allow quick, accurate tuning of caster and camber. The Delta Joint PRO provides up to 90 degrees of articulation to maximize suspension movement and reduce binding throughout the range of travel. An O-ring-sealed dust cover cap helps protect the joint from contaminants, extending serviceability in harsh environments. This ICON kit is intended for the 2022-2023 Toyota Tundra without the TRD package, with the TRD Off-Road package, or with the TRD Rally package, subject to the specified lift application.

Features:

  • Corrects suspension geometry and supports proper wheel alignment on Toyota Tundras with up to 3 inches of lift
  • FK rod ends at chassis pivots provide strength and precise driving characteristics
  • CNC-machined 6061 billet aluminum construction with a satin anodized finish
  • Quick, precise on-vehicle adjustment for caster and camber
  • Delta Joint PRO allows maximum suspension articulation with reduced binding
  • Fully serviceable and rebuildable Delta Joint PRO design
  • Chromoly ball and shaft with a hardened bearing surface for improved durability
  • Graphite-impregnated sintered metal replaceable races provide a precise bearing interface
  • Improved lubrication channels distribute grease efficiently without extending beyond the bearing seal
  • Built-in O-ring-sealed dust cover cap helps protect against contaminants

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
