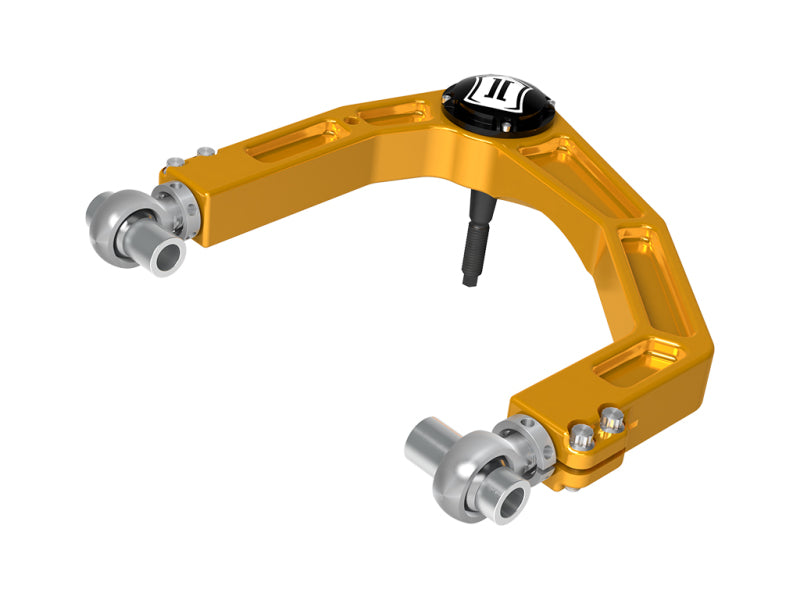

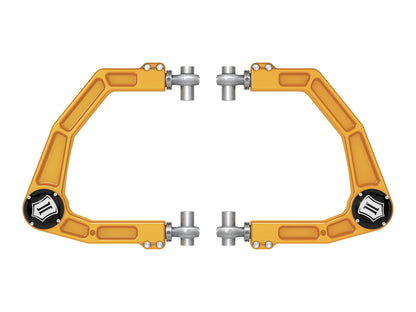

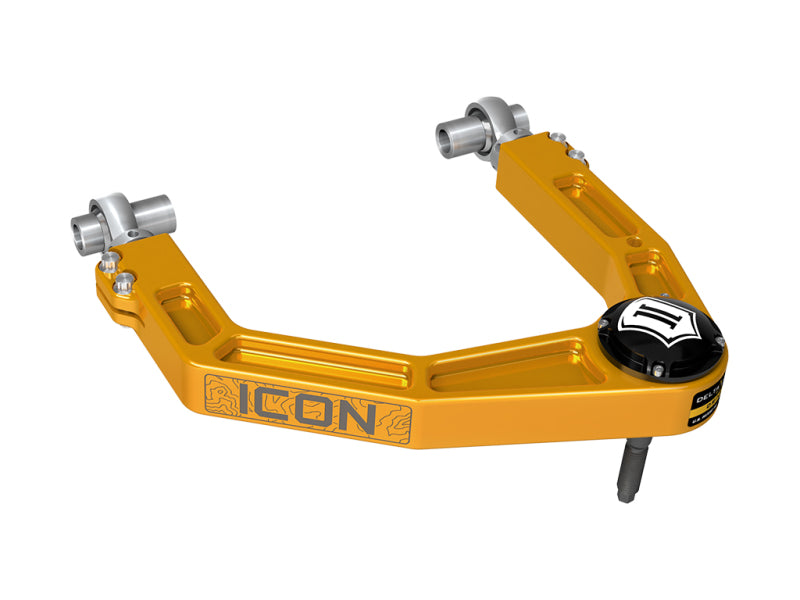

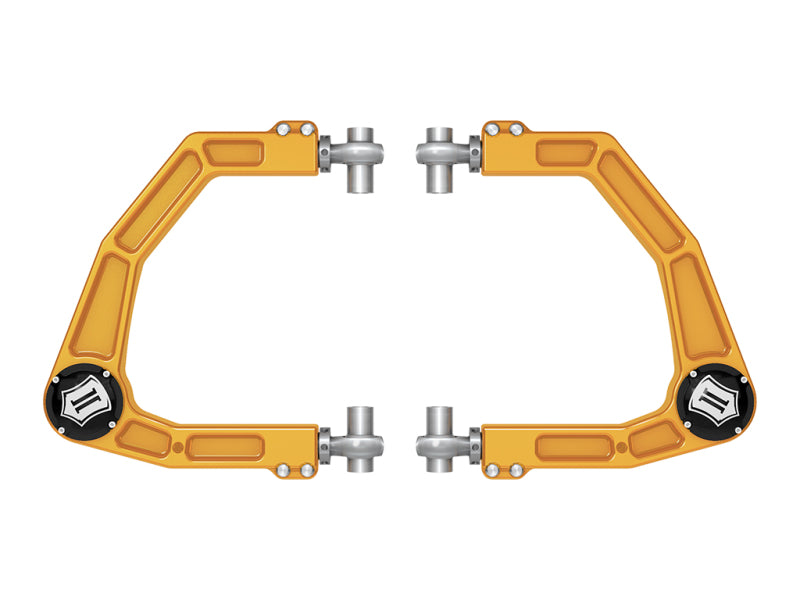

ICON 58552GDJ Billet Upper Control Arms with Delta Joint PRO for 2024 Toyota Tacoma, Land Cruiser, and Lexus GX550

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal. ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball. Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

• Corrects suspension geometry and allows for proper wheel alignment on vehicles with up to 3” of lift
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Quick, precise, on-vehicle adjustment for both caster and camber
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• CNC machined 6061 billet aluminum construction
• Built in O-ring sealed dust cover cap
• Gold anodized finish

Upgrade the front suspension of your 2024 Toyota Tacoma, 2024 Toyota Land Cruiser, or 2024 Lexus GX550 with ICON part number 58552GDJ billet upper control arms. Designed for vehicles with up to 3 inches of lift, these control arms correct suspension geometry, support proper wheel alignment, and provide improved suspension movement for off-road driving. Their CNC-machined 6061 billet aluminum construction combines strength, precision, and reduced weight, while the gold anodized finish adds durable corrosion resistance and a distinctive appearance.
The integrated Delta Joint PRO delivers up to 90 degrees of articulation for maximum bind-free suspension movement throughout the complete range of travel. Its larger chromoly ball and shaft feature a hardened bearing surface, while improved lubrication sealing and redesigned grease channels help protect the joint under demanding conditions. Unlike traditional non-serviceable joints, the Delta Joint PRO is fully serviceable and rebuildable, allowing individual components to be inspected or replaced instead of replacing the complete joint.
FK rod ends at the chassis pivots provide strength and precise driving characteristics, while on-vehicle adjustment enables quick, accurate caster and camber tuning. Built-in O-ring sealed dust cover caps help protect the joint from contamination and extend service life. These ICON upper control arms are recommended for use with aftermarket tires up to 33 inches by 11.50 inches; larger tires may require fender trimming and additional modifications. Professional installation and alignment are recommended after installation.

Features:

• Corrects suspension geometry and supports proper wheel alignment on vehicles with up to 3 inches of lift

• FK rod ends at chassis pivots provide strength and precise driving characteristics

• Quick, precise on-vehicle adjustment for caster and camber

• Delta Joint PRO allows maximum articulation without binding

• Fully serviceable and rebuildable Delta Joint PRO design

• CNC-machined 6061 billet aluminum construction

• Chromoly ball and shaft with hardened bearing surface

• Built-in O-ring sealed dust cover cap

• Gold anodized finish

• Recommended for aftermarket tires up to 33 inches by 11.50 inches

Compatible With
2024 Lexus GX550
2024 Toyota Land Cruiser
2024 Toyota Tacoma
2025 Lexus GX550
2025 Toyota 4Runner
2025 Toyota Land Cruiser
2025 Toyota Tacoma
2026 Lexus GX550
2026 Toyota 4Runner
2026 Toyota Land Cruiser
2026 Toyota Tacoma
