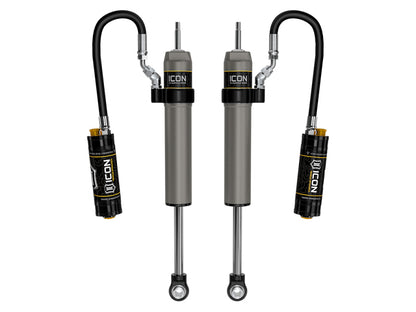

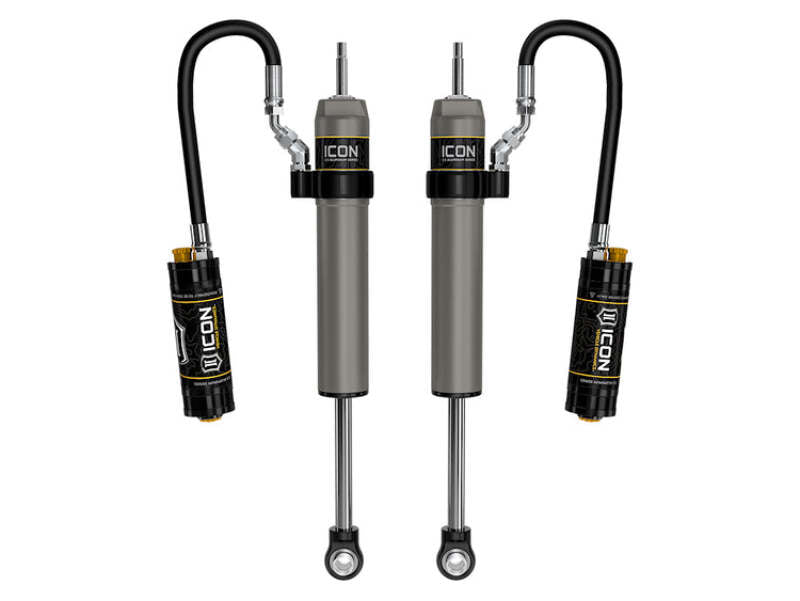

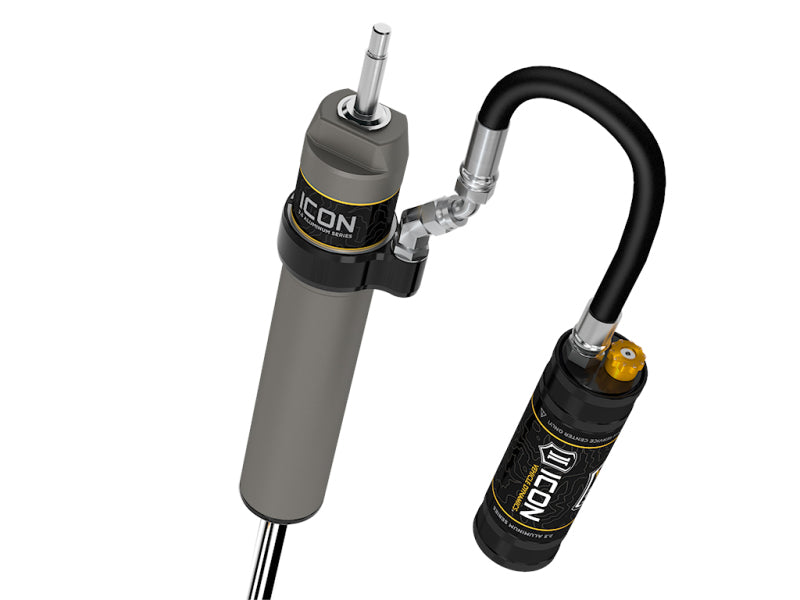

ICON 57872CP V.S. 2.5 Aluminum Series Rear Shocks with CDCV for 2025-2026 Toyota 4Runner, 0-3-Inch Lift

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON V.S. 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• Rubber dust boot included for added shaft protection
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

Upgrade the suspension performance of your 2025 or 2026 Toyota 4Runner with the ICON 57872CP V.S. 2.5 Aluminum Series rear shocks. Designed specifically for applications with 0 to 3 inches of lift, this pair of remote-reservoir shocks delivers controlled off-road performance while maintaining a smooth, comfortable ride on the street. Vehicle-specific length and damping calibration help provide consistent handling across varied terrain, from technical trails and rock crawling to high-speed desert driving.
The ICON 57872CP shocks feature a one-piece digressive piston with application-specific valving for responsive damping and improved ride quality. ICON’s exclusive Compression Damping Control Valve provides 10 settings of external compression adjustment, allowing you to fine-tune suspension behavior for changing loads, terrain, and driving conditions. The remote-reservoir design improves heat dissipation during prolonged use, helping reduce shock fade and maintain consistent performance. ICON’s internal Bump Zone can increase damping by 20% near full compression, helping control suspension movement and reduce harsh bottom-outs.
Built for long-term serviceability, these ICON V.S. 2.5 Aluminum Series shocks use hard-anodized, impact-extruded aluminum cylinders, 6061 aircraft-grade aluminum CNC-machined components, premium 5WT shock oil, and a nitrogen-charged monotube design. PTFE-lined spherical bearings, application-specific mounting hardware, a 7/8-inch induction-hardened chrome-plated shaft, and a rubber dust boot support durability in demanding environments. The shocks are fully rebuildable and re-tunable for future maintenance or performance changes. Application-specific fitment is provided for 2025-2026 Toyota 4Runner models; lift-height guidance is based on a stock-equipped vehicle.

Features:

• Vehicle-specific rear shocks designed for 2025-2026 Toyota 4Runner models with 0-3 inches of lift

• One-piece digressive piston with application-specific valving for controlled on-road and off-road performance

• Remote reservoir design improves heat dissipation and helps reduce shock fade

• ICON CDCV provides 10 settings of external compression damping adjustment

• Internal Bump Zone increases damping by 20% near full compression for improved bottom-out control

• Hard-anodized, impact-extruded aluminum cylinders provide corrosion resistance and a consistent finish

• Premium 5WT shock oil supports consistent damping across a wide temperature range

• Nitrogen-charged monotube construction with remote reservoirs

• PTFE-lined spherical bearings and application-specific mounting hardware included

• 7/8-inch induction-hardened, chrome-plated shock shaft

• Rubber dust boots help protect the shock shafts

• 6061 aircraft-grade aluminum CNC-machined components

• Fully rebuildable and re-tunable design

Compatible With
2025 Toyota 4Runner
2026 Toyota 4Runner
