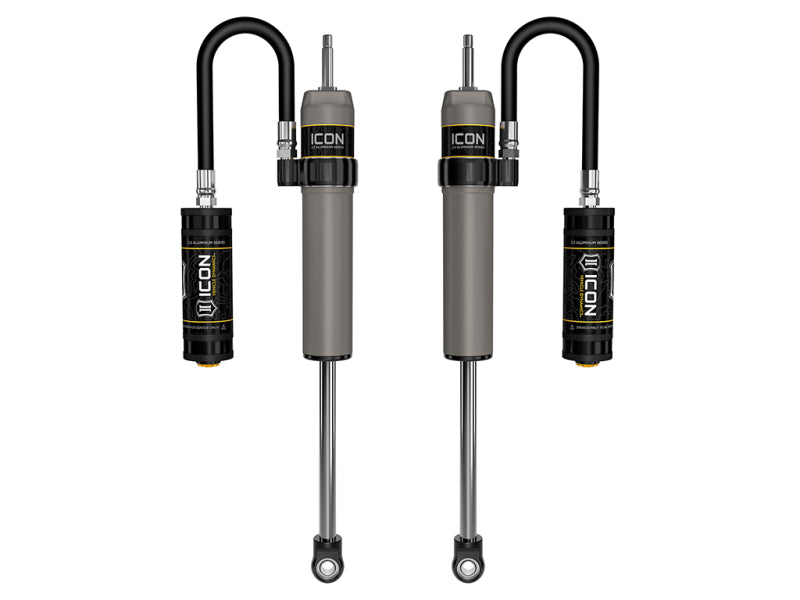

ICON 57841P 2.5 VS Remote Reservoir Rear Shocks for 2022-2023 Toyota Tundra with 3-3.5 in. Lift

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider ICON compression adjustable shock absorbers equipped with CDCV, CDXS, or CDEV. ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. APPLICATION NOTE #397: Compatible with 3-3.5” of rear lift on non-TRD Tundras or 3" rear lift on TRD Tundras equipped with rear coil springs

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• All ICON 2.5 Aluminum Series Remote Reservoir shocks can be upgraded with an ICON compression adjuster (CDCV, CDXS, or CDEV)
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

The ICON 57841P 2.5 Aluminum Series Vehicle Specific rear shocks are engineered for 2022-2023 Toyota Tundra models with rear coil springs and approximately 3 to 3.5 inches of rear lift. This pair of remote reservoir shocks is tuned specifically for the vehicle application, delivering controlled suspension performance during off-road driving while maintaining a smooth, comfortable ride on the street. The application is compatible with non-TRD Tundras equipped with 3 to 3.5 inches of rear lift and TRD Tundras equipped with a 3-inch rear lift.
Built around a nitrogen-charged monotube design, the ICON VS 2.5 shocks use a one-piece digressive piston with application-specific valving for responsive damping and improved ride quality. ICON’s remote reservoir design helps dissipate heat and reduce shock fade during extended or demanding use. A 6061 billet aluminum manifold creates an internal Bump Zone that adds up to 20% more damping force as the shock approaches full compression, helping control high-velocity suspension movement and reduce harsh bottom-outs.
Each ICON 57841P shock features a hard-anodized, impact-extruded aluminum cylinder for corrosion resistance and a consistent finish, along with a 7/8-inch induction-hardened chrome-plated shaft. Premium 5WT shock oil supports consistent damping across a broad temperature range, while PTFE-lined spherical bearings and application-specific mounting hardware support precise installation. CNC-machined 6061 aircraft-grade aluminum components provide durable construction for demanding driving conditions.
The ICON 2.5 Aluminum Series shocks are fully rebuildable and re-tunable, allowing service and damping adjustments as vehicle use or performance preferences change. The remote reservoir design can also be upgraded with an ICON CDCV, CDXS, or CDEV compression adjuster for a more customized suspension tune. This product includes one pair of rear shocks and is identified by ICON part number 57841P.

Features:

• Vehicle-specific rear shocks for 2022-2023 Toyota Tundra models with rear coil springs and approximately 3 to 3.5 inches of rear lift

• Remote reservoir design improves heat dissipation and helps reduce shock fade during prolonged off-road use

• One-piece digressive piston with application-specific valving delivers controlled performance on and off the road

• Internal Bump Zone increases damping force by up to 20% near full compression to help control bottom-outs

• Hard-anodized, impact-extruded aluminum cylinders provide corrosion resistance and a durable finish

• Premium 5WT shock oil supports consistent damping across a wide temperature range

• 7/8-inch induction-hardened, chrome-plated shock shaft

• Nitrogen-charged monotube construction with remote reservoir

• PTFE-lined spherical bearings and application-specific mounting hardware

• CNC-machined 6061 aircraft-grade aluminum components

• Fully rebuildable and re-tunable

• Compatible with ICON CDCV, CDXS, or CDEV compression adjuster upgrades

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
2026 Toyota Tundra
