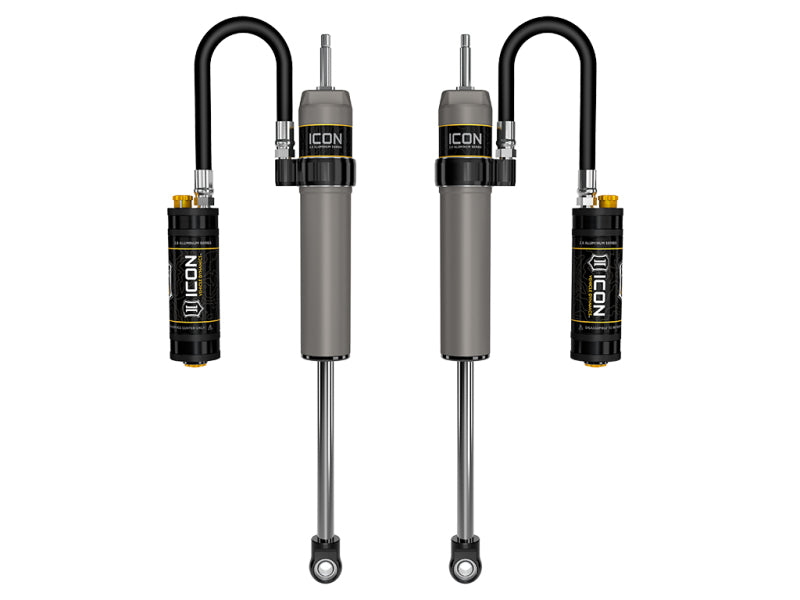

ICON 57841CP 2.5 VS CDCV Remote Reservoir Rear Shocks for 2022-2023 Toyota Tundra with 3-3.5-Inch Lift

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. APPLICATION NOTE #397: Compatible with 3-3.5” of rear lift on non-TRD Tundras or 3" rear lift on TRD Tundras equipped with rear coil springs

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

Upgrade the suspension performance of your 2022-2023 Toyota Tundra with the ICON 57841CP 2.5 VS CDCV remote reservoir rear shocks. Designed specifically for Tundra applications, these shocks are tuned for vehicles with rear coil springs and approximately 3 to 3.5 inches of rear lift, depending on trim. They provide controlled suspension response during off-road driving while maintaining a smooth, composed ride on the street. The pair includes application-specific mounting hardware and is engineered for direct vehicle-specific fitment.

ICON Vehicle Specific 2.5 Aluminum Series shocks feature a nitrogen-charged monotube design, remote reservoirs for improved heat dissipation, and premium 5WT shock oil for consistent damping across a wide temperature range. The one-piece digressive piston and vehicle-specific valving help deliver predictable ride quality over changing terrain. An internal Bump Zone increases damping force by 20 percent as the shock approaches full compression, helping control high-speed suspension movement and reduce harsh bottom-out events.

The externally adjustable ICON CDC Valve provides 10 levels of compression damping adjustment, allowing the suspension feel to be tailored to road conditions, cargo, driving style, or off-road use. Each shock uses a corrosion-resistant, hard-anodized aluminum cylinder, a 7/8-inch induction-hardened chrome-plated shaft, PTFE-lined spherical bearings, and CNC-machined 6061 aircraft-grade aluminum components. Like other ICON performance shock absorbers, the 57841CP set is fully rebuildable and re-tunable for long-term serviceability. These shocks are intended for compatible 2022-2023 Toyota Tundra models with rear coil springs and the specified lift configuration.

Features:

• Vehicle-specific digressive piston design and valving for controlled on-road comfort and off-road performance

• Internal Bump Zone increases damping force by 20 percent near full compression

• ICON CDC Valve provides 10 levels of externally adjustable compression damping

• Remote reservoir design improves heat dissipation and helps reduce shock fade

• Hard-anodized, impact-extruded aluminum cylinders resist corrosion and maintain a consistent finish

• Premium 5WT shock oil supports consistent damping across a broad temperature range

• Nitrogen-charged monotube construction with remote reservoirs

• 7/8-inch induction-hardened, chrome-plated shock shafts

• PTFE-lined spherical bearings and application-specific mounting hardware

• CNC-machined 6061 aircraft-grade aluminum components

• Fully rebuildable and re-tunable

• Compatible with approximately 3 to 3.5 inches of rear lift on non-TRD Tundras or 3 inches of rear lift on TRD Tundras equipped with rear coil springs

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
2026 Toyota Tundra
