ICON 57840XP 2.5 Series Rear Shocks with CDXS Remote Reservoirs for 2022+ Toyota Tundra and 2023 Toyota Sequoia

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. APPLICATION NOTE #23: Compatible with 0-4” of rear lift on Sequoias without TRD Off Road package or 0-2" of rear lift on Sequoias equipped with TRD Off Road package and Sequoia TRD Pro.

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

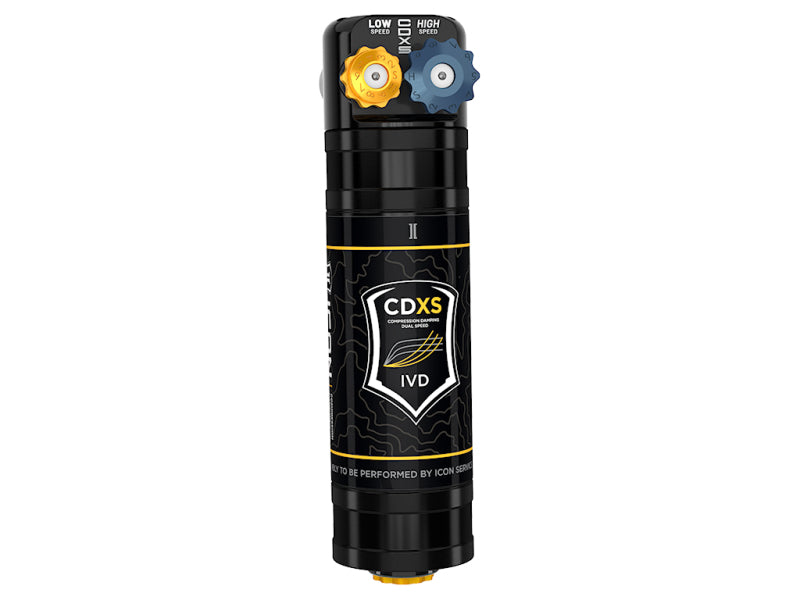

• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

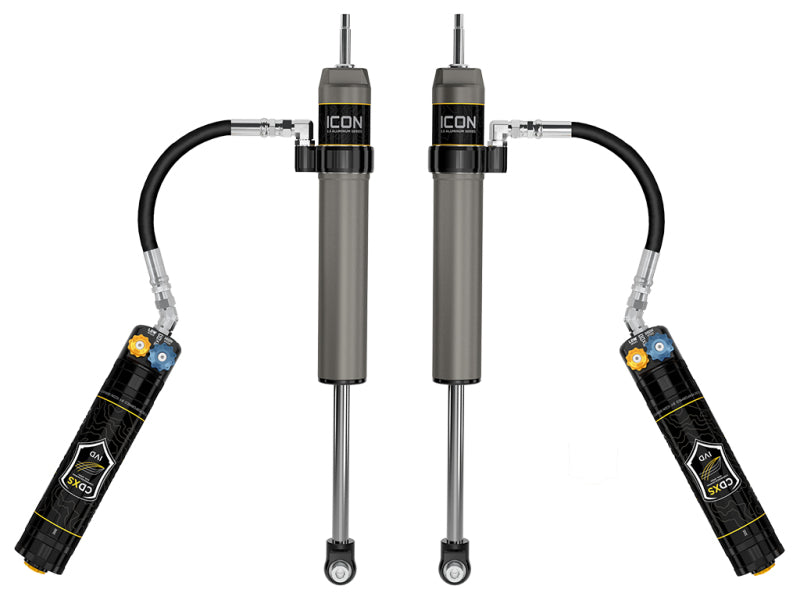

Upgrade your suspension performance with the ICON 57840XP Vehicle Specific 2.5 Aluminum Series rear shocks. Designed for select 2022 Toyota Tundra applications and 2023 Toyota Sequoia models, these shocks are engineered with vehicle-specific lengths and damping tunes to deliver controlled off-road performance without sacrificing street comfort. The pair includes remote reservoir shocks suited for rear lift applications, helping maintain consistent damping during demanding driving conditions.

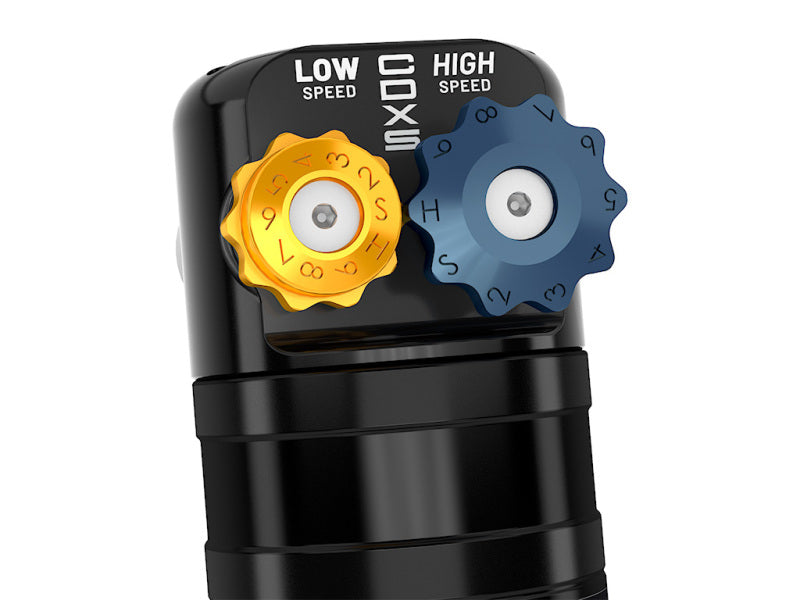

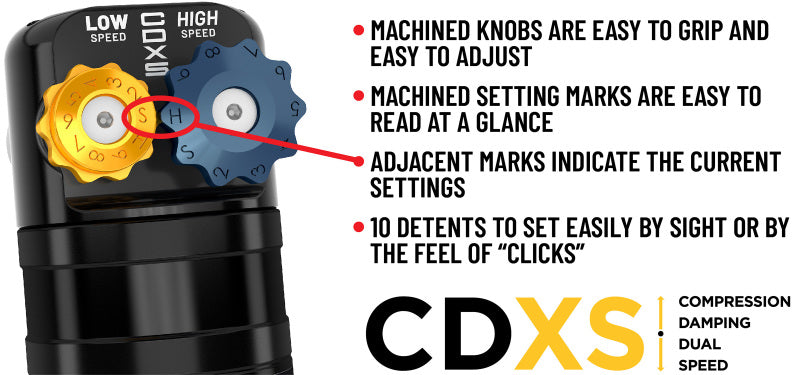

The ICON 57840XP shocks feature Compression Damping Dual Speed (CDXS) adjusters with 10 detented settings for both high-speed and low-speed compression. Independent adjustment lets you fine-tune handling response, suspension aggressiveness, and overall ride behavior. A one-piece digressive piston with application-specific valving provides responsive control, while the remote reservoir improves heat dissipation to help reduce shock fade during prolonged off-road use. ICON’s internal Bump Zone adds damping force as the shock approaches full compression, helping control the suspension and reduce harsh bottom-out events.
Built for long-term serviceability, each shock uses a nitrogen-charged monotube design, premium 5WT shock oil, a 7/8-inch induction-hardened chrome-plated shaft, and a hard-anodized aluminum cylinder for corrosion resistance and a consistent finish. PTFE-lined spherical bearings, application-specific mounting hardware, and CNC-machined 6061 aircraft-grade aluminum components support dependable installation and operation. The ICON 57840XP is fully rebuildable and re-tunable for continued performance. Application note: compatible with 0 to 4 inches of rear lift on Sequoia models without the TRD Off Road package, or 0 to 2 inches of rear lift on Sequoia models equipped with the TRD Off Road package or TRD Pro.

Features:

• CDXS adjusters provide independent high-speed and low-speed compression control

• Vehicle-specific valving and one-piece digressive piston deliver balanced on-road and off-road performance

• Internal Bump Zone increases damping near full compression for improved bottom-out control

• Remote reservoir design improves heat dissipation and helps reduce shock fade

• Hard-anodized impact-extruded aluminum cylinders resist corrosion

• Premium 5WT shock oil maintains consistent damping across a broad temperature range

• Nitrogen-charged monotube construction with remote reservoirs

• PTFE-lined spherical bearings and application-specific mounting hardware

• 7/8-inch induction-hardened chrome-plated shock shafts

• CNC-machined 6061 aircraft-grade aluminum components

• Fully rebuildable and re-tunable

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
