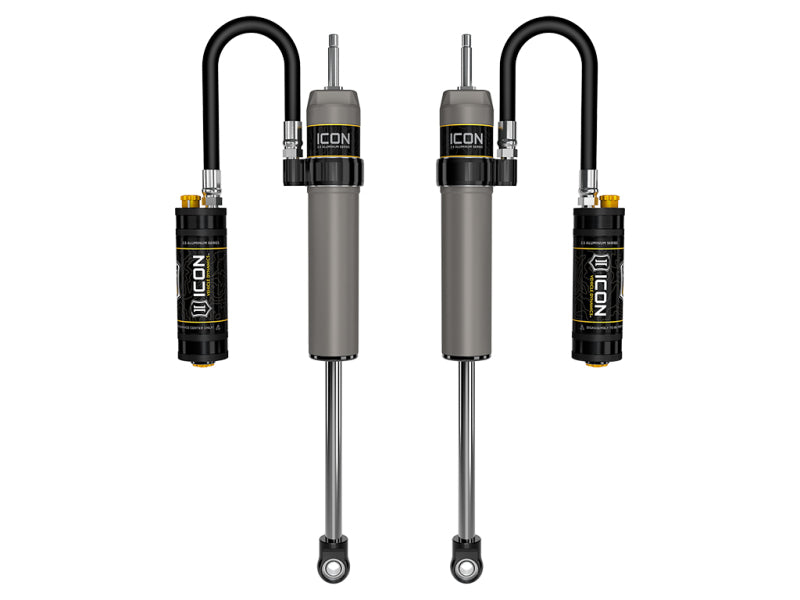

ICON 57840CP 2.5 Series CDC Valve Remote Reservoir Rear Shocks for 2022+ Toyota Tundra, 0-1-Inch Lift

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. APPLICATION NOTE #23: Compatible with 0-4” of rear lift on Sequoias without TRD Off Road package or 0-2" of rear lift on Sequoias equipped with TRD Off Road package and Sequoia TRD Pro.

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

ICON Part Number 57840CP is a vehicle-specific rear shock set designed for the 2022 and newer Toyota Tundra. These 2.5 Aluminum Series shocks are engineered to deliver controlled off-road performance while maintaining a smooth, composed ride on the street. The application-specific length and damping calibration support Tundras with 0 to 1 inch of rear lift, providing suspension control suited to the vehicle and intended ride height. This set includes a pair of shocks with remote reservoirs and ICON CDC Valve technology for externally adjustable compression damping.
Each shock uses a one-piece digressive piston with vehicle-specific valving to improve ride quality and suspension response across changing terrain. ICON’s internal Bump Zone increases damping force by 20 percent as the shock approaches full compression, helping reduce harsh bottom-out events and improving control during high-velocity suspension compression. The remote reservoir helps dissipate heat during prolonged or demanding use, while premium 5WT shock oil supports consistent damping across a broad temperature range.
The hard-anodized, impact-extruded aluminum cylinders provide corrosion resistance and a durable finish. CNC-machined 6061 aircraft-grade aluminum components, PTFE-lined spherical bearings, application-specific mounting hardware, and a 7/8-inch induction-hardened chrome-plated shaft support long-term performance. The nitrogen-charged monotube design is fully rebuildable and re-tunable, allowing the shocks to be serviced or recalibrated as vehicle use and suspension requirements change. ICON CDC Valve adjustment provides 10 levels of compression damping control through a convenient external knob.

Features:

• Vehicle-specific valving and one-piece digressive piston design for controlled on- and off-road performance

• Compatible with 2022 and newer Toyota Tundra models equipped with 0 to 1 inch of rear lift

• ICON internal Bump Zone increases damping force by 20 percent near full compression

• ICON CDC Valve provides 10 levels of externally adjustable compression damping

• Remote reservoir design improves heat dissipation and helps reduce shock fade

• Hard-anodized, impact-extruded aluminum cylinders resist corrosion and maintain a durable finish

• Premium 5WT shock oil provides consistent damping across a wide temperature range

• PTFE-lined spherical bearings and application-specific mounting hardware

• 7/8-inch induction-hardened, chrome-plated shock shaft

• Nitrogen-charged monotube construction with remote reservoir

• CNC-machined 6061 aircraft-grade aluminum components

• Fully rebuildable and re-tunable

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
