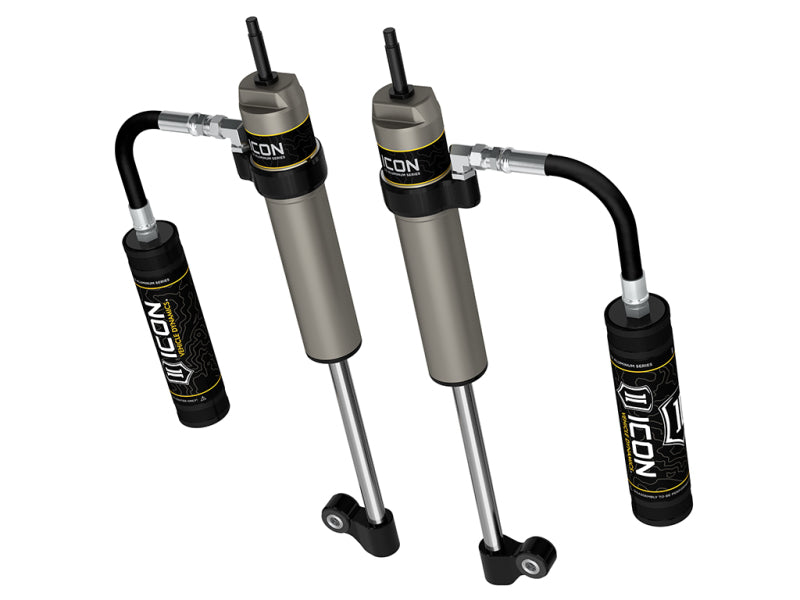

ICON 57826P 2.5 Aluminum Series RXT Rear Shocks with Remote Reservoir for Toyota Tacoma

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring ICON exclusive rod ends with side mounted eyelets, these "RXT" shocks maximize the capabilities of the suspension platform by allowing for increased shaft travel compared to traditional shock absorbers while remaining fully bolt on into the vehicle's factory shock mounts. One-piece impact extruded aluminum cylinders offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. APPLICATION NOTE #244: ICON Multi-Rate Leaf Springs Part # 158505 required for installation

• ICON exclusive side mounted "RXT" rod ends allow for increased shaft travel and compatibility with vehicle's stock shock mounting points
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Rebuildable
• 100% Revalveable

Upgrade your Toyota Tacoma’s rear suspension with ICON Part Number 57826P 2.5 Aluminum Series RXT shocks. Engineered for application-specific fitment, shock length, and damping, this rear shock pair delivers controlled off-road performance while maintaining a smooth, composed ride on the street. The ICON-exclusive side-mounted RXT rod ends increase available shaft travel and allow the shocks to bolt directly into the vehicle’s factory mounting points. Application Note #244: ICON Multi-Rate Leaf Springs Part Number 158505 are required for installation.
The nitrogen-charged monotube design uses a remote reservoir to improve heat dissipation and help reduce shock fade during extended or demanding use. An internal Bump Zone, formed by ICON’s 6061 billet aluminum manifold, adds approximately 20% more damping force as the shock approaches full compression. This additional control helps manage high-velocity suspension movement and reduce harsh bottom-out events. A one-piece digressive piston with vehicle-specific valving provides responsive damping and consistent ride quality across varied terrain.
Each shock features a one-piece impact-extruded aluminum cylinder for reduced weight, excellent corrosion resistance, and a consistent finish. Premium 5WT shock oil supports reliable damping across a broad temperature range, while the 7/8-inch induction-hardened, chrome-plated shaft is built for durability. PTFE-lined spherical bearings, application-specific mounting hardware, CNC-machined 6061 aircraft-grade aluminum components, and double-sealed Schrader caps complete the robust design. Like all ICON shock absorbers, the 57826P is 100% rebuildable and 100% revalveable. Designed for select 2005-2017 Toyota Tacoma applications; verify vehicle configuration and fitment before installation.

Features:

• ICON-exclusive side-mounted RXT rod ends increase shaft travel and work with factory shock mounting points

• Vehicle-specific digressive piston and valving provide controlled performance on and off the road

• Internal Bump Zone adds approximately 20% damping force near full compression

• One-piece impact-extruded aluminum cylinders offer corrosion resistance and a consistent finish

• Remote reservoir design improves heat dissipation and helps reduce shock fade

• Premium 5WT shock oil maintains consistent damping across a broad temperature range

• PTFE-lined spherical bearings and application-specific mounting hardware support precise installation

• 7/8-inch induction-hardened, chrome-plated shock shaft provides durable performance

• Nitrogen-charged monotube construction with remote reservoir

• 6061 aircraft-grade aluminum CNC-machined components

• Double-sealed Schrader caps help protect adjustment and charging points

• 100% rebuildable and 100% revalveable

• ICON Multi-Rate Leaf Springs Part Number 158505 required for installation

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
