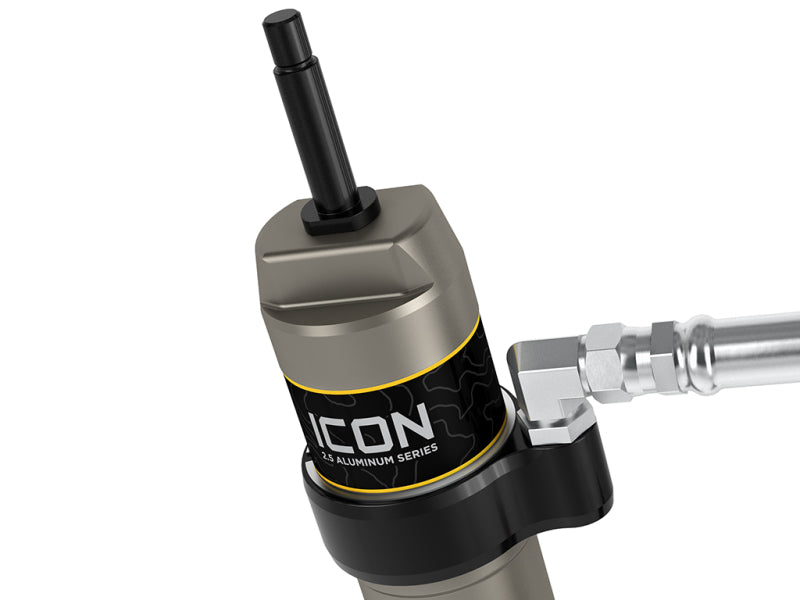

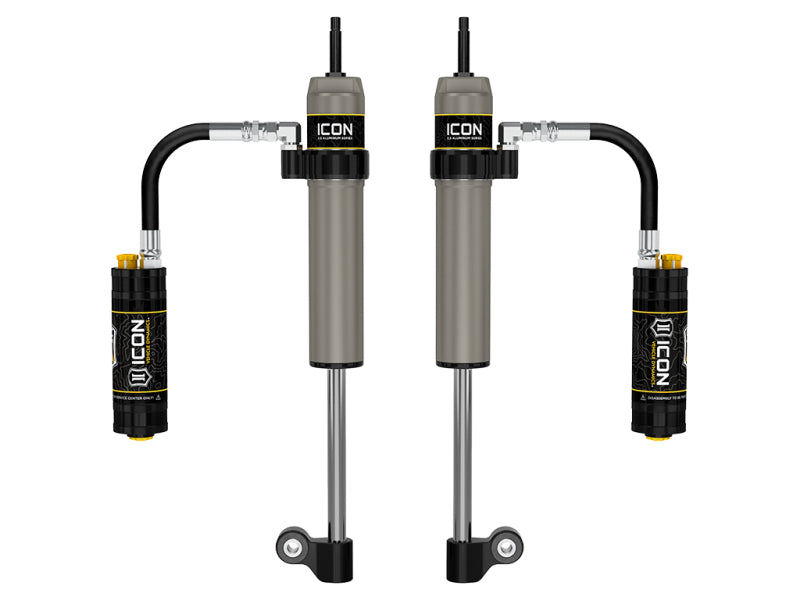

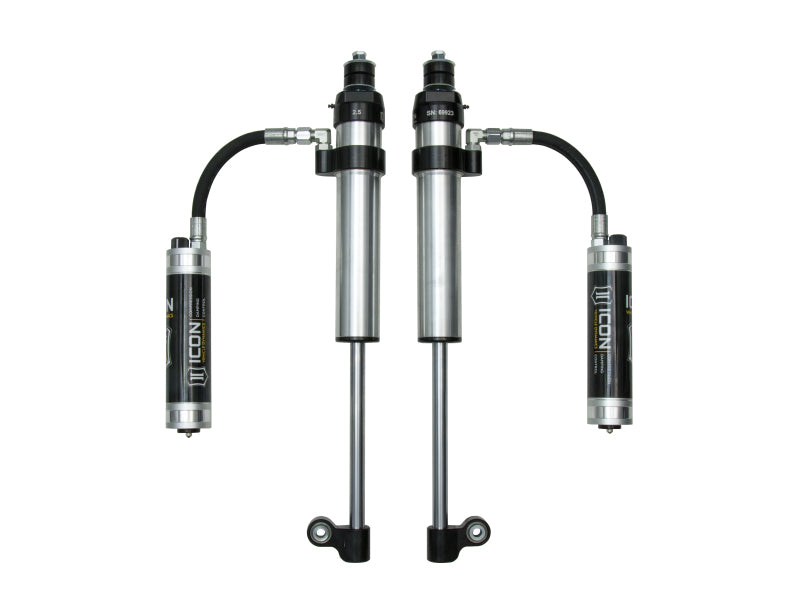

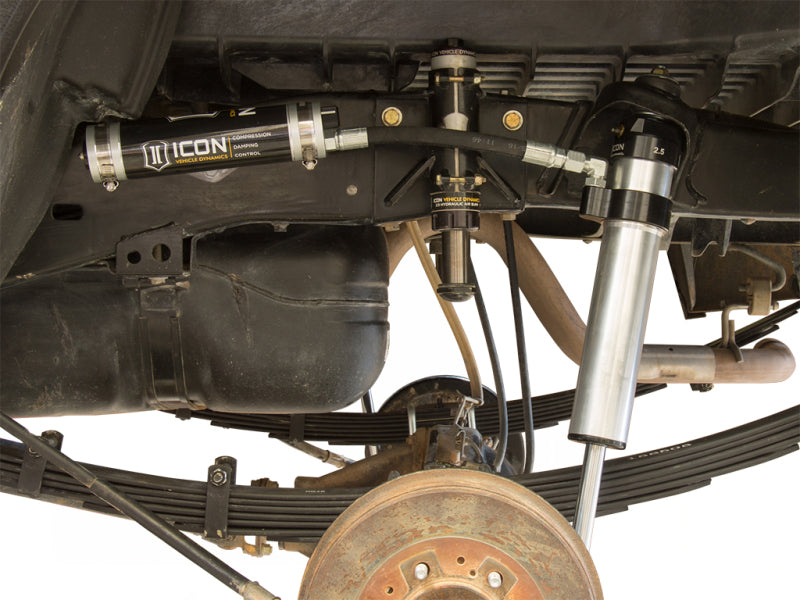

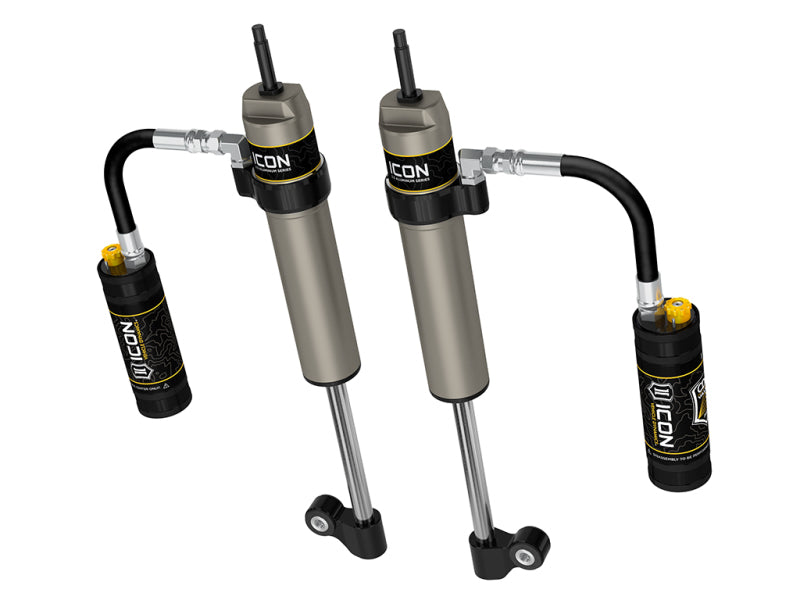

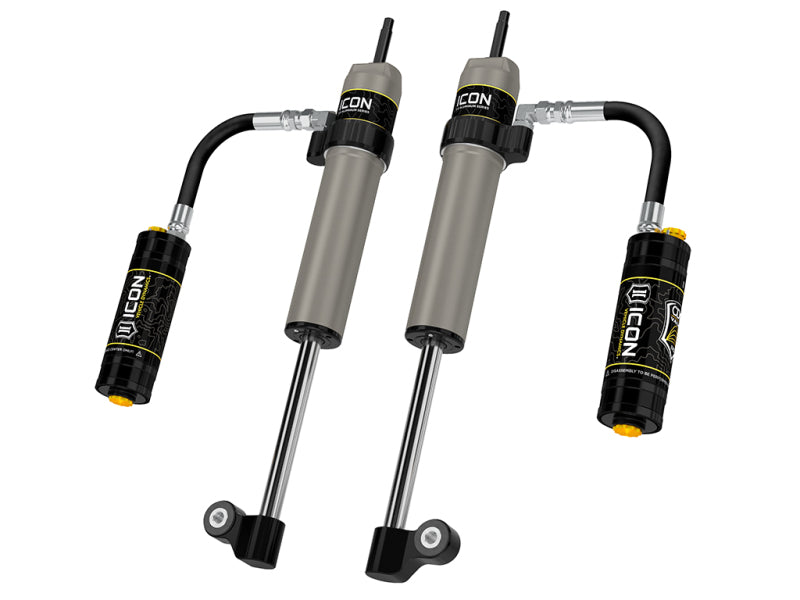

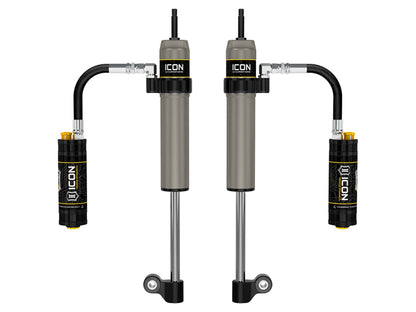

ICON 57826CP 2.5 Aluminum Series RXT Rear Shocks with CDC Valve for Toyota Tacoma

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring ICON exclusive rod ends with side mounted eyelets, these "RXT" shocks maximize the capabilities of the suspension platform by allowing for increased shaft travel compared to traditional shock absorbers while remaining fully bolt on into the vehicle's factory shock mounts. One-piece impact extruded aluminum cylinders offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. ICON 2.5 Aluminum Series shocks are designed for outstanding performance off-road and a smooth ride on the street. With vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. APPLICATION NOTE #244: ICON Multi-Rate Leaf Springs Part # 158505 required for installation

• ICON exclusive side mounted "RXT" rod ends allow for increased shaft travel and compatibility with vehicle's stock shock mounting points
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Rebuildable
• 100% Revalveable

Upgrade your Toyota Tacoma with ICON Part Number 57826CP 2.5 Aluminum Series RXT rear shocks, engineered to deliver controlled off-road performance and a smooth, comfortable ride on the street. These vehicle-specific shocks use application-specific length and damping tuning to optimize suspension performance while remaining fully bolt-on with the factory shock mounting points. The side-mounted RXT rod ends increase shaft travel compared with traditional shock designs, helping maximize the capability of the Tacoma suspension platform. This pair of rear shocks is designed for select 2005–2017 Toyota Tacoma applications. Installation requires ICON Multi-Rate Leaf Springs Part Number 158505; review vehicle compatibility before ordering.

Each ICON 57826CP shock features a one-piece impact-extruded aluminum cylinder that reduces weight, improves corrosion resistance, and provides a consistent finish. The nitrogen-charged monotube design uses a remote reservoir to improve heat dissipation and help reduce shock fade during extended or demanding use. An internal 6061 billet aluminum manifold creates ICON’s Bump Zone, adding approximately 20% more damping force as the shock approaches full compression. This added control helps manage high-velocity suspension movement and reduce harsh bottom-out conditions. Premium 5WT shock oil supports consistent damping across a broad range of temperatures.

The externally adjustable ICON CDC Valve provides 10 levels of compression damping adjustment, allowing drivers to fine-tune ride control for changing terrain, vehicle loads, and driving conditions. A digressive piston with vehicle-specific valving supports balanced ride quality on and off the road, while the 7/8-inch induction-hardened, chrome-plated shaft delivers durable operation. PTFE-lined spherical bearings, application-specific mounting hardware, CNC-machined 6061 aircraft-grade aluminum components, and double-sealed Schrader caps complete the durable construction. Like all ICON shock absorbers, these shocks are fully rebuildable and revalveable for long-term serviceability.

Features:

• ICON exclusive side-mounted RXT rod ends increase shaft travel and fit the vehicle’s factory shock mounting points

• Vehicle-specific digressive piston and valving provide controlled performance and ride quality on and off the road

• Internal Bump Zone adds approximately 20% damping force near full compression to improve bottom-out control

• Externally adjustable CDC Valve provides 10 levels of compression damping adjustment

• One-piece impact-extruded aluminum cylinders offer reduced weight, corrosion resistance, and a consistent finish

• Remote reservoir design improves heat dissipation and helps reduce shock fade during prolonged use

• Premium 5WT shock oil delivers consistent damping across a broad temperature range

• Nitrogen-charged monotube construction supports reliable suspension control

• 7/8-inch induction-hardened, chrome-plated shock shaft provides durable performance

• PTFE-lined spherical bearings and application-specific mounting hardware support secure installation

• 6061 aircraft-grade aluminum CNC-machined components provide strength and precision

• Double-sealed Schrader caps help protect service components from damage

• 100% rebuildable and 100% revalveable design

• Fits select 2005–2017 Toyota Tacoma applications

• Installation requires ICON Multi-Rate Leaf Springs Part Number 158505

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
