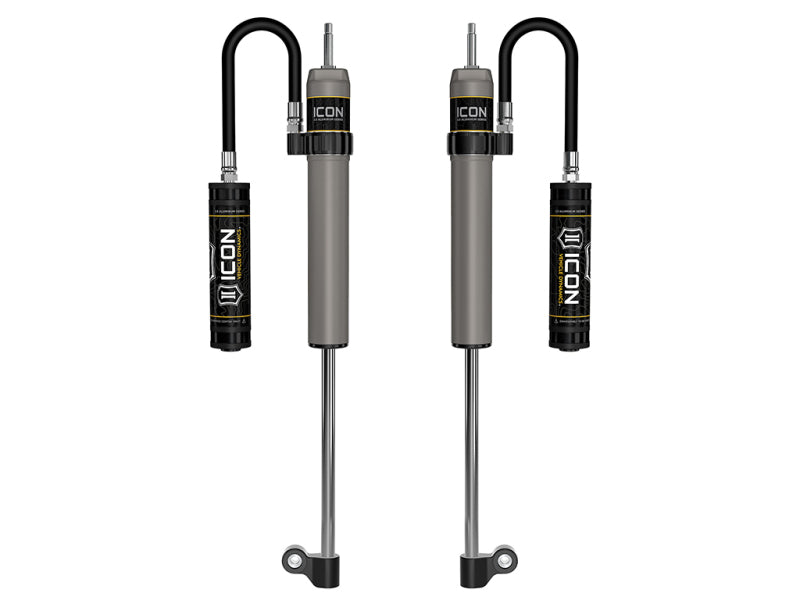

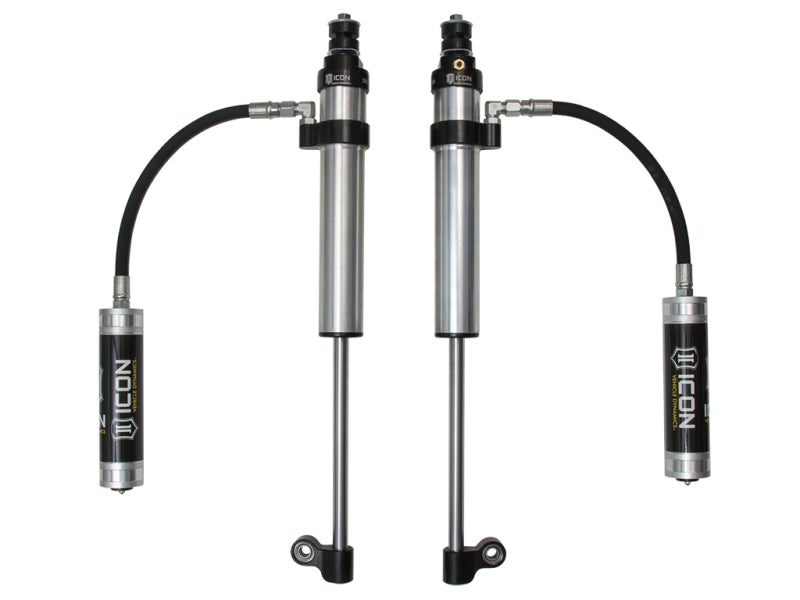

ICON 57823P 2.5 Aluminum Series Rear Remote Reservoir Shocks for 2007-2021 Toyota Tundra, Pair

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or Omega Series bypass shocks. 2007-2021 TOYOTA TUNDRA RXT REAR 2.5 VS REMOTE RESERVOIR SHOCK PAIR

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaftS
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Revalveable
• 100% Rebuildable

Upgrade the rear suspension of your 2007-2021 Toyota Tundra with the ICON 57823P 2.5 Aluminum Series remote reservoir shock pair. Engineered for the Tundra RXT application, these shocks use vehicle-specific length and damping calibration to deliver controlled off-road performance while maintaining a comfortable ride on the street. The nitrogen-charged monotube design and remote reservoirs improve heat dissipation, helping reduce shock fade during extended or demanding use.
ICON 2.5 Aluminum Series shocks feature one-piece impact-extruded aluminum cylinders that provide reduced weight, excellent corrosion resistance, and a consistent finish. A one-piece digressive piston with application-specific valving helps maintain ride quality across changing terrain, while the internal Bump Zone increases damping by 20% near full compression for improved control and reduced harsh bottoming. The 6061 aircraft-grade aluminum CNC-machined components, premium 5WT shock oil, and induction-hardened chrome-plated shock shafts are designed for dependable performance across a wide temperature range.
The ICON 57823P rear shocks include PTFE-lined spherical bearings, application-specific mounting hardware, and double-sealed Schrader caps for added durability. Their remote reservoir configuration supports consistent damping during prolonged suspension activity, while the rebuildable and revalveable construction allows future service and tuning as your vehicle setup changes. This set includes two rear shocks and is designed specifically for compatible 2007-2021 Toyota Tundra applications.

Features:

• Vehicle-specific valving and length for the 2007-2021 Toyota Tundra

• One-piece digressive piston design for controlled on-road and off-road performance

• Internal Bump Zone increases damping by 20% near full compression

• One-piece impact-extruded aluminum cylinders offer corrosion resistance and a consistent finish

• Remote reservoir design improves heat dissipation and helps reduce shock fade

• Premium 5WT shock oil supports consistent damping across a wide temperature range

• Nitrogen-charged monotube construction with remote reservoirs

• 7/8-inch induction-hardened, chrome-plated shock shafts

• PTFE-lined spherical bearings and application-specific mounting hardware

• 6061 aircraft-grade aluminum CNC-machined components

• Double-sealed Schrader caps help protect the charging valves

• 100% rebuildable and 100% revalveable design

• Includes a pair of rear shocks

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
