ICON 57808XP V.S. 2.5 Remote Reservoir Rear Shocks with CDXS for 2024-2026 Toyota Tacoma, 0-1-Inch Lift

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• Rubber dust boot included for added shaft protection
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

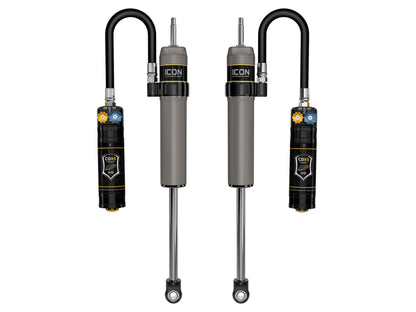

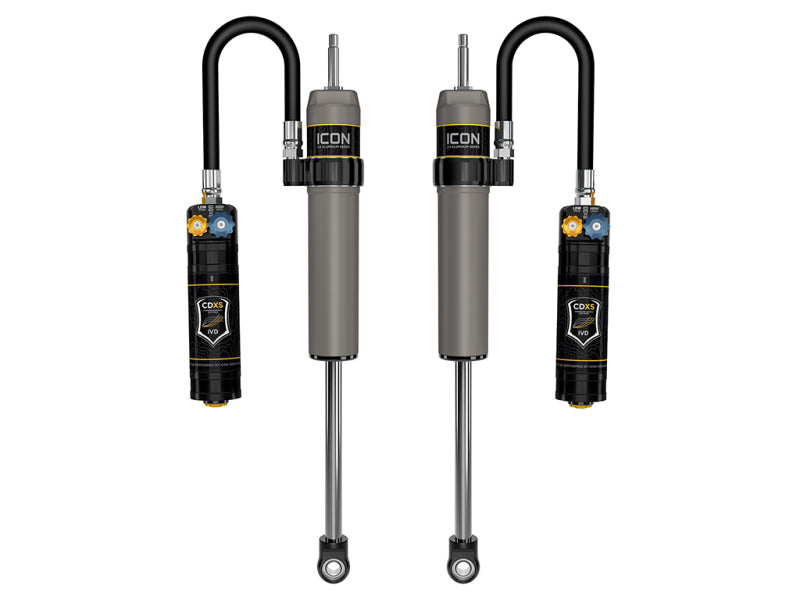

ICON Part Number 57808XP V.S. 2.5 Aluminum Series rear shocks are engineered specifically for 2024-2026 Toyota Tacoma models equipped with a stock-height suspension or up to a 1-inch lift. Designed to deliver controlled off-road performance and a smooth street ride, these shocks use application-specific length and damping tuning for the Tacoma platform. The remote reservoir design improves heat dissipation during demanding driving, helping reduce shock fade and maintain consistent suspension control.

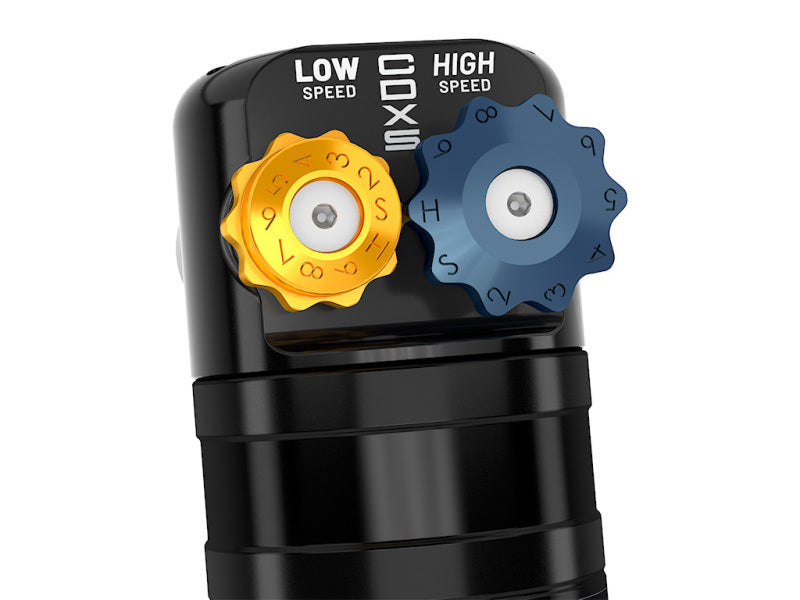

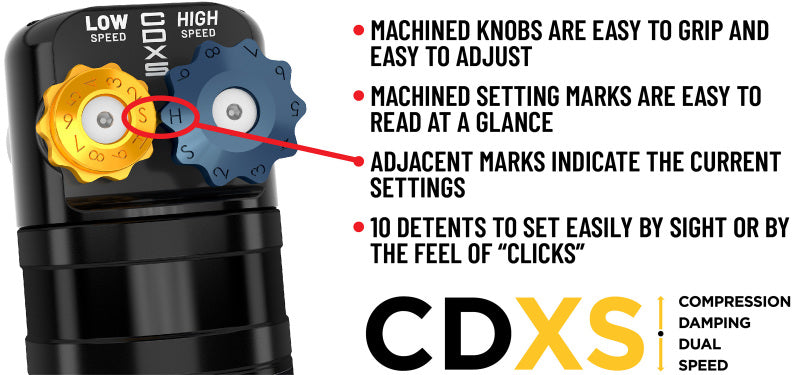

Each ICON 57808XP shock features a nitrogen-charged monotube design, a one-piece digressive piston, and vehicle-specific valving for predictable ride quality across changing terrain. ICON’s Compression Damping Dual Speed (CDXS) system provides independent adjustment of high-speed and low-speed compression force, allowing you to fine-tune handling response and overall suspension aggressiveness. Ten detented settings on each adjustment control make setup changes precise and repeatable.
The integrated internal Bump Zone increases damping force by up to 20% as the shock approaches full compression, helping control suspension movement and reduce harsh bottoming. Hard-anodized aluminum cylinders, 6061 aircraft-grade aluminum components, premium 5WT shock oil, and a 7/8-inch induction-hardened chrome-plated shaft provide durable performance across a wide range of temperatures and driving conditions. PTFE-lined spherical bearings and application-specific mounting hardware support reliable installation, while the included rubber dust boot helps protect the shaft from debris.
ICON V.S. 2.5 shocks are fully rebuildable and re-tunable for long-term serviceability and changing vehicle requirements. The ICON 57808XP rear shock set is designed for Tacoma owners seeking adjustable damping, improved control, and durable performance for both daily driving and off-road use. Application note: Lift heights are based on a stock-equipped vehicle. Professional installation is recommended.

Features:

• Application-specific rear shocks for 2024-2026 Toyota Tacoma models with stock-height suspension or up to a 1-inch lift

• CDXS adjustment provides independent high-speed and low-speed compression control

• Ten detented adjustment settings for precise suspension tuning

• Internal Bump Zone increases damping force by up to 20% near full compression

• One-piece digressive piston with vehicle-specific valving

• Remote reservoir design improves heat dissipation and helps reduce shock fade

• Nitrogen-charged monotube construction

• Hard-anodized, impact-extruded aluminum cylinders resist corrosion

• Premium 5WT shock oil supports consistent damping across a wide temperature range

• PTFE-lined spherical bearings and application-specific mounting hardware

• 7/8-inch induction-hardened, chrome-plated shock shaft

• 6061 aircraft-grade aluminum CNC-machined components

• Rubber dust boot included for added shaft protection

• Fully rebuildable and re-tunable

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
2026 Toyota Tacoma
