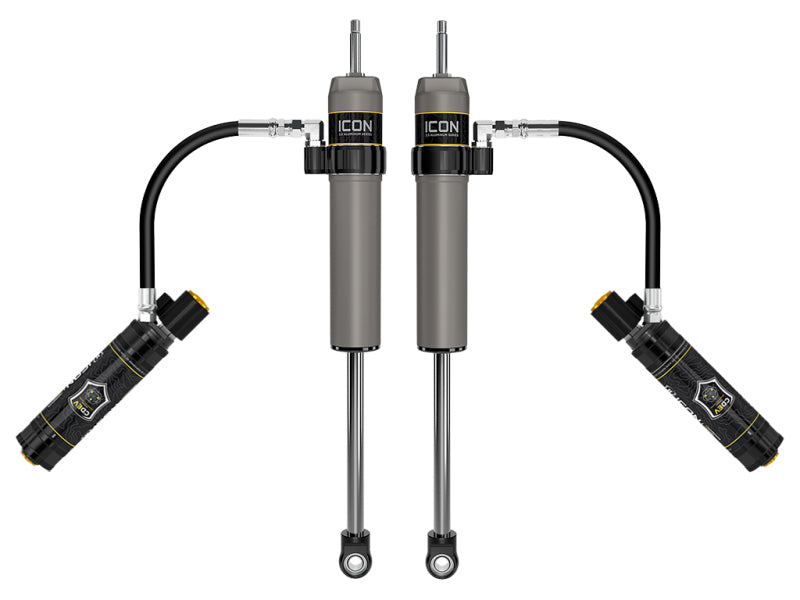

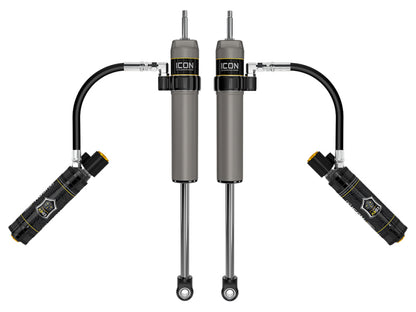

ICON 57808EP 2.5 Aluminum Series CDEV Rear Shocks for 2024-2026 Toyota Tacoma, 0-1 Inch Lift

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. APPLICATION NOTE #204: Also requires installation of IIC kit (Part # 53509) and CDEV front coilovers (Part # 58780E)

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Rubber dust boot included for added shaft protection
• Fully rebuildable and re-tunable

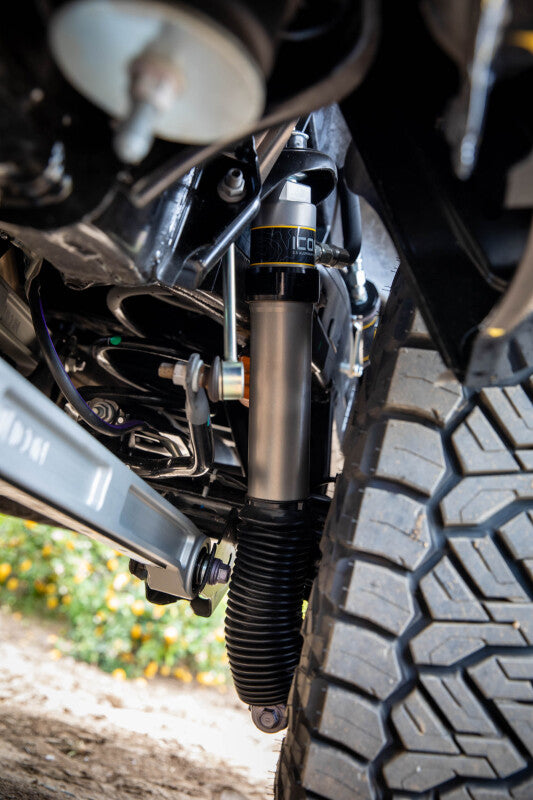

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series rear shocks are engineered for the 2024-2026 Toyota Tacoma with a 0-1 inch lift. Part number 57808EP features application-specific length and damping calibration to deliver controlled off-road performance while maintaining a smooth, composed ride on the street. The remote reservoir design improves heat dissipation during extended use, helping reduce shock fade and maintain consistent suspension control across changing terrain. These shocks are supplied as a pair and are designed for rear suspension applications.

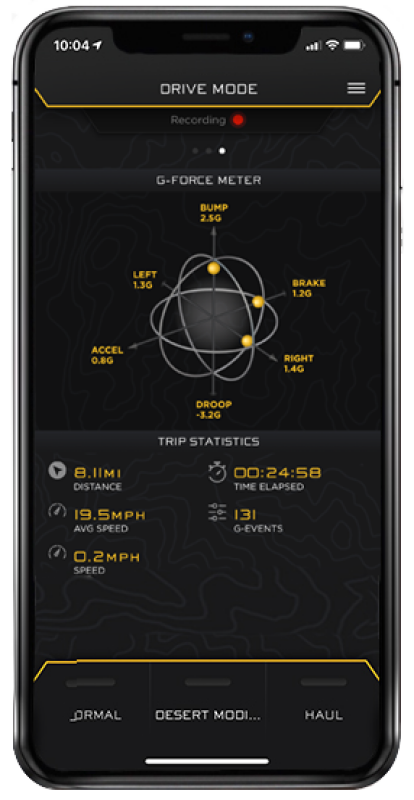

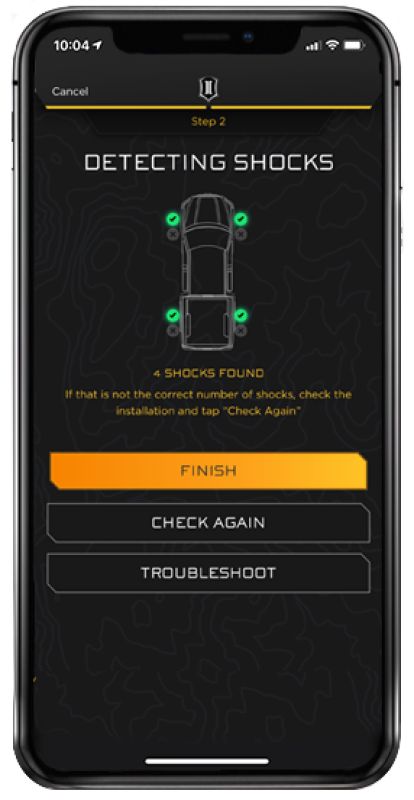

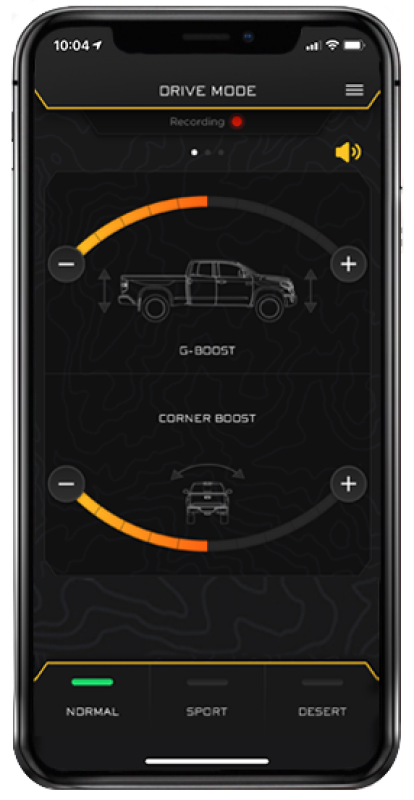

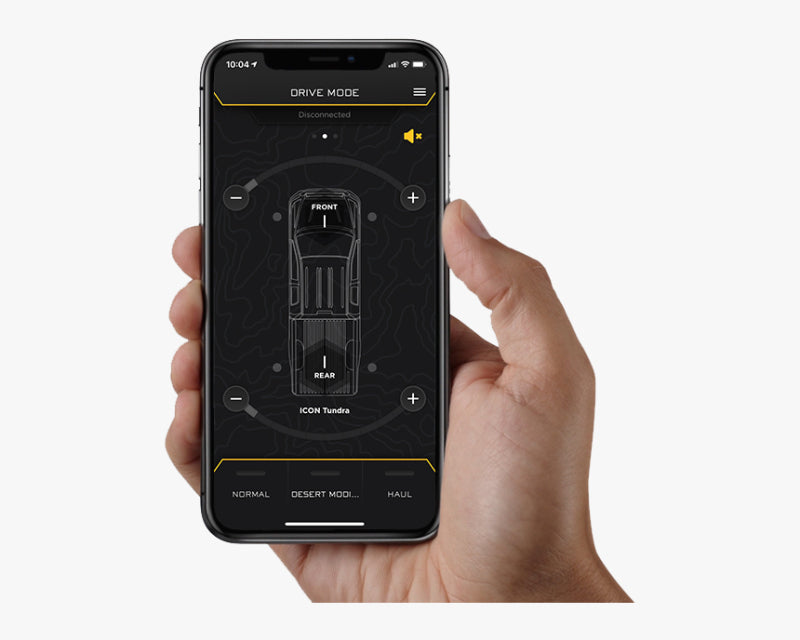

The included ICON Compression Damping Electronic Valve (CDEV) enables in-vehicle adjustment of compression damping through ICON Intelligent Control (IIC). The electronically controlled valve meters shock oil flow and can react in less than 40 milliseconds, providing precise, infinitely variable damping adjustments for different terrain and driver preferences. CDEV uses application-specific hydraulic circuits and works with the ICON mobile app, onboard G-force sensor, and gyroscope to help adjust shock settings according to selected control strategies. Installation also requires the ICON Intelligent Control kit, Part #53509, and CDEV front coilovers, Part #58780E.
Each shock uses a one-piece digressive piston with vehicle-specific valving, a hard-anodized impact-extruded aluminum cylinder, and premium 5WT shock oil for consistent performance across a wide temperature range. ICON’s 6061 billet aluminum manifold creates an internal Bump Zone that adds approximately 20% damping force near full compression to improve bottom-out resistance and suspension control. A nitrogen-charged monotube design, PTFE-lined spherical bearings, application-specific hardware, and a 7/8-inch induction-hardened chrome-plated shaft support durability in demanding conditions. The shocks are fully rebuildable and re-tunable, with rubber dust boots included for added shaft protection.

Features:

• CDEV technology enables in-vehicle compression damping adjustment through ICON Intelligent Control

• Vehicle-specific digressive piston and damping calibration for balanced on-road and off-road performance

• Internal Bump Zone adds approximately 20% damping force near full compression

• Remote reservoir design improves heat dissipation and helps reduce shock fade

• Hard-anodized impact-extruded aluminum cylinders provide corrosion resistance and a consistent finish

• Premium 5WT shock oil supports consistent damping across a wide temperature range

• Nitrogen-charged monotube construction with remote reservoirs

• PTFE-lined spherical bearings and application-specific mounting hardware included

• 7/8-inch induction-hardened, chrome-plated shock shaft

• 6061 aircraft-grade aluminum CNC-machined components

• Rubber dust boots included for added shaft protection

• Fully rebuildable and re-tunable

• Fits 2024-2026 Toyota Tacoma applications with a 0-1 inch lift

• Requires ICON Intelligent Control kit Part #53509 and CDEV front coilovers Part #58780E

Compatible With
2024 Toyota Tacoma
2025 Toyota Tacoma
2026 Toyota Tacoma
