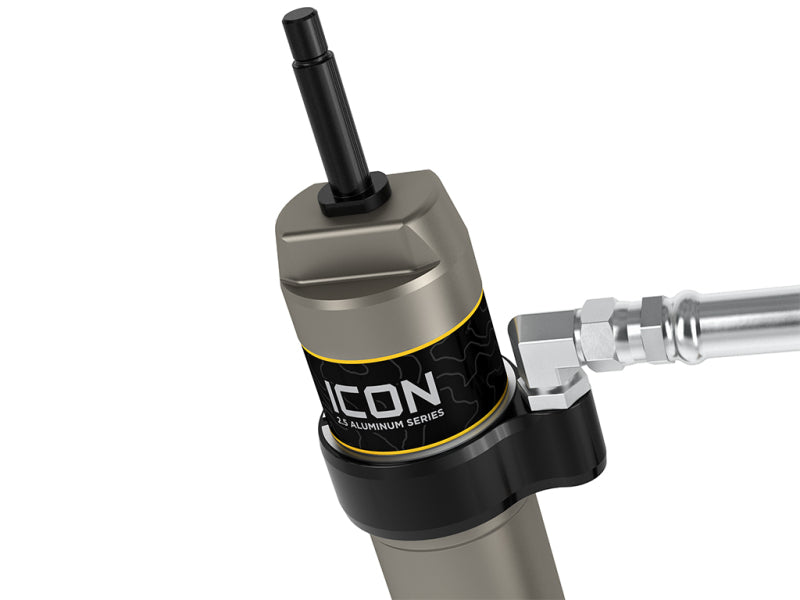

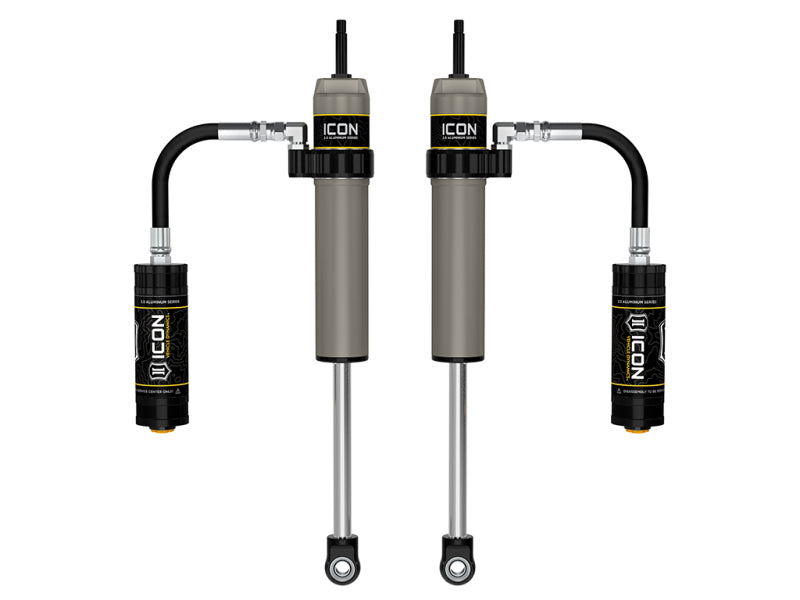

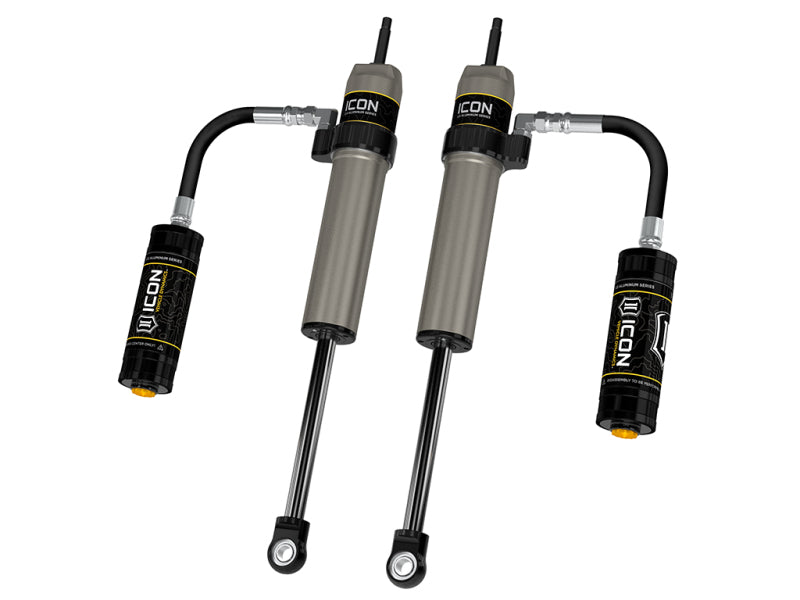

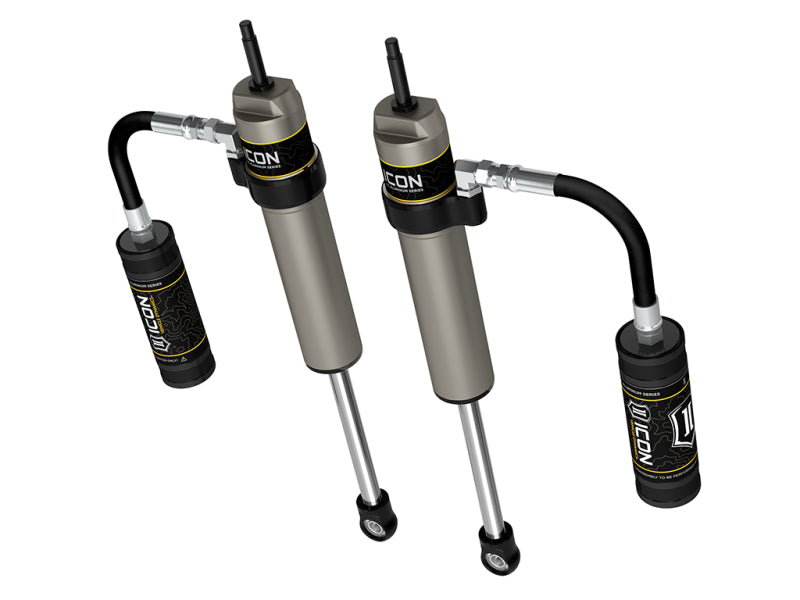

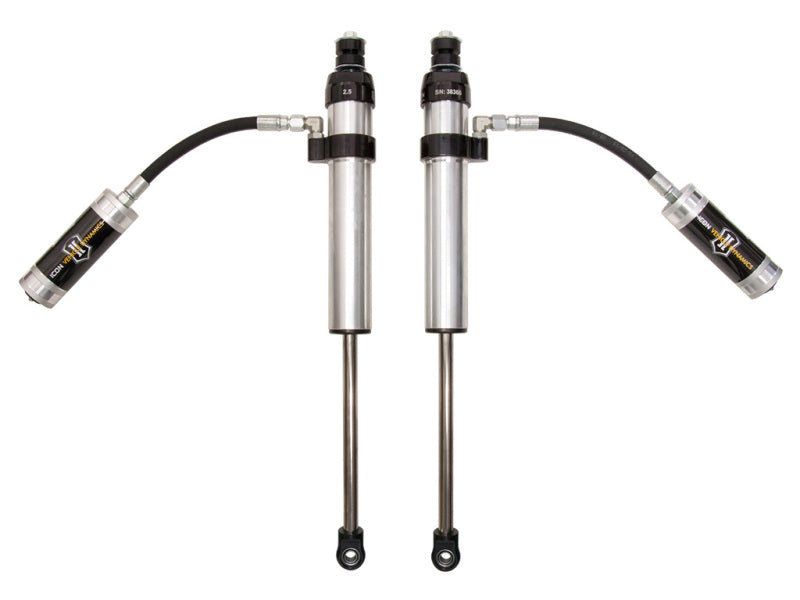

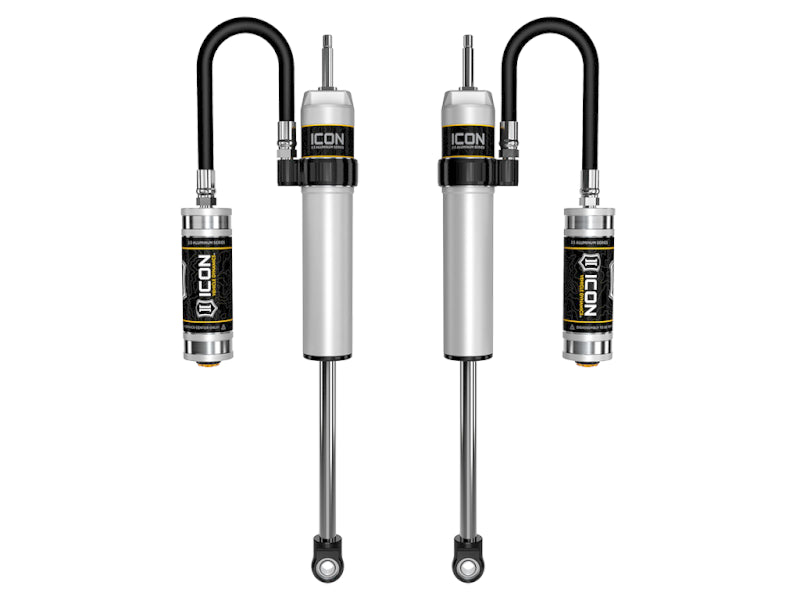

ICON 57806P 2.5 Aluminum Series Rear Shocks for 2005–2017 Toyota Tacoma with 6-Inch Lift, Pair

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks. ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. APPLICATION NOTE #253: Distance to bump stops must be reduced by at least 2" to prevent damage to shocks/shock mounts. This can be accomplished with lift blocks or bump stop spacers.

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shafts
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Revalveable
• 100% Rebuildable

Upgrade your Toyota Tacoma suspension with the ICON Vehicle Specific 2.5 Aluminum Series rear shocks, part number 57806P. Designed specifically for 2005–2017 Toyota Tacoma applications with a 6-inch lift, these shocks combine vehicle-specific damping and shock lengths for controlled off-road performance and a comfortable ride on the street. This pair features a nitrogen-charged monotube design with piggyback reservoirs to improve heat dissipation and help reduce shock fade during extended or demanding use.
The shocks use a one-piece digressive piston with application-specific valving to deliver responsive suspension control over changing terrain. ICON’s internal Bump Zone increases damping by 20% as the shock approaches full compression, helping control high-velocity suspension movement and reduce harsh bottom-out events. One-piece impact-extruded aluminum cylinders provide corrosion resistance and a consistent finish, while 6061 aircraft-grade aluminum CNC-machined components support durable, reliable operation.
Each shock is equipped with a 7/8-inch induction-hardened, chrome-plated shaft, PTFE-lined spherical bearings, and application-specific mounting hardware. Premium 5WT shock oil helps maintain consistent damping across a wide temperature range. Like other ICON 2.5 Series shocks, the 57806P units are 100% rebuildable and 100% revalveable, allowing service and tuning as vehicle use or driver preferences change. Piggyback and remote reservoir models can also be upgraded to ICON’s Compression Damping Control Valve (CDCV) system for more user-defined adjustment.
Application Note #253: Reduce the distance to the bump stops by at least 2 inches to prevent damage to the shocks or shock mounts. This may be accomplished with lift blocks or bump stop spacers. Professional installation is recommended, and fitment should be verified for the vehicle’s specific suspension configuration.

Features:

• Vehicle-specific damping and shock length for 2005–2017 Toyota Tacoma applications with a 6-inch lift

• Nitrogen-charged monotube design with piggyback reservoir for improved heat dissipation

• Internal Bump Zone increases damping by 20% near full compression for improved bottom-out control

• One-piece digressive piston with application-specific valving for on-road comfort and off-road performance

• One-piece impact-extruded aluminum cylinders provide corrosion resistance and a consistent finish

• Premium 5WT shock oil supports consistent damping across a wide temperature range

• 7/8-inch induction-hardened, chrome-plated shock shafts

• PTFE-lined spherical bearings with application-specific mounting hardware

• 6061 aircraft-grade aluminum CNC-machined components

• 100% rebuildable and 100% revalveable design

• Compatible with an upgrade to ICON Compression Damping Control Valve technology

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
