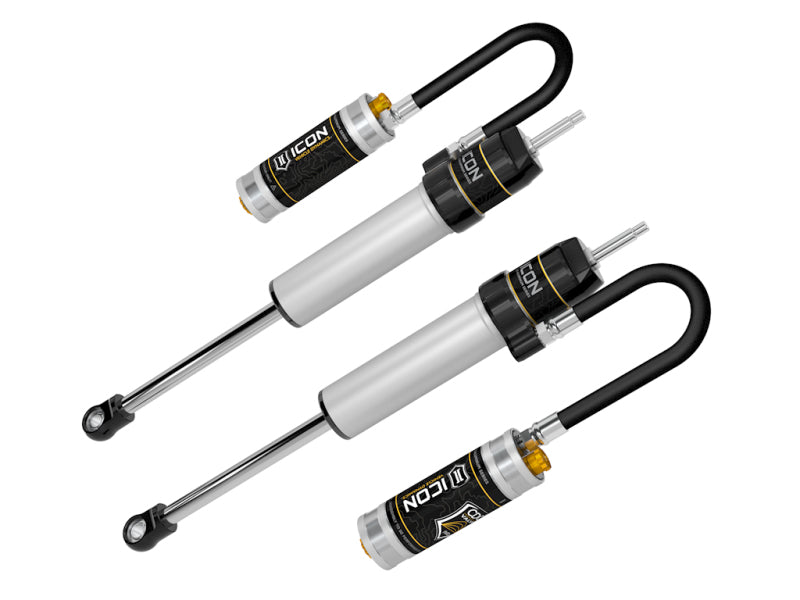

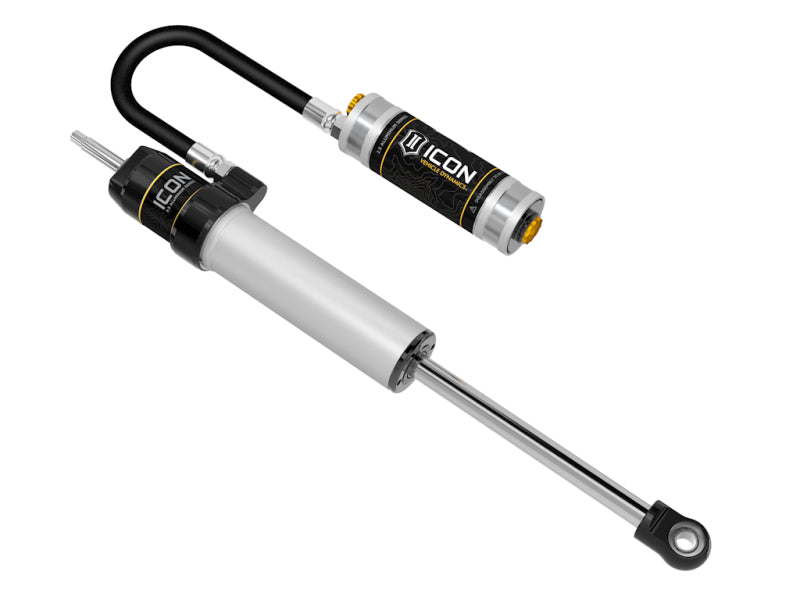

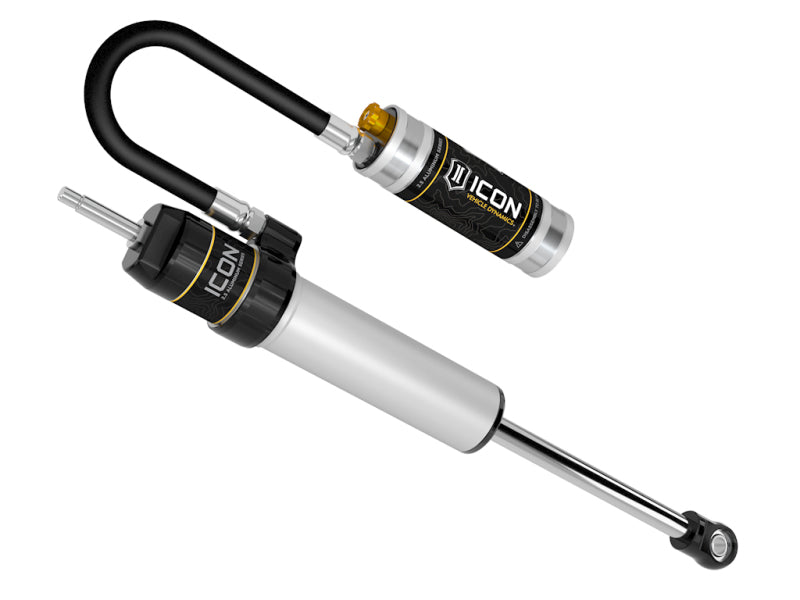

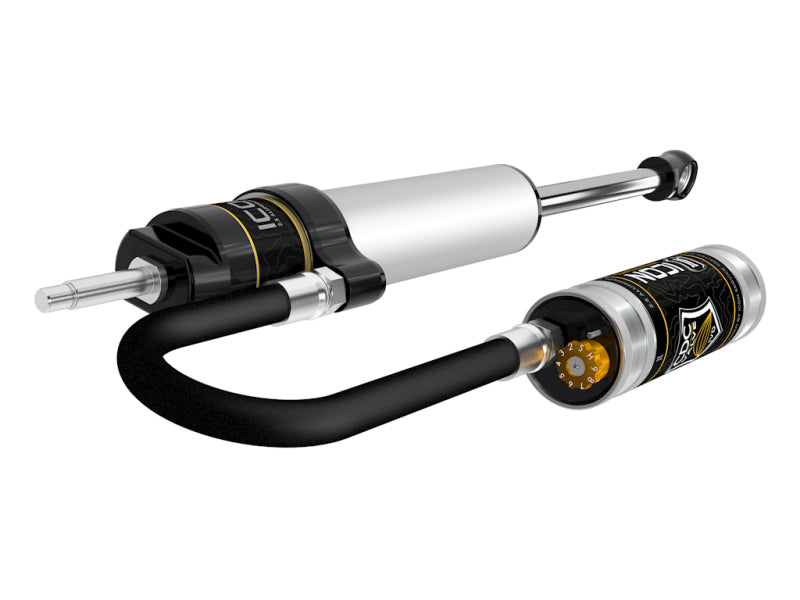

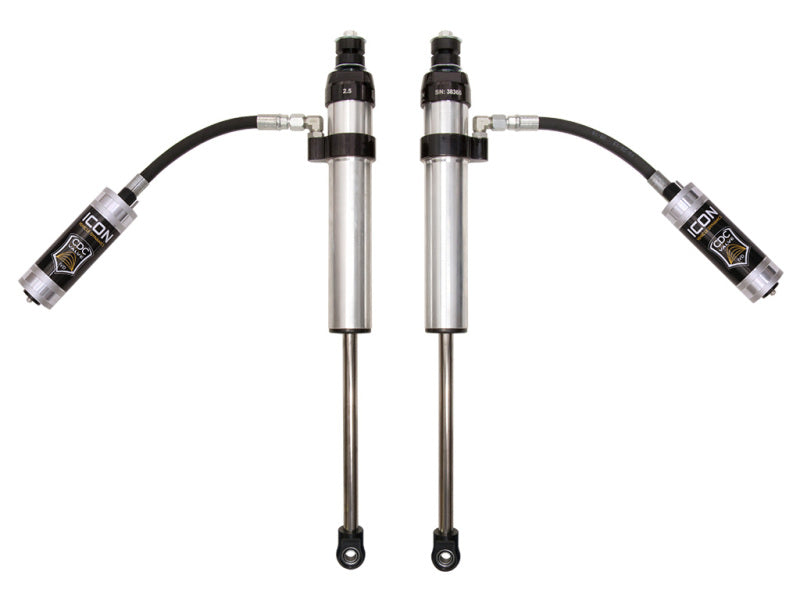

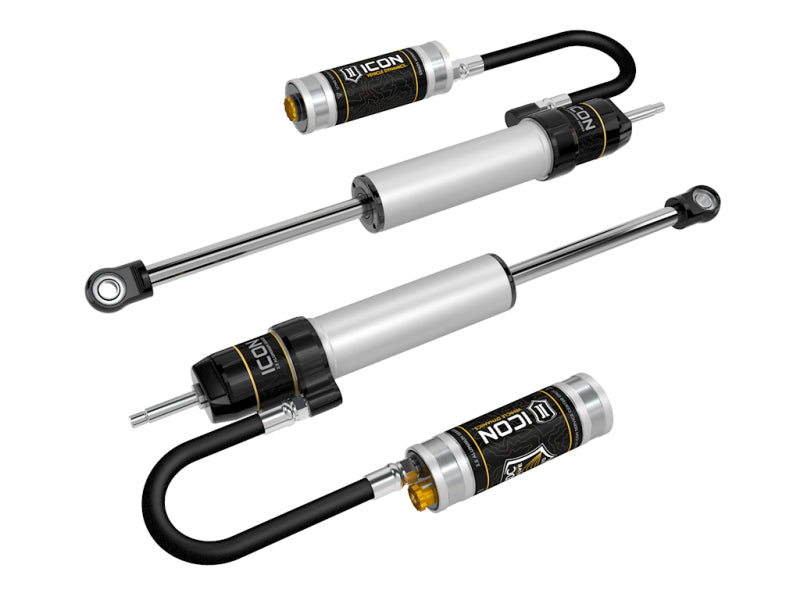

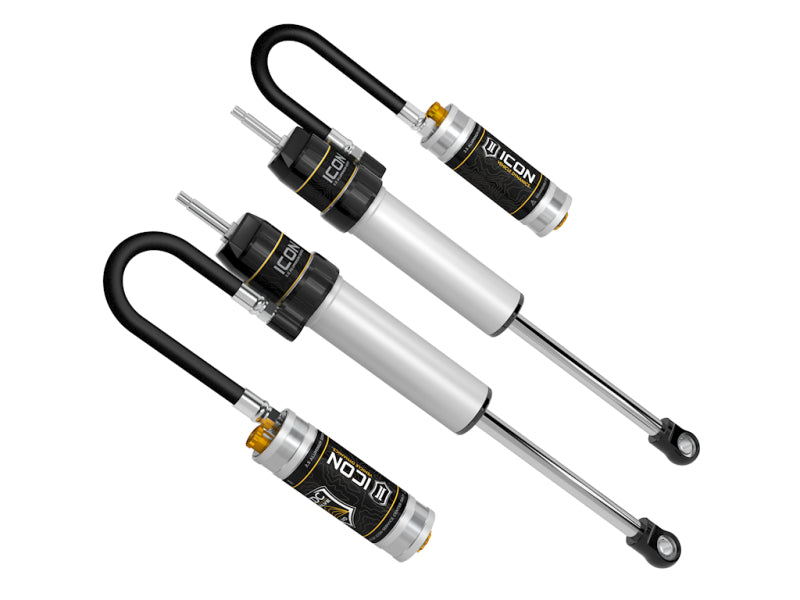

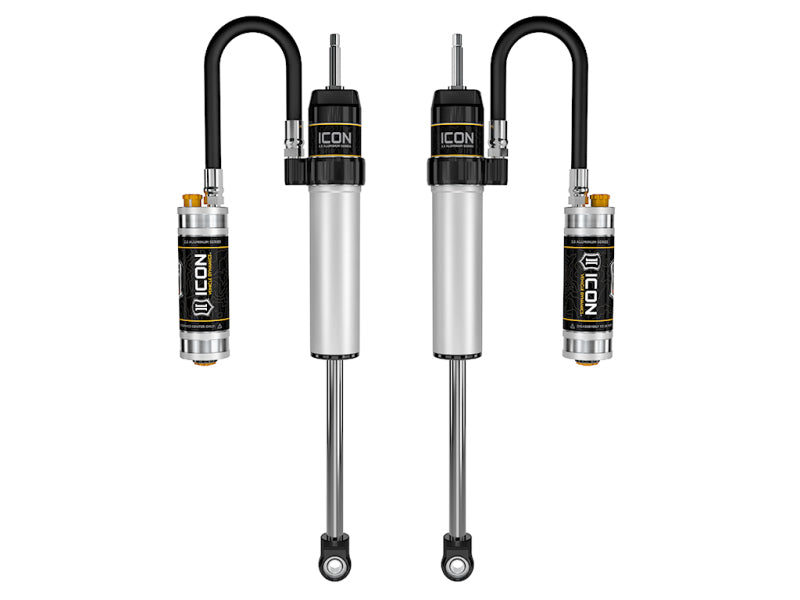

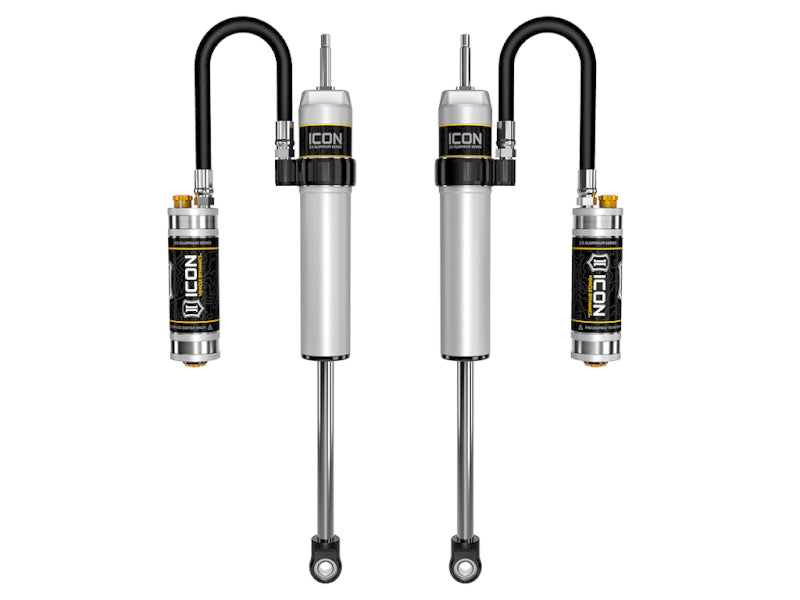

ICON 57806CP 2.5 Aluminum Series Rear Shocks with CDC Valve for 2005-2017 Toyota Tacoma 6-Inch Lift

ICON’s 2.5 Aluminum Series shocks shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restri cts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks. ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. APPLICATION NOTE #253: Distance to bump stops must be reduced by at least 2" to prevent damage to shocks/shock mounts. This can be accomplished with lift blocks or bump stop spacers.

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression

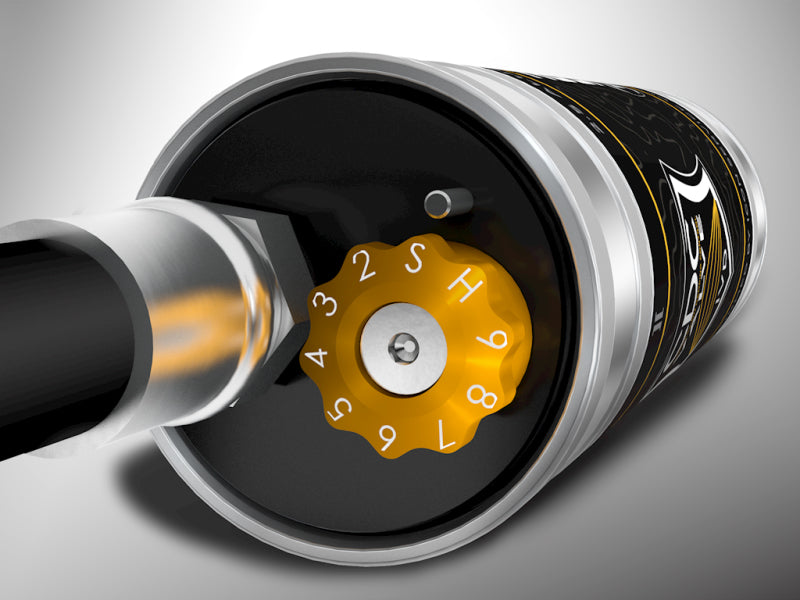

• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

Upgrade the suspension performance of your lifted Toyota Tacoma with the ICON 57806CP 2.5 Aluminum Series rear shocks. Designed specifically for trucks with a 6-inch lift, this pair of remote-reservoir shocks is tuned for the application to provide controlled handling and a smoother ride both off-road and on the street. The vehicle-specific length and damping calibration help maintain suspension control across demanding terrain and everyday driving conditions.
ICON 2.5 Aluminum Series shocks feature one-piece impact-extruded aluminum cylinders for reduced weight, improved corrosion resistance, and a consistent finish. The nitrogen-charged monotube design uses a remote reservoir to improve heat dissipation and reduce shock fade during extended or aggressive use. An internal Bump Zone increases damping force by 20% near full compression, helping control high-speed suspension movement and reduce harsh bottoming. The externally adjustable ICON CDC Valve provides 10 levels of compression damping adjustment, allowing you to fine-tune ride and handling to suit changing loads, terrain, and driving preferences.
Built with 6061 aircraft-grade aluminum CNC-machined components, PTFE-lined spherical bearings, application-specific mounting hardware, and a 7/8-inch induction-hardened chrome-plated shaft, the ICON 57806CP is engineered for long-term durability. Premium-grade 5WT shock oil maintains consistent damping performance across a broad temperature range. Like all ICON shock absorbers, these units are fully rebuildable and revalvable, supporting future service and custom tuning. Application Note #253: Reduce the distance to the bump stops by at least 2 inches using lift blocks or bump-stop spacers to help prevent damage to the shocks or shock mounts. Fits select 2005-2017 Toyota Tacoma applications; verify vehicle configuration and lift requirements before installation.

Features:

• Vehicle-specific digressive piston design and valving for controlled performance on and off the road

• Internal Bump Zone increases damping force by 20% near full compression

• ICON CDC Valve provides 10 levels of externally adjustable compression damping

• Remote-reservoir monotube design improves heat dissipation and helps reduce shock fade

• One-piece impact-extruded aluminum cylinders provide reduced weight and corrosion resistance

• Premium-grade 5WT shock oil supports consistent damping across a broad temperature range

• PTFE-lined spherical bearings and application-specific mounting hardware

• 7/8-inch induction-hardened chrome-plated shock shaft

• 6061 aircraft-grade aluminum CNC-machined components

• 100% rebuildable and 100% revalvable

• Designed for select 2005-2017 Toyota Tacoma models with a 6-inch lift

• Pair of rear shocks

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
