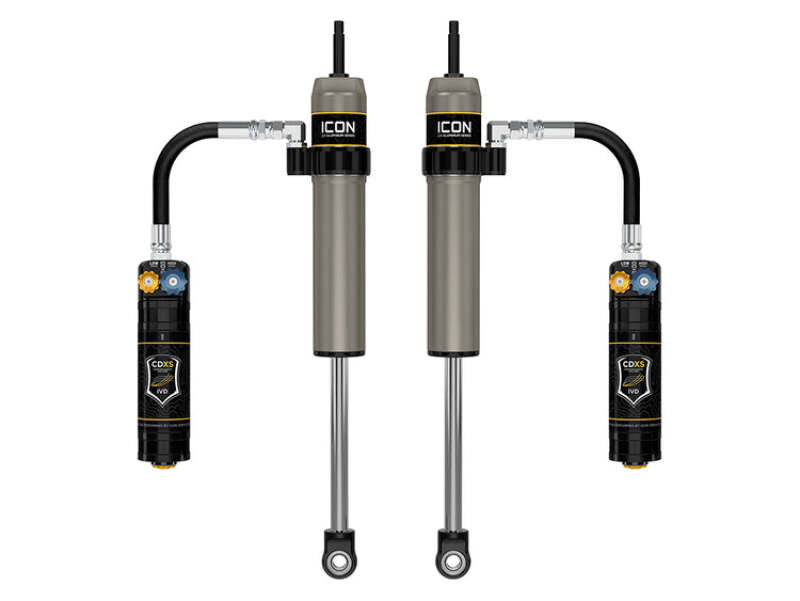

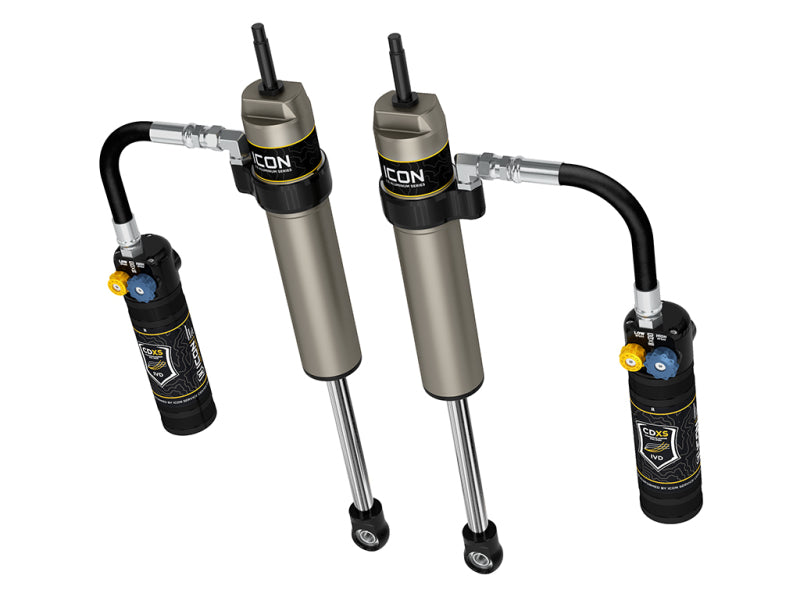

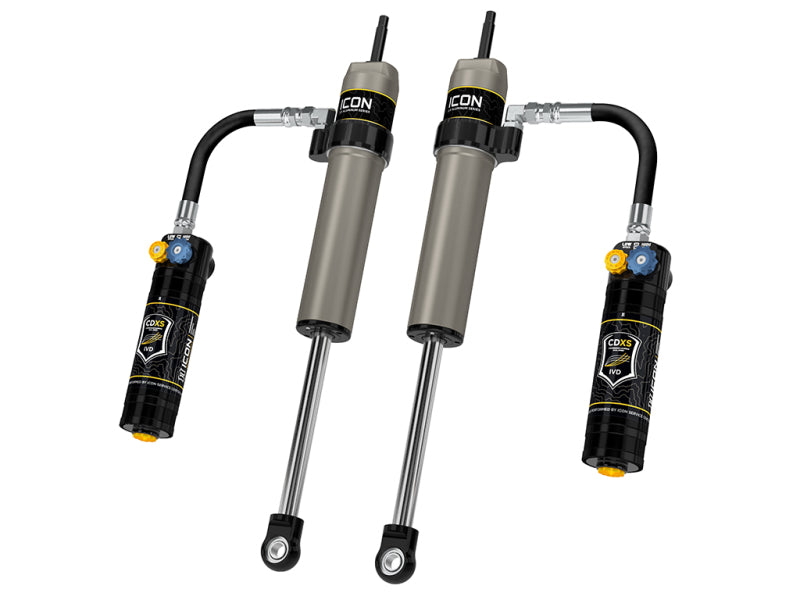

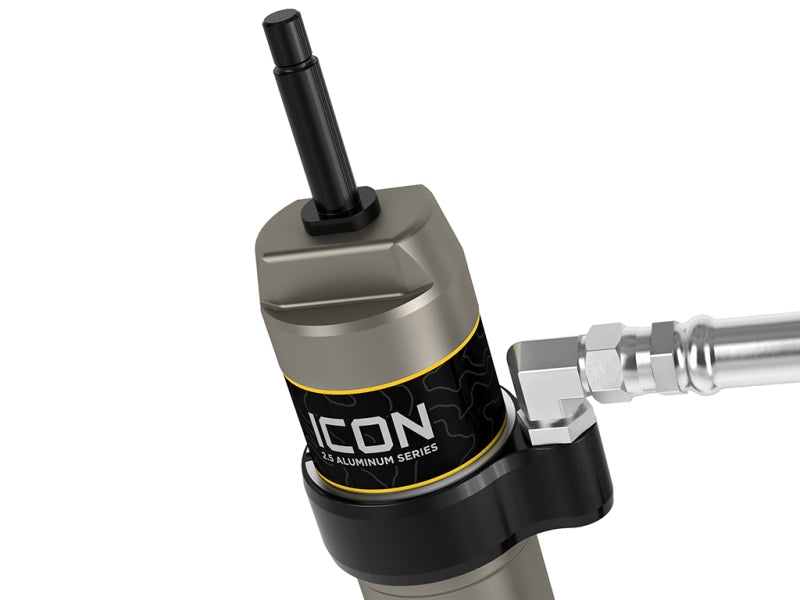

ICON 57805XP 2.5 Aluminum Series Rear Remote Reservoir Shocks with CDXS for 2010–2014 Toyota Tacoma

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. APPLICATION NOTE #185 : Will not fit 2WD Tacoma with 5 wheel lug studs

• ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade shock oil for consistent suspension damping along a wide temperature range
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Rebuildable and revalveable

Upgrade the rear suspension of your 2010–2014 Toyota Tacoma with the ICON 2.5 Aluminum Series Shock Absorber Pair, Part Number 57805XP. Designed for trucks with up to 1.5 inches of lift, these application-specific shocks combine a vehicle-specific damping tune with a one-piece digressive piston for controlled handling, improved ride quality, and reliable performance on and off the road. Application Note #185: These shocks will not fit 2WD Toyota Tacoma models with five wheel lug studs.

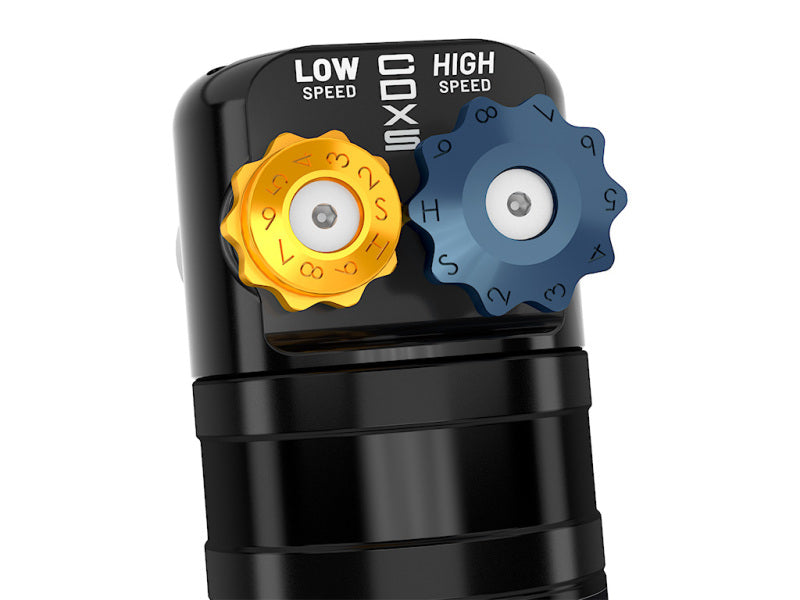

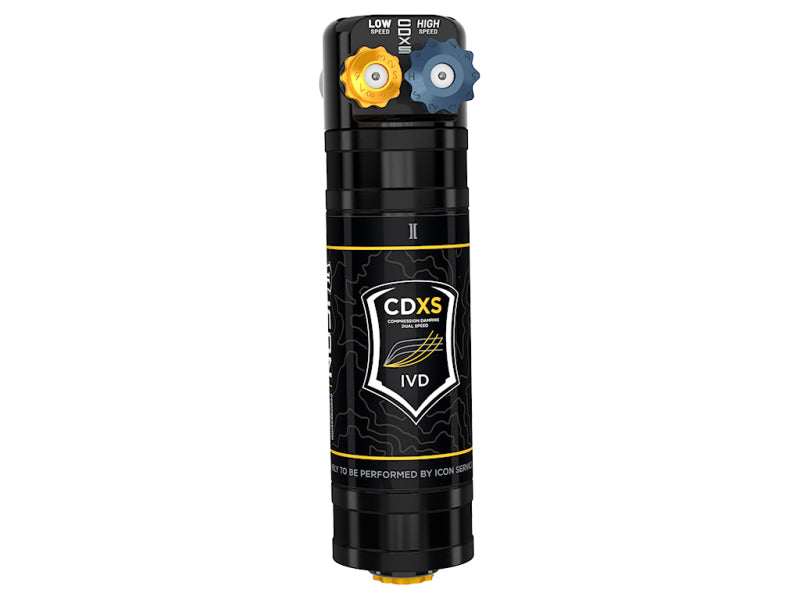

ICON 57805XP shocks feature remote reservoirs that improve heat dissipation and help reduce shock fade during prolonged off-road use. The integrated Compression Damping Dual Speed (CDXS) system provides 10 detented settings for independent high-speed and low-speed compression adjustment. This allows you to fine-tune handling response, suspension aggressiveness, and control according to driving conditions. ICON’s internal Bump Zone adds approximately 20% damping force near full compression to help control the suspension and reduce harsh bottoming.
Built for long-term service, the 2.5 Aluminum Series uses lightweight, impact-extruded aluminum cylinders for improved corrosion resistance and a consistent finish. Each shock includes a 7/8-inch induction-hardened, chrome-plated shaft, premium-grade shock oil, PTFE-lined spherical bearings, application-specific mounting hardware, and 6061 aircraft-grade aluminum CNC-machined components. Double-sealed Schrader caps help protect the charging ports, while the nitrogen-charged monotube design provides consistent damping across a wide range of temperatures. Like other ICON shock absorbers, the 57805XP is fully rebuildable and revalveable for future servicing and performance customization.

Features:

• Fits 2010–2014 Toyota Tacoma models with up to 1.5 inches of lift; does not fit 2WD models with five wheel lug studs

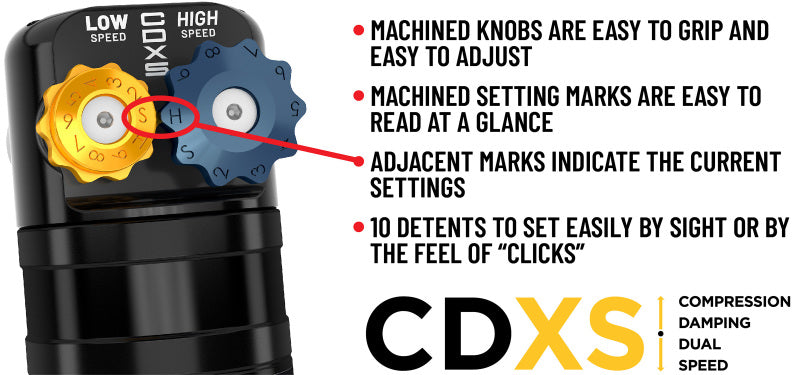

• CDXS-equipped design provides independent high-speed and low-speed compression adjustment with 10 detented settings

• Remote reservoir improves heat dissipation and helps reduce shock fade during extended use

• Internal Bump Zone increases damping by approximately 20% near full compression for improved bottom-out control

• One-piece digressive piston with application-specific valving delivers controlled on-road and off-road performance

• Impact-extruded aluminum cylinder provides reduced weight, corrosion resistance, and a consistent finish

• Nitrogen-charged monotube construction supports consistent damping across a wide temperature range

• 7/8-inch induction-hardened, chrome-plated shock shaft resists wear and corrosion

• Premium-grade shock oil maintains consistent suspension performance

• PTFE-lined spherical bearings and application-specific mounting hardware included

• 6061 aircraft-grade aluminum CNC-machined components provide strength and durability

• Double-sealed Schrader caps help protect charging ports from damage

• Fully rebuildable and revalveable for long-term serviceability

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
