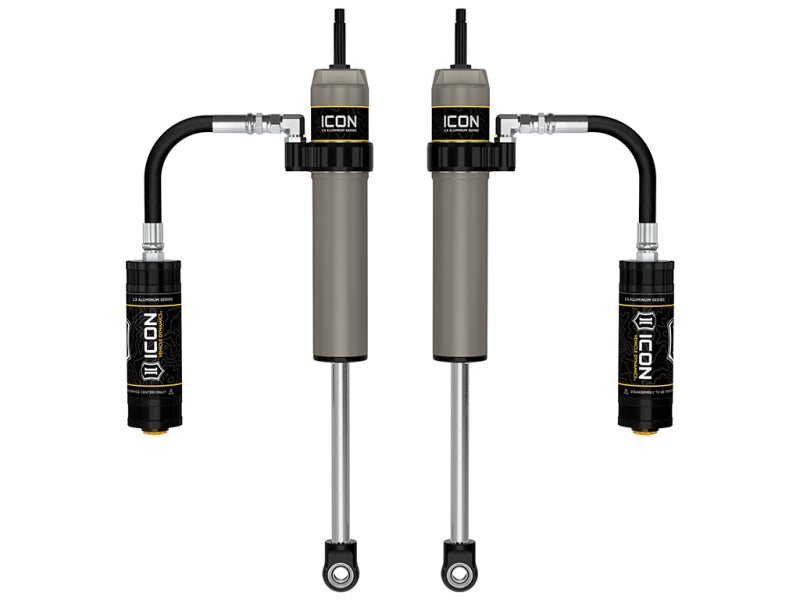

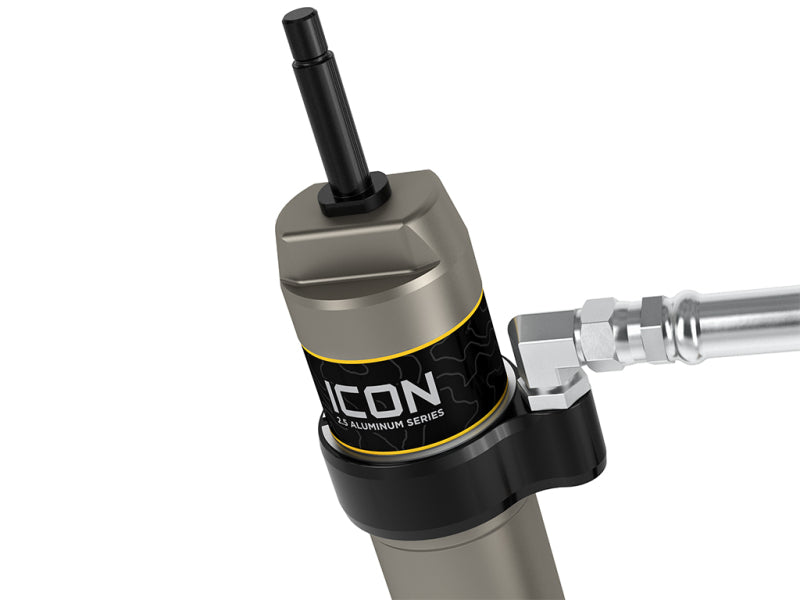

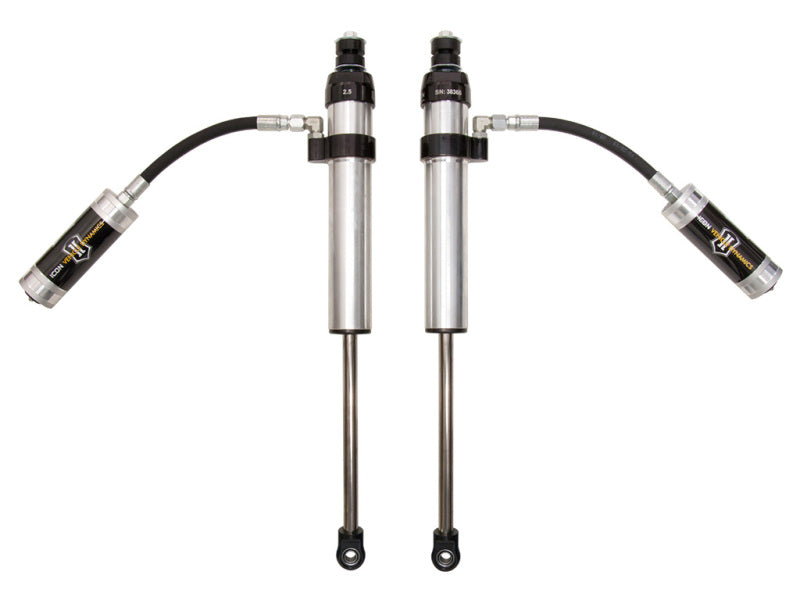

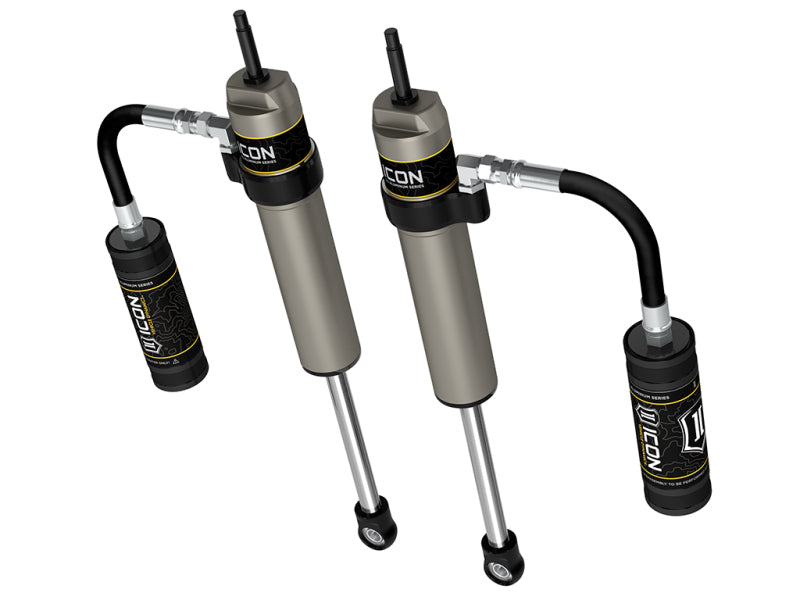

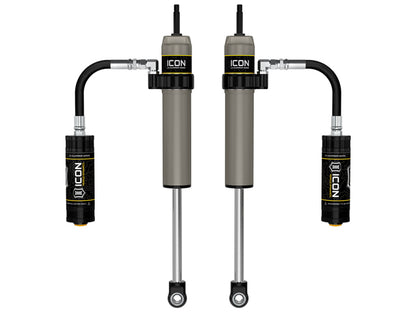

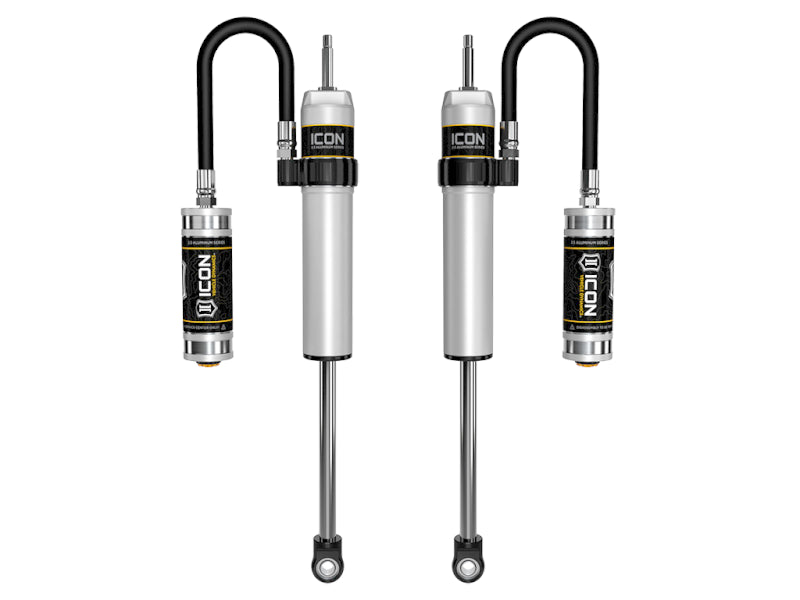

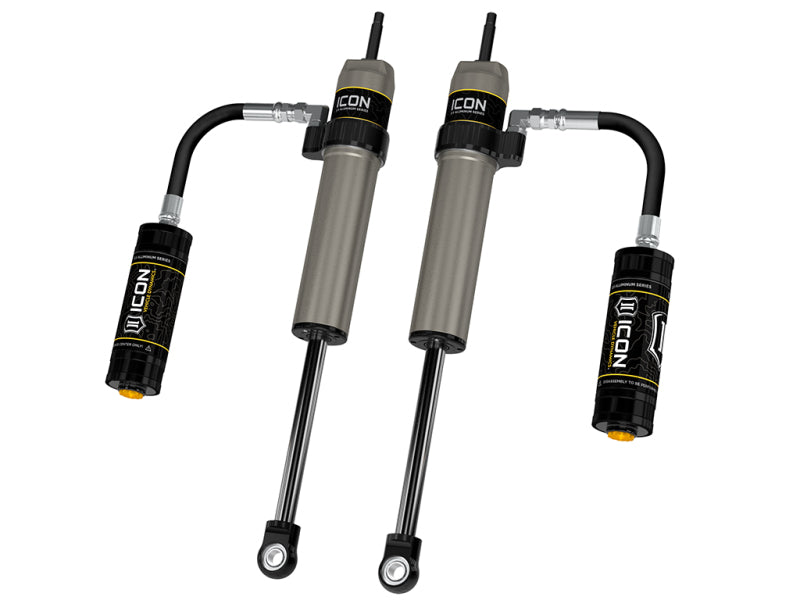

ICON 57805P 2.5 Aluminum Series Remote Reservoir Rear Shocks for 2005-2017 Toyota Tacoma

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks. ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. APPLICATION NOTE #185 : Will not fit 2WD Tacoma with 5 wheel lug studs

• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Revalveable
• 100% Rebuildable

Upgrade the rear suspension of your Toyota Tacoma with the ICON 57805P Vehicle Specific 2.5 Aluminum Series remote reservoir shocks. Designed for select 2005-2017 Toyota Tacoma applications with 0 to 1.5 inches of rear lift, these shocks feature vehicle-specific lengths and damping valving for improved off-road control and a smoother on-road ride. This pair is engineered for demanding trail use while maintaining predictable suspension performance during everyday driving. Application note: These shocks will not fit 2WD Toyota Tacoma models with five wheel lug studs.
The ICON 2.5 Aluminum Series uses a nitrogen-charged monotube design with remote reservoirs to improve heat dissipation and help reduce shock fade during prolonged or aggressive use. An internal bump zone, created by ICON’s 6061 billet aluminum manifold design, increases damping by 20 percent as the shock approaches full compression. This added control helps manage high-velocity suspension compression and reduces harsh bottoming. The one-piece digressive piston and application-specific valving provide responsive damping across varied terrain, while premium 5WT shock oil helps maintain consistent performance across a broad temperature range.
Built for serviceability and long-term performance, the ICON 57805P shocks feature one-piece impact-extruded aluminum cylinders for corrosion resistance, a 7/8-inch induction-hardened chrome-plated shaft, PTFE-lined spherical bearings, and application-specific mounting hardware. CNC-machined 6061 aircraft-grade aluminum components contribute to strength and precise fitment. Like other ICON shock absorbers, these units are fully rebuildable and revalveable, allowing the damping characteristics to be serviced or customized over time. Piggyback and remote reservoir models can also be upgraded to ICON’s Compression Damping Control Valve for more user-defined tuning.

Features:

• Vehicle-specific rear shocks designed for select 2005-2017 Toyota Tacoma applications with 0 to 1.5 inches of rear lift

• Remote reservoir design improves heat dissipation and helps reduce shock fade during extended off-road use

• Internal bump zone increases damping by 20 percent near full compression for improved bottom-out control

• One-piece digressive piston with application-specific valving delivers balanced on-road comfort and off-road control

• Nitrogen-charged monotube construction provides consistent damping performance

• One-piece impact-extruded aluminum cylinders offer corrosion resistance and a durable finish

• Premium 5WT shock oil supports consistent damping across a broad temperature range

• 7/8-inch induction-hardened, chrome-plated shock shaft is engineered for durability

• PTFE-lined spherical bearings and application-specific mounting hardware support precise installation

• CNC-machined 6061 aircraft-grade aluminum components provide strength and serviceability

• 100 percent rebuildable and 100 percent revalveable for long-term maintenance and tuning

• Compatible with ICON Compression Damping Control Valve upgrades

• Sold as a pair

• Will not fit 2WD Toyota Tacoma models with five wheel lug studs

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
