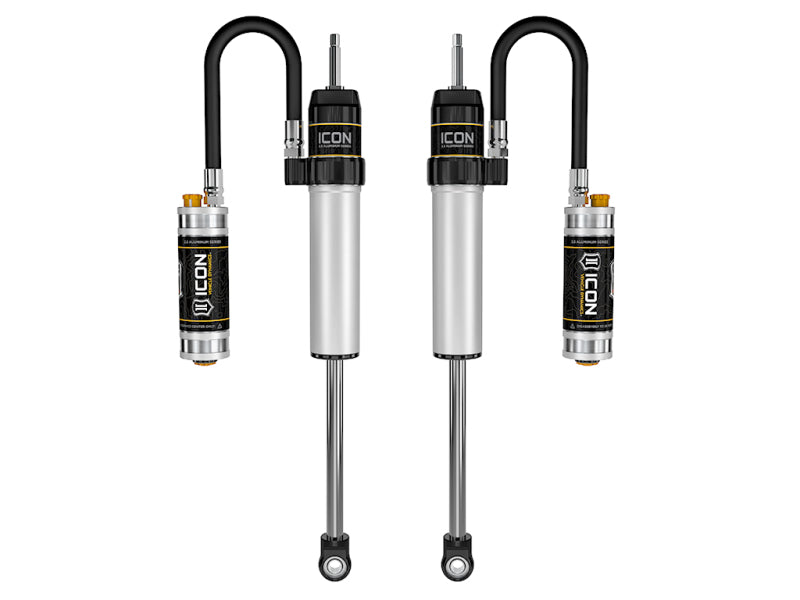

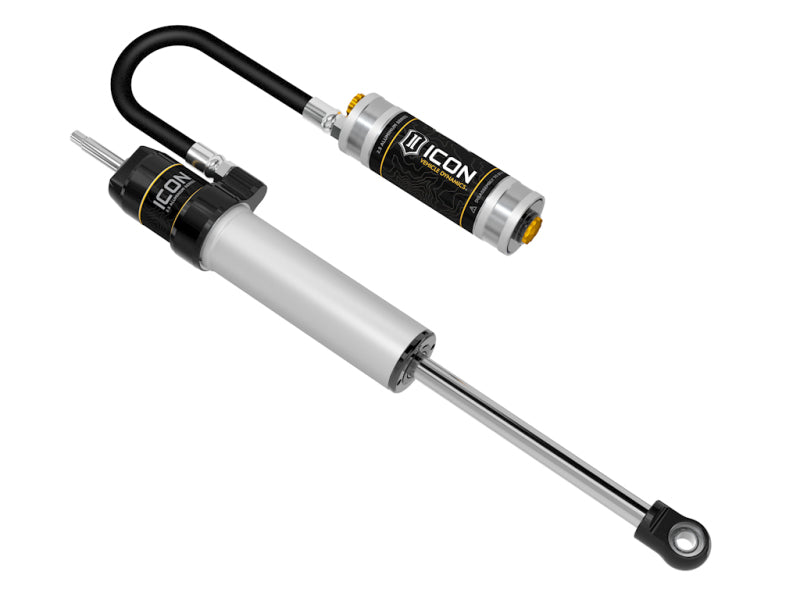

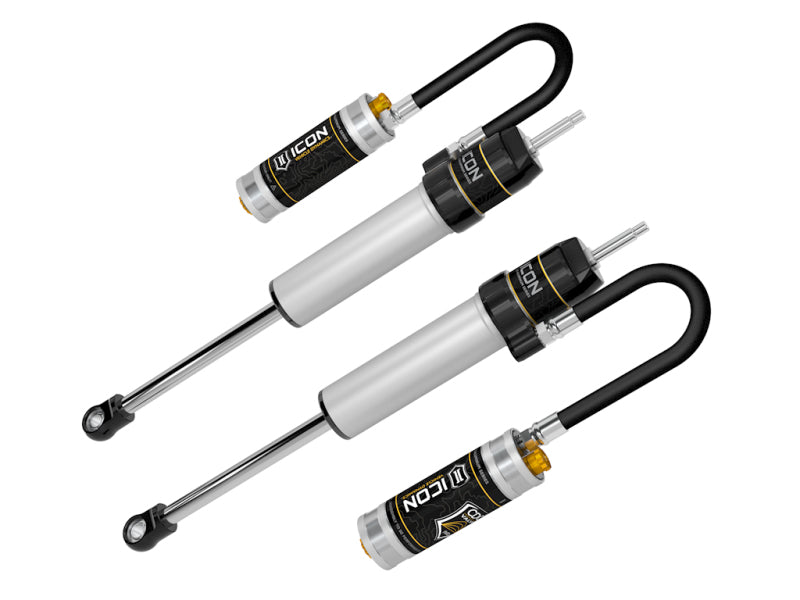

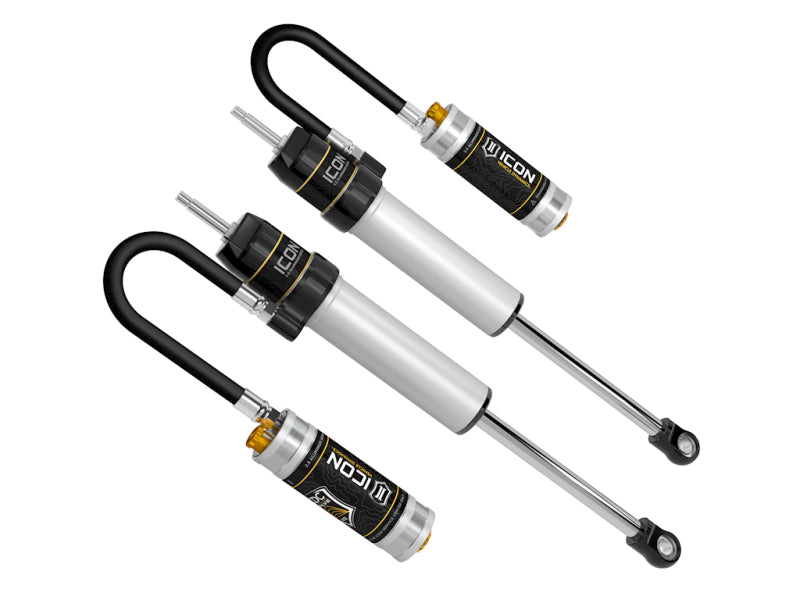

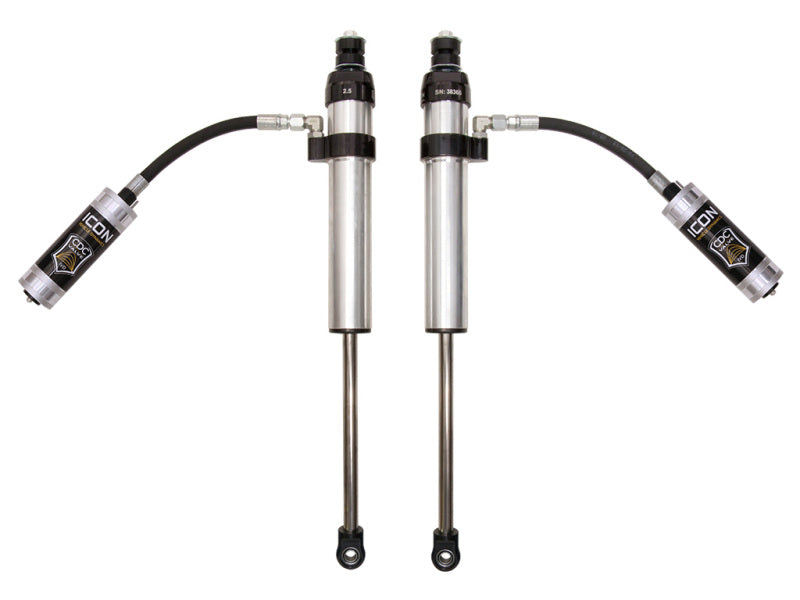

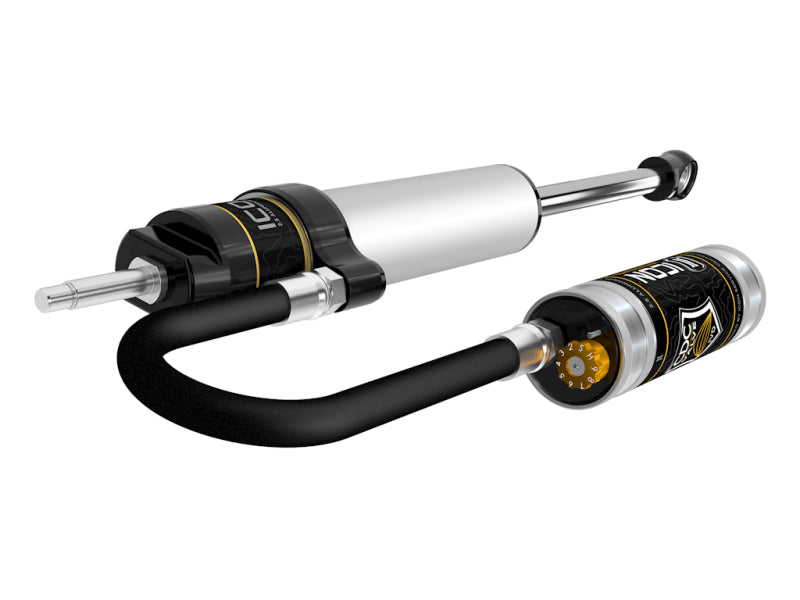

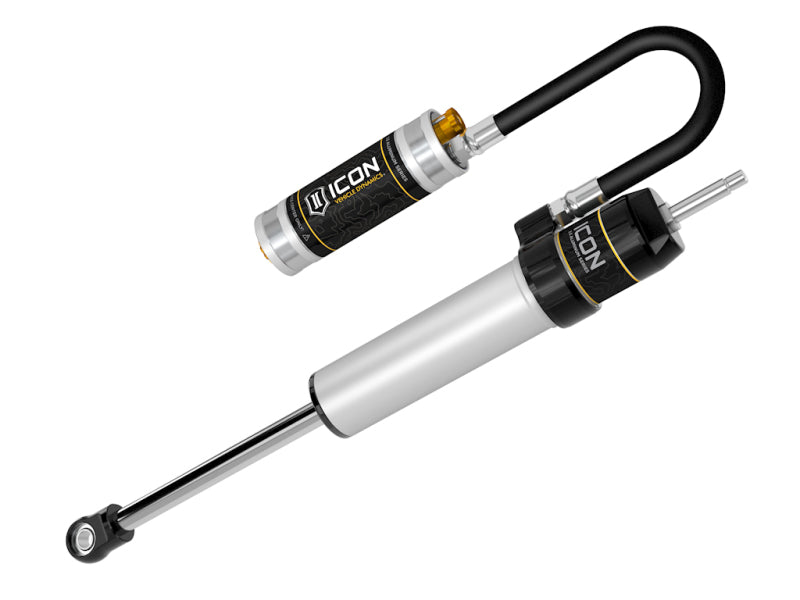

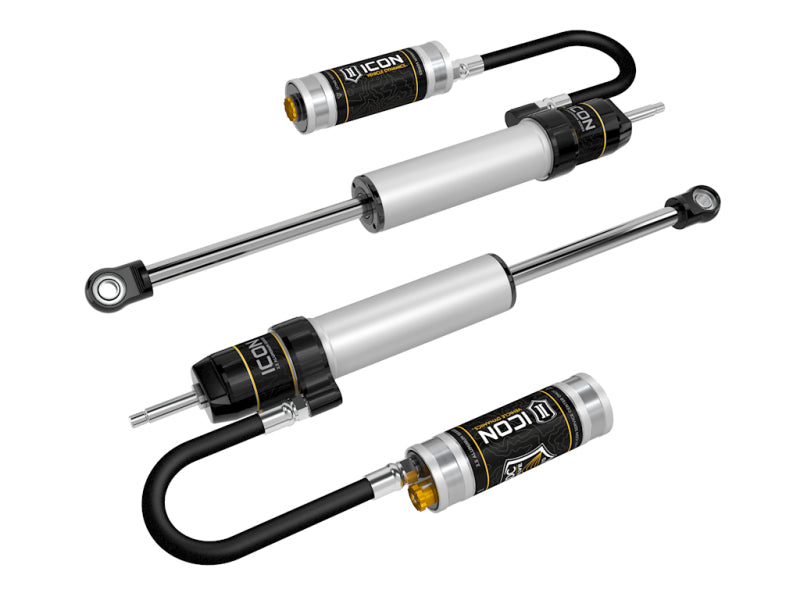

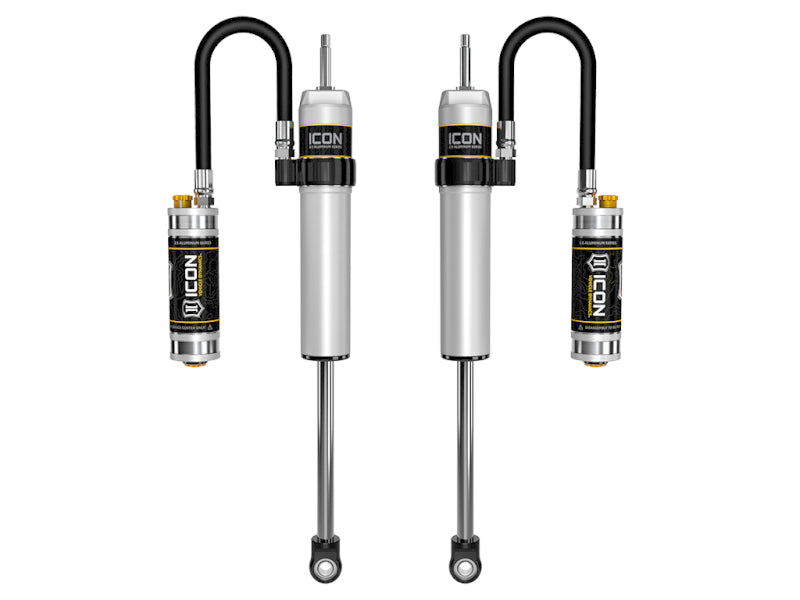

ICON 57805CP 2.5 Series Rear Shocks with Remote Reservoir and CDC Valve for 2005-2017 Toyota Tacoma

$1,504.15

Skip to product information
1 of 10

Regular price $1,504.15
Sale price $1,504.15 Regular price $1,504.15
Shipping calculated at checkout.
ICON’s 2.5 Aluminum Series shocks shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restri cts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks. ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. APPLICATION NOTE #185 : Will not fit 2WD Tacoma with 5 wheel lug studs
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression

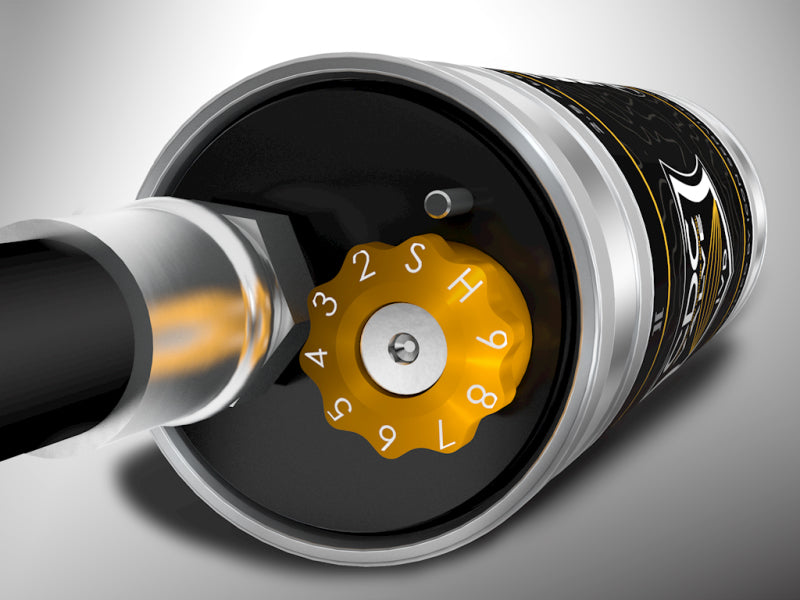

  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • PTFE lined spherical bearings and application specific mounting hardware
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • Nitrogen charged monotube design with remote reservoir
  • 6061 aircraft grade aluminum CNC machined components
  • Double-sealed Schrader caps reduce risk of damage
  • 100% Revalveable
  • 100% Rebuildable

Upgrade the suspension performance of your Toyota Tacoma with the ICON 2.5 Aluminum Series rear shocks, part number 57805CP. Designed specifically for select 2005-2017 Toyota Tacoma applications with 0 to 1.5 inches of rear lift, this shock set combines controlled off-road performance with a comfortable street ride. Vehicle-specific length and damping calibration help provide consistent handling, improved suspension control, and dependable performance across changing terrain. Application note: These shocks will not fit 2WD Tacoma models with five wheel lug studs.
The ICON 2.5 Aluminum Series features lightweight, impact-extruded aluminum cylinders that resist corrosion and provide a uniform finish. A remote reservoir improves heat dissipation to help reduce shock fade during prolonged or demanding use. The nitrogen-charged monotube design uses premium-grade 5WT shock oil for consistent damping across a broad temperature range, while the vehicle-specific digressive piston delivers responsive control both on and off the road. The integrated ICON CDC Valve provides 10 levels of externally adjustable compression damping, allowing drivers to fine-tune suspension response with the turn of a knob.
Additional construction details include a 6061 aircraft-grade aluminum manifold and CNC-machined components, PTFE-lined spherical bearings, application-specific mounting hardware, a 7/8-inch induction-hardened chrome-plated shock shaft, and double-sealed Schrader caps. ICON's internal Bump Zone can increase damping by approximately 20 percent as the shock approaches full compression, helping control high-velocity suspension movement and reduce harsh bottoming. Like other ICON shock absorbers, the 57805CP is fully rebuildable and revalveable for long-term serviceability and customized tuning. This product is sold as a pair and is intended for compatible rear suspension applications.

Features:

  • Vehicle-specific digressive piston design and valving for controlled performance and ride quality on and off the road
  • Internal Bump Zone increases damping by approximately 20 percent near full compression to improve bottom-out control
  • ICON CDC Valve provides 10 levels of externally adjustable compression damping
  • One-piece impact-extruded aluminum cylinders provide reduced weight, corrosion resistance, and a consistent finish
  • Remote reservoir design improves heat dissipation and helps reduce shock fade during extended use
  • Premium-grade 5WT shock oil supports consistent damping across a wide temperature range
  • Nitrogen-charged monotube construction for responsive and stable suspension control
  • PTFE-lined spherical bearings and application-specific mounting hardware
  • 7/8-inch induction-hardened, chrome-plated shock shaft
  • 6061 aircraft-grade aluminum CNC-machined components
  • Double-sealed Schrader caps help protect adjustment and charging components
  • 100% rebuildable for long-term serviceability
  • 100% revalveable for customized suspension tuning
  • Fits select 2005-2017 Toyota Tacoma applications with 0 to 1.5 inches of rear lift
  • Will not fit 2WD Tacoma models with five wheel lug studs

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
