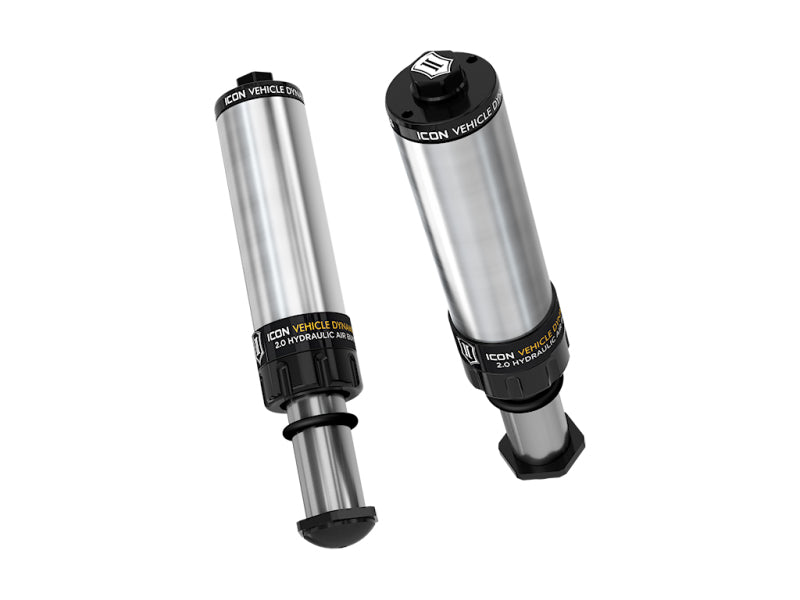

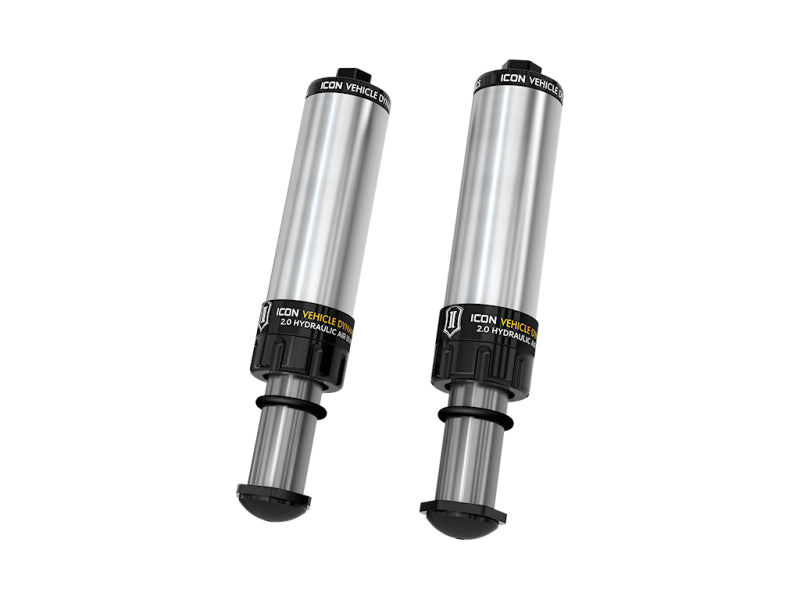

ICON 56115 Rear Hydraulic Bump Stop System for 2022-2026 Toyota Tundra, 6-Inch Lift

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2022-2026 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation. The ICON 2022-2026 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. APPLICATION NOTE #396: Compatible with ICON 6" Lift Performance Suspension System. For shorter lift height compatibility, use part number 56111.

• Position and velocity sensitive technology exponentially increases bottom-out resistance
• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Fully reversible to factory configuration with no bed cutting required
• Multi stage CAD plated body for maximum corrosion resistance
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Double sealed high pressure Schrader valve
• Replaceable noise reducing striker pad
• Fully serviceable

Upgrade the rear suspension performance of your 2022-2026 Toyota Tundra with the ICON Vehicle Dynamics Part Number 56115 Rear Hydraulic Bump Stop System. Designed for trucks equipped with ICON 6-inch lift performance suspension systems, this vehicle-specific kit improves bottom-out control, reduces rear-end kick, and helps maintain a smoother ride during aggressive off-road driving. It is engineered to deliver greater control in rough terrain without compromising suspension articulation.
The ICON hydraulic bump stops use position- and velocity-sensitive technology to increase damping force exponentially as shaft speed rises and the bump stop moves through its travel. This progressive response provides strong bottoming resistance while allowing the suspension to remain compliant during normal articulation. The vehicle-specific tuning promotes smooth engagement and improved ride quality across changing terrain. For shorter lift heights, use ICON Part Number 56111.

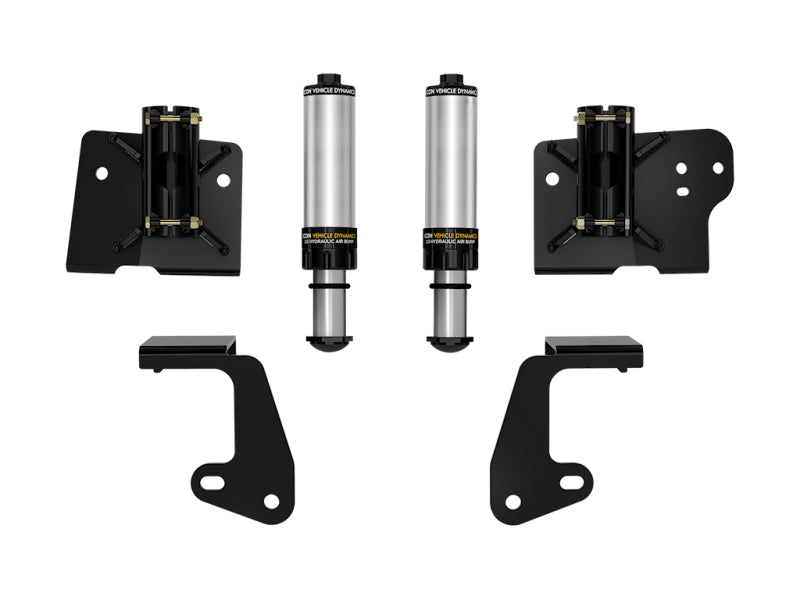

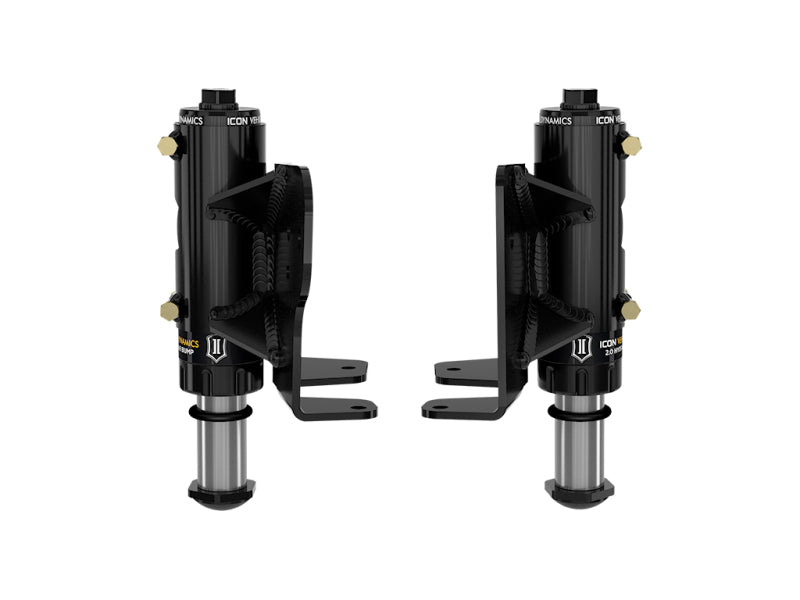

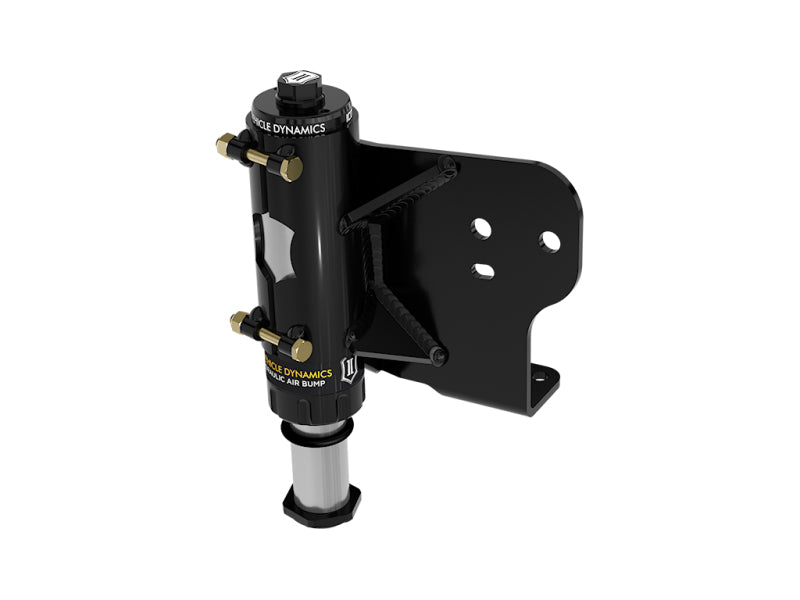

This direct bolt-in system installs in the factory rear bump stop locations for a straightforward installation and does not require cutting the truck bed. The system can be fully reversed to the factory configuration when needed. Each bump stop features a multi-stage CAD-plated body for corrosion resistance, a heavy-duty CNC-machined nitro steel shaft, a double-sealed high-pressure Schrader valve, and a replaceable noise-reducing striker pad. The hydraulic bump stops are also fully serviceable for long-term performance and maintenance. Compatible with 2022-2026 Toyota Tundra applications and sold as a complete rear bump stop system.

Features:

• Position- and velocity-sensitive technology increases bottom-out resistance as suspension speed and travel increase

• Direct bolt-in installation at the factory rear bump stop locations

• 2.5-inch travel design reduces rear-end kick and improves off-road suspension performance

• Vehicle-specific tuning provides smooth engagement and optimized ride quality

• Fully reversible to the factory configuration without cutting the truck bed

• Multi-stage CAD-plated body provides enhanced corrosion resistance

• Heavy-duty 1.25-inch CNC-machined nitro steel shaft

• Double-sealed high-pressure Schrader valve

• Replaceable noise-reducing striker pad

• Fully serviceable hydraulic bump stop design

• Compatible with ICON 6-inch lift performance suspension systems

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
2026 Toyota Tundra
