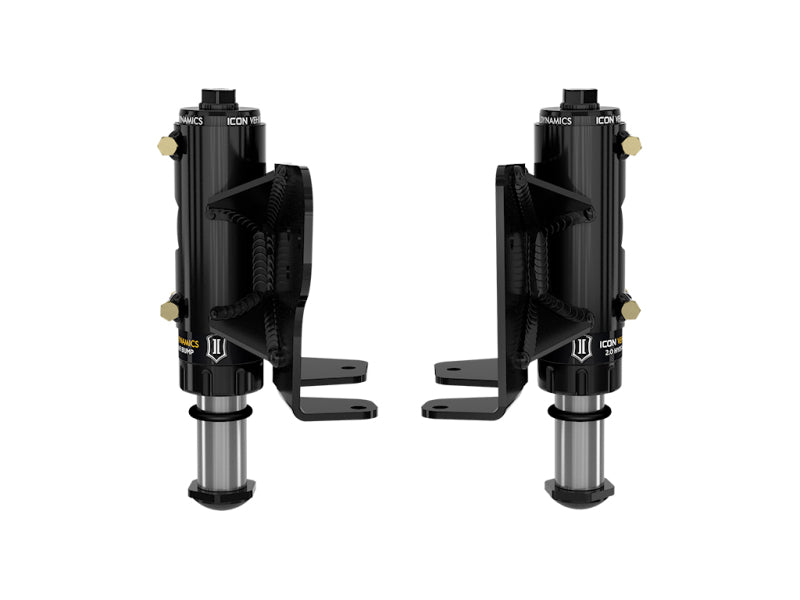

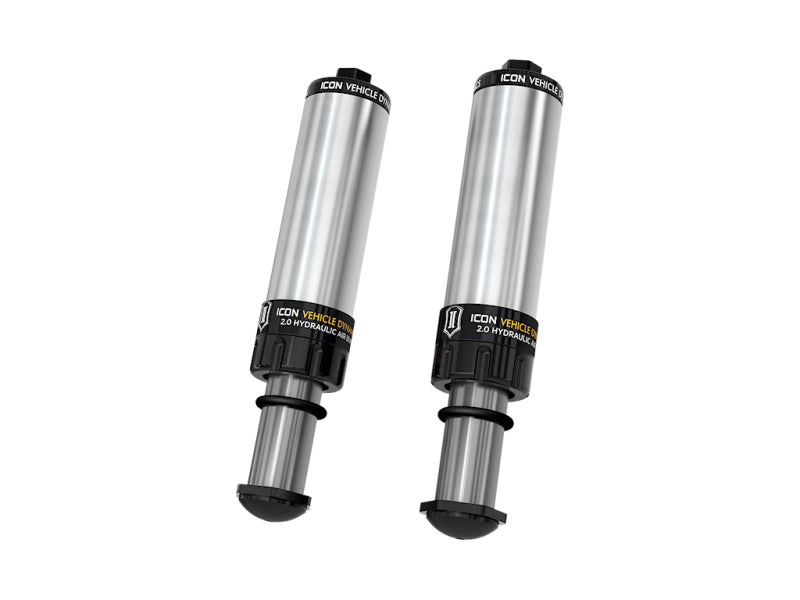

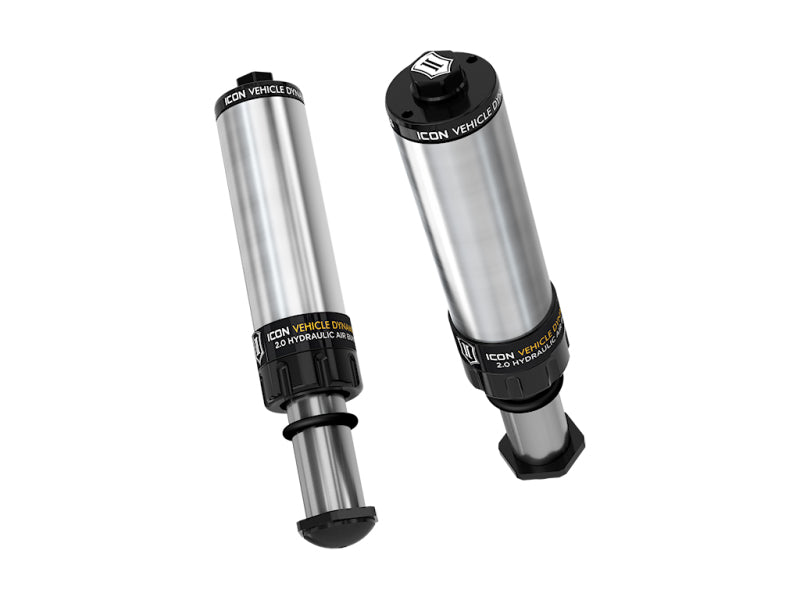

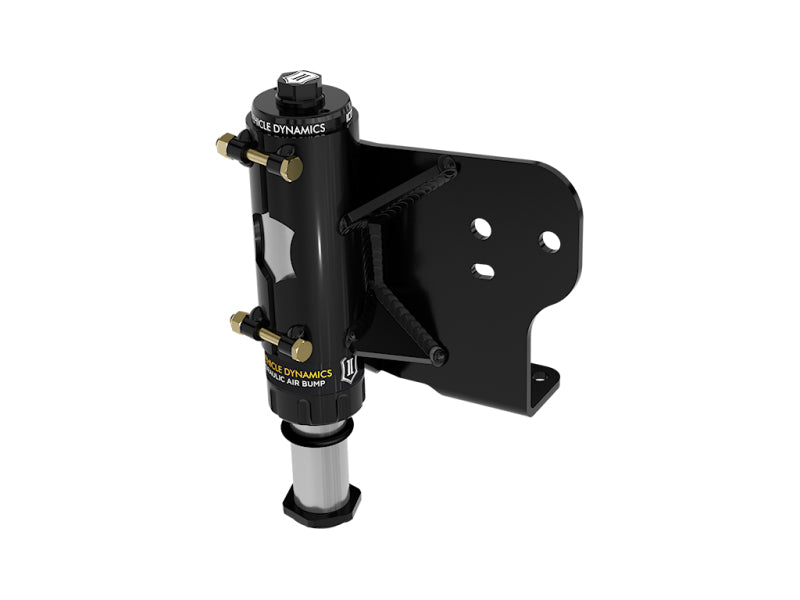

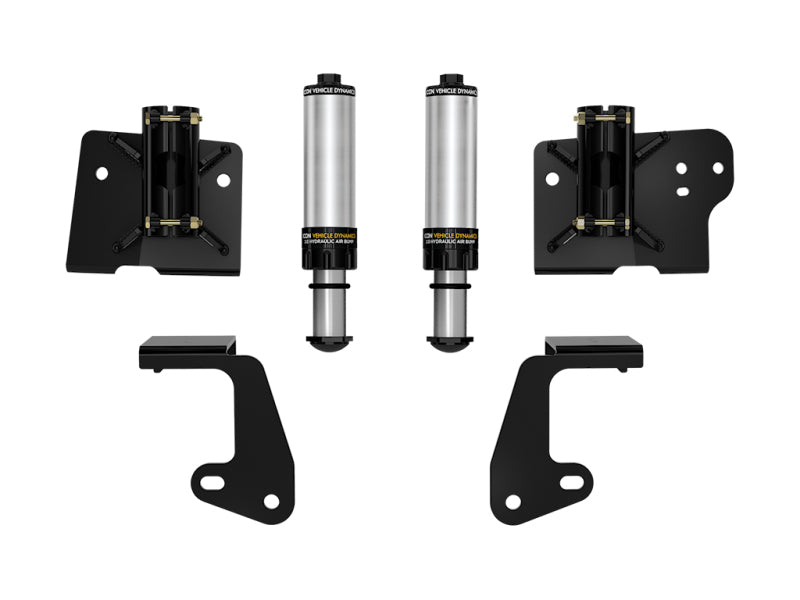

ICON 56111 Rear Hydraulic Bump Stop System for 2022-2026 Toyota Tundra

$1,209.85

Skip to product information
1 of 5

Regular price $1,209.85
Sale price $1,209.85 Regular price $1,209.85
Shipping calculated at checkout.
While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2022-2026 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation. The ICON 2022-2026 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. APPLICATION NOTE #393: Not compatible with ICON 6" Lift Performance Suspension System. For ICON 6" lift compatibility, use part number 56115.
  • Position and velocity sensitive technology exponentially increases bottom-out resistance
  • Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
  • 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
  • Vehicle specific bump stop tune to provide smooth engagement and best ride quality
  • Fully reversible to factory configuration with no bed cutting required
  • Multi stage CAD plated body for maximum corrosion resistance
  • Heavy duty 1 ¼” CNC machined nitro steel shaft
  • Double sealed high pressure Schrader valve
  • Replaceable noise reducing striker pad
  • Fully serviceable

Upgrade the off-road performance of your 2022-2026 Toyota Tundra with the ICON Vehicle Dynamics Part Number 56111 Rear Hydraulic Bump Stop System. Designed for demanding trail use, this system improves rear suspension bottom-out control, reduces rear-end kick, and helps maintain a more controlled ride over rough terrain. Its position- and velocity-sensitive hydraulic technology increases damping force progressively as shaft speed and compression travel rise, providing strong bottoming resistance without limiting suspension articulation.
The ICON 56111 system installs directly into the factory rear bump stop location for a straightforward, bolt-in installation. Its vehicle-specific tuning promotes smooth engagement and improved ride quality, while the 2.5-inch travel bump stops help manage hard compression events during spirited driving and off-road use. Installation is fully reversible to the factory configuration, and no bed cutting is required. The system is engineered for durability with a multi-stage CAD-plated body, a heavy-duty 1 1/4-inch CNC-machined nitro steel shaft, and a double-sealed high-pressure Schrader valve.
This rear hydraulic bump stop system is fully serviceable and includes a replaceable noise-reducing striker pad for long-term performance and easier maintenance. It is designed for 2022-2026 Toyota Tundra applications and is not compatible with the ICON 6-inch Lift Performance Suspension System. For ICON 6-inch lift compatibility, use ICON Part Number 56115. Professional installation is recommended to ensure proper fitment and suspension operation.

Features:

  • Position- and velocity-sensitive technology increases bottom-out resistance progressively
  • Direct bolt-in installation at the OEM rear bump stop location
  • 2.5-inch travel improves compression control and reduces rear-end kick
  • Vehicle-specific hydraulic tuning supports smooth engagement and ride quality
  • Reversible installation requires no bed cutting
  • Multi-stage CAD-plated body provides corrosion resistance
  • Heavy-duty 1 1/4-inch CNC-machined nitro steel shaft
  • Double-sealed high-pressure Schrader valve
  • Replaceable noise-reducing striker pad
  • Fully serviceable design

Compatible With
2022 Toyota Tundra
2023 Toyota Tundra
2024 Toyota Tundra
2025 Toyota Tundra
2026 Toyota Tundra
