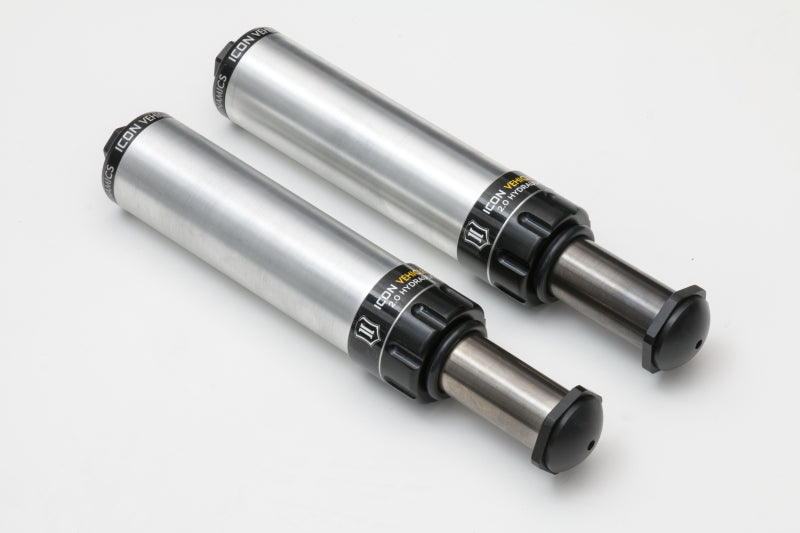

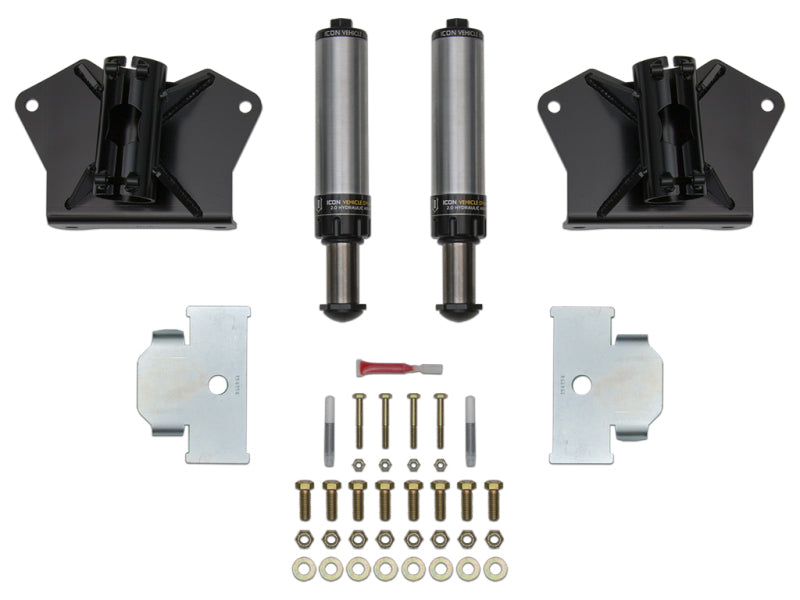

ICON 56108 Rear Hydraulic Bump Stop System for 2007-2021 Toyota Tundra

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation. 2007-2021 TOYOTA TUNDRA REAR HYDRAULIC BUMP STOP SYSTEM

• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
• 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
• Vehicle specific bump stop tune to provide smooth engagement and best ride quality
• Position sensitive technology exponentially increases bottom-out resistance
• Fully reversible to factory configuration with no bed cutting required
• Multi stage CAD plated body for maximum corrosion resistance
• Heavy duty 1 ¼” CNC machined nitro steel shaft
• Double sealed high pressure Schrader valve
• Replaceable noise reducing striker pad
• Operating range of 50 – 250 PSI
• Fully serviceable

The ICON Vehicle Dynamics 56108 Rear Hydraulic Bump Stop System is designed for 2007-2021 Toyota Tundra trucks seeking improved suspension control during spirited driving and demanding off-road use. Compared with factory rear bump stops, this system provides stronger bottom-out resistance, helps reduce rear-end kick, and improves overall rear suspension performance without compromising articulation. Its vehicle-specific tune promotes smooth engagement and a controlled ride over rough terrain.
ICON hydraulic bump stops use velocity- and position-sensitive technology to increase damping force as shaft speed rises and the bump stop moves through its travel. This design delivers progressive bottoming control, helping the rear suspension absorb hard impacts while maintaining predictable handling. The 2.5-inch travel bump stop is tested under rigorous off-road conditions through ICON’s “ICON 1K” validation process for performance, strength, and durability.

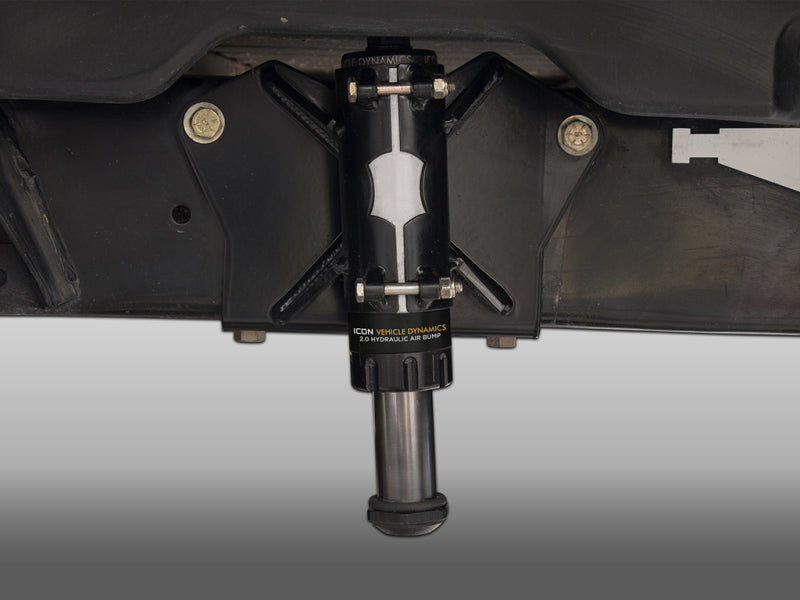

The ICON 56108 system installs directly into the OEM bump stop location for a straightforward, bolt-in installation. No bed cutting is required, and the system can be returned to the factory configuration when desired. Each bump stop features a corrosion-resistant multi-stage CAD-plated body, a heavy-duty 1.25-inch CNC-machined nitro steel shaft, and a double-sealed high-pressure Schrader valve. A replaceable noise-reducing striker pad helps support quiet operation, while the fully serviceable design allows for long-term maintenance and performance.
Designed specifically for the Toyota Tundra, the system operates from 50 to 250 PSI and is intended for drivers who need dependable rear suspension control in off-road environments. Professional installation is recommended to ensure correct setup, pressure, and system operation.

Features:

• Vehicle-specific hydraulic bump stop tuning for smooth engagement and improved ride quality

• Velocity- and position-sensitive technology for progressive bottom-out resistance

• 2.5 inches of travel to reduce rear-end kick and improve off-road suspension performance

• Direct bolt-in installation at the OEM bump stop location

• Fully reversible to the factory configuration with no bed cutting required

• “ICON 1K” tested under rigorous off-road conditions for tune, performance, strength, and durability

• Multi-stage CAD-plated body for enhanced corrosion resistance

• Heavy-duty 1.25-inch CNC-machined nitro steel shaft

• Double-sealed high-pressure Schrader valve

• Replaceable noise-reducing striker pad

• 50 to 250 PSI operating range

• Fully serviceable design

Compatible With
2007 Toyota Tundra
2008 Toyota Tundra
2009 Toyota Tundra
2010 Toyota Tundra
2011 Toyota Tundra
2012 Toyota Tundra
2013 Toyota Tundra
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
