ICON 56103 Rear Hydraulic Air Bumpstop Kit for 2005-2023 Toyota Tacoma

$1,079.05

Skip to product information
1 of 4

Regular price $1,079.05
Sale price $1,079.05 Regular price $1,079.05
Shipping calculated at checkout.
Bolt on a set of ICON Vehicle Dynamics rear hydraulic air bumpstops to improve the on or off-road capabilities of your 2005-2023 Toyota Tacoma when using maximum suspension travel. ICON’s race proven hydraulic air bumpstops are tested, tried and true, from Cabo to Canada in all conditions. This vehicle specific tuned hydraulic air bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return while being used in extreme conditions. The true value to using a compression and rebound tuned bumpstop is the exponentially increasing force is smooth, not abrupt or harsh like the OEM bumpstop. This vehicle specific tuned hydraulic bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return. The compression and rebound tuned bumpstop is smooth, not abrupt or harsh like the OE bumpstop. APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
  • Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
  • Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
  • Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
  • Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost

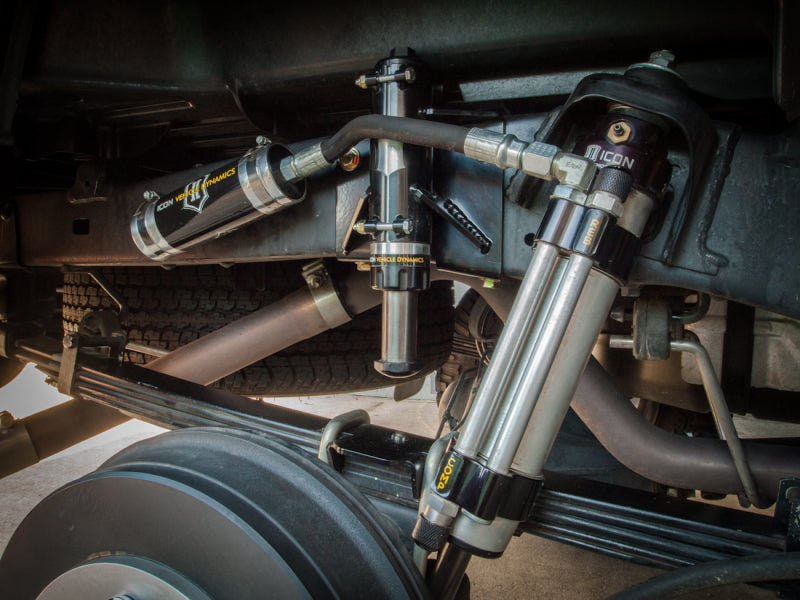

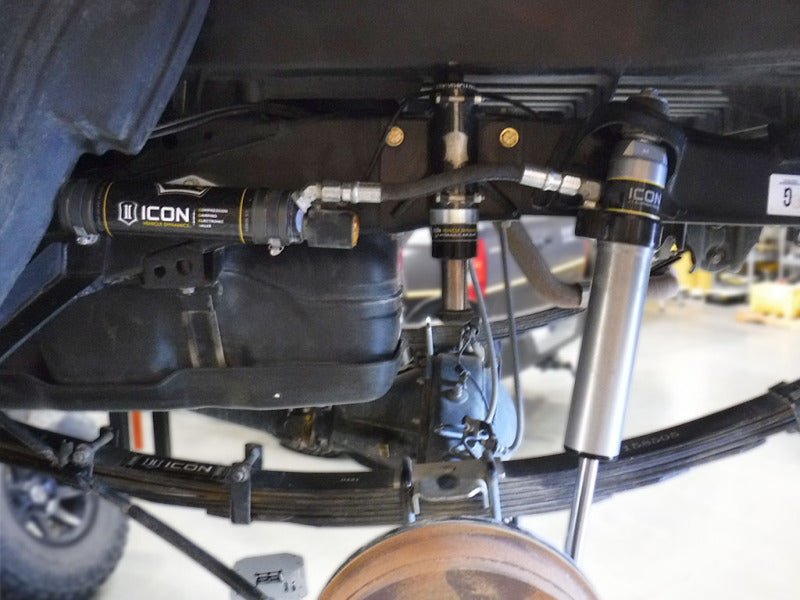

  • Bolt-on design using existing holes in frame for clean install with no cutting or welding

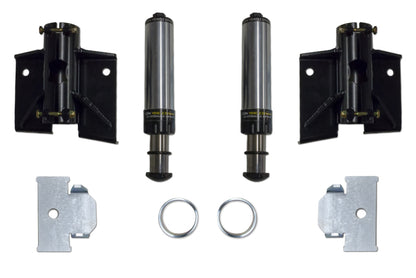

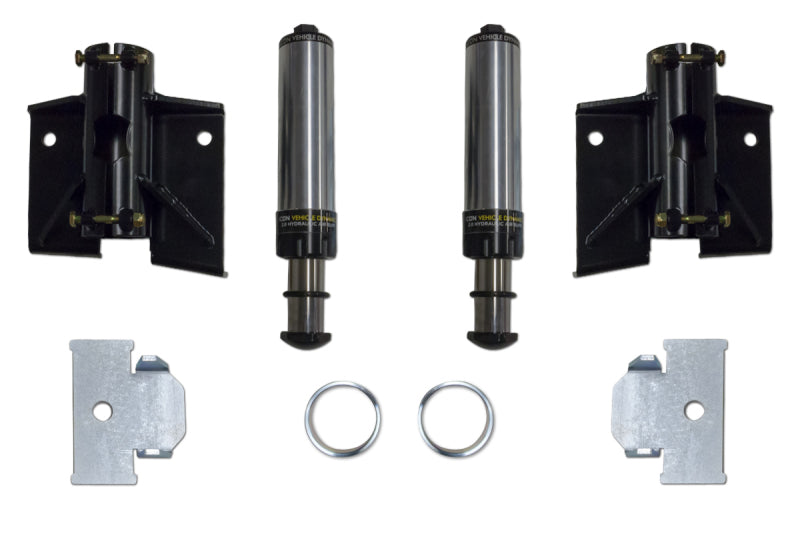

  • Anodized billet top cap, o-ring sealed back up cap, seal head and striker
  • Urethane rod seal and wiper for long service life
  • CAD Plated body for corrosion free service
  • Can be returned to stock
  • User serviceable

Improve the off-road performance and suspension control of your 2005-2023 Toyota Tacoma with the ICON Vehicle Dynamics 56103 rear hydraulic air bumpstop kit. Designed for trucks using maximum suspension travel, this vehicle-specific system provides smooth engagement, increased bottom-out resistance, and controlled rebound in demanding driving conditions. ICON hydraulic bumpstops are race proven and tested in extreme environments, delivering more consistent performance than the abrupt or harsh response of the original equipment rubber bumpstop.
The ICON 56103 uses a compression- and rebound-tuned hydraulic design to absorb additional impact energy and return the axle in a more controlled manner. Its linear-digressive piston provides tuning advantages over standard linear-linear piston designs, with adjustment potential through the valve stack, oil volume, and nitrogen pressure. The Tacoma-specific tune balances smooth initial engagement with progressively increasing resistance to help protect the suspension during hard compression events.
Installation is simplified with a bolt-on design that uses existing frame holes, requiring no cutting or welding. The kit also allows adjustment for leaf pack height changes to help preserve available uptravel. Durable construction includes an anodized billet top cap, O-ring-sealed backup cap, seal head, striker, urethane rod seal and wiper, and a corrosion-resistant CAD-plated body. The system is user serviceable and can be returned to the factory configuration. Application Note #185: This kit does not fit 2WD Toyota Tacoma models with five wheel lug studs.

Features:

  • Linear-digressive piston provides smooth, controlled bumpstop response with tuning options through the valve stack, oil volume, and nitrogen pressure
  • Toyota Tacoma-specific compression and rebound tune improves bottom-out resistance, engagement, and return control
  • Absorbs more impact energy than the factory rubber bumpstop and returns the axle in a more controlled manner
  • Adjustable design accommodates leaf pack height changes while helping preserve suspension uptravel
  • Bolt-on installation uses existing frame holes with no cutting or welding required
  • Anodized billet top cap, O-ring-sealed backup cap, seal head, and striker provide durable service
  • Urethane rod seal and wiper support long service life
  • CAD-plated body helps resist corrosion
  • User serviceable and capable of returning to the factory configuration
  • Application: Fits 2005-2023 Toyota Tacoma; does not fit 2WD models with five wheel lug studs

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
