ICON 53508 Intelligent Control Install Kit for 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia

ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2022-2026 Toyota Tundra or 2023-2026 Toyota Sequoia using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install. ICON Intelligent Control (IIC) monitors, analyzes, and processes data in real-time. Info from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

• Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
• Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle

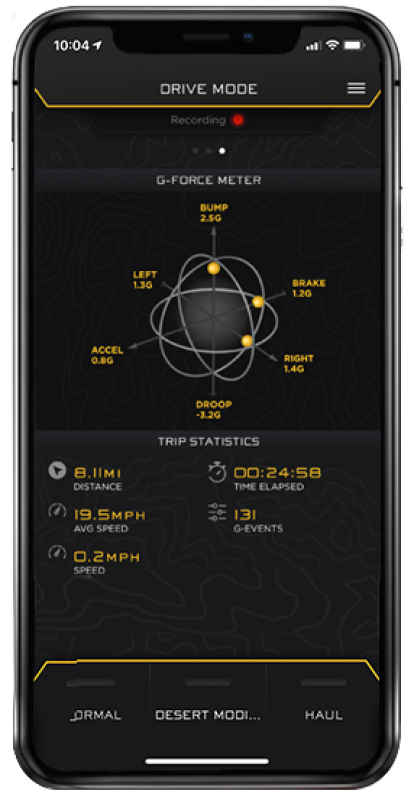

• Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips

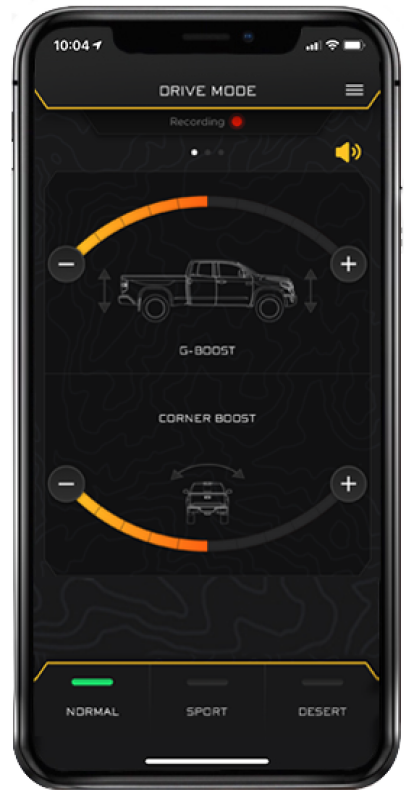

• Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
• Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds

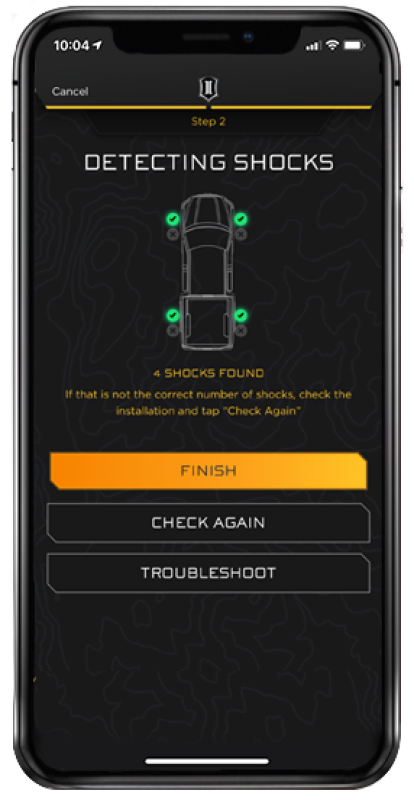

• User interface provided by IIC Mobile App via Bluetooth connection to iOS device
• Application specific mounting brackets, hardware and wire harnesses
• Onboard sensors monitor G-forces and movement of vehicle chassis

The ICON Intelligent Control (IIC) Install Kit, part number 53508, provides the vehicle-specific components needed to install ICON’s Intelligent Control system on select Toyota Tundra and Sequoia applications. The system uses onboard G-force and gyroscope sensors to monitor vehicle movement, evaluate terrain, and predict wheel position in real time. It then communicates with ICON Compression Damping Electronic Valve (CDEV) shock absorbers to deliver responsive damping adjustments for improved control and comfort.
The IIC processes sensor data more than 1,000 times per second and can send updated damping commands to compatible CDEV shocks in less than 40 milliseconds. Drivers can select active damping adjustments or manually modify baseline settings without leaving the vehicle. The ICON mobile app connects to the IIC through Bluetooth on a compatible iOS device, providing access to preconfigured Drive Modes and customizable suspension presets.
In addition to suspension control, the IIC functions as a data logger for recording trip information such as time, speed, distance, and G-force. This kit includes application-specific mounting brackets, hardware, and wire harnesses for a clean, straightforward installation on the applicable vehicle platform. Application Note 153: This system is not compatible with vehicles equipped with Adaptive Variable Suspension (AVS). Professional installation and configuration are recommended for proper operation.

Features:

• Real-time processing: Uses G-force and gyroscope sensor inputs, custom algorithms, and user-defined settings to calculate suspension adjustments more than 1,000 times per second

• Active damping control: Provides selectable active shock damping adjustment and manual baseline setting changes from inside the vehicle

• Rapid shock response: Sends damping commands to compatible CDEV shocks that react in less than 40 milliseconds

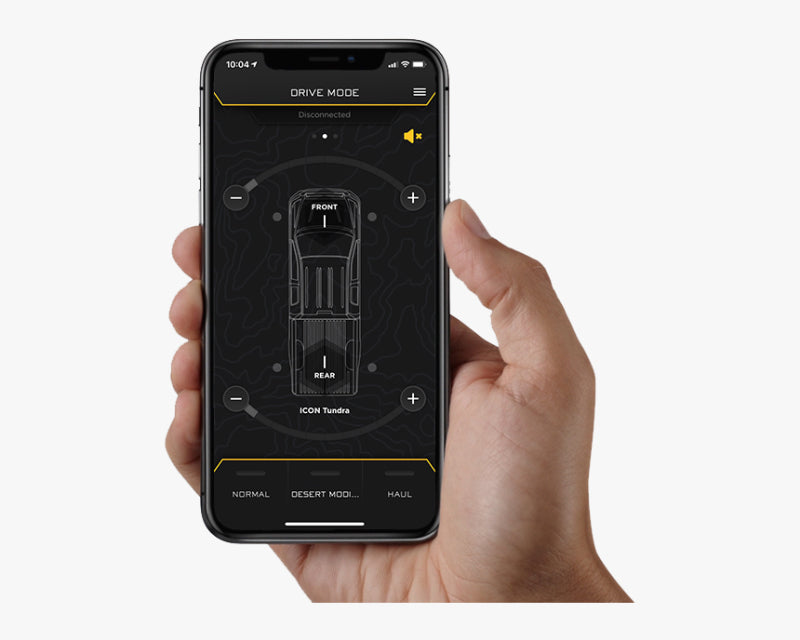

• Mobile app control: Connects to an iOS device through Bluetooth for suspension monitoring, Drive Modes, and custom presets

• Data logging: Records trip data including time, speed, distance, and G-force

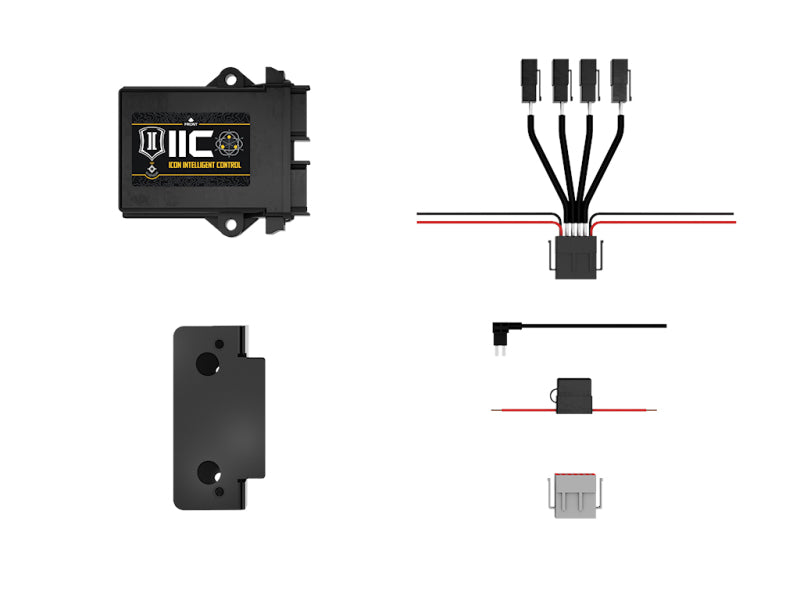

• Vehicle-specific installation: Includes application-specific mounting brackets, installation hardware, and wire harnesses

• Integrated sensors: Monitors chassis movement and vehicle G-forces to support automatic suspension adjustments

• Application fitment: Designed for select 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia models

• Compatibility note: Not compatible with vehicles equipped with Adaptive Variable Suspension (AVS)

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
