ICON 53507 Intelligent Control Install Kit for 2005-2015 Toyota Tacoma

ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2005-2015 Tacoma using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install. 2005-2015 TOYOTA TACOMA ICON INTELLIGENT CONTROL INSTALL KIT TECH NOTE: Also requires installation of CDEV front coilovers (Part # 58735E) and CDEV rear shocks (Part # 57826EP)

• Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
• Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle

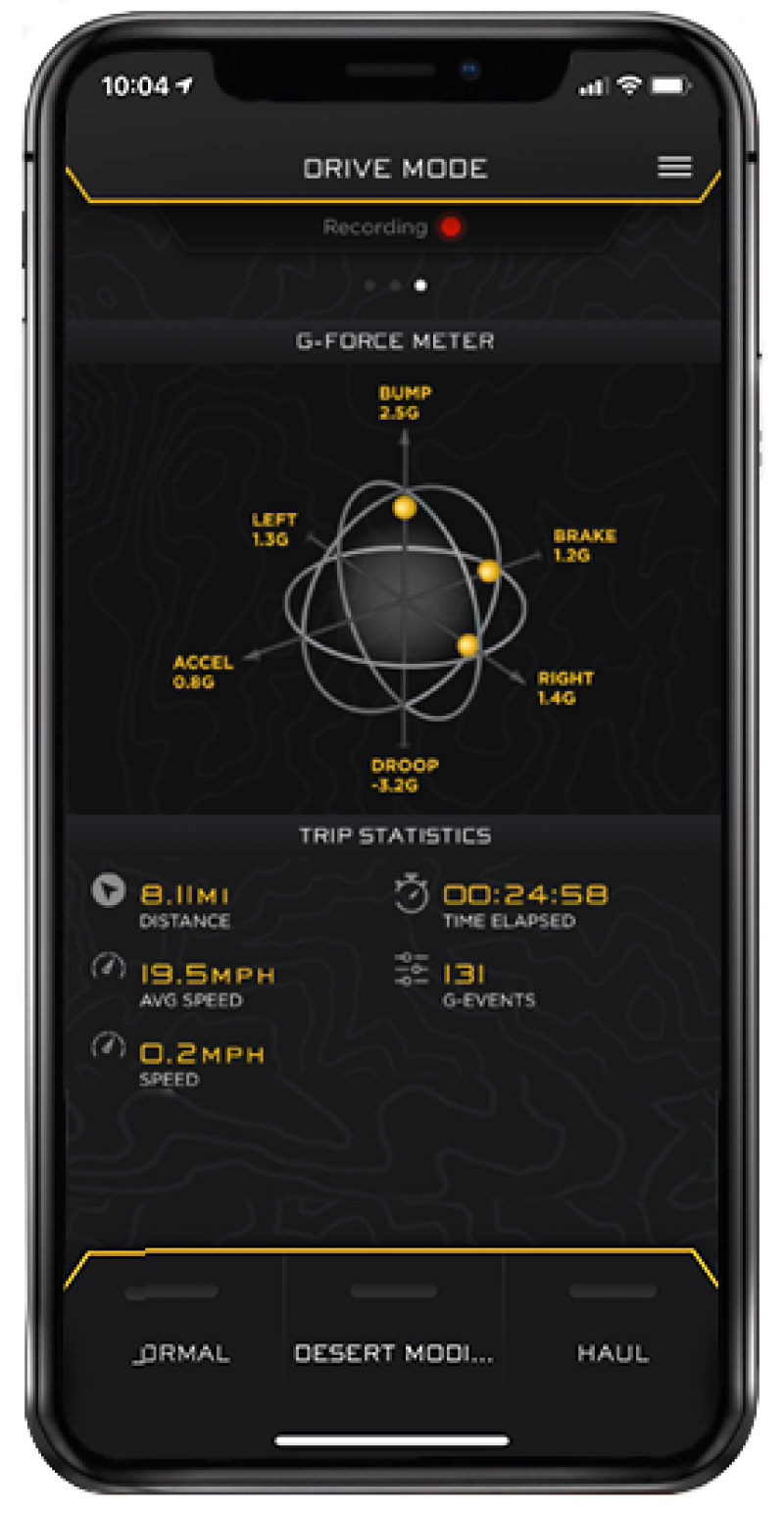

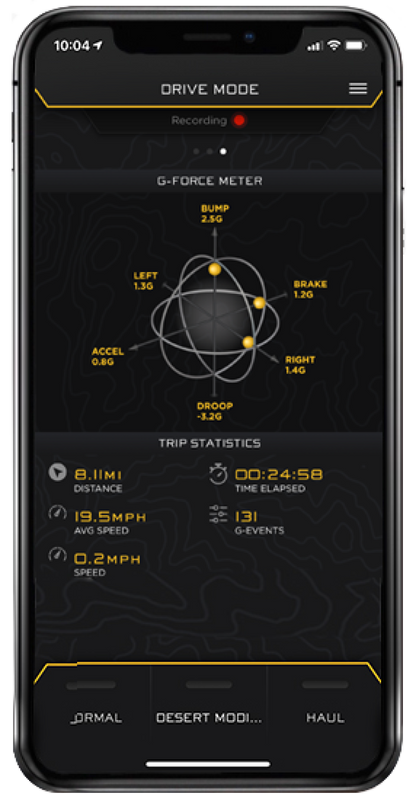

• Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips

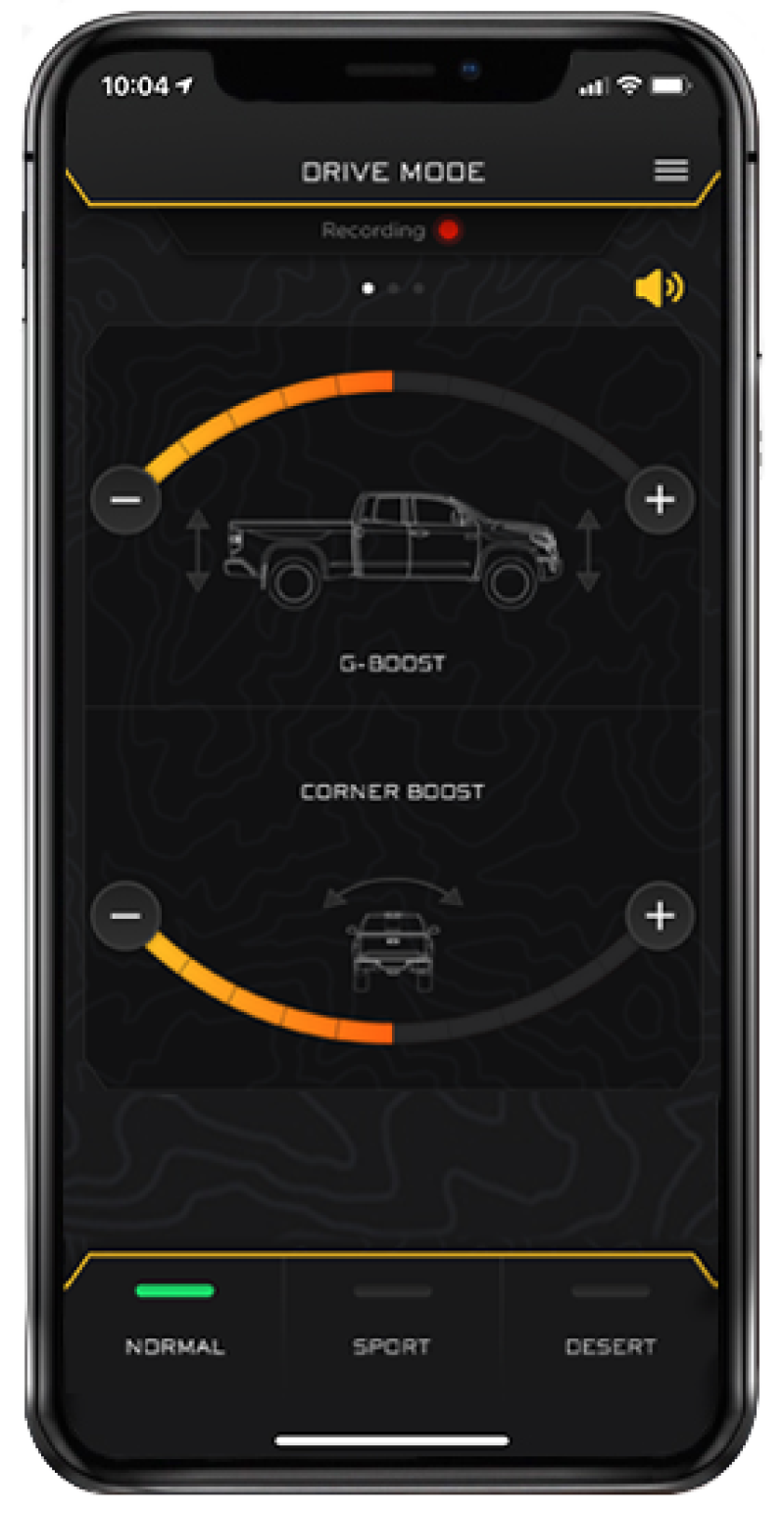

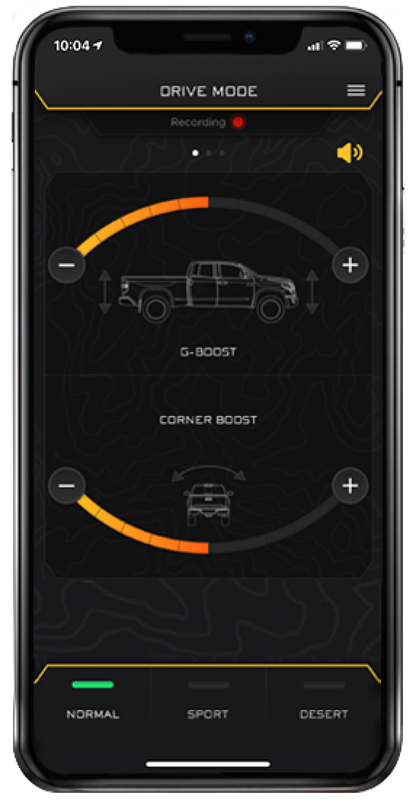

• Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
• Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds

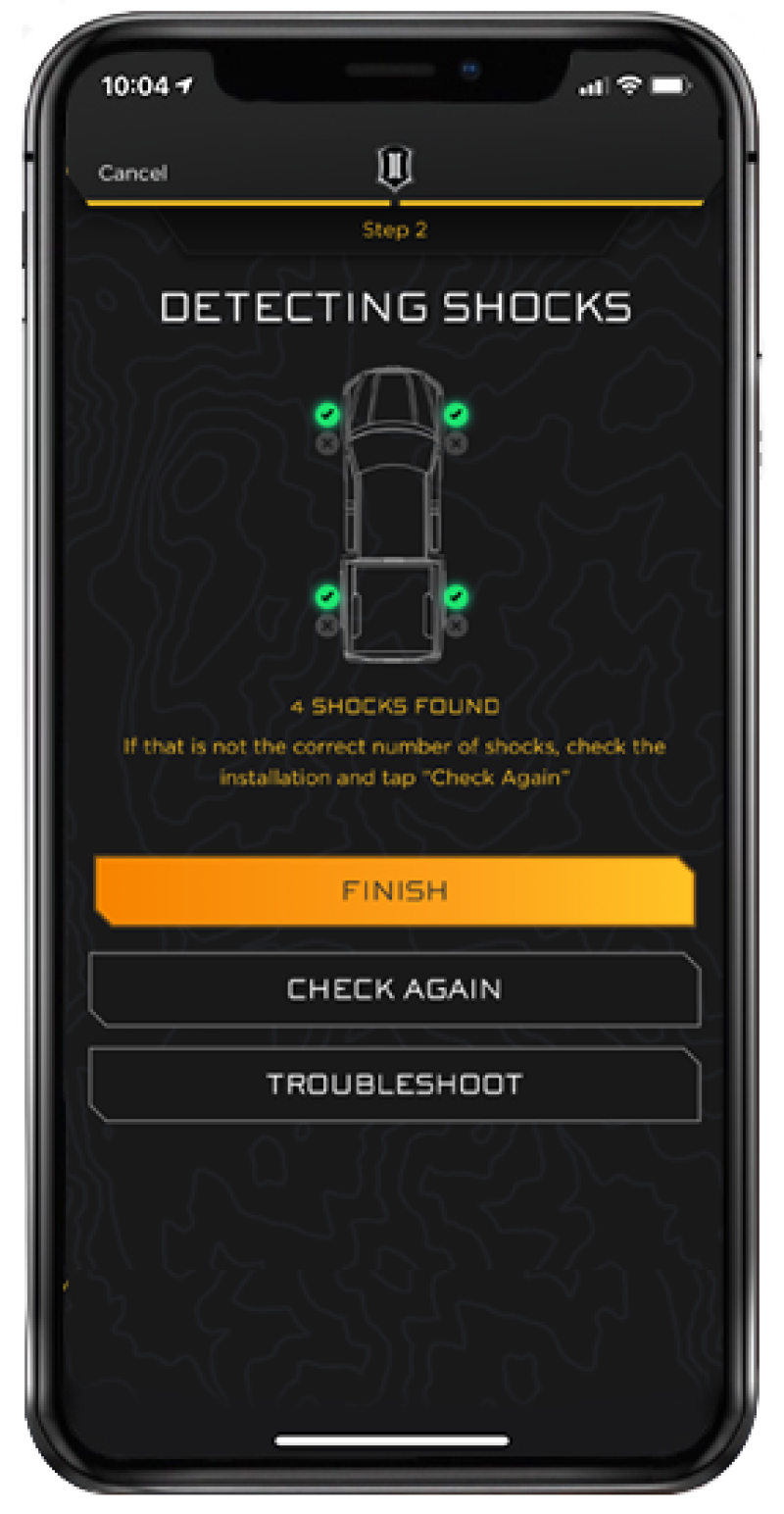

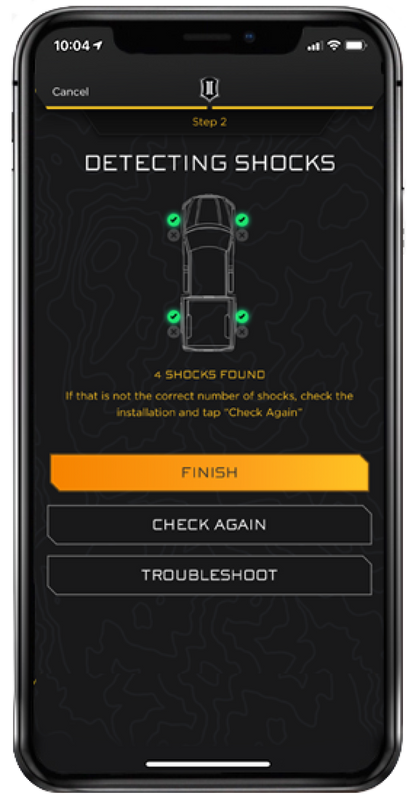

• User interface provided by IIC Mobile App via Bluetooth connection to iOS device

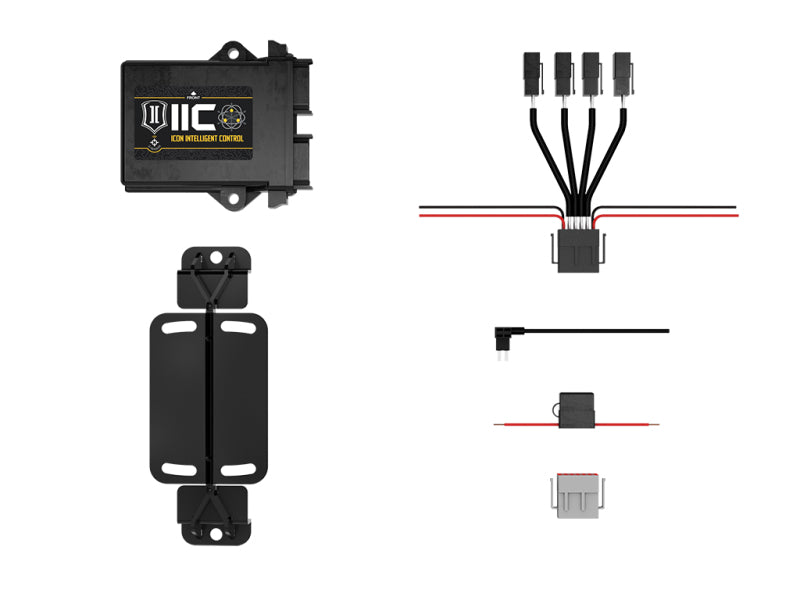

• Application specific mounting brackets, hardware and wire harnesses
• Onboard sensors monitor G-forces and movement of vehicle chassis

The ICON 53507 Intelligent Control Install Kit integrates ICON Intelligent Control (IIC) technology into select 2005-2015 Toyota Tacoma suspension systems. IIC continuously monitors vehicle movement using onboard G-force and gyroscope sensors, then applies custom algorithms and user-defined settings to predict terrain and wheel position. The system processes information more than 1,000 times per second and sends damping adjustments to compatible Compression Damping Electronic Valve (CDEV) shocks in under 40 milliseconds.
Designed specifically for the Toyota Tacoma, this kit includes application-specific mounting brackets, installation hardware, and wire harnesses for a clean, organized installation. The IIC system provides selectable active shock damping adjustment and allows drivers to manually change baseline settings without leaving the vehicle. It also connects to ICON’s proprietary mobile application through Bluetooth and an iOS device, providing convenient access to shock settings and system controls.
The ICON Intelligent Control system also functions as a data logger, recording trip information such as time, speed, distance, and G-force. The mobile app includes preconfigured Drive Modes and allows users to create custom presets for different driving conditions. This installation kit is intended for use with ICON CDEV suspension components and requires ICON CDEV front coilovers, part number 58735E, and CDEV rear shocks, part number 57826EP. It fits 2005-2015 Toyota Tacoma applications.

Features:

• Processes sensor data, algorithms, and user-defined settings more than 1,000 times per second

• Provides selectable active shock damping adjustment and manual baseline control from inside the vehicle

• Records time, speed, distance, and G-force data for trip monitoring

• Includes preconfigured Drive Modes and customizable suspension presets through the mobile app

• Sends damping adjustments to compatible CDEV shocks in under 40 milliseconds

• Connects to an iOS device through the ICON IIC Mobile App using Bluetooth

• Includes application-specific mounting brackets, installation hardware, and wire harnesses

• Uses onboard G-force and gyroscope sensors to monitor chassis movement

• Designed for 2005-2015 Toyota Tacoma models

• Requires ICON CDEV front coilovers, part number 58735E, and CDEV rear shocks, part number 57826EP

Compatible With
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacoma
2015 Toyota Tacoma
