ICON 53506 Intelligent Control Install Kit for 2014-2021 Toyota Tundra

ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2014-2021 Tundra using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install. 2014-2021 TOYOTA TUNDRA ICON INTELLIGENT CONTROL INSTALL KIT TECH NOTE: Also requires installation of CDEV front coilovers (Part # 58750E) and CDEV rear shocks (Part # 57823EP)

• Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
• Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle

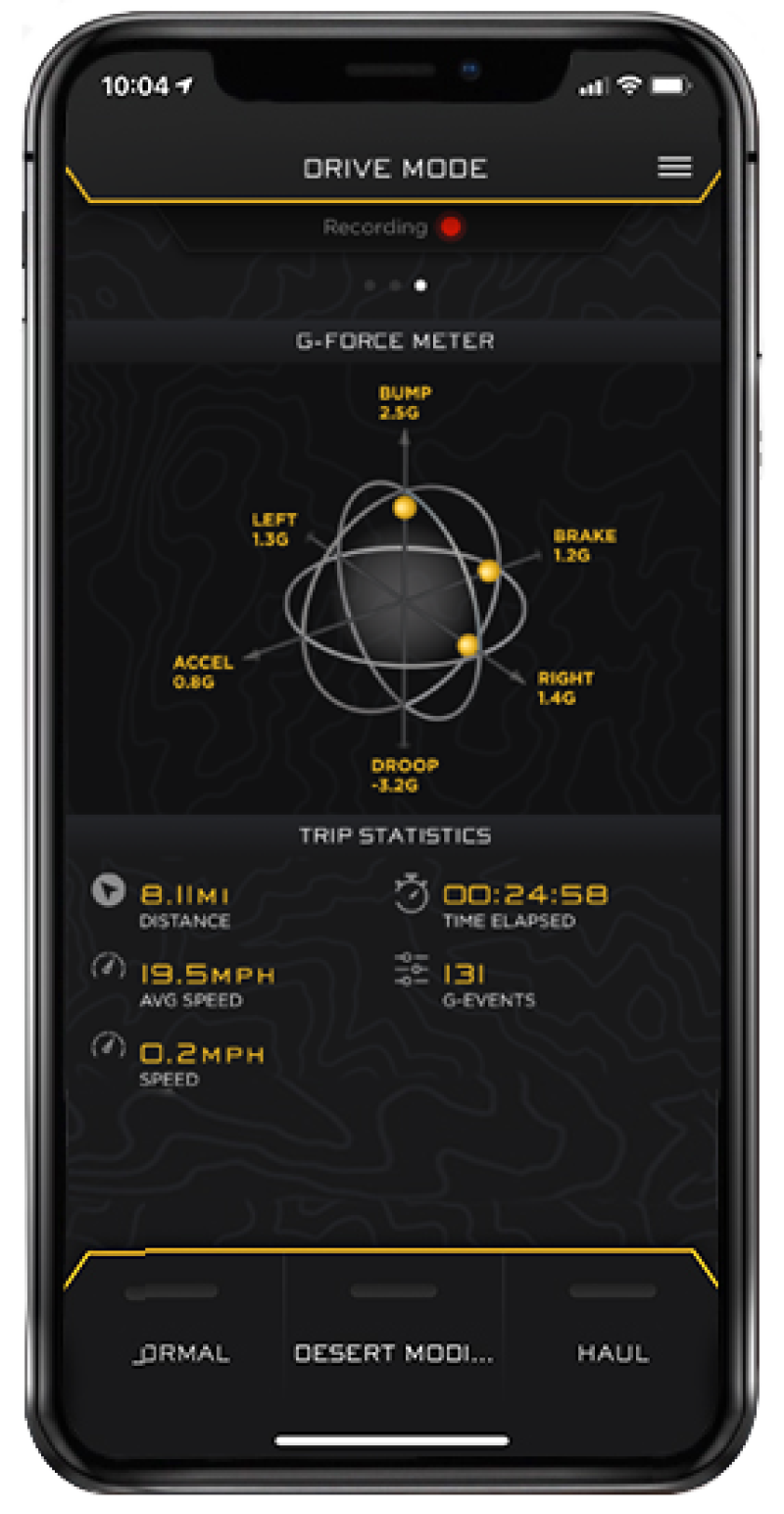

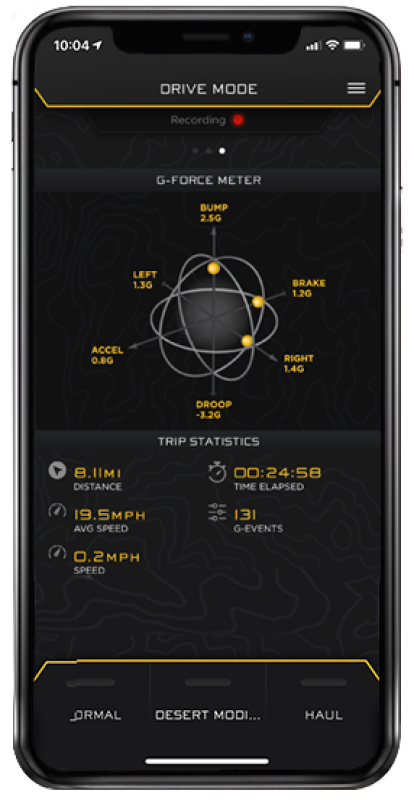

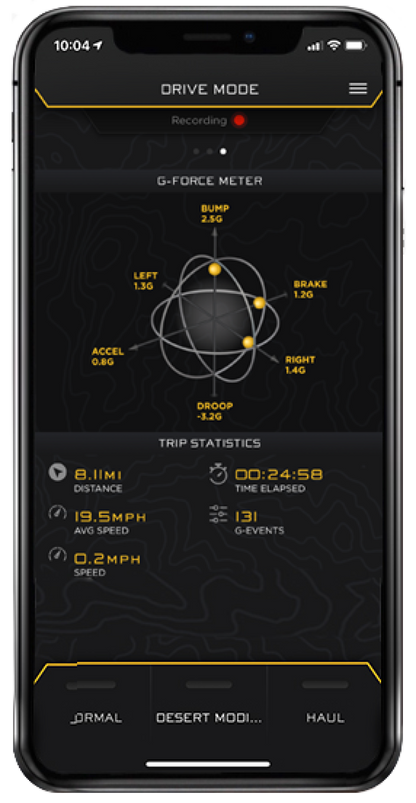

• Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips

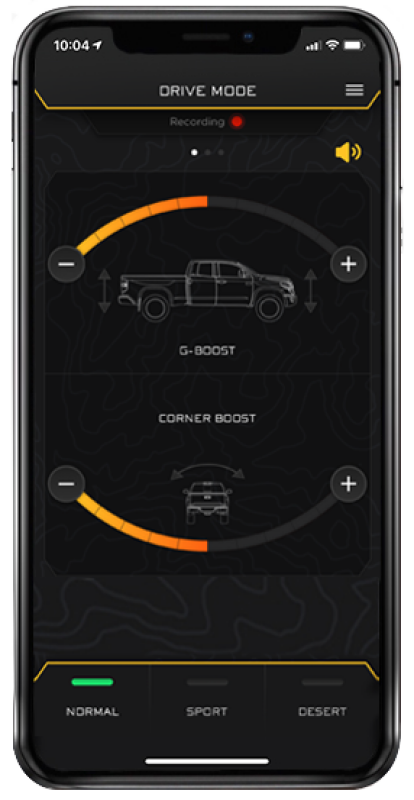

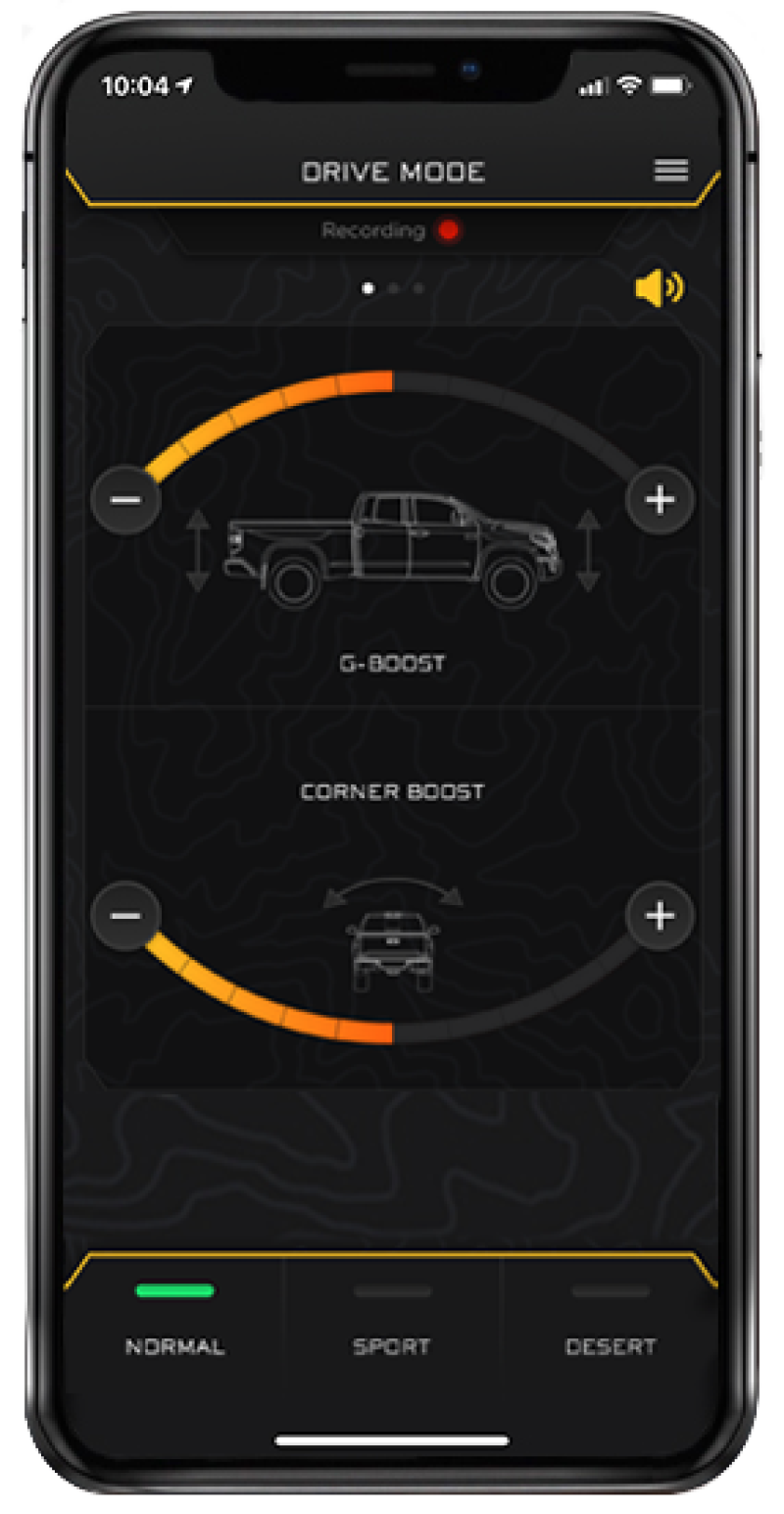

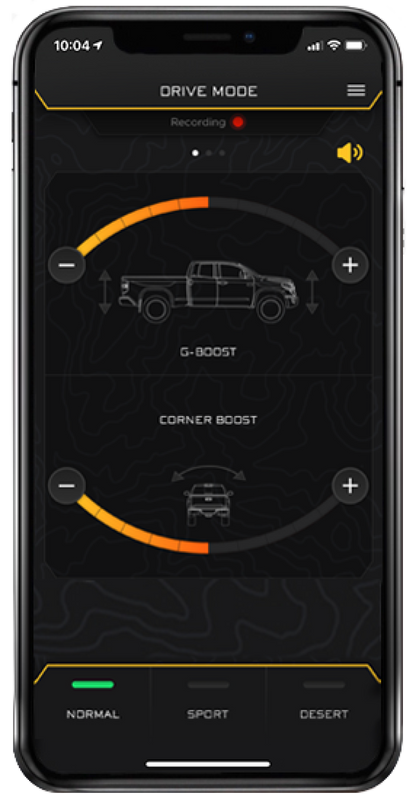

• Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
• Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds

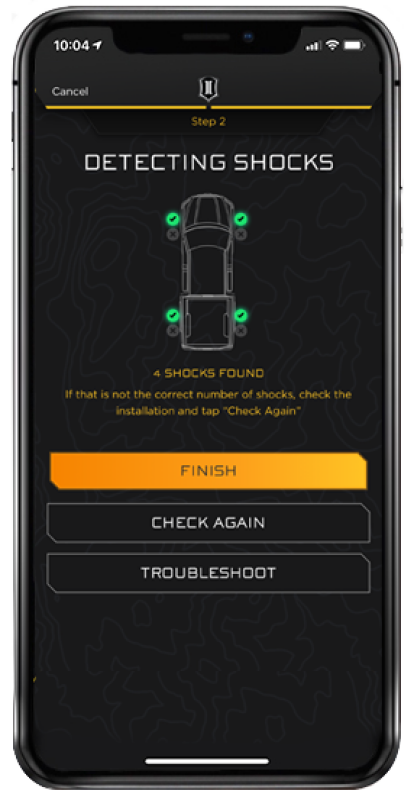

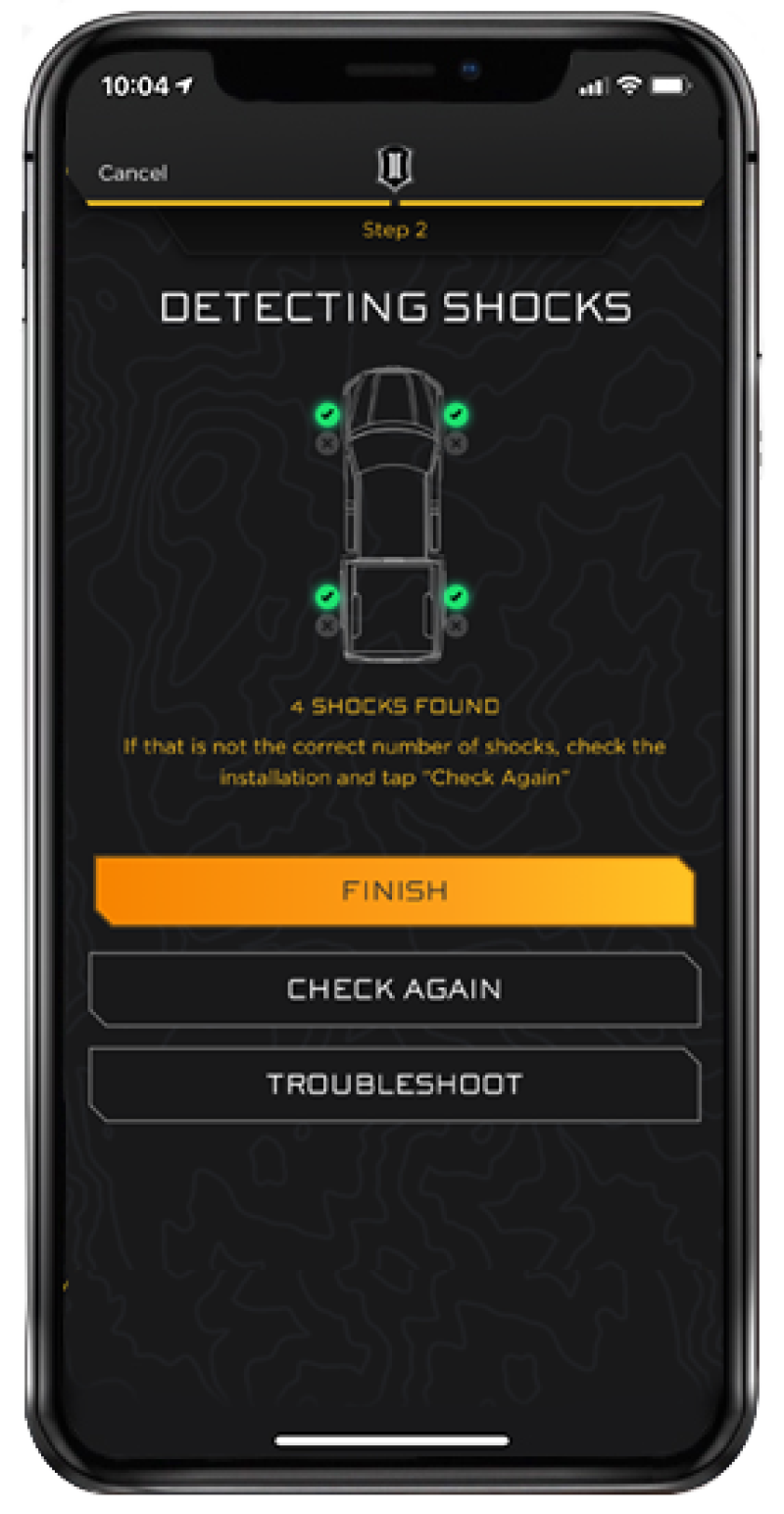

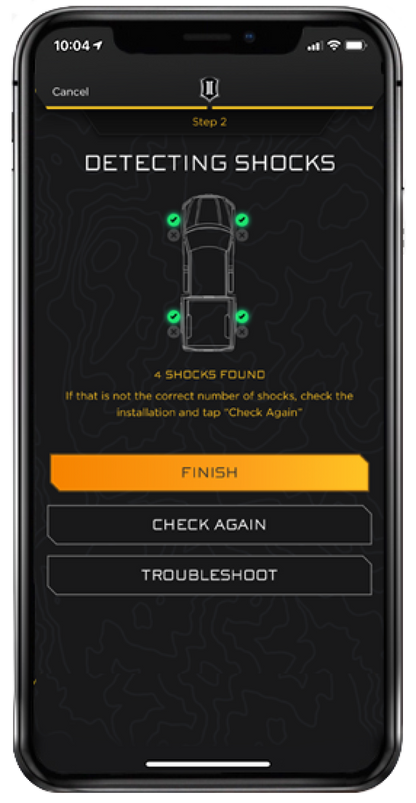

• User interface provided by IIC Mobile App via Bluetooth connection to iOS device
• Application specific mounting brackets, hardware and wire harnesses
• Onboard sensors monitor G-forces and movement of vehicle chassis

Upgrade your 2014-2021 Toyota Tundra with the ICON 53506 Intelligent Control Install Kit, designed to provide a clean, application-specific installation for ICON Intelligent Control (IIC) technology. The IIC computer monitors onboard G-force and gyroscope data, processes terrain and wheel-position information in real time, and communicates with ICON Compression Damping Electronic Valve (CDEV) shock absorbers to optimize suspension response. It can collect and analyze vehicle data more than 1,000 times per second and deliver damping adjustments to compatible shocks in less than 40 milliseconds.
The ICON Intelligent Control system provides selectable active shock damping adjustment and allows manual baseline adjustments without leaving the vehicle. Through the IIC Mobile App and a Bluetooth connection to a compatible iOS device, users can access preconfigured Drive Modes, create custom suspension presets, and monitor system operation. The integrated data-logging function can record trip information such as time, speed, distance, and G-force for later review.

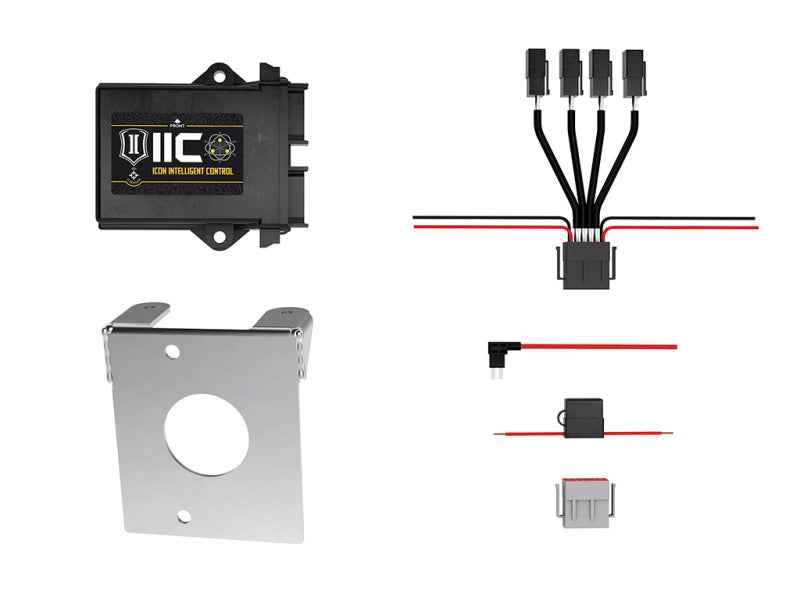

This ICON installation kit includes application-specific mounting brackets, installation hardware, and wiring harnesses developed for the 2014-2021 Toyota Tundra. These components support a streamlined installation and help maintain a neat, factory-style appearance. Installation also requires ICON CDEV front coilovers, Part Number 58750E, and CDEV rear shocks, Part Number 57823EP. Verify vehicle compatibility and all required components before installation.

Features:

• Real-time processing: Calculates suspension adjustments from sensor inputs, proprietary algorithms, and user-defined settings more than 1,000 times per second

• Active damping control: Provides selectable shock damping adjustment and manual baseline control from inside the vehicle

• Data logging: Records trip time, speed, distance, and G-force information for review

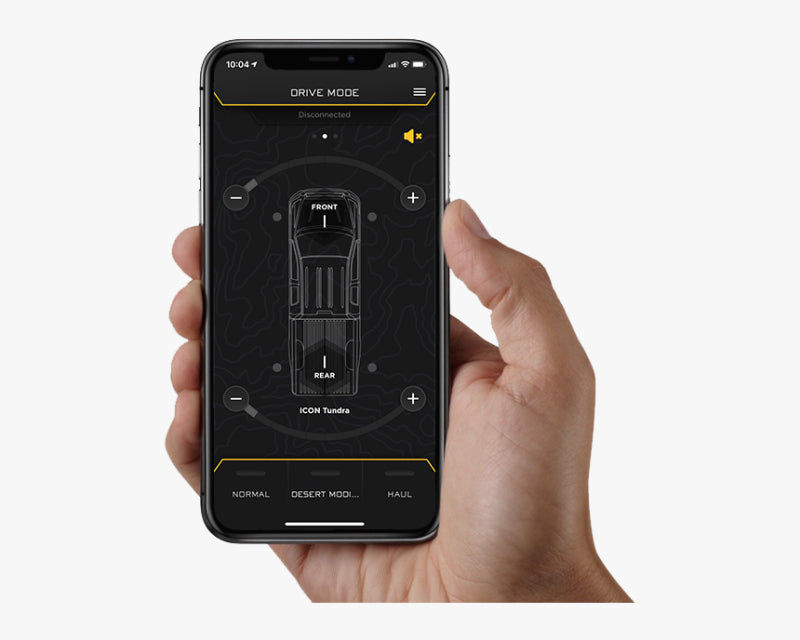

• Mobile app control: Connects to an iOS device through Bluetooth for Drive Modes and custom suspension presets

• Rapid shock response: Sends damping adjustments to compatible CDEV shocks that react in less than 40 milliseconds

• Vehicle monitoring: Onboard sensors track G-forces and chassis movement

• Application-specific installation: Includes mounting brackets, hardware, and wiring harnesses for the 2014-2021 Toyota Tundra

• Required components: Must be used with ICON CDEV front coilovers Part Number 58750E and CDEV rear shocks Part Number 57823EP

Compatible With
2014 Toyota Tundra
2015 Toyota Tundra
2016 Toyota Tundra
2017 Toyota Tundra
2018 Toyota Tundra
2019 Toyota Tundra
2020 Toyota Tundra
2021 Toyota Tundra
