ICON 53504 Intelligent Control Install Kit for 2010-2015 Toyota 4Runner

ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2010-Up 4Runner using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install. ICON Intelligent Control (IIC) monitors, analyzes, and processes data in real-time. Info from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. TECH NOTE: Also requires installation of CDEV front coilovers (Part # 58747E) and CDEV rear shocks (Part # 57810EP)

• Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
• Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle

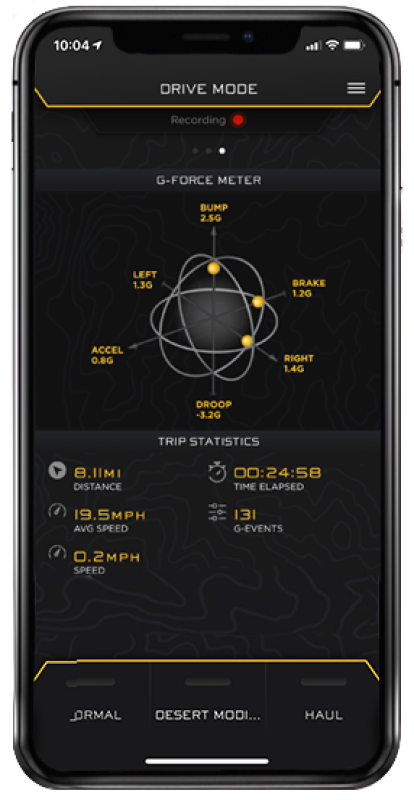

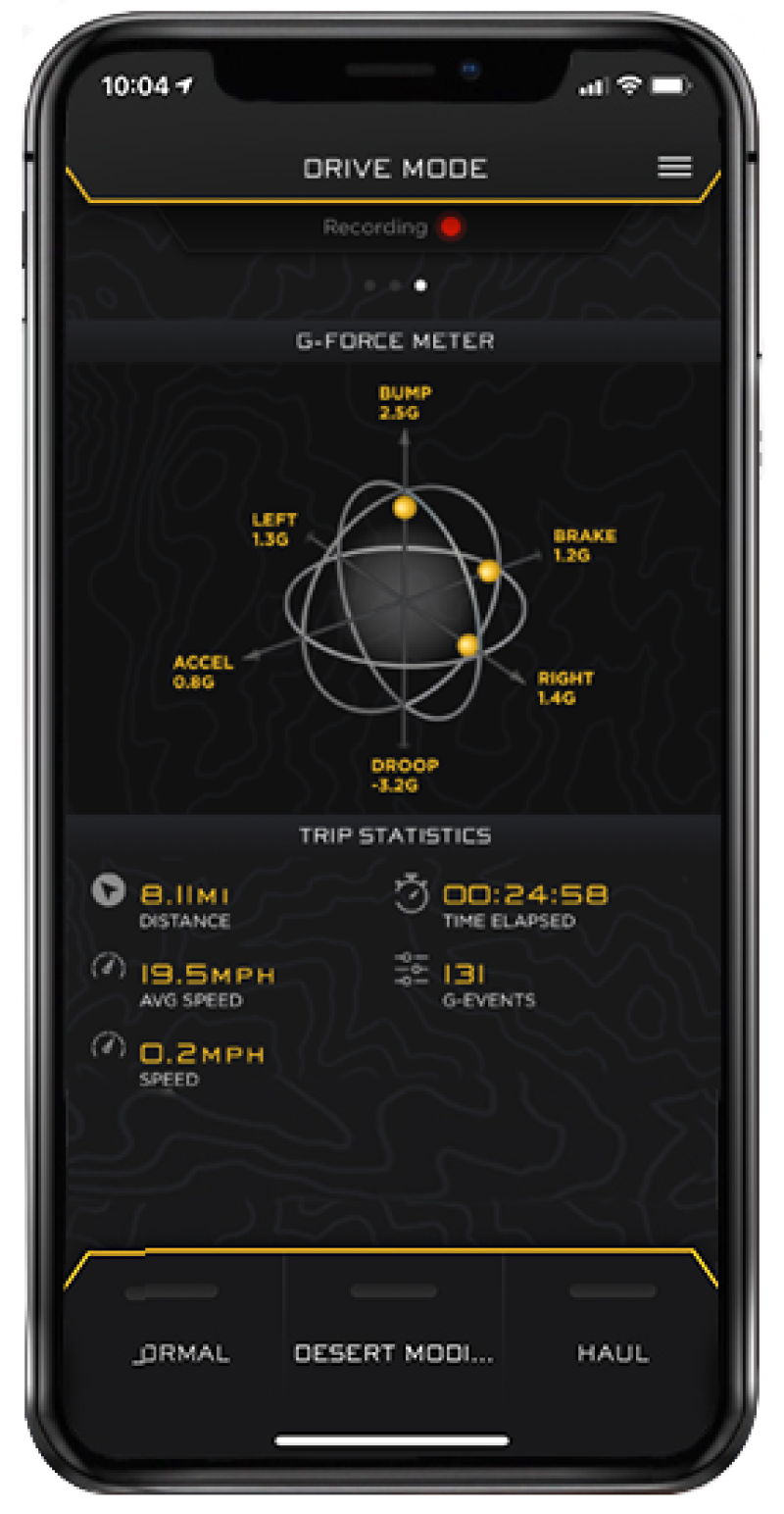

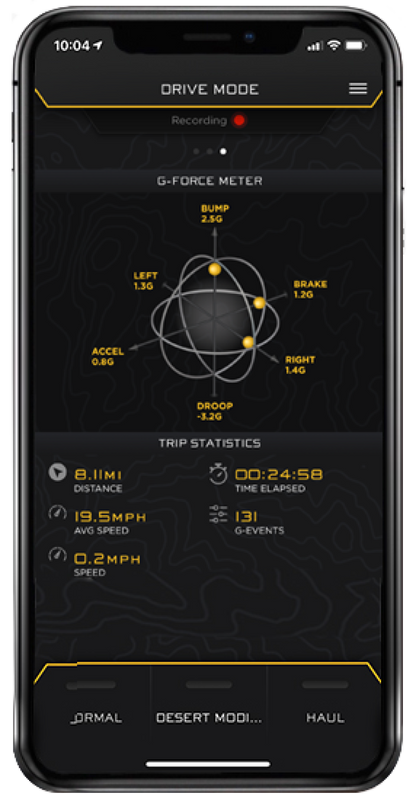

• Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips

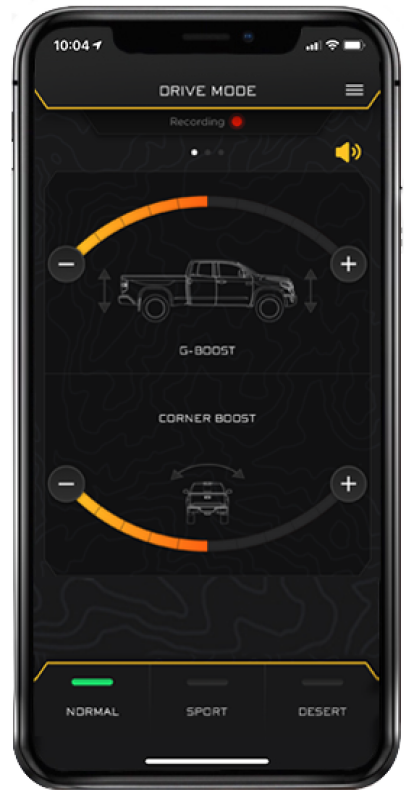

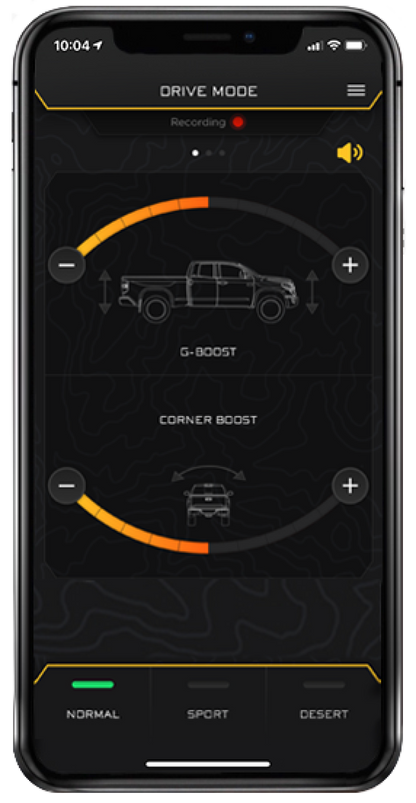

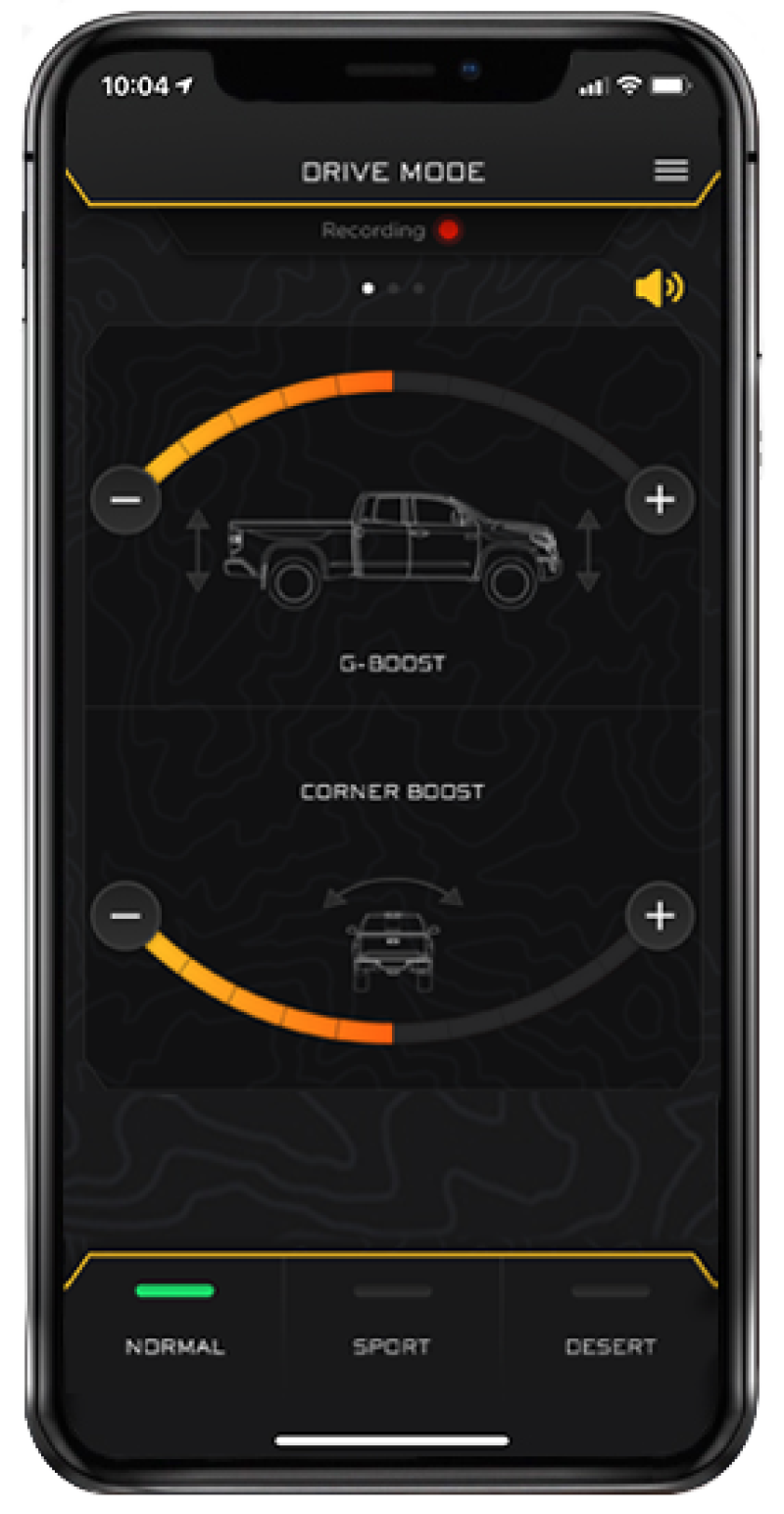

• Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
• Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds

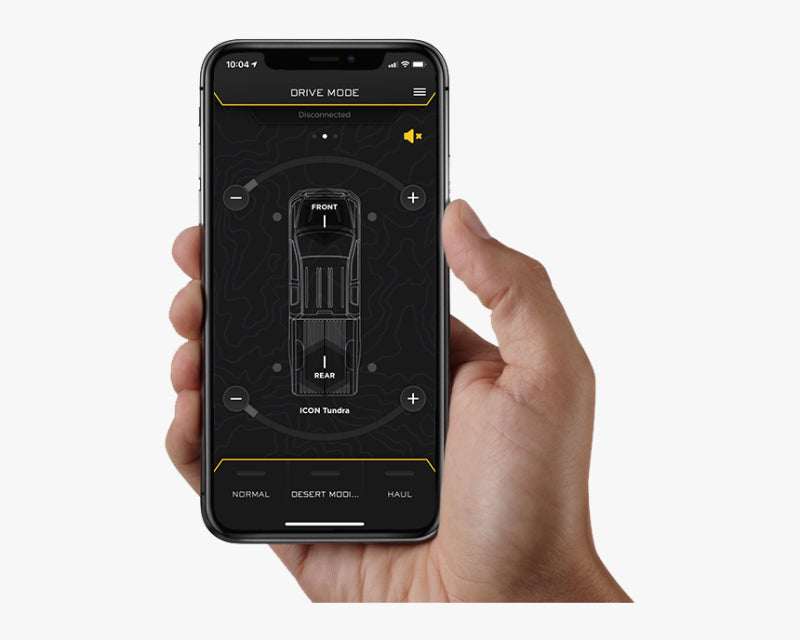

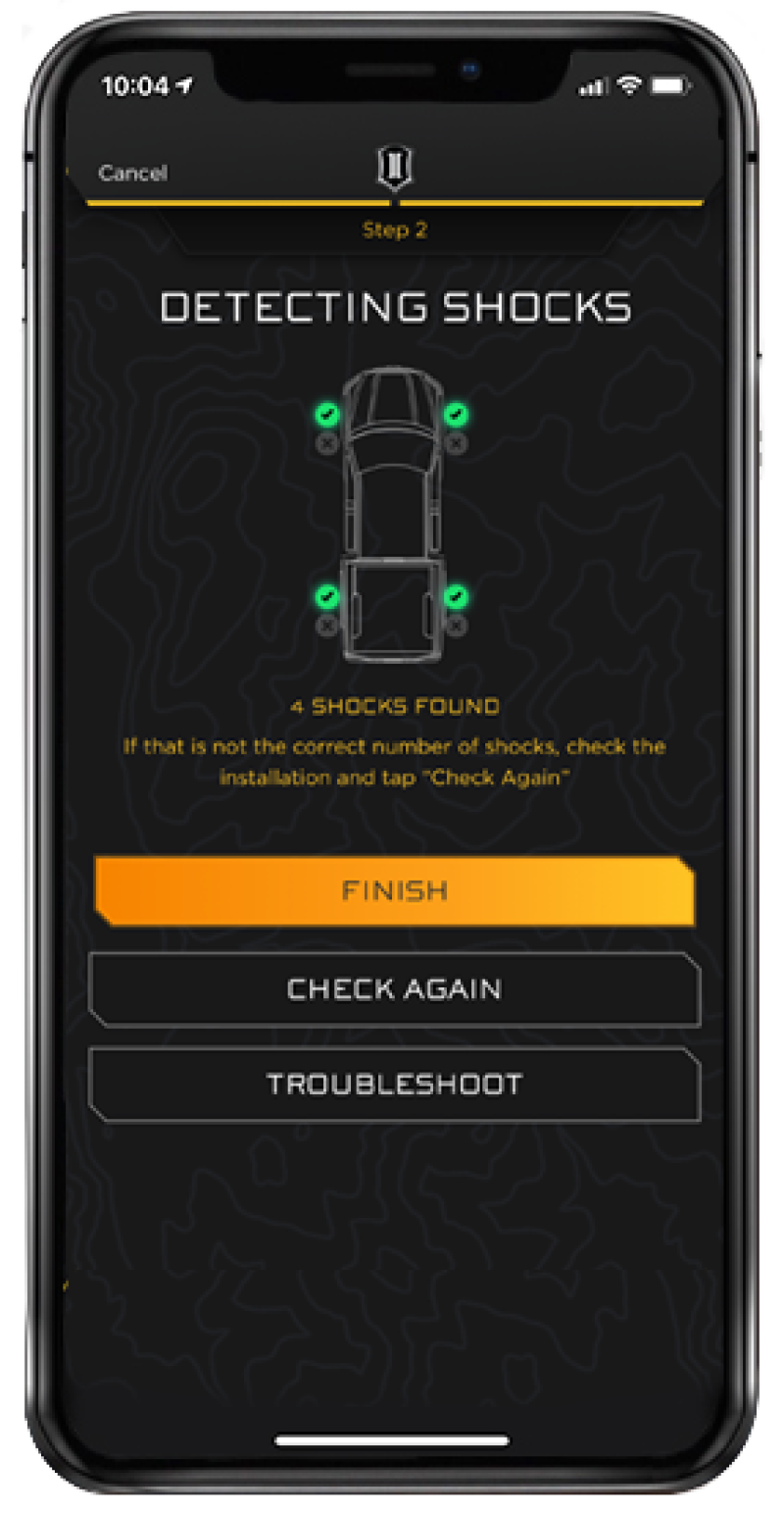

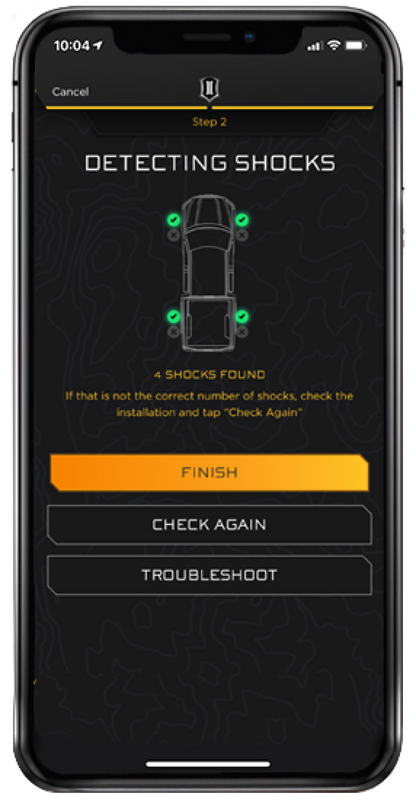

• User interface provided by IIC Mobile App via Bluetooth connection to iOS device
• Application specific mounting brackets, hardware and wire harnesses
• Onboard sensors monitor G-forces and movement of vehicle chassis

The ICON 53504 Intelligent Control (IIC) Install Kit brings advanced electronic shock management to compatible 2010-2015 Toyota 4Runner applications. IIC serves as the central computer for an ICON CDEV suspension system, monitoring vehicle movement through onboard G-force and gyroscope sensors. It analyzes terrain and wheel-position data in real time, applying user-defined settings and proprietary algorithms to help deliver responsive damping control on changing surfaces.
The system processes sensor information more than 1,000 times per second and sends necessary adjustments to compatible Compression Damping Electronic Valve (CDEV) shocks in less than 40 milliseconds. Drivers can select active shock damping adjustments or manually change baseline settings without leaving the vehicle. The ICON mobile application connects through Bluetooth to a compatible iOS device, providing access to preconfigured Drive Modes and customizable presets for different driving conditions.

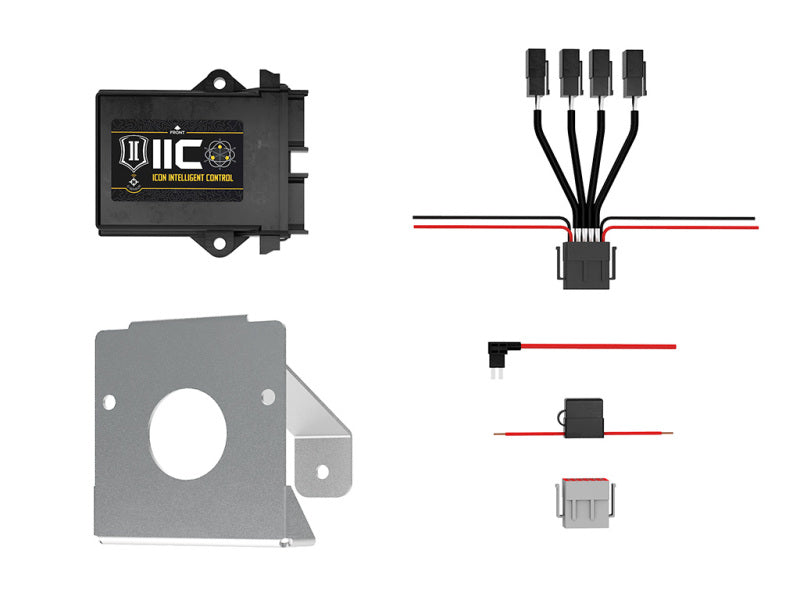

In addition to suspension control, the IIC functions as a data logger for trip time, speed, distance, and G-force. Application-specific mounting brackets, hardware, and wire harnesses are included to support a clean installation on the 4Runner. This kit is designed for a direct application-specific installation and requires ICON CDEV front coilovers, Part Number 58747E, and CDEV rear shocks, Part Number 57810EP. Verify vehicle compatibility and required components before installation.

Features:

• Real-time processing: Calculates suspension adjustments from sensor inputs, proprietary algorithms, and user-defined settings more than 1,000 times per second.

• Active damping control: Provides selectable electronic shock damping adjustments and manual baseline setting changes from inside the vehicle.

• Fast shock response: Sends damping commands to compatible CDEV shocks that react in less than 40 milliseconds.

• Mobile app control: Connects through Bluetooth to an iOS device for Drive Modes and custom suspension presets.

• Data logging: Records trip time, speed, distance, and G-force data for post-drive review.

• Vehicle monitoring: Onboard G-force and gyroscope sensors track chassis movement and changing driving conditions.

• Application-specific installation: Includes mounting brackets, hardware, and wire harnesses for the 2010-2015 Toyota 4Runner.

• Required components: Requires ICON CDEV front coilovers, Part Number 58747E, and CDEV rear shocks, Part Number 57810EP.

Compatible With
2010 Toyota 4Runner
2011 Toyota 4Runner
2012 Toyota 4Runner
2013 Toyota 4Runner
2014 Toyota 4Runner
2015 Toyota 4Runner
2016 Toyota 4Runner
2017 Toyota 4Runner
2018 Toyota 4Runner
2019 Toyota 4Runner
2020 Toyota 4Runner
2021 Toyota 4Runner
2022 Toyota 4Runner
2023 Toyota 4Runner
2024 Toyota 4Runner
