ICON 53502 Intelligent Control Install Kit for 2016-2017 Toyota Tacoma

ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2016-Up Tacoma using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install. ICON Intelligent Control (IIC) monitors, analyzes, and processes information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. TECH NOTE: Also requires installation of CDEV front coilovers (Part # 58735E, 58735E-700, or 59730E-CB) and CDEV rear shocks (Part # 57826EP)

• Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
• Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle

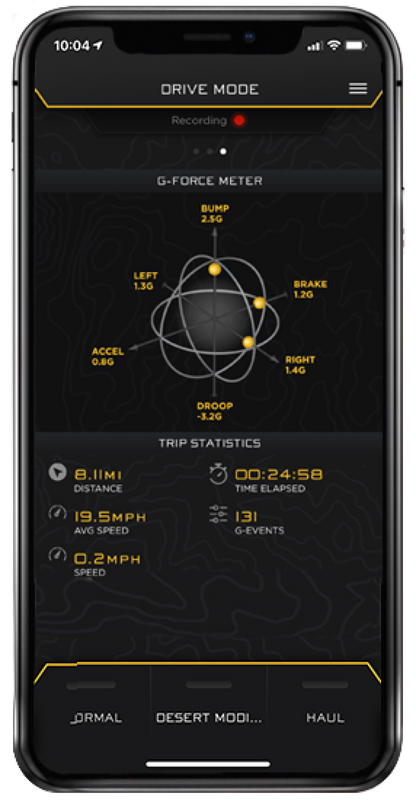

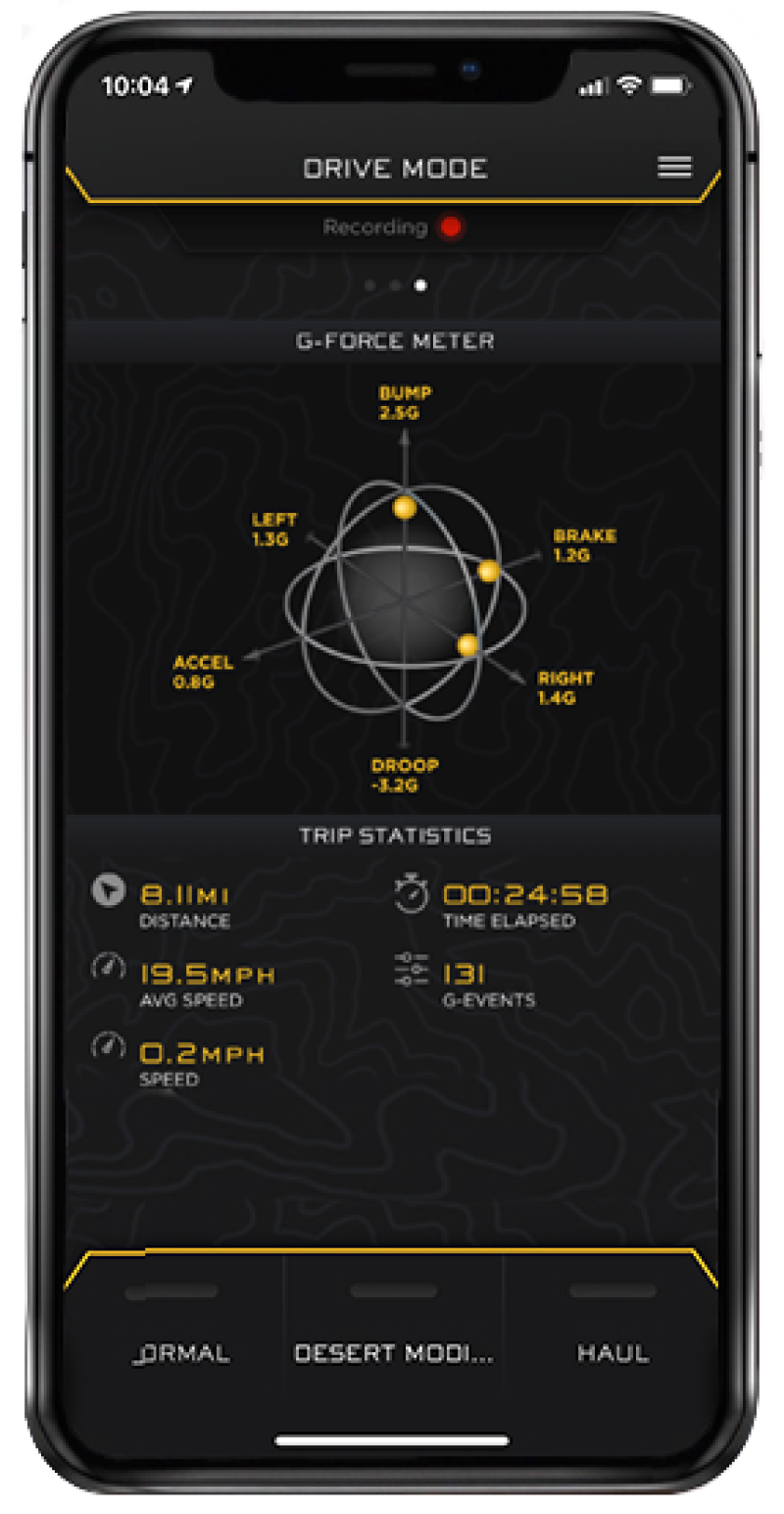

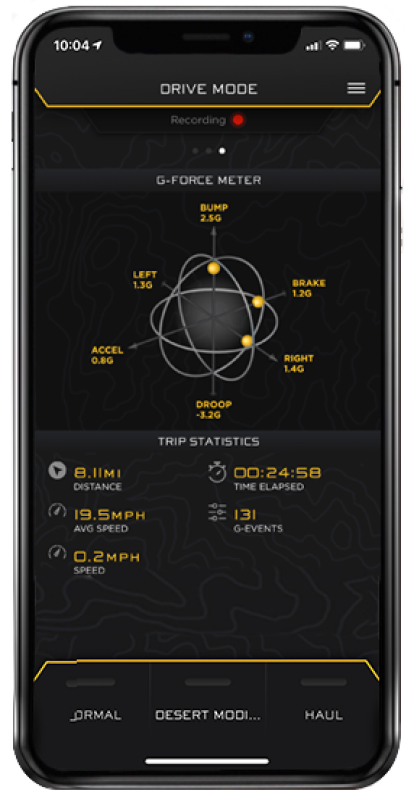

• Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips

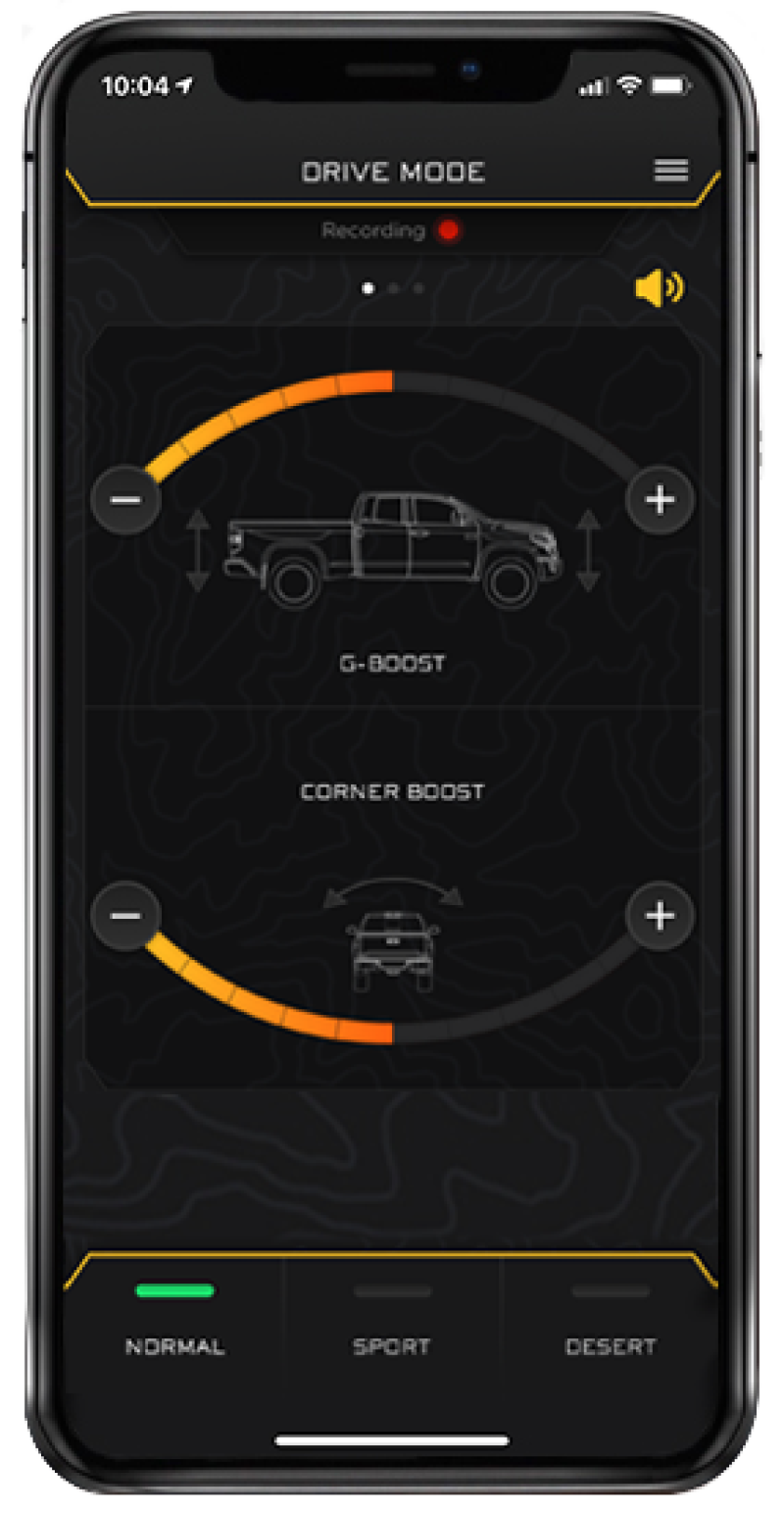

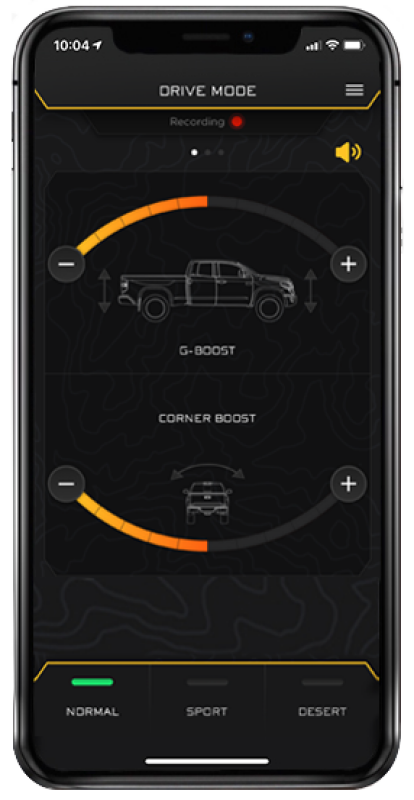

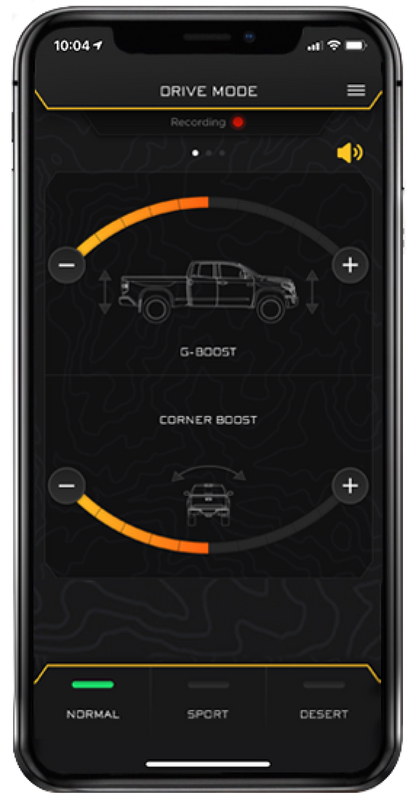

• Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
• Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds

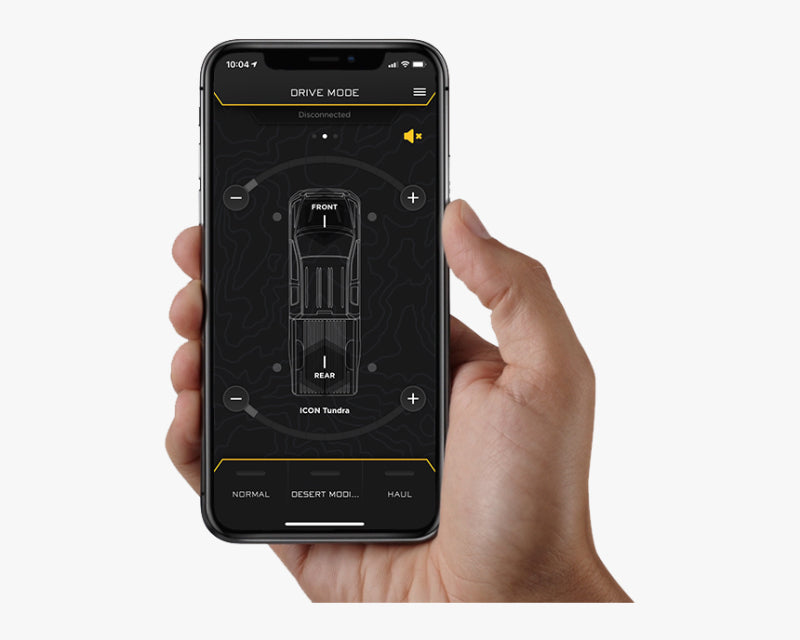

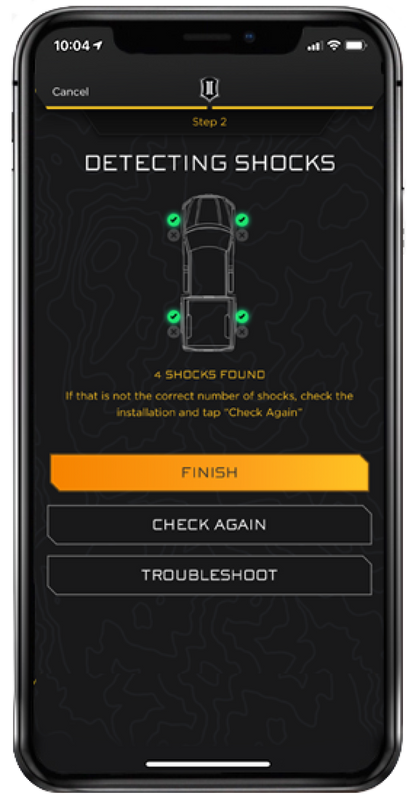

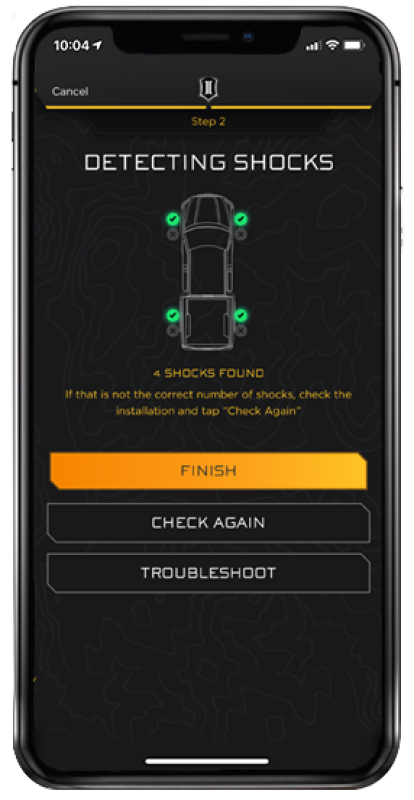

• User interface provided by IIC Mobile App via Bluetooth connection to iOS device
• Application specific mounting brackets, hardware and wire harnesses
• Onboard sensors monitor G-forces and movement of vehicle chassis

The ICON Intelligent Control (IIC) install kit, Part Number 53502, provides advanced electronic control for compatible ICON CDEV suspension systems on 2016-2017 Toyota Tacoma models. The IIC computer continuously monitors information from onboard G-force and gyroscope sensors, then uses proprietary algorithms and user-defined settings to predict terrain conditions and wheel position. It processes data more than 1,000 times per second and can send updated damping commands to the Compression Damping Electronic Valve (CDEV) shock absorbers in less than 40 milliseconds.
The ICON IIC allows drivers to select active shock damping adjustments and manually change baseline settings without leaving the vehicle. Its Bluetooth-connected mobile app interface for compatible iOS devices provides access to preconfigured Drive Modes and custom suspension presets, allowing settings to be tailored for different road, trail, and driving conditions. The system also operates as a data logger, recording trip information such as time, speed, distance, and G-force for post-drive review.

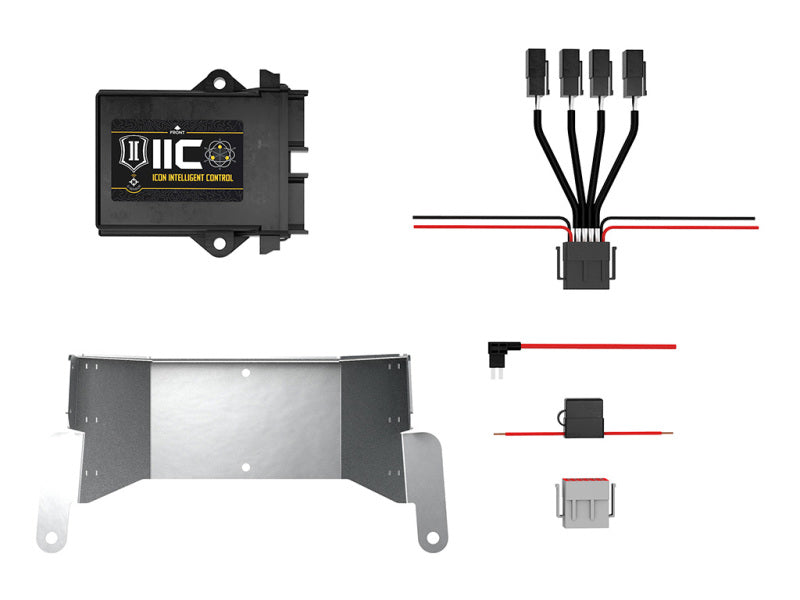

This application-specific installation kit includes mounting brackets, hardware, and wiring harnesses designed for a clean installation on the Toyota Tacoma. Installation requires compatible ICON CDEV front coilovers, including Part Number 58735E, 58735E-700, or 59730E-CB, along with CDEV rear shocks, Part Number 57826EP. Verify vehicle and suspension compatibility before installation. The ICON Intelligent Control Mobile App is required for the user interface and adjustment functions.

Features:

• Real-time electronic suspension control based on G-force and gyroscope sensor input

• Processes sensor data more than 1,000 times per second using custom algorithms and user-defined settings

• Sends damping adjustments to compatible CDEV shocks in less than 40 milliseconds

• Provides selectable active damping control and manual baseline adjustments from inside the vehicle

• Bluetooth connection to the ICON Intelligent Control Mobile App for compatible iOS devices

• Includes preconfigured Drive Modes and support for custom suspension presets

• Records time, speed, distance, and G-force data as an onboard data logger

• Includes application-specific mounting brackets, installation hardware, and wiring harnesses

• Fits 2016-2017 Toyota Tacoma models

• Requires compatible ICON CDEV front coilovers and rear shocks for operation

Compatible With
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
