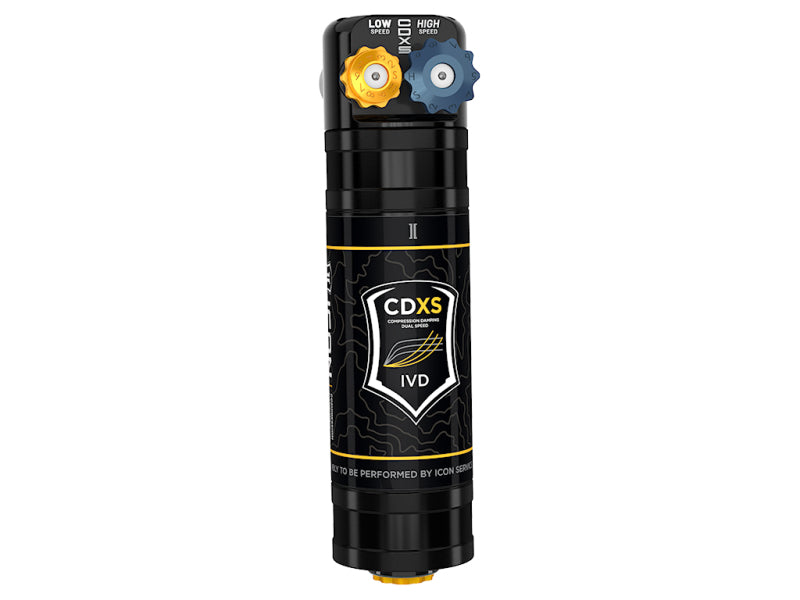

ICON 51035X CDXS Remote Reservoir Upgrade Kit for Toyota Tacoma, FJ Cruiser, 4Runner and Lexus GX

The ICON Vehicle Dynamics Coilover CDXS Reservoir Upgrade Kit is used to upgrade a set of ICON internal reservoir coilovers from a 2005-2023 Toyota Tacoma, 2007-2014 Toyota FJ Cruiser, 2003-2024 Toyota 4Runner, or 2003-2023 Lexus GX470/GX460 to remote reservoirs with CDXS dual speed compression adjusters during a shock rebuild. The addition of remote reservoirs will greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. This kit includes all required components for the CDXS reservoir upgrade including top caps, reservoirs, reservoir brackets, hoses, CDXS assemblies, seal kits and extension spacers to also convert the coilovers to extended travel units if desired. The ICON Coilover CDXS Reservoir Upgrade Kit is used to upgrade a set of ICON internal reservoir coilovers from a 05-23 Toyota Tacoma, 07-14 FJ Cruiser, 03-23 4Runner, or 03-23 Lexus GX to remote reservoirs during a shock rebuild. APPLICATION NOTE #245: Requires rebuild of coilovers with some specialty tooling required. Installation by qualified shock technician is recommended.

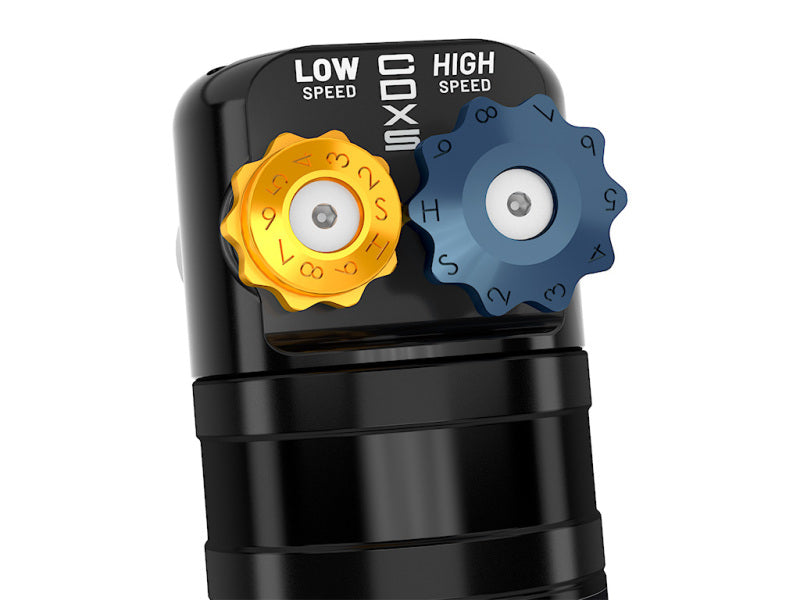

• ICON CDXS offers 10 settings of independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Includes all necessary components for CDXS reservoir upgrade when starting with internal reservoir coilovers
• Features genuine ICON Vehicle Dynamics upgrade parts
• 6061 Aircraft grade aluminum CNC machined components
• Application specific reservoir mounting brackets
• Seal kits also included

Upgrade ICON internal reservoir coilovers with the ICON Vehicle Dynamics 51035X Coilover CDXS Reservoir Upgrade Kit. Designed for select 2005–2023 Toyota Tacoma, 2007–2014 Toyota FJ Cruiser, 2003–2024 Toyota 4Runner, and 2003–2023 Lexus GX470/GX460 applications, this kit converts compatible front coilovers to remote reservoirs with CDXS dual-speed compression adjusters during a shock rebuild. The upgrade is intended for off-road and high-demand driving where improved heat management and suspension tuning are important.
Remote reservoirs increase shock oil volume and heat-dissipation surface area, helping resist overheating, cavitation, and damper fade during hard use. ICON CDXS technology provides independent adjustment of high-speed and low-speed compression force, allowing you to fine-tune handling response and overall suspension aggressiveness. Each adjustment range includes 10 discreet detented settings for repeatable tuning and precise suspension control across changing terrain and driving conditions.

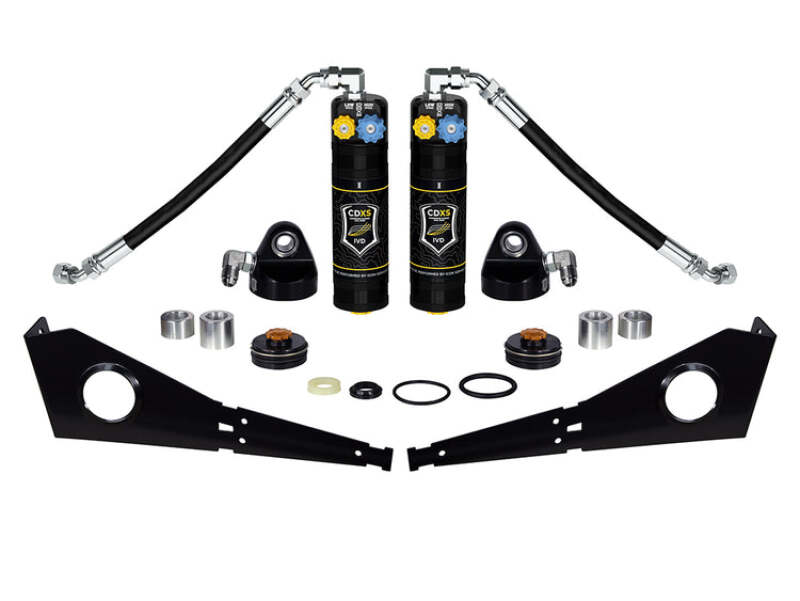

The ICON 51035X kit includes the components required for the CDXS reservoir conversion, including top caps, remote reservoirs, application-specific reservoir brackets, hoses, CDXS assemblies, seal kits, and extension spacers. The extension spacers can also support conversion to extended-travel coilovers when desired and compatible with the application. Components are manufactured using genuine ICON Vehicle Dynamics parts, including 6061 aircraft-grade aluminum CNC-machined components for durable performance.
Installation requires rebuilding the coilovers and may require specialty shock service tools. Installation by a qualified shock technician is recommended. Verify vehicle application and existing ICON coilover compatibility before ordering. Fits select Toyota Tacoma, Toyota FJ Cruiser, Toyota 4Runner, Lexus GX470, and Lexus GX460 models within the listed application ranges.

Features:

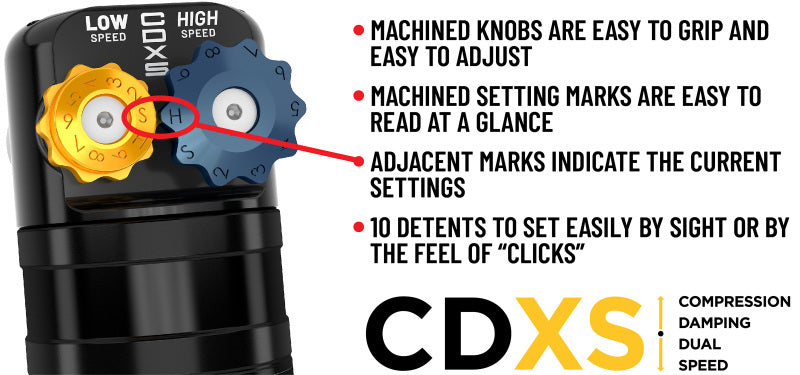

• CDXS adjustment: Provides 10 independent high-speed and low-speed compression settings for tuning handling response and suspension aggressiveness

• Remote reservoir conversion: Upgrades compatible ICON internal reservoir coilovers during a shock rebuild

• Improved heat management: Increases shock oil volume and heat-dissipation surface area to help resist overheating, cavitation, and damper fade

• Complete upgrade kit: Includes top caps, reservoirs, hoses, CDXS assemblies, reservoir brackets, seal kits, and extension spacers

• Extended-travel capability: Includes extension spacers for compatible extended-travel coilover conversions

• Durable construction: Features genuine ICON Vehicle Dynamics components and 6061 aircraft-grade aluminum CNC-machined parts

• Application-specific fitment: Designed for select Toyota Tacoma, FJ Cruiser, 4Runner, Lexus GX470, and GX460 applications

• Professional installation recommended: Requires coilover rebuilding and may require specialty shock service tooling

Compatible With
2003 Lexus GX470
2003 Toyota 4Runner
2004 Lexus GX470
2004 Toyota 4Runner
2005 Lexus GX470
2005 Toyota 4Runner
2005 Toyota Tacoma
2006 Lexus GX470
2006 Toyota 4Runner
2006 Toyota Tacoma
2007 Lexus GX470
2007 Toyota 4Runner
2007 Toyota FJ Cruiser
2007 Toyota Tacoma
2008 Lexus GX470
2008 Toyota 4Runner
2008 Toyota FJ Cruiser
2008 Toyota Tacoma
2009 Lexus GX470
2009 Toyota 4Runner
2009 Toyota FJ Cruiser
2009 Toyota Tacoma
2010 Lexus GX460
2010 Toyota 4Runner
2010 Toyota FJ Cruiser
2010 Toyota Tacoma
2011 Lexus GX460
2011 Toyota 4Runner
2011 Toyota FJ Cruiser
2011 Toyota Tacoma
2012 Lexus GX460
2012 Toyota 4Runner
2012 Toyota FJ Cruiser
2012 Toyota Tacoma
2013 Lexus GX460
2013 Toyota 4Runner
2013 Toyota FJ Cruiser
2013 Toyota Tacoma
2014 Lexus GX460
2014 Toyota 4Runner
2014 Toyota FJ Cruiser
2014 Toyota Tacoma
2015 Lexus GX460
2015 Toyota 4Runner
2015 Toyota Tacoma
2016 Lexus GX460
2016 Toyota 4Runner
2016 Toyota Tacoma
2017 Lexus GX460
2017 Toyota 4Runner
2017 Toyota Tacoma
2018 Lexus GX460
2018 Toyota 4Runner
2018 Toyota Tacoma
2019 Lexus GX460
2019 Toyota 4Runner
2019 Toyota Tacoma
2020 Lexus GX460
2020 Toyota 4Runner
2020 Toyota Tacoma
2021 Lexus GX460
2021 Toyota 4Runner
2021 Toyota Tacoma
2022 Lexus GX460
2022 Toyota 4Runner
2022 Toyota Tacoma
2023 Lexus GX460
2023 Toyota 4Runner
2023 Toyota Tacoma
2024 Toyota 4Runner
