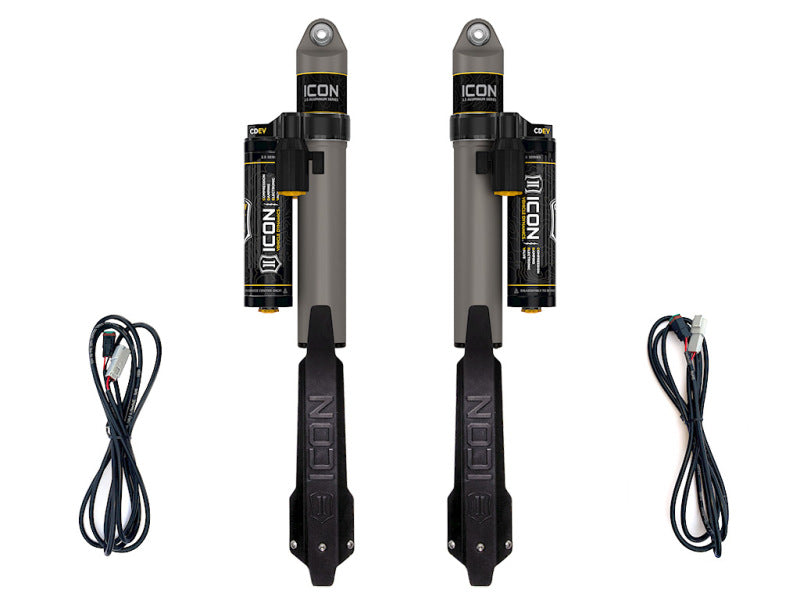

ICON 27727EP 2.5 Aluminum Series Rear Shocks with CDEV for 2020+ Jeep Gladiator JT with 1.5-Inch Lift

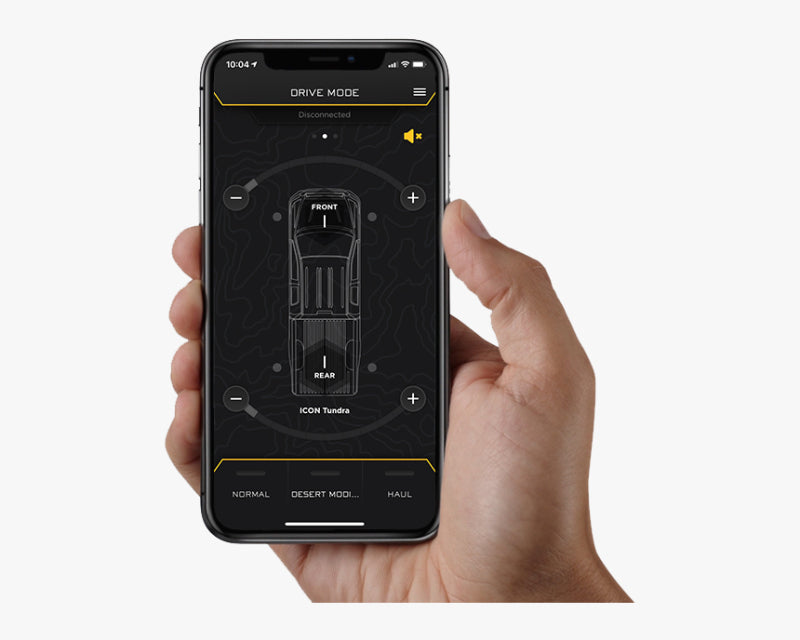

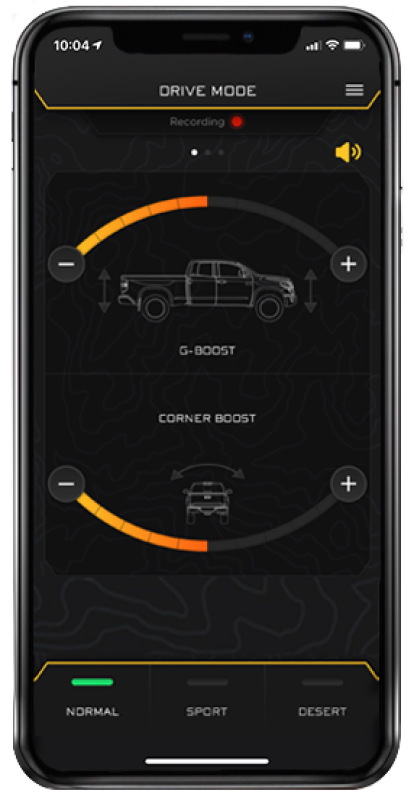

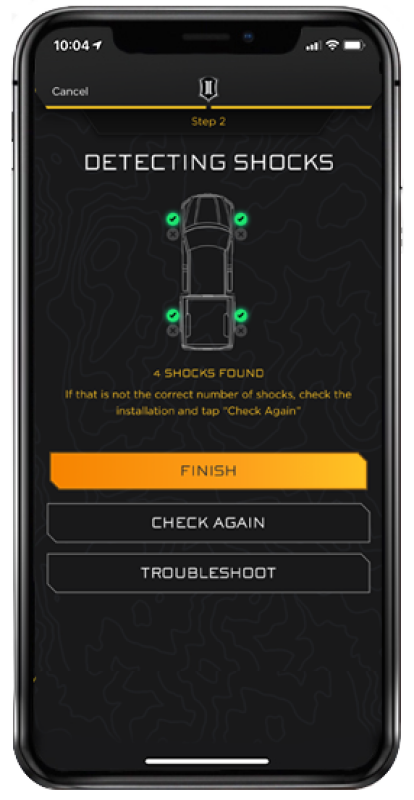

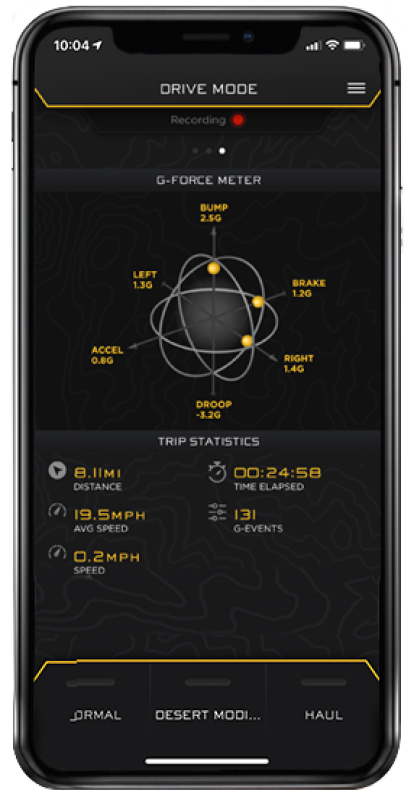

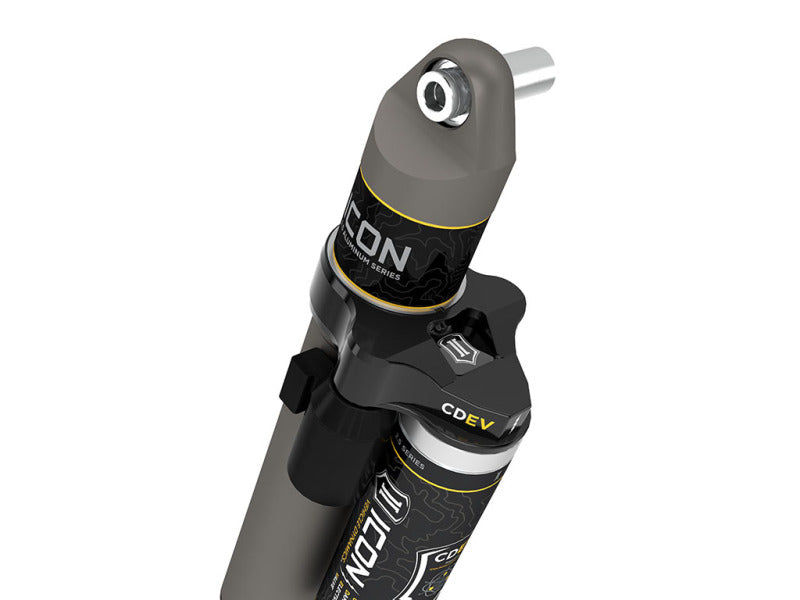

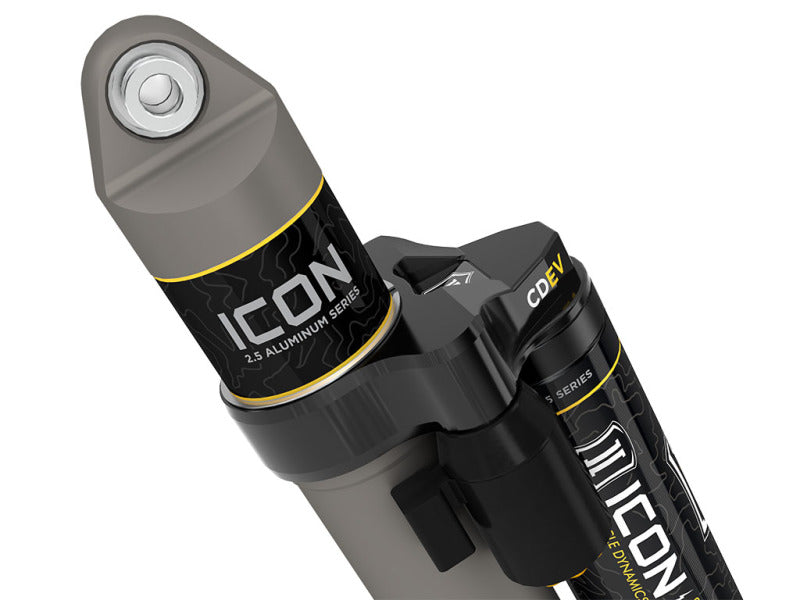

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. ICON 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured for each application in both length and damping tune. TECH NOTE: Rear shocks require sway bar relocation kit (Part #22062) or sway bar link kit (Part #22070) to be used in conjunction with JT coil spacer (Part #22065) or JT coil spring (Part #22066)

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• Protective shin guards standard with every shock
• 100% Revalveable
• 100% Rebuildable

Upgrade the rear suspension of your 2020 and newer Jeep Gladiator JT with the ICON 27727EP 2.5 Aluminum Series shocks featuring Compression Damping Electronic Valve (CDEV) technology. Designed for vehicles with approximately 1.5 inches of rear lift, this shock pair provides electronically adjustable compression damping for improved control on changing terrain and a more refined ride on the street. CDEV can react in less than 40 milliseconds, allowing the ICON Intelligent Control system and proprietary ICON mobile app to make precise adjustments using data from the onboard G-force sensor and gyroscope.
Each shock is configured specifically for the Gladiator application with vehicle-specific length and damping calibration. The one-piece digressive piston delivers consistent performance both on and off-road, while the internal Bump Zone increases damping by 20 percent near full compression for added control. A nitrogen-charged monotube design with piggyback reservoir helps manage heat and reduce fade during extended driving, while premium 5WT shock oil maintains consistent damping across a broad temperature range.
The one-piece, hard-anodized, impact-extruded aluminum cylinders offer corrosion resistance and a durable finish. Additional construction features include 6061 aircraft-grade aluminum CNC-machined components, a 7/8-inch induction-hardened chrome-plated shock shaft, PTFE-lined spherical bearings, application-specific mounting hardware, and protective shin guards. The shocks are fully revalveable and rebuildable for long-term serviceability and performance tuning.
Rear shocks require either the ICON sway bar relocation kit, Part 22062, or sway bar link kit, Part 22070, when used with the JT coil spacer, Part 22065, or JT coil spring, Part 22066. The ICON 27727EP is sold as a pair and is engineered for 2020 and newer Jeep Gladiator JT applications.

Features:

• CDEV technology provides electronically adjustable compression damping through ICON Intelligent Control

• CDEV reacts in less than 40 milliseconds for precise adjustment across changing terrain

• Vehicle-specific valving and one-piece digressive piston design improve ride quality and off-road control

• Internal Bump Zone increases damping by 20 percent near full compression

• Hard-anodized, impact-extruded aluminum cylinders provide corrosion resistance and a durable finish

• Premium 5WT shock oil supports consistent damping across a wide temperature range

• Piggyback reservoir improves heat dissipation and helps reduce shock fade

• Nitrogen-charged monotube shock design

• PTFE-lined spherical bearings and application-specific mounting hardware

• 7/8-inch induction-hardened, chrome-plated shock shaft

• 6061 aircraft-grade aluminum CNC-machined components

• Protective shin guards included with every shock

• 100 percent revalveable

• 100 percent rebuildable

• Rear sway bar relocation or link hardware is required for specified coil spacer or coil spring installations

Compatible With
2020 Jeep Gladiator
2021 Jeep Gladiator
2022 Jeep Gladiator
2023 Jeep Gladiator
