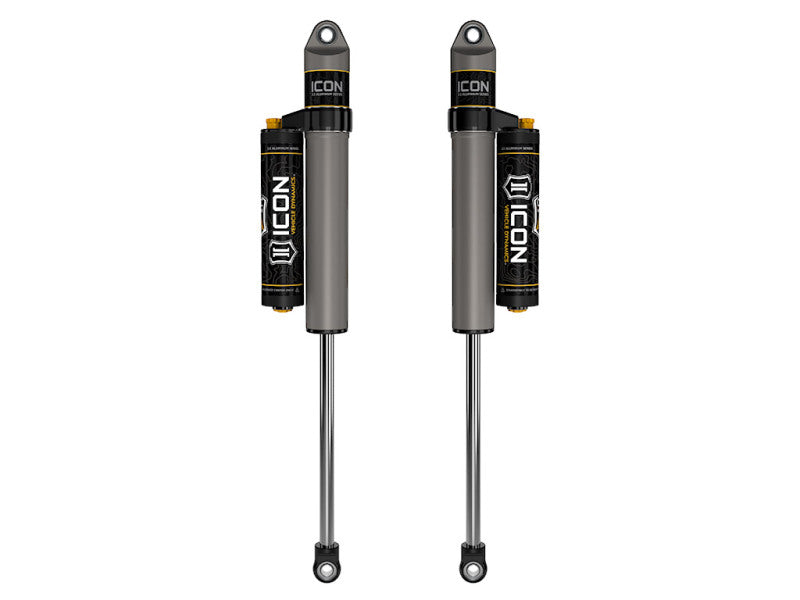

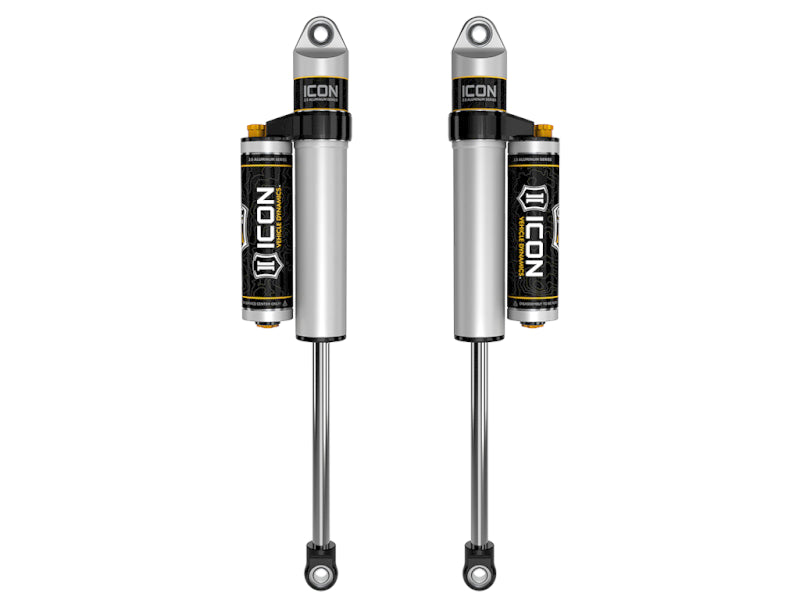

ICON 27727CP 2.5 Aluminum Series Rear Shocks with CDCV for 2020–2021 Jeep Gladiator JT with 1.5-Inch Lift

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Shin guards are also included with this application to help protect the shock shafts from debris strikes during off-road use. ICON 2.5 Aluminum Series shocks with CDCV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured for each application in both length and damping tune. TECH NOTE: Rear shocks require sway bar relocation kit (Part #22062) or sway bar link kit (Part #22070) to be used in conjunction with JT coil spacer (Part #22065) or JT coil spring (Part #22066)

• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components

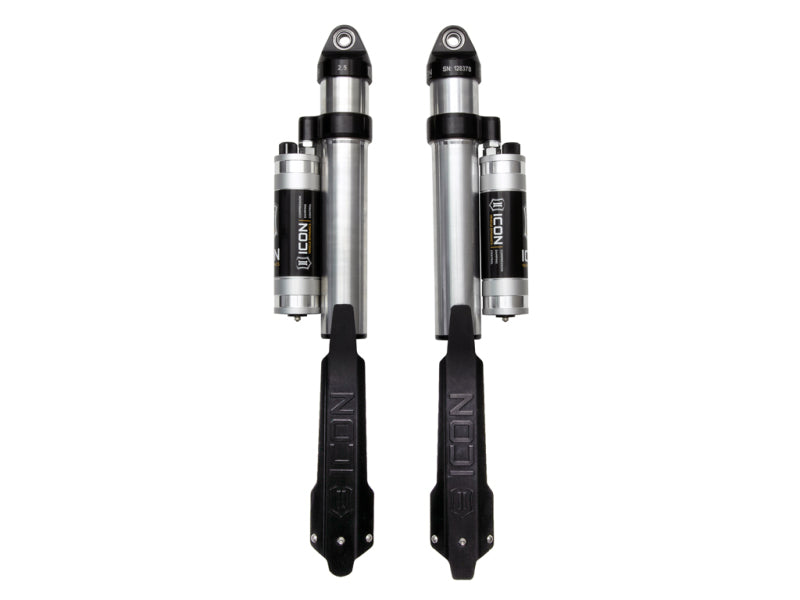

• Protective shin guards standard with every shock
• 100% Rebuildable
• 100% Revalveable

Upgrade the suspension performance of your 2020–2021 Jeep Gladiator JT with the ICON 27727CP 2.5 Aluminum Series rear shocks. Designed specifically for vehicles equipped with approximately 1.5 inches of rear lift, this pair of shocks combines application-specific length and damping calibration for controlled off-road performance and a smooth, composed ride on the street. The nitrogen-charged monotube design uses a piggyback reservoir to improve heat dissipation and help reduce shock fade during prolonged or demanding use.
Each ICON 27727CP shock features a one-piece digressive piston with vehicle-specific valving for responsive handling and consistent ride quality. ICON’s internal Bump Zone increases damping force by approximately 20 percent as the shock approaches full compression, helping control suspension movement and reduce harsh bottoming. The externally adjustable CDC Valve provides 10 levels of compression damping adjustment, allowing you to fine-tune the suspension for changing terrain, vehicle loads, and driving preferences.
Durable one-piece impact-extruded aluminum cylinders provide corrosion resistance and a consistent finish, while premium 5WT shock oil supports reliable damping across a broad temperature range. CNC-machined 6061 aircraft-grade aluminum components, a 7/8-inch induction-hardened chrome-plated shaft, PTFE-lined spherical bearings, and application-specific mounting hardware deliver long-term durability. Protective shin guards are included to help shield the shock shafts from debris during off-road driving. Like other ICON Aluminum Series shocks, the 27727CP is fully rebuildable and revalveable. Rear shocks require ICON sway bar relocation kit Part #22062 or sway bar link kit Part #22070 when used with JT coil spacer Part #22065 or JT coil spring Part #22066.

Features:

• Vehicle-specific digressive piston design and valving for improved on-road comfort and off-road control

• Internal Bump Zone increases damping by approximately 20 percent near full compression

• CDC Valve provides 10 levels of externally adjustable compression damping

• Piggyback reservoir improves heat dissipation and helps reduce shock fade

• One-piece impact-extruded aluminum cylinder offers corrosion resistance and a consistent finish

• Premium 5WT shock oil provides consistent damping across a wide temperature range

• 7/8-inch induction-hardened, chrome-plated shock shaft

• PTFE-lined spherical bearings and application-specific mounting hardware

• 6061 aircraft-grade aluminum CNC-machined components

• Protective shin guards help protect shock shafts from off-road debris

• 100 percent rebuildable design

• 100 percent revalveable design

• Fits 2020–2021 Jeep Gladiator JT models with approximately 1.5 inches of rear lift

• Rear installation requires compatible sway bar relocation or link components when used with the specified JT coil spacer or coil spring

Compatible With
2020 Jeep Gladiator
2021 Jeep Gladiator
2022 Jeep Gladiator
2023 Jeep Gladiator
