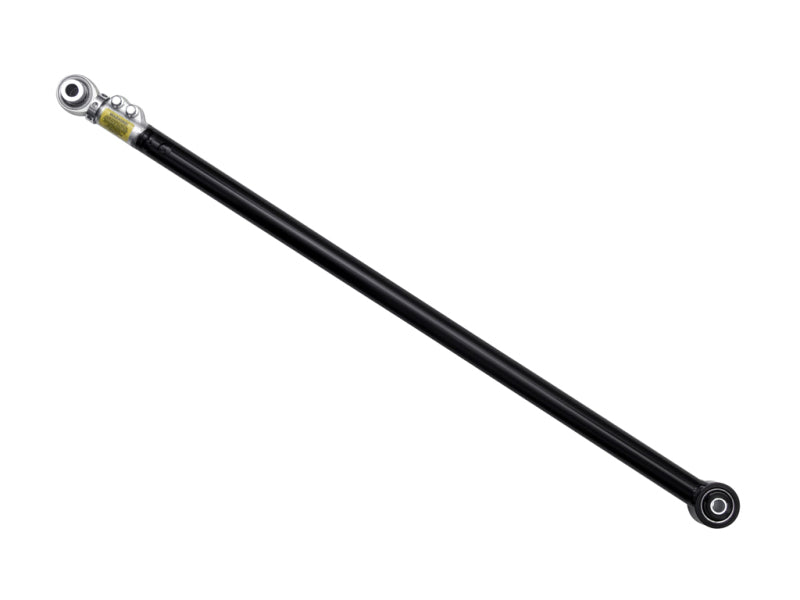

ICON 22068 Tubular Rear Adjustable Track Bar for Jeep Gladiator and Ram 1500

The ICON Tubular Rear Track Bar helps center the axle of your lifted 2020-2023 Jeep Gladiator or 2019-2026 Ram 1500 to allow for increased suspension travel and articulation. A massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. ICON’s exclusive rod end Double Adjuster Sleeve allows for fast, easy “on-vehicle” adjustment of track bar length without requiring removal or disassembly of the track bar. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. The track bar is made of CNC bent 1¼ x .250 wall 1026 DOM tubing with CNC machined threaded end and bushing housing. It has a multi-stage black powder coat finish. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty. The ICON Tubular Rear Track Bar helps center the axle of your lifted 2020-2023 Jeep Gladiator or 2019-2026 Ram 1500 to allow for increased suspension travel and articulation. APPLICATION NOTE #660: Compatible with 0-2" of rear lift on most Jeep Gladiator submodels

• Maintenance free, multi-durometer bushing and JM12T rod end minimize deflection while maximizing responsiveness
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Constructed with CNC machined and bent 1 1/4" x .250 wall 1026 seamless DOM tubing
• On vehicle adjustable for precise track alignment using ICON’s Double Adjuster
• Dual stage powder coat finish provides excellent corrosion resistance
• Easy install into OEM mounts w/ application specific hardware
• Allows for full suspension articulation without binding

The ICON Tubular Rear Track Bar, Part Number 22068, is designed to help center the rear axle on lifted 2020–2023 Jeep Gladiator models and 2019–2026 Ram 1500 applications. By correcting axle position, this adjustable track bar supports increased suspension travel, improved articulation, and more precise tracking after changes to ride height. It is compatible with 0–2 inches of rear lift on most Jeep Gladiator submodels and installs into the factory mounting locations with application-specific hardware.
Built for demanding off-road use, the ICON 22068 combines a massive FK rod end with a dual-durometer, high-angle greaseless bushing. This design minimizes deflection while allowing full suspension articulation without binding, while also helping isolate road noise and vibration. The maintenance-free construction provides responsive handling and reliable performance without requiring routine bushing lubrication.
ICON’s exclusive Double Adjuster Sleeve allows the track bar length to be adjusted on the vehicle, eliminating the need to remove or disassemble the component. This makes it easier to correct axle location and fine-tune alignment whenever suspension height is changed. The track bar is formed from CNC-bent 1026 seamless DOM tubing with a CNC-machined threaded end and bushing housing, then protected by a durable multi-stage black powder coat finish for enhanced corrosion resistance. ICON 1K testing validates performance, strength, and durability under rigorous off-road conditions, and the component is backed by ICON’s Limited Lifetime Warranty.

Features:

• Maintenance-free, multi-durometer bushing and JM12T rod end minimize deflection while maximizing responsiveness

• ICON 1K tested under rigorous off-road conditions to validate tuning, performance, strength, and durability

• Constructed from CNC-machined and bent 1 1/4-inch by 0.250-inch-wall 1026 seamless DOM tubing

• On-vehicle adjustable for precise track alignment using ICON’s exclusive Double Adjuster Sleeve

• Dual-stage black powder coat finish provides excellent corrosion resistance

• Installs into factory mounts with application-specific hardware

• Allows full suspension articulation without binding

• Compatible with 0–2 inches of rear lift on most Jeep Gladiator submodels

• Covered by ICON’s Limited Lifetime Warranty

Compatible With
2019 Ram 1500
2020 Jeep Gladiator
2020 Ram 1500
2021 Jeep Gladiator
2021 Ram 1500
2022 Jeep Gladiator
2022 Ram 1500
2023 Jeep Gladiator
2023 Ram 1500
2024 Ram 1500
2025 Ram 1500
2026 Ram 1500
