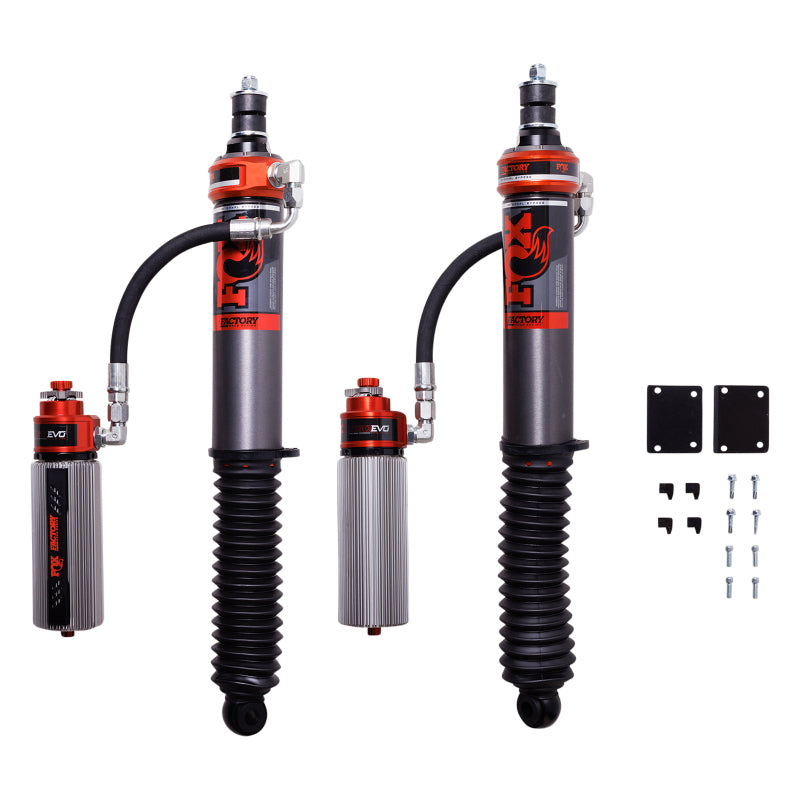

FOX 883-26-169 Factory Race Series 3.2 Internal Bypass Rear Shock for 2025+ Toyota 4Runner, 2024+ Land Cruiser and Lexus GX550

FOX Factory Race Series 3.2 Internal Bypass shocks for the LC250, GX550, and 4Runner chassis deliver velocity and position-sensitive damping technology, Dual Speed Compression Evolution (DSC EVO) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. Type II anodization prevents corrosion and wear of the 3.2-inch diameter aluminum bodies. Finned reservoirs increase oil capacity, house an IFP, and feature a DSC EVO adjuster. DSC EVO utilizes Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high-speed compression without sacrificing small-bump sensitivity. FOX 3.2 shocks with Internal Bypass provide the support, adjustment, and confidence you need while driving at speed. Experience race-bred performance next time you leave the pavement. Application specific valving to maximize performance Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.

• Application-specific springs and vehicle-specific tuning maximizes performance.
• 3.2 in. Impact-Extruded And CNC-Machined 6061-T6 Type II Anodized Aluminum Body
• Position- and velocity-sensitive damping maximize control through any terrain.
• Patented, internal bypass design Finned remote reservoir with DSC EVO adjuster
• Application-Specific Springs And Vehicle-Specific Tuning Maximizes Performance
• Position- And Velocity-Sensitive Damping Maximize Control Through Any Terrain
• 3.2" impact-extruded and CNC-machined 6061-T6 Type II anodized aluminum body
• Patented; Internal Bypass Design Finned Remote Reservoir w/DSC EVO Adjuster
• Redundant Sealing Pack System - Main Seal; Wiper Seal; Scraper Seal
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• 7/8 in. Hard Chromed Steel Shafts
• 7/8" hard chromed steel shafts

The FOX Factory Race Series 3.2 Internal Bypass Rear Shock, part number 883-26-169, is engineered for the 2025 and newer Toyota 4Runner, 2024 and newer Toyota Land Cruiser, and 2024 and newer Lexus GX550. Designed for vehicles with 0 to 1.5 inches of lift, this bolt-on shock delivers application-specific valving and vehicle-specific tuning for confident control on the street, trail, and high-speed off-road terrain.
Patented FOX Internal Bypass technology provides position- and velocity-sensitive damping through multiple zones of control. In the ride zone, fluid bypasses the main piston through calibrated bleed holes for improved small-bump comfort and ride quality. As the shock moves farther into compression or rebound, the bypass zones close and force fluid through the piston, progressively increasing damping to help control hard bottom-outs, reduce harsh top-outs, and provide additional support during aggressive driving and landings.

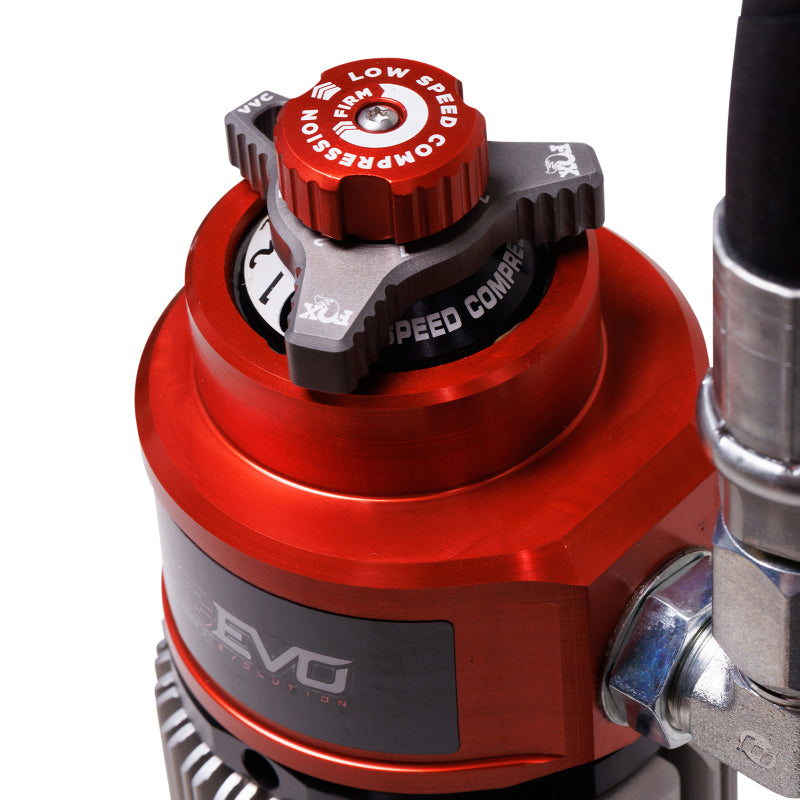

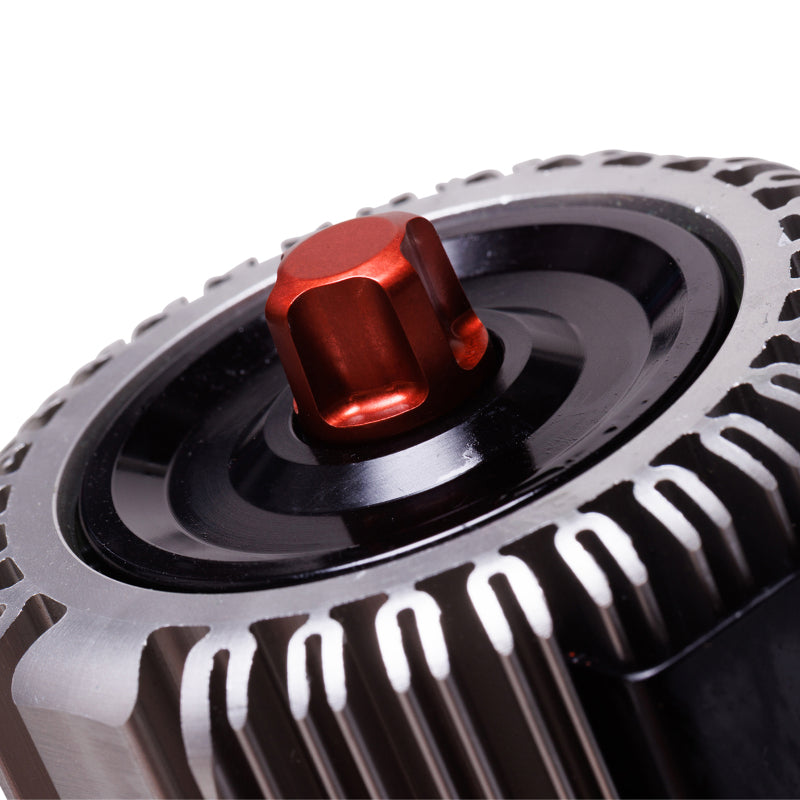

The finned remote reservoir increases fluid capacity and incorporates the Dual Speed Compression Evolution (DSC EVO) adjuster. Its Variable Valve Control high-speed circuit allows high-speed compression adjustment without adding preload to the shim stack, helping preserve small-bump sensitivity while adding support for larger impacts. The 3.2-inch impact-extruded and CNC-machined 6061-T6 aluminum body features Type II anodization for improved resistance to corrosion and wear, while the hard-chromed steel shaft and redundant sealing pack provide durable performance in demanding conditions. The FOX Factory Race Series 3.2 shock delivers race-developed control, useful adjustability, and dependable off-road performance in a vehicle-specific rear suspension package.

Features:

• Application-specific springs and vehicle-specific tuning maximize performance

• Patented Internal Bypass design provides position- and velocity-sensitive damping

• Finned remote reservoir with Dual Speed Compression Evolution adjuster

• Variable Valve Control high-speed circuit improves adjustability without sacrificing small-bump sensitivity

• 3.2-inch impact-extruded and CNC-machined 6061-T6 Type II anodized aluminum body

• Progressive damping helps control bottom-outs, top-outs, and large impacts

• Redundant sealing pack system includes main, wiper, and scraper seals

• 7/8-inch hard-chromed steel shaft

• Designed for 0 to 1.5 inches of lift

• Fits 2025 and newer Toyota 4Runner, 2024 and newer Toyota Land Cruiser, and 2024 and newer Lexus GX550

Compatible With
2024 Lexus GX550
2024 Toyota Land Cruiser
2025 Lexus GX550
2025 Toyota 4Runner
2025 Toyota Land Cruiser
2026 Lexus GX550
2026 Toyota 4Runner
2026 Toyota Land Cruiser
