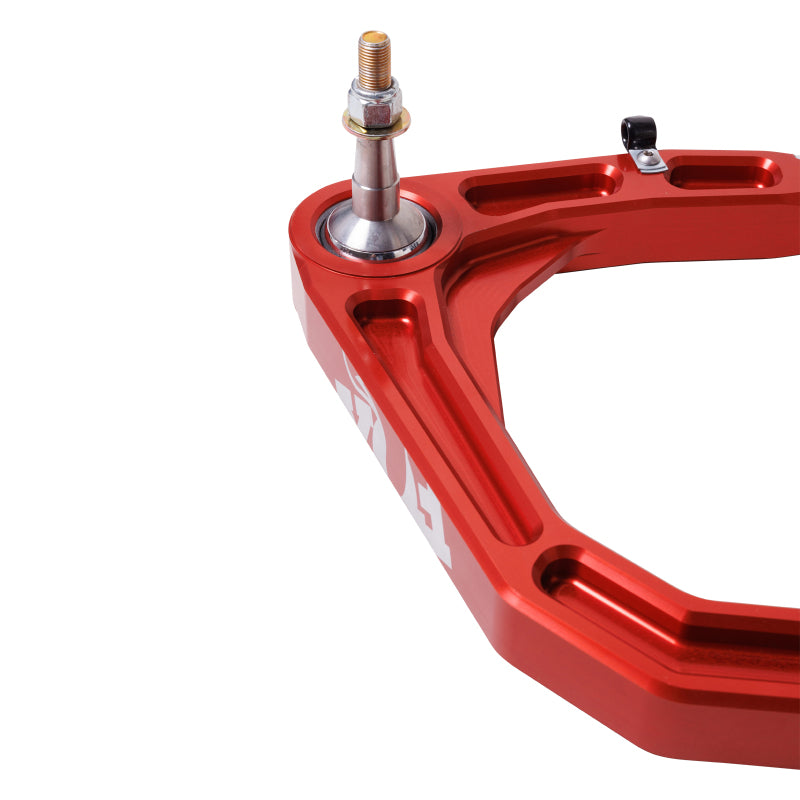

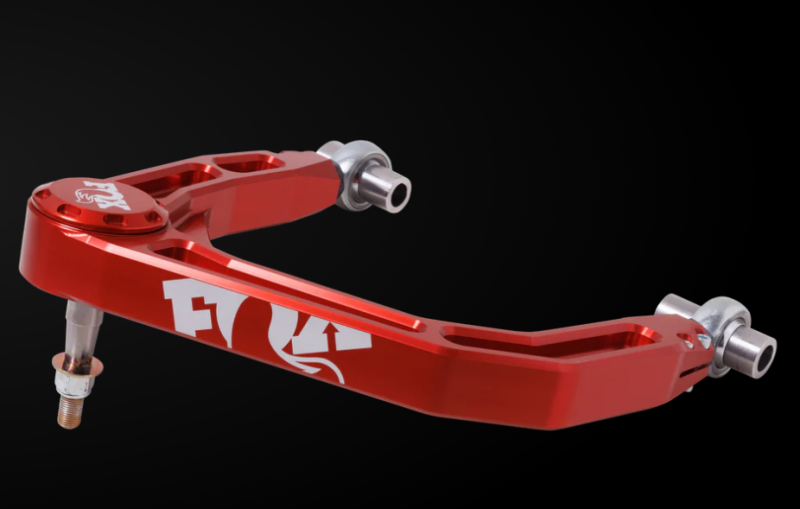

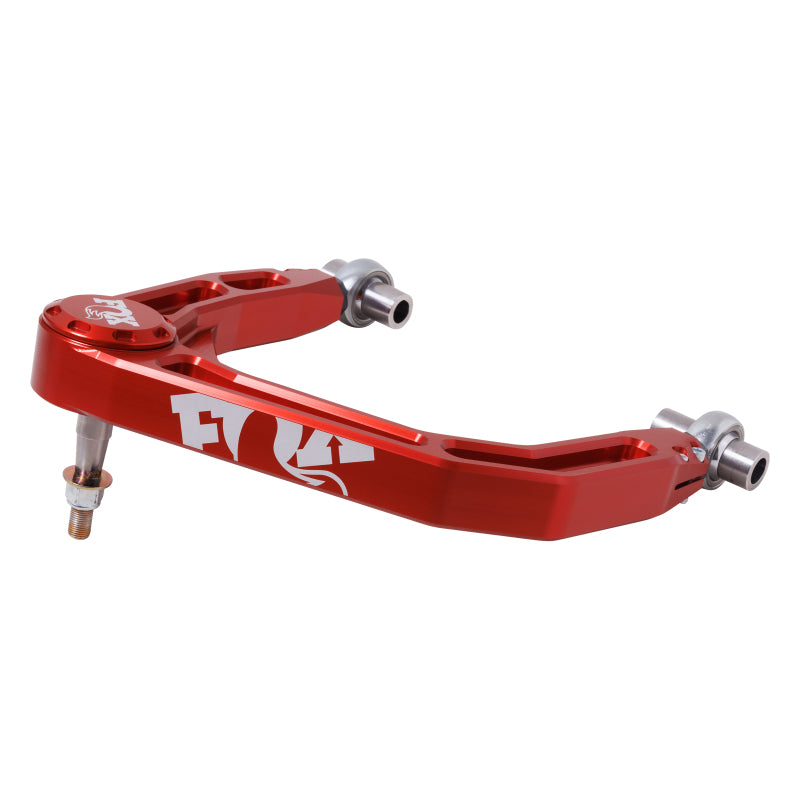

FOX 803-35-001 Billet Upper Control Arms for 2022-2025 Toyota Tundra

The Upper Control Arms (UCA) are consider the first step when building a mid-travel truck, to unlock the vehicles off-road capability through tough terrain. Our engineers spent time evaluating suspension geometry and optimized the UCAs specifically for the intended vehicle. Lifting a vehicle compromises the OEM alignment specification by introducing too much caster, FOX UCAs provide the necessary correction to maintain the vehicle's alignment while maximizing droop travel for more articulation off-road. Additional caster helps reduce wander at high-speed for more confidence behind the wheel. You'll notice a precise comfortable ride on rougher roads and trails. TOYOTA TUNDRA | UPPER CONTROL ARM | (2022-2025) FOX Upper Control Arms feature a lifetime warranty on the aluminum arm. This is backed by a 12 month warranty on all serviceable components and finishes.

• Stainless-steel taper misalignment spacers and 12-point bolts at the steering knuckle ensure a reliable and precise fit. Bolt-on the UCAs without any modification to the vehicle chassis

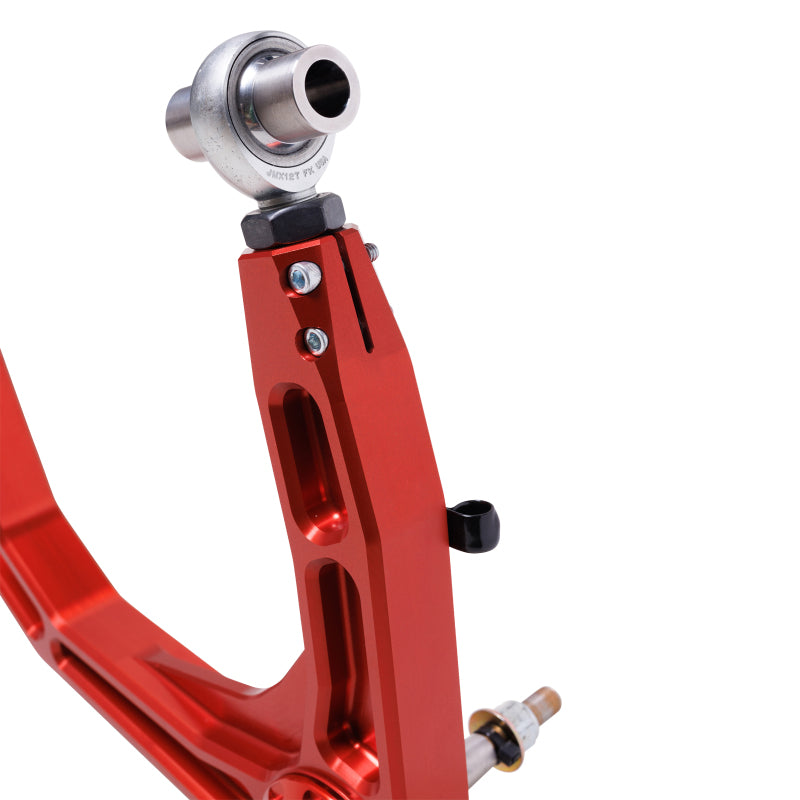

• The 3/4" chromoly heim joints are fully adjustable allowing for fine tuning of caster and camber. The Kevlar fiber reinforced PTFE liner to prevent binding and long-lasting precision
• FOX upper control arms are CNC machined in the USA from T6061 billet aluminum. Type II anodization offers superior corrosion resistance and feature a laser etched FOX logo
• 1.25" uniballs are comprised of a hard chrome plated ball and low carbon steel race to increase service life. A PTFE liner mitigates noise to keep the ride comfortable
• Stainless-Steel Taper Misalignment Spacers And 12-Point Bolts At The Steering Knuckle Ensure A Reliable And Precise Fit
• 1.25 in. Uniballs Are Comprised Of A Hard Chrome Plated Ball And Low Carbon Steel Race To Increase Service Life
• The 3/4 in. Chromoly Heim Joints Are Fully Adjustable Allowing For Fine Tuning Of Caster And Camber
• Type II Anodization Offers Superior Corrosion Resistance And Feature A Laser Etched FOX Logo
• The Kevlar Fiber Reinforced PTFE Liner To Prevent Binding And Long-Lasting Precision
• FOX Upper Control Arms Are CNC Machined In The USA From T6061 Billet Aluminum
• Bolt-On The Ucas w/o Any Modification To The Vehicle Chassis
• PTFE Liner Mitigates Noise To Keep The Ride Comfortable

Unlock greater off-road capability with FOX Part Number 803-35-001 Upper Control Arms, engineered for the 2022-2025 Toyota Tundra. Designed as a foundational upgrade for mid-travel suspension systems, these control arms optimize suspension geometry, help correct alignment changes caused by vehicle lifts, and maximize droop travel for improved articulation over rough terrain. Increased caster support also helps reduce high-speed wandering for more confident handling on the road and trail.
FOX Upper Control Arms are CNC machined in the USA from T6061 billet aluminum and finished with Type II anodization for enhanced corrosion resistance. The aluminum arm is backed by a lifetime warranty, while serviceable components and finishes carry a 12-month warranty. A laser-etched FOX logo adds a distinctive finish while reflecting the product's precision construction.
The 3/4-inch chromoly heim joints are fully adjustable for fine tuning of caster and camber. Their Kevlar fiber-reinforced PTFE liners help prevent binding and support long-lasting precision. The 1.25-inch uniballs use hard chrome-plated balls and low-carbon steel races to promote durability, while PTFE liners help reduce noise and maintain a comfortable ride. Stainless-steel taper misalignment spacers and 12-point steering-knuckle bolts provide a reliable, precise fit.
These FOX UCAs install as a direct bolt-on solution without modification to the vehicle chassis. They are designed for the 2022-2025 Toyota Tundra and are also listed for select 2023 Toyota Sequoia applications. Verify vehicle configuration and suspension compatibility before installation. Professional installation and an alignment are recommended after installation.

Features:

• Application: Designed for 2022-2025 Toyota Tundra models and select 2023 Toyota Sequoia applications

• Construction: CNC machined in the USA from T6061 billet aluminum

• Finish: Type II anodization provides enhanced corrosion resistance with a laser-etched FOX logo

• Adjustment: Fully adjustable 3/4-inch chromoly heim joints allow caster and camber tuning

• Joint liner: Kevlar fiber-reinforced PTFE liner helps prevent binding and maintain precision

• Uniballs: 1.25-inch uniballs feature hard chrome-plated balls and low-carbon steel races for extended service life

• Noise control: PTFE liners help reduce operating noise for a more comfortable ride

• Installation: Bolt-on design installs without modification to the vehicle chassis

• Hardware: Stainless-steel taper misalignment spacers and 12-point steering-knuckle bolts provide a precise fit

• Warranty: Lifetime warranty on the aluminum arm and 12-month warranty on serviceable components and finishes

Compatible With
2022 Toyota Tundra
2023 Toyota Sequoia
2023 Toyota Tundra
2024 Toyota Sequoia
2024 Toyota Tundra
2025 Toyota Sequoia
2025 Toyota Tundra
2026 Toyota Sequoia
2026 Toyota Tundra
